Grundfos Manifold Pump & Mixing Valve Unit

Name: Grundfos Manifold Pump & Mixing Valve Unit
Brand: Grundfos
SKU: GRUNDFOSMANIFOLDPUMPMIXER
Price: 270.00 GBP
Availability: InStock

Grundfos

£270.00 inc. VAT

Payment options

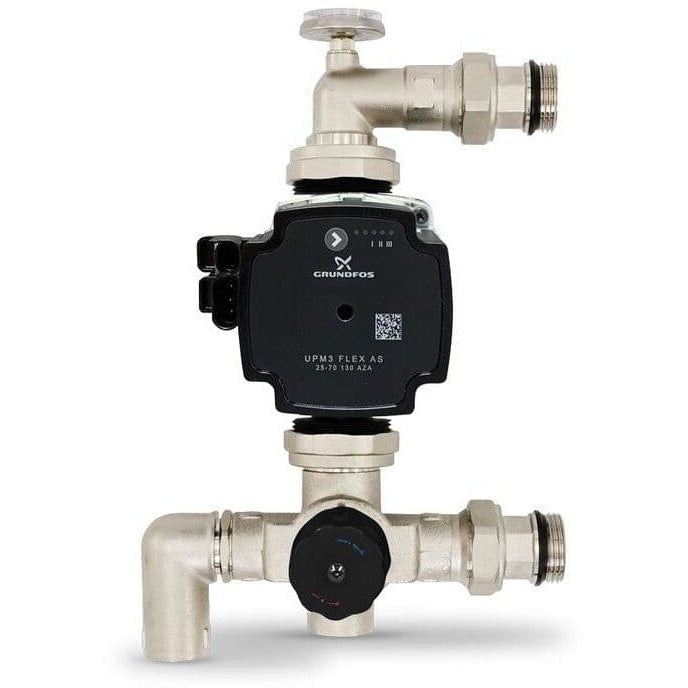

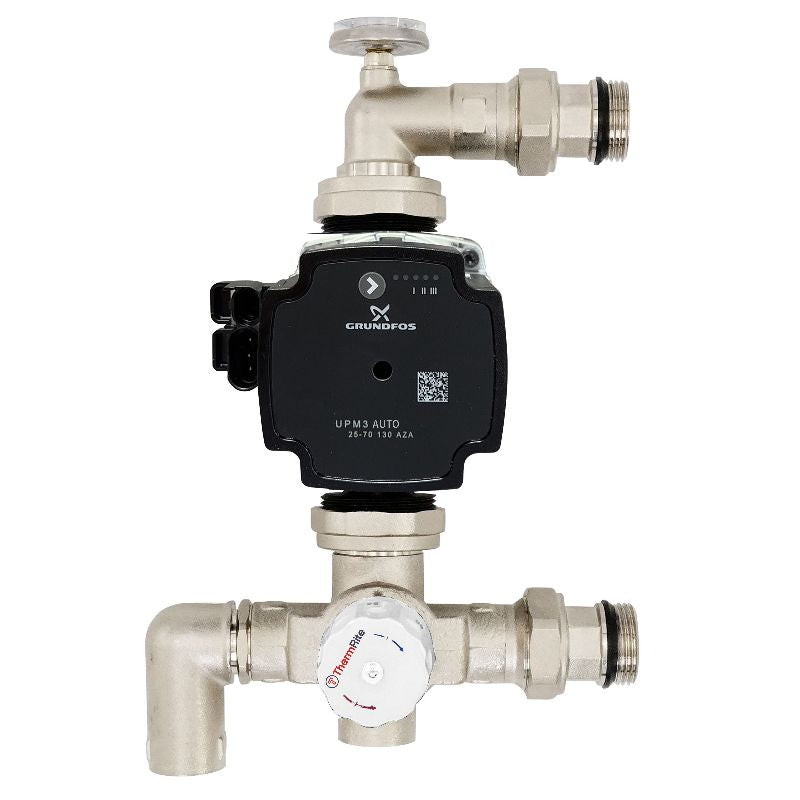

Automated Temperature Controller and Grundfos Pump Assembly

Description

The Automated Temperature Controller and Grundfos Pump Assembly is a high specification temperature control unit designed to manage and regulate water temperature and circulation in warm water underfloor heating systems. Pre-assembled in the UK for immediate connection, it ensures precise and efficient flow temperature control to optimize heating performance and energy savings.

Ideal for integration directly to floor heating manifolds, this system is compatible with various heat sources including oil and gas boilers, wood-burning stoves, heat pumps, solar collectors, and pellet burners.

What’s Included

Fully pre-assembled temperature control unit with thermostatic mixing valve

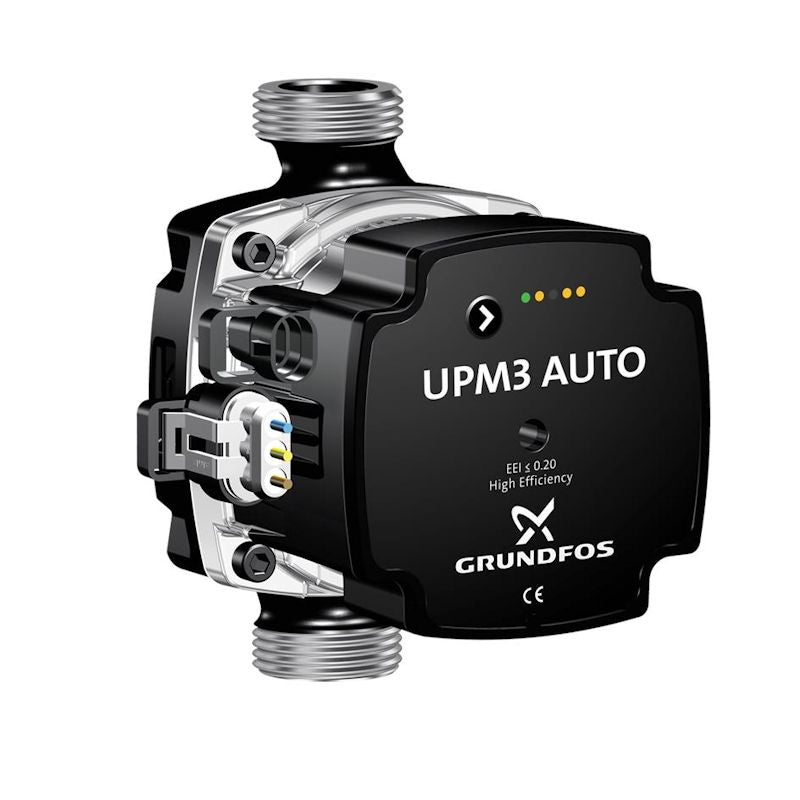

“A” Rated Grundfos UPM3 Auto variable speed circulation pump

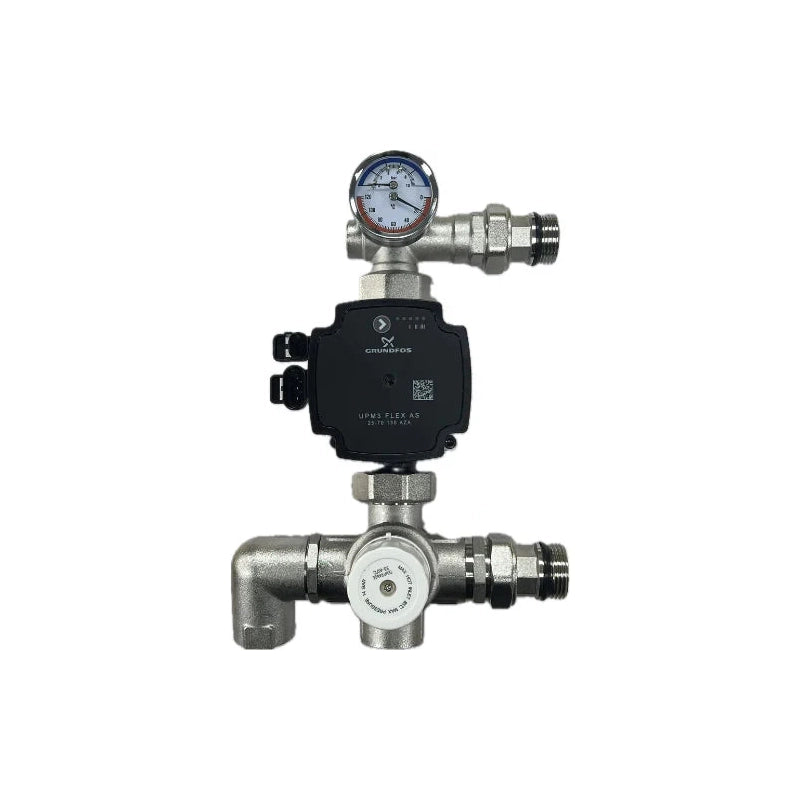

Temperature gauge for monitoring system temperature
Adjustable inlets allowing both side and bottom pipe entry
Flexible reversible configuration for left or right side manifold connection
All necessary flow and return connections and accessories
Comprehensive installation guide and manufacturer support

Key Features

High output Grundfos 3-speed UPM3 Auto circulation pump with “A” energy rating

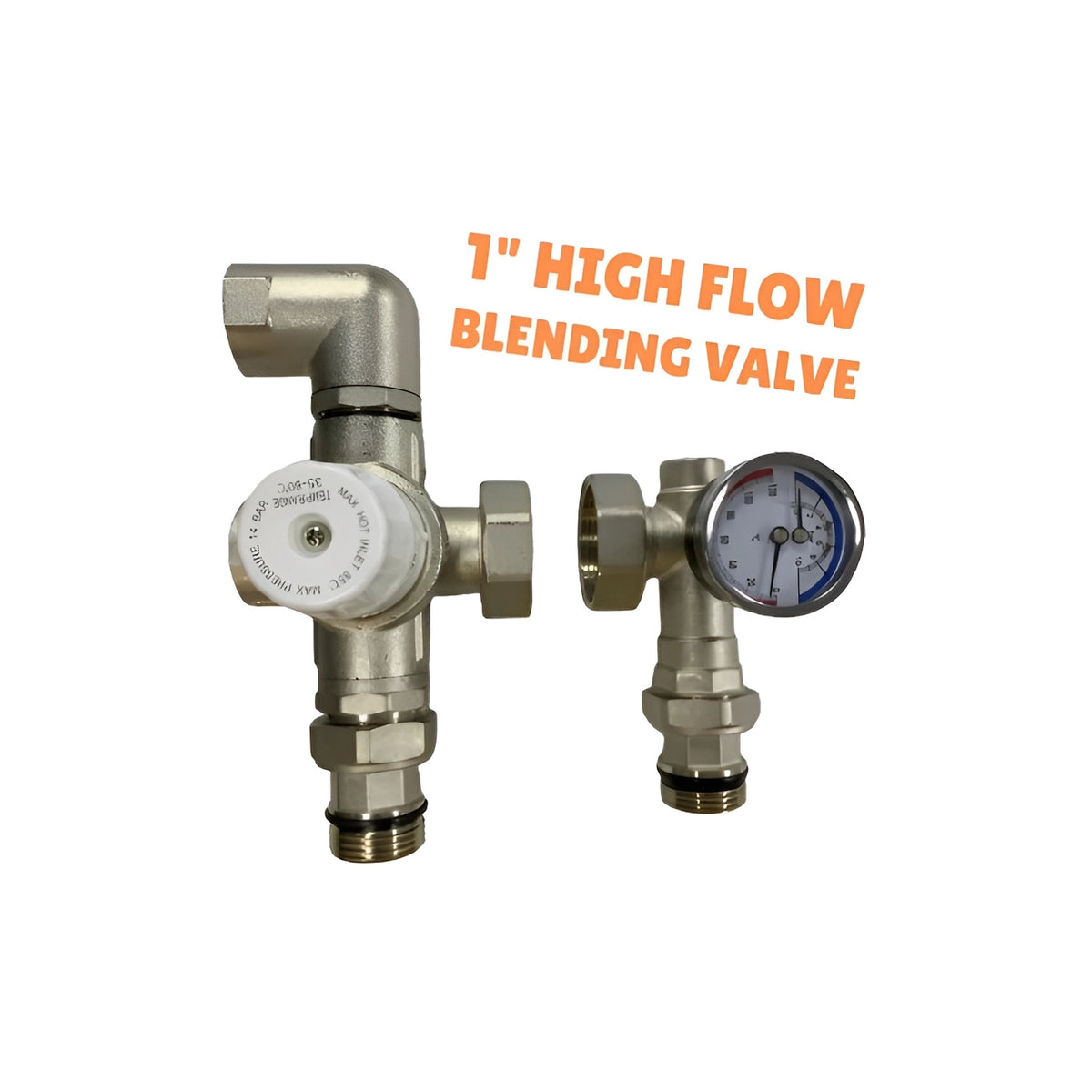

Thermomix automatic blending valve for precise water temperature control
Compact, lightweight design that bolts directly to compatible manifolds
Adjustable inlet configuration for versatility in plumbing connections
Reversible design enabling flexible manifold installation (left or right side)
Temperature adjustment range: 20°C to 55°C, ideal for force screed drying (BS1264 compliant)
High power: 3.4 kW at 18 kW output capacity (suitable for manifolds up to 12 ports)
Pre-installed temperature gauge for real-time system monitoring
Accurate flow temperature control within ±2°C regardless of boiler flow or return fluctuations
2-year manufacturer warranty for peace of mind

Benefits

Ensures stable and efficient heating system operation with consistent water temperature control
Minimizes energy consumption and reduces heating costs
Facilitates quick and straightforward installation with pre-assembled unit
Supports a wide range of heating sources and installation configurations
Built to UK standards for safety, reliability, and performance

Technical Specifications

Circulation Pump Model	Grundfos UPM3 Auto, 3-speed, A-rated
Power Output	3.4 kW (suitable for up to 18 kW heat load)
Manifold Compatibility	Up to 12 ports
Temperature Adjustment Range	20°C – 55°C
Temperature Control Accuracy	±2°C
Flow and Return Pipe Entry	Adjustable - side or bottom entry
Reversibility	Allows left or right side manifold connection
Temperature Gauge	Integrated, for system monitoring
Installation	Pre-assembled unit for direct manifold connection
Compliance	BS1264 (force screed drying), UK building standards
Warranty	2 years

The Automated Temperature Controller and Grundfos Pump Assembly offers professional-grade flow temperature management and water circulation, tailored for reliable, efficient underfloor heating system performance and installation ease.
