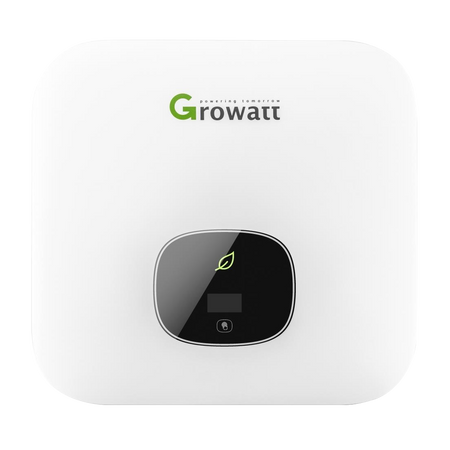

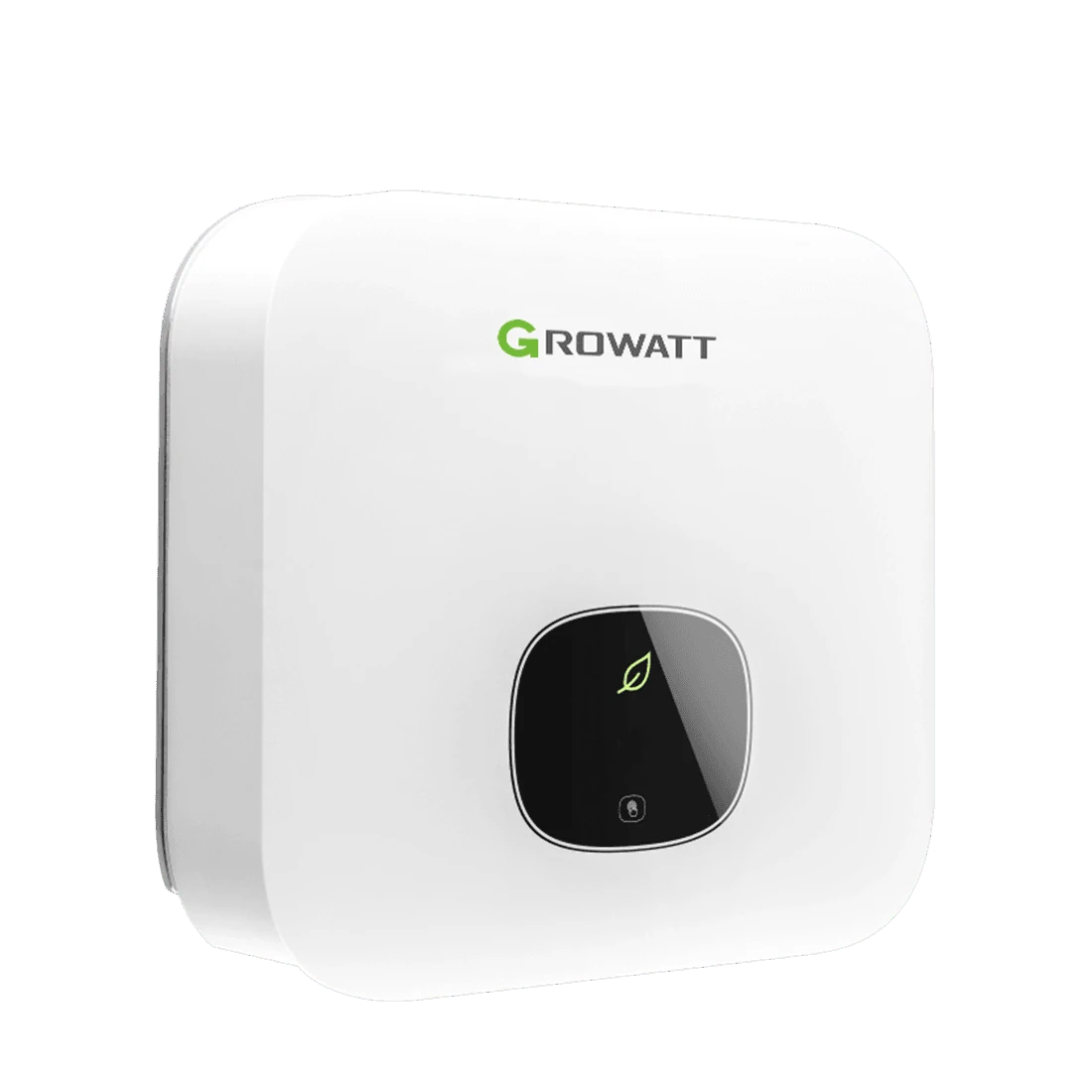

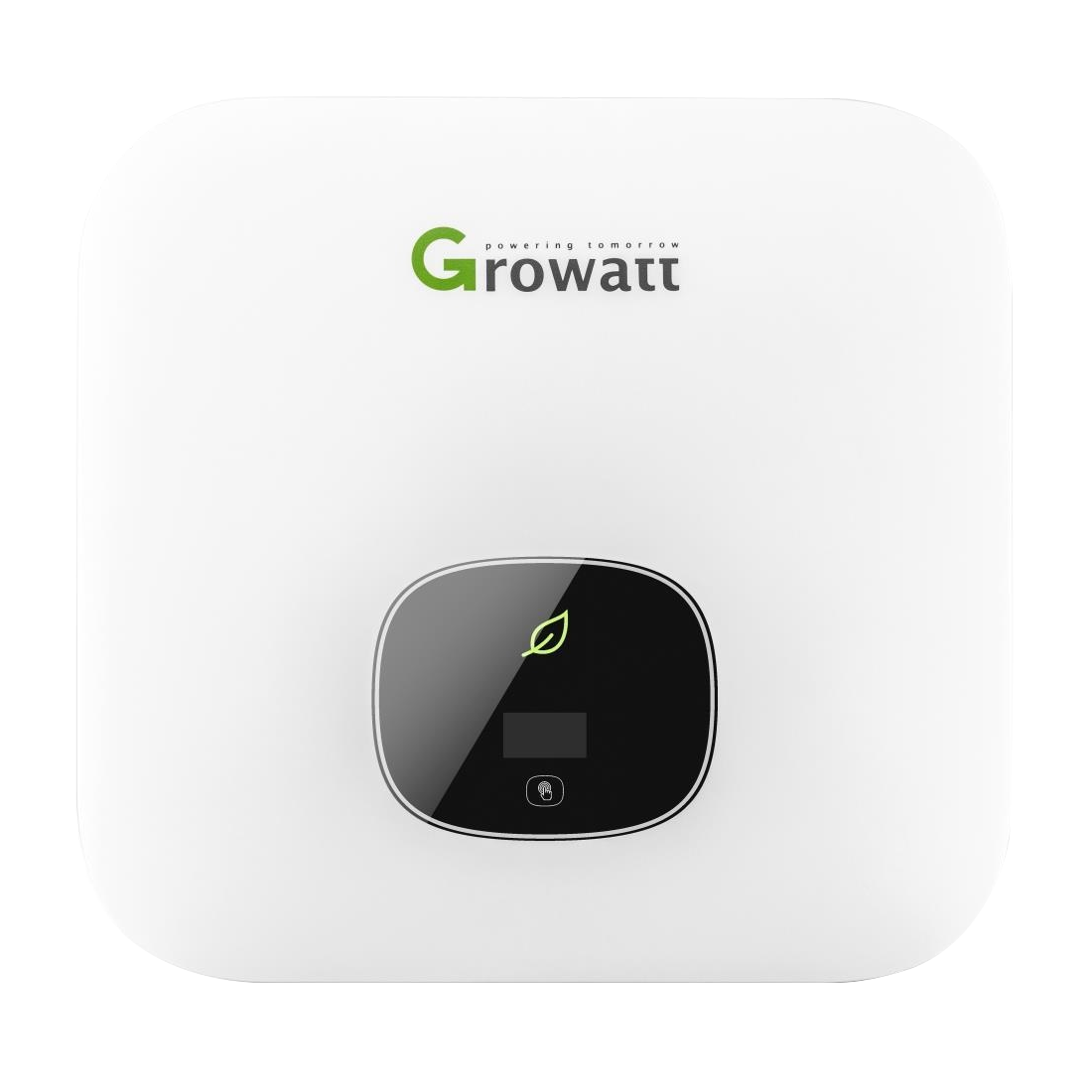

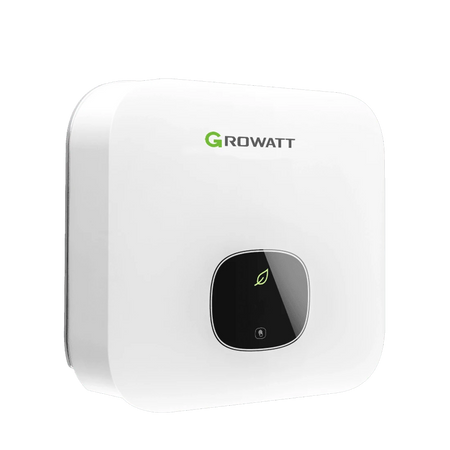

GROWATT MIN 3600TL XH Dual MPPT with DC

The Growatt MIN 3600TL XH Dual MPPT Battery Ready Inverter with DC Isolator (Part No: GROWATT-MIN3600-TL-XH) is a battery-ready, efficient single-phase hybrid inverter designed for residential solar PV systems, featuring dual MPPT trackers and integrated DC isolator for optimized energy harvest, battery compatibility, and safety.

The Growatt MIN TL-XH series is a battery-ready inverter that supports future expansion with Growatt ARK high-voltage batteries for energy storage. It offers maximum efficiency of 98.2% with a compact design, suitable for one-person installation. Optional AFCI and Type II SPD provide advanced protection, while the dual MPPT design allows flexible string configurations. The integrated DC isolator ensures safety and simplifies installation, making it ideal for residential systems aiming for self-consumption and energy independence.

Key Features

• Battery-ready: Compatible with Growatt ARK HV batteries for future storage integration.
• Dual MPPT trackers: Wide voltage range 70V-550V for flexible string design.
• High efficiency: Maximum 98.2%, Euro efficiency 97.2%.
• Compact design: Lightweight at 10.8 kg for easy installation.
• Integrated DC isolator: Enhances safety and simplifies wiring.
• 24h self-consumption monitoring: Tracks energy use for better optimization.
• Type II SPD on DC side: Protects against surges.
• Smart grid features: Export limitation and grid compliance.

Technical Specifications

• Model: GROWATT-MIN3600-TL-XH – MIN 3600TL-XH Dual MPPT Battery Ready Inverter.
• Rated AC power output: 3600 W.
• Maximum AC apparent power: 3600 VA.
• Maximum DC power: 7200 W.
• MPPT voltage range: 70V-550V.
• Startup voltage: 80 V.
• Maximum input voltage: 550 V.
• Maximum DC current: 13.5 A per MPPT.

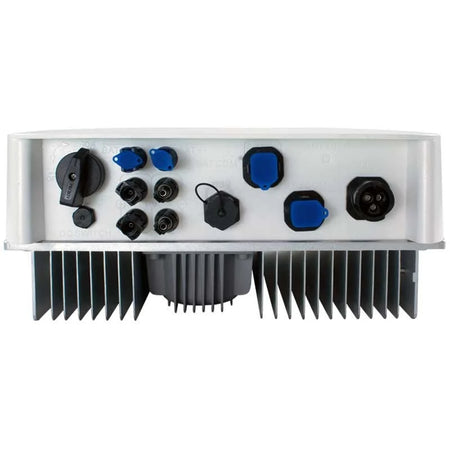

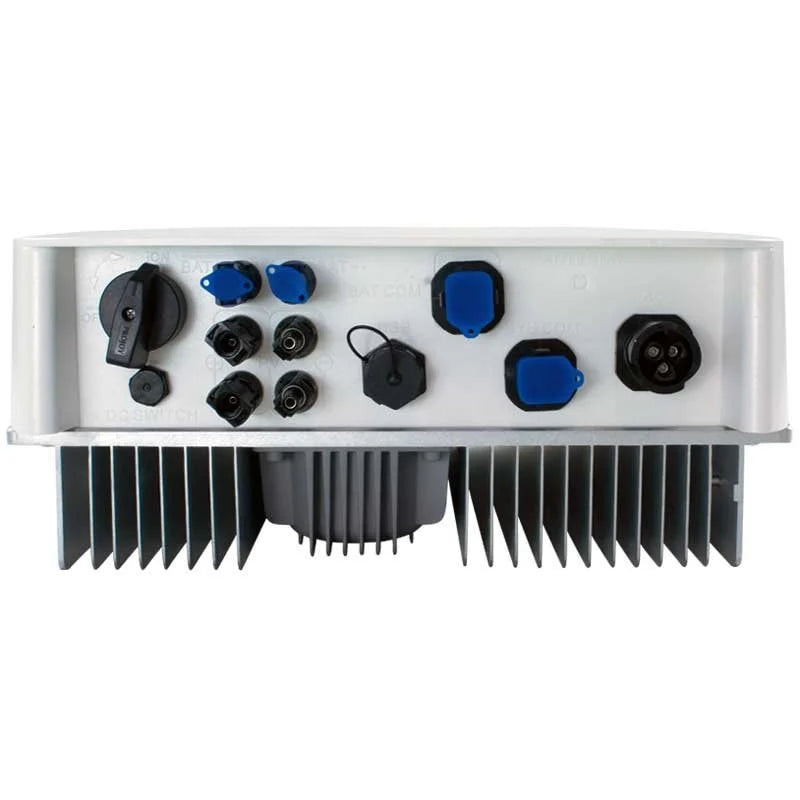

• DC inputs: 2 (MC4 connectors).
• Efficiency (max): 98.2%.
• Euro efficiency: 97.2%.
• Topology: Transformerless.
• Protection rating: IP65.
• Certifications: IEC62109, CE, VDE0126-1-1, AS4777, etc.

Dimensions & Weights

• Width: 375 mm.
• Depth: 160 mm.
• Height: 350 mm.
• Weight: 10.8 kg.

System & Application Notes

• Ideal for residential PV systems with 8-12 panels, battery-ready for future expansion.
• Compatible with Growatt ARK HV batteries and high-efficiency solar modules.
• Suitable for grid-tie applications with export limitation and self-consumption monitoring.
• Supports monitoring via Growatt ShineLink or app.
• Installation by qualified solar professionals following Growatt guidelines and local regulations.
• Warranty: 10 years standard.
