Glow-worm MiGo Link Internet Gateway SR 940F | 0010038368 | Wi-Fi

Description

The Glow-worm MiGo Link internet gateway (SR 940F) connects a Glow-worm heating system to the internet so homeowners can monitor and control it from the MiGo Link app, from anywhere. It works with all Glow-worm eBUS boilers from 2006 onwards and with the GeniaAir heat pump, alongside the MiPro Sense, MiSet, MiGo Select and Climastat Select controls.

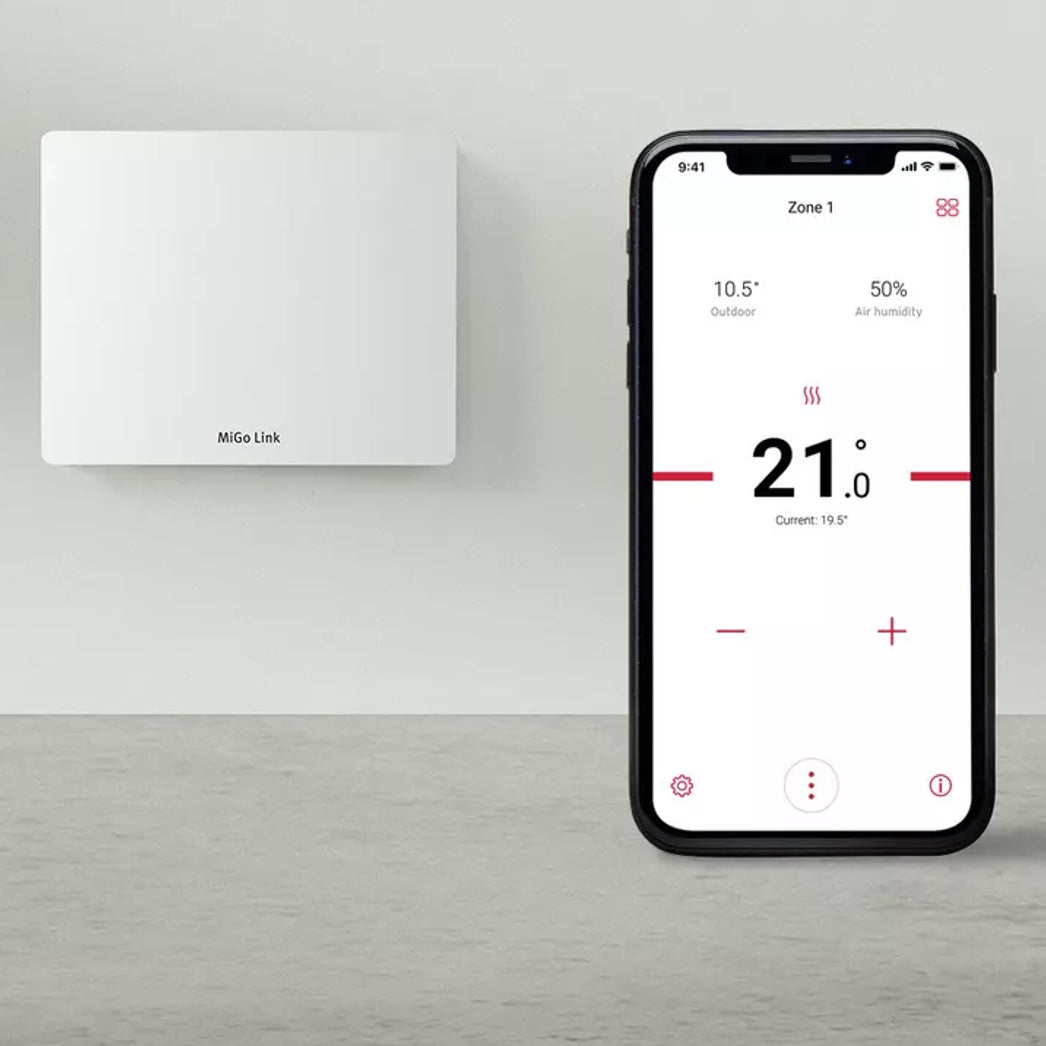

The app gives remote control of room temperatures and time programmes, an energy monitor for heating patterns and hot water use, and, with a compatible control and appliance, a consumption overview. Installers benefit too: connected systems can be watched remotely through MiGo Xpert for faster fault diagnosis. A single SRA 42 adapter can take power and eBUS straight from the boiler PCB on suitable boilers.

2006 +

eBUS boilers supported

4 controls

MiPro Sense, MiSet, MiGo Select, Climastat Select

3 W

Average power

IP 21

Protection rating

Class III

Protection class

96 × 122 × 36

mm (H × W × D)

A compatible control is required

The gateway enables the MiGo Link app only when installed with one of the compatible controls: MiPro Sense, MiSet, MiGo Select or Climastat Select. It is not a standalone thermostat.

Powering the gateway

Use an external power source, or the SRA 42 adapter, which allows power and eBUS to be taken directly from the boiler PCB (depending on boiler).

Smart home and installer tools

The gateway connects to Apple HomeKit for voice control of heating and hot water on single heating zone systems only, and lets installers remotely monitor connected systems with MiGo Xpert. With a MiGo Select or Climastat Select it also enables internet weather compensation.

Key features

Comfort

Customers can adjust room temperatures and time programmes intuitively in the MiGo Link app.

Efficiency

An energy monitor shows heating patterns and domestic hot water consumption.

Simplicity

Set time programmes in the app, then use a simple thermostat for day-to-day comfort.

Transparency

With a compatible control, the consumption monitor gives an overview of actual energy use and savings (depending on appliance).

Installer remote monitoring

Pair with MiGo Xpert to see faults and system data remotely and plan visits.

Works with the GeniaAir

Compatible with the GeniaAir heat pump, and plugs into the CIM connection on its appliance interface.

Technical specification

Product

Article number (MPN)

0010038368

Model

MiGo Link internet gateway, SR 940F

Compatible appliances

Glow-worm eBUS boilers from 2006 onwards and the GeniaAir heat pump

Compatible controls

MiPro Sense, MiSet, MiGo Select, Climastat Select

Companion app

MiGo Link (iOS and Android)

Technical data

Height × width × depth

96 × 122 × 36 mm

Average power consumption

3 W

IP rating

IP 21

Protection class

III

Power options

External power source, or SRA 42 adapter taking power and eBUS from the boiler PCB (depending on boiler)

Connectivity

Communication to appliance

eBUS

Smart home

Apple HomeKit, single heating zone systems only

Installer tool

MiGo Xpert remote monitoring

Frequently asked questions

Do I need a control as well as the gateway?

Yes. The gateway works with a MiPro Sense, MiSet, MiGo Select or Climastat Select control to enable the MiGo Link app.

Which boilers and heat pumps does it support?

All Glow-worm eBUS boilers from 2006 onwards and the GeniaAir heat pump.

How is it powered?

From an external power source, or via the SRA 42 adapter, which takes power and eBUS from the boiler PCB on suitable boilers.

Can it be used with Apple HomeKit?

Yes, for voice control of heating and hot water on single heating zone systems only.

What can installers do with it?

Use MiGo Xpert to monitor connected appliances remotely and see faults in advance.

How do I connect it to a GeniaAir?

The GeniaAir appliance interface has a CIM connection for the internet gateway, so it plugs in directly.
