✔ CT Clamp Installation — No Supply Interruption

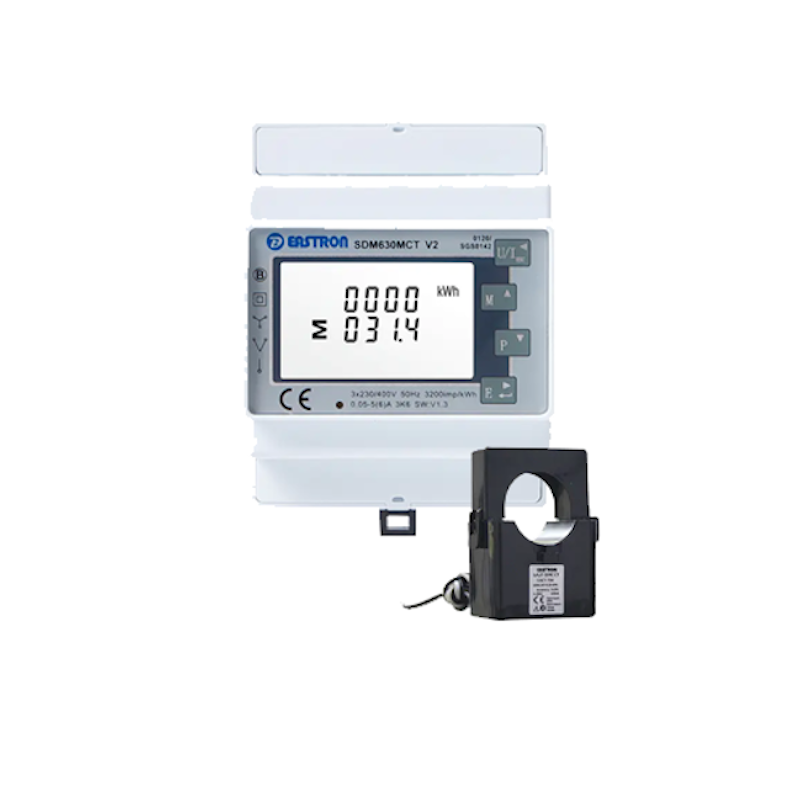

Current measurement via clip-on CT clamps (three included) means the meter can be installed on live cables without disconnecting supply to the property. The clamps close around the live conductors on each phase at the incoming supply — there is no need to break connections, cut wires, or isolate the supply for the current measurement side of the installation. Only the meter's own auxiliary supply (from the incoming voltage terminals) requires a brief connection.
✔ Bi-Directional — Import & Export
The SDM630MCT V2 measures both import (from grid) and export (to grid) energy independently — reporting both Imp_kWh and Exp_kWh. Negative power readings are also supported, with a CT reversal indicator for incorrect installation detection. This bi-directional capability is essential for solar PV monitoring, where the meter must distinguish between energy drawn from the grid and energy sent back to it, enabling accurate SEG (Smart Export Guarantee) calculations and self-consumption tracking.
✔ RS485 Modbus RTU — Universal Integration
The RS485 Modbus RTU interface communicates with up to 64 devices on a single bus at up to 1,000m cable distance, using standard baud rates from 2,400 to 38,400 bps. Modbus is the standard protocol for integration with solar hybrid inverters, battery storage systems, EV charge point management systems, and BMS platforms. The meter's Modbus register map is publicly available, enabling direct integration with custom systems and third-party monitoring platforms.
✔ 16 Measured Parameters

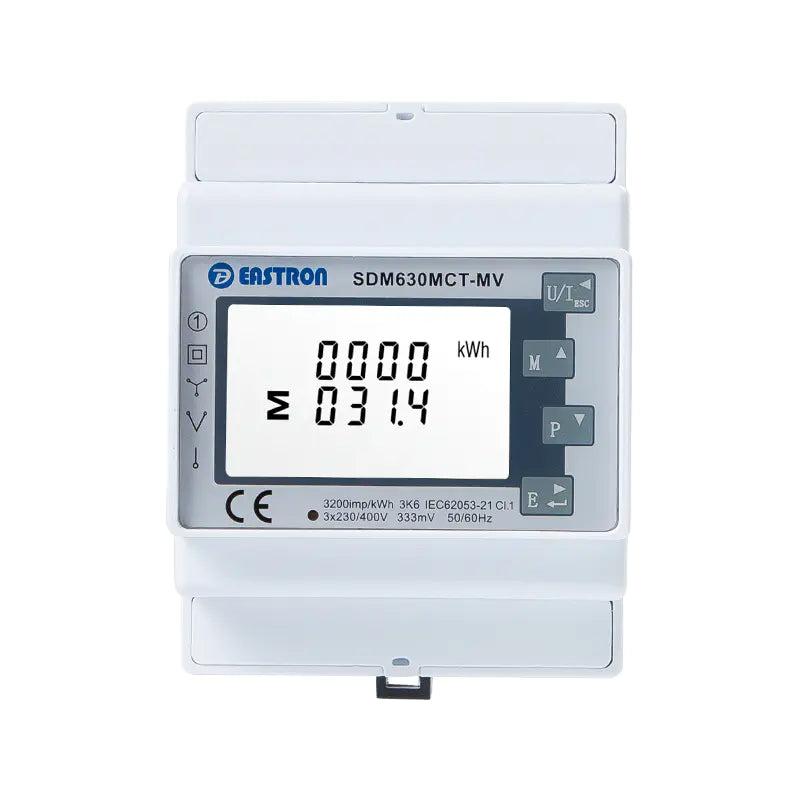

The meter's backlit LCD display cycles through 16 measurement parameters: kWh (import and export), kVArh, kW, kVAr, kVA, voltage (per phase), current (per phase), power factor, frequency, THD (total harmonic distortion), and maximum demand current. All parameters are simultaneously available via Modbus for real-time and historical data access by connected systems. The LCD display enables on-site reading without a connected device.
✔ MID B+D Certified — Revenue Grade
MID (Measuring Instruments Directive) certification to EU Directive 2014/32/EU — certificate number 0120/SGS0142 — confirms the meter meets the legal accuracy and construction requirements for fiscal (billing) energy measurement in the UK and EU. B+D certification covers both the metering accuracy (Module B) and the quality system (Module D). ETL registration by Intertek confirms compliance with North American standards. This level of certification is required for energy measurement used in billing, sub-metering, and lease arrangements.
✔ Flexible CT Input Options
The standard SDM630MCT V2 accepts 1A or 5A secondary output CT clamps — the most common standard for metering CTs — enabling use with a wide range of primary current ratings from small domestic to large commercial installations. The meter can also be specified in variants for 40mA, 100mV, and 333mV CT inputs for specialist applications. The CT ratio is programmable via the configuration buttons on the meter, allowing accurate scaling for any current transformer ratio.
✔ Configurable Pulse Output
Two configurable pulse outputs allow the meter to send energy pulse signals to external counters, data loggers, or monitoring equipment — Pulse Output 2 is fixed at 3,200 impulses/kWh. This enables integration with systems that accept pulse inputs rather than Modbus, including some older BMS platforms and standalone energy loggers. Pulse outputs are useful for simple energy counting without requiring a Modbus-capable controller.
✔ DIN Rail — IP51 — Compact
Standard 35mm DIN rail mounting at 94.5 × 72 × 65mm fits neatly in a standard domestic consumer unit, commercial distribution board, or dedicated meter enclosure. IP51 protection provides dust and drip resistance for installation in electrical panels. The compact 4-module width occupies minimal rail space. Operating temperature range –25°C to +55°C covers all UK indoor installation environments.
Which hybrid inverters and battery systems is this meter compatible with?
The SDM630MCT V2 communicates via standard Modbus RTU over RS485 — the industry-standard protocol for energy meter integration. It is compatible with the vast majority of hybrid inverters and battery storage systems that require an external grid meter, including Sunsynk (Ecco and standard ranges), Solis, Fox ESS, SolarEdge, Fronius, Huawei, Sungrow, and others. Always confirm the specific Modbus register map and CT input specification required by your inverter manufacturer. Some inverters require the meter's Modbus address and baud rate to be set to specific values during commissioning.
Does this work on a single-phase (1P2W) property?
Yes — the SDM630MCT V2 supports single-phase two-wire (1P2W) configuration in addition to three-phase configurations. For a single-phase property, only one CT clamp is required (on the live conductor at the incoming supply), and the meter is configured for 1P2W mode via its display buttons. This makes the SDM630MCT V2 a single product suitable for both single and three-phase applications, simplifying procurement.
What does MID certification mean, and is it required?
MID (Measuring Instruments Directive) certification confirms the meter has been independently assessed and meets the legal requirements for legal-for-trade (fiscal) energy measurement in the UK and EU. It is required where the meter reading is used for billing, in sub-metering situations where tenants are charged for energy consumption, or in any contractual energy measurement role. For domestic solar monitoring and self-consumption optimisation (where no billing is involved), MID certification is not legally required — but it does confirm the meter is built and tested to a high accuracy standard. This meter's MID certificate number is 0120/SGS0142.
Can the meter be installed without disconnecting supply?
The CT clamps can be fitted around live cables without disconnecting supply — they simply clip around each phase conductor at the incoming supply point, typically in the consumer unit or distribution board. However, the meter's voltage sensing terminals must be connected to each phase and neutral, and this wiring must be carried out by a qualified electrician with the supply isolated or under careful live-working conditions. Installation in a consumer unit or distribution board constitutes electrical installation work under Part P of the Building Regulations in England — it must be carried out or certificated by a Part P registered electrician.
