GivEnergy All In One 2 Gateway 2 | Whole Home Backup G98 Compliant
Couldn't load pickup availability
Payment options

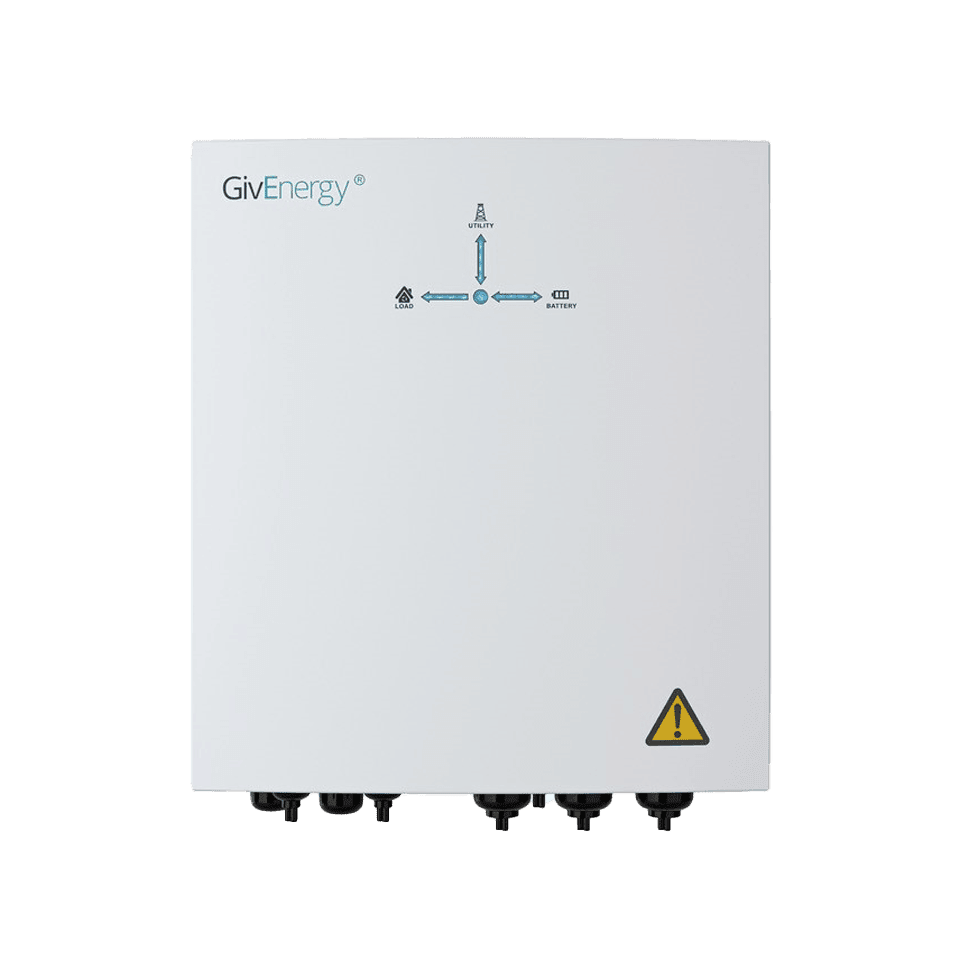

GivEnergy All In One 2 Gateway 2
The GivEnergy All In One 2 Gateway 2 provides seamless whole home backup capability for AIO2 hybrid systems, delivering 18.4kW nominal AC power with ultra-fast 20ms switchover time. This G98 compliant gateway maintains solar generation and powers EV chargers during outages, ensuring continuous energy supply. Pre-installed energy meter simplifies installation while supporting grid services and smart tariff integration.
Why Buy the GivEnergy AIO2 Gateway 2?
- 18.4kW nominal power capacity supports whole house backup for most single-phase residential properties
- 20ms ultra-fast switchover ensures uninterrupted power during grid outages
- G98 compliant for straightforward installation without DNO notification
- Pre-installed energy meter reduces components and simplifies commissioning
- Solar PV compatible maintains third-party inverter generation during blackouts
- EV charger output support with dedicated 32A connection point
- IP65 weatherproof rating suitable for indoor and outdoor installation
- 12-year warranty matching AIO2 system for complete peace of mind
Suitable For
- All In One 2 hybrid system owners requiring whole home backup protection
- Properties with existing solar PV needing blackout protection
- EV charger owners wanting continuous charging capability during outages
- Single-phase residential installations up to 18.4kW demand
- New solar + storage installations requiring G98 compliant backup solutions
Technical Specifications
| Specification | Details |
|---|---|
| Nominal AC Power | 18.4 kW |
| Maximum AC Current | 80A (Grid), 32A (EV) |
| Rated Grid Voltage | 230V AC (180-270V range) |
| Switchover Time | ≤20 ms |
| Dimensions (H x W x D) | 410 x 365 x 216 mm |
| Weight | Approximately 15-20 kg |
| IP Rating | IP65 (indoor/outdoor) |
| Operating Temperature | -20°C to +50°C |
| Grid Frequency | 50/60Hz ±5Hz |
| Power Factor | >0.99 |
| Communication | RS485, LoRa (optional), pre-installed meter |
| Compatibility | All In One 2 systems, EV chargers, solar PV |
| Warranty | 12 years |
| Compliance | G98 (no DNO notification required) |
- Type Solar
- Vendor GivEnergy
- SKU GIV-AIO2-GATEWAY2
