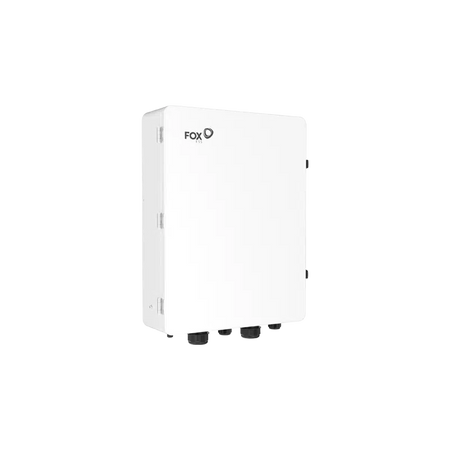

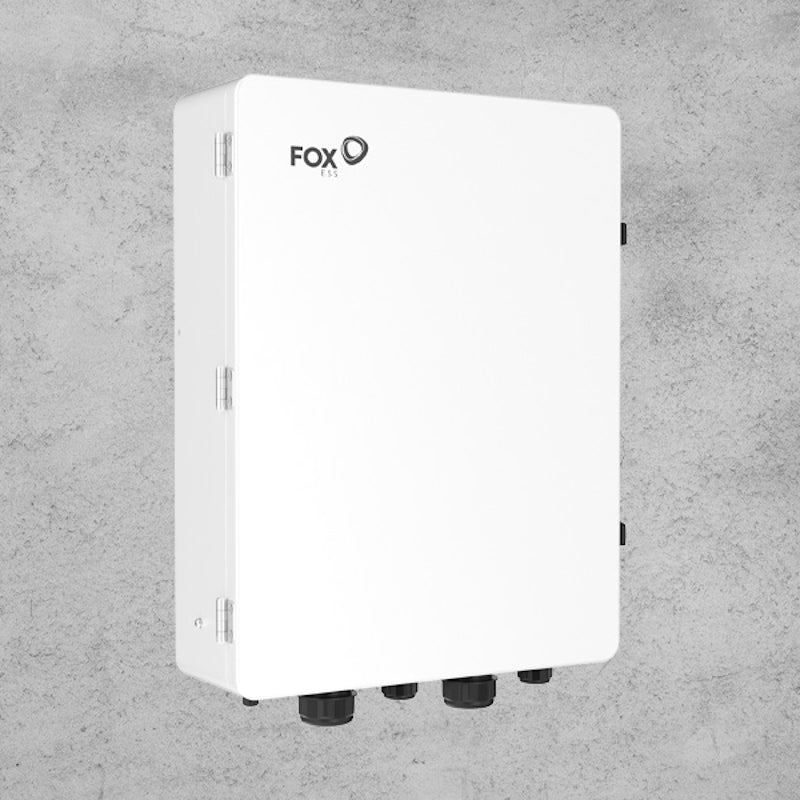

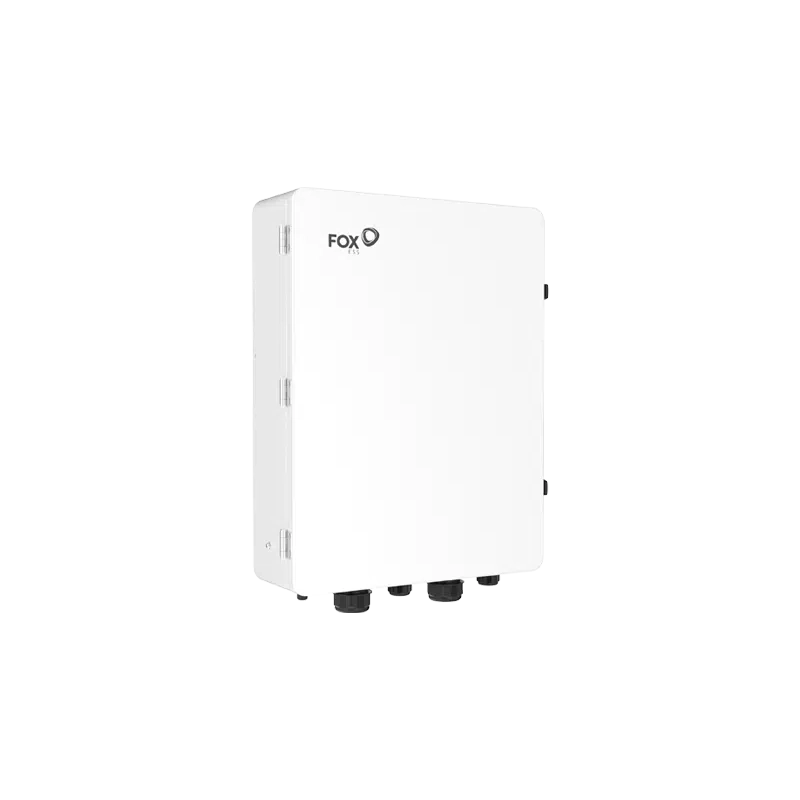

Fox ESS Single Phase EPS Box - Whole Home Back Up Box
Exc. VAT
Inc. VAT
Regular price
£475.00
(Inc. VAT)
inc. VAT
Couldn't load pickup availability
Payment options
FE-EPS-BOX-SP | IP65 automatic backup gateway providing seamless whole-home power continuity during grid outages with Fox ESS single-phase systems.
Key Features
- Whole-home backup - powers entire property during grid failure.
- Automatic On-Grid/Off-Grid switching with seamless transfer.
- Compatible with H1-G2, KH, EVO, AC series inverters.
- Max 100A input current handling for modern households.
- Robust metal enclosure IP65 rated for indoor/outdoor use.
- Natural convection cooling - silent, maintenance-free operation.
- Wall-mounted design for simple professional installation.
Technical Specifications
| Utility Supply Voltage | 220/230/240 V AC (L/N/PE) |
| Utility Max Input Current | 100 A |
| Inverter Grid Voltage | 220/230/240 V AC |
| Inverter Max Input Current | 63 A |
| Load Output Current | 100 A |
| Communication | RS485 Meter protocol |
| Operating Temperature | -25 ~ +60°C |
Mechanical Specifications
| Dimensions (W×H×D) | 420 × 550 × 138.5 mm |
| Weight | 16 kg |
| Enclosure | IP65 metal construction |
| Cooling | Natural convection |
| Mounting | Wall-mounted |
Installation & Application
- Installs between consumer unit, Fox ESS inverter and main loads.
- Automatic grid isolation during outage, reconnects when stable.
- Retrofit compatible with existing Fox single-phase installations.
- Provides true backup power compliance with UK G98 regulations.
MPN: FE-EPS-BOX-SP
Model: Fox ESS Single Phase EPS Backup Box
Unlocks genuine whole-home backup capability for Fox ESS systems, ensuring lights, heating, appliances and WiFi stay online during grid outages.
- Type Solar Metering
- Vendor Fox ESS
- SKU FE-EPS-BOX-SP
