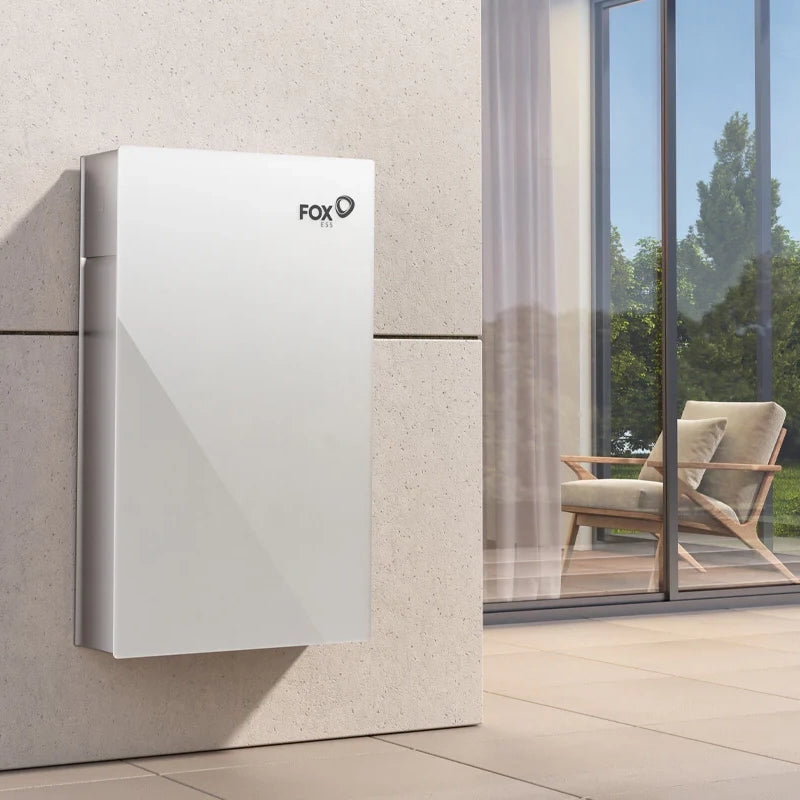

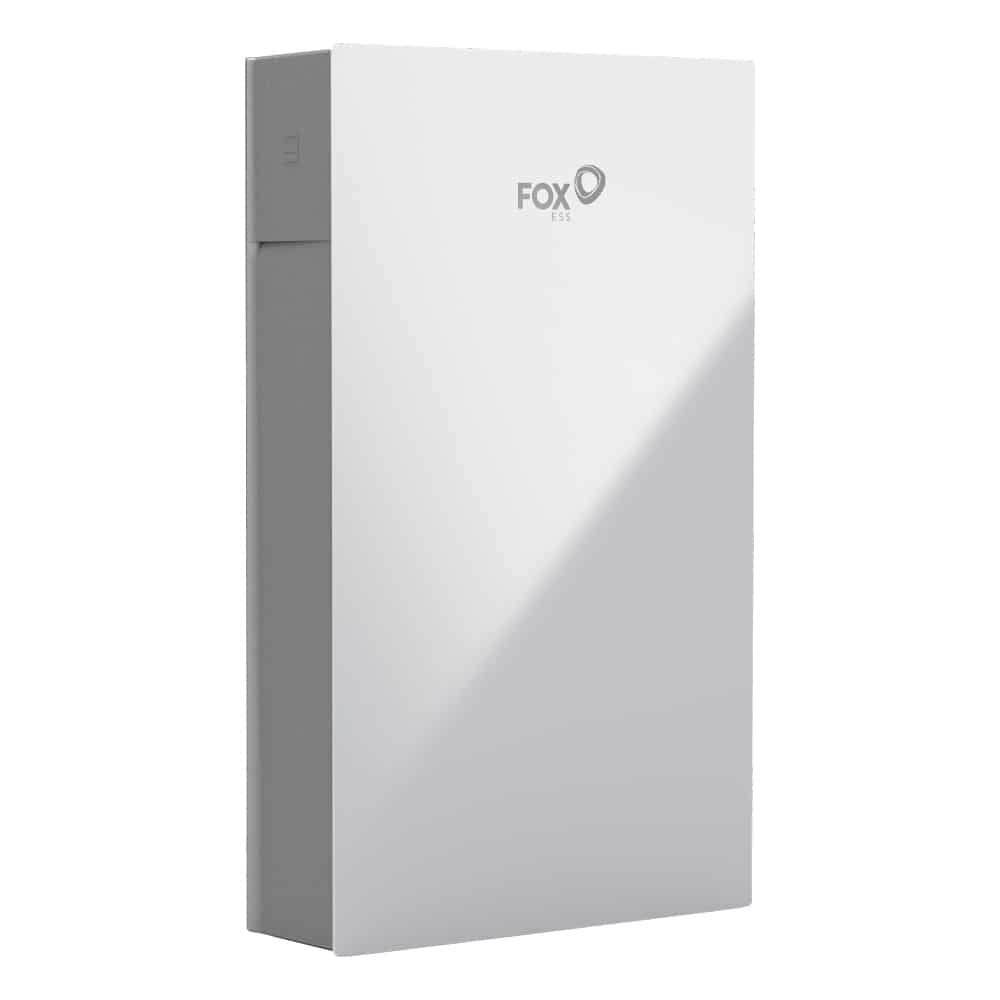

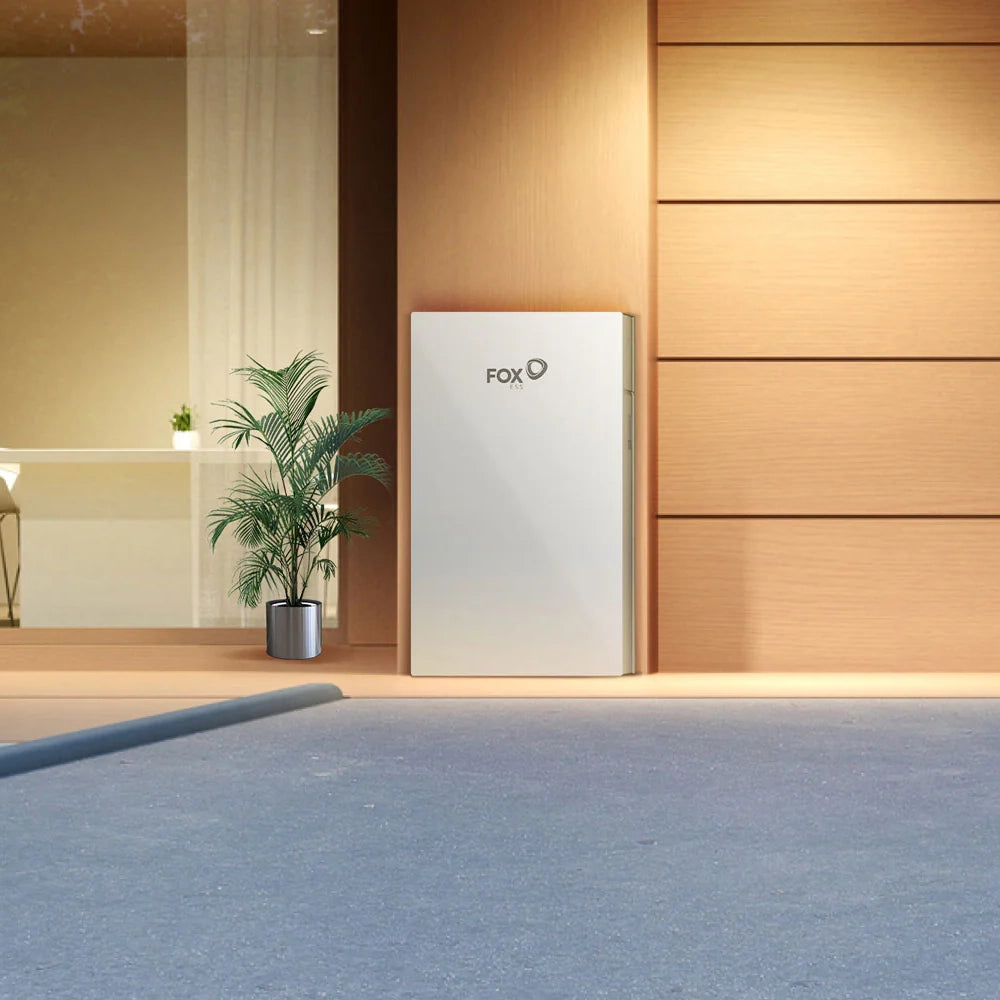

Fox ESS Evo Series All-in-one 10.0kW Inverter with 10.24kWh Battery

Description

FE-EVO10-10H | All-in-one IP66 hybrid inverter with integrated 10.24kWh LFP battery, 3x MPPT, EPS backup and parallel scalability up to 30kW/30kWh.

Key Features

• 10kW rated output with integrated 10.24kWh LFP battery (95% DoD).
• 3x MPPT trackers supporting 200% PV oversizing (20kW max PV input).
• IP66 rated for indoor/outdoor installation with intelligent air cooling.
• EPS backup with 200% overload capability (20kW surge).
• Integrated WiFi monitoring, export limitation (CT/meter/DRM0) and 4ms off-grid switching.
• Parallel up to 3 units for 30kW/30.72kWh systems.
• 80V low-voltage startup, LCD screen with magnetic cover.

Electrical Characteristics

Rated Power	10 kW
Battery Capacity	10.24 kWh (LFP)
Max PV Input	20 kW (3 MPPT)
Max Efficiency	97.6%
EPS Output	10kW continuous / 20kW 10s
Operating Voltage	80-550 V DC PV / 220-240 V AC
Protection	IP66

Mechanical Specifications

Dimensions (W×H×D)	584 × 1009 × 197 mm
Weight	113 kg
Cooling	Intelligent air cooling
Mounting	Wall/floor mount
Operating Temp	-20°C ~ +55°C
Noise Level	<45 dB

Installation & Warranty

• One-step plug-and-play installation with built-in DC/AC switches.
• 6000+ cycle life at 95% DoD with integrated battery warm-up.
• Compatible with Fox ESS cloud monitoring (WiFi/LAN/4G optional).
• Full certifications: IEC, UN38.3, G98/99 compliant.

MPN: FE-EVO10-10H
Model: Fox ESS EVO 10-10-H All-in-One

Next-generation all-in-one storage solution combining high-efficiency hybrid inverter, scalable LFP battery and robust EPS backup in a single IP66-rated unit.
