Fox ESS CQ16 Cable Pack | Inter-Stack Power and Communication Cables for CQ16 Battery Systems

Description

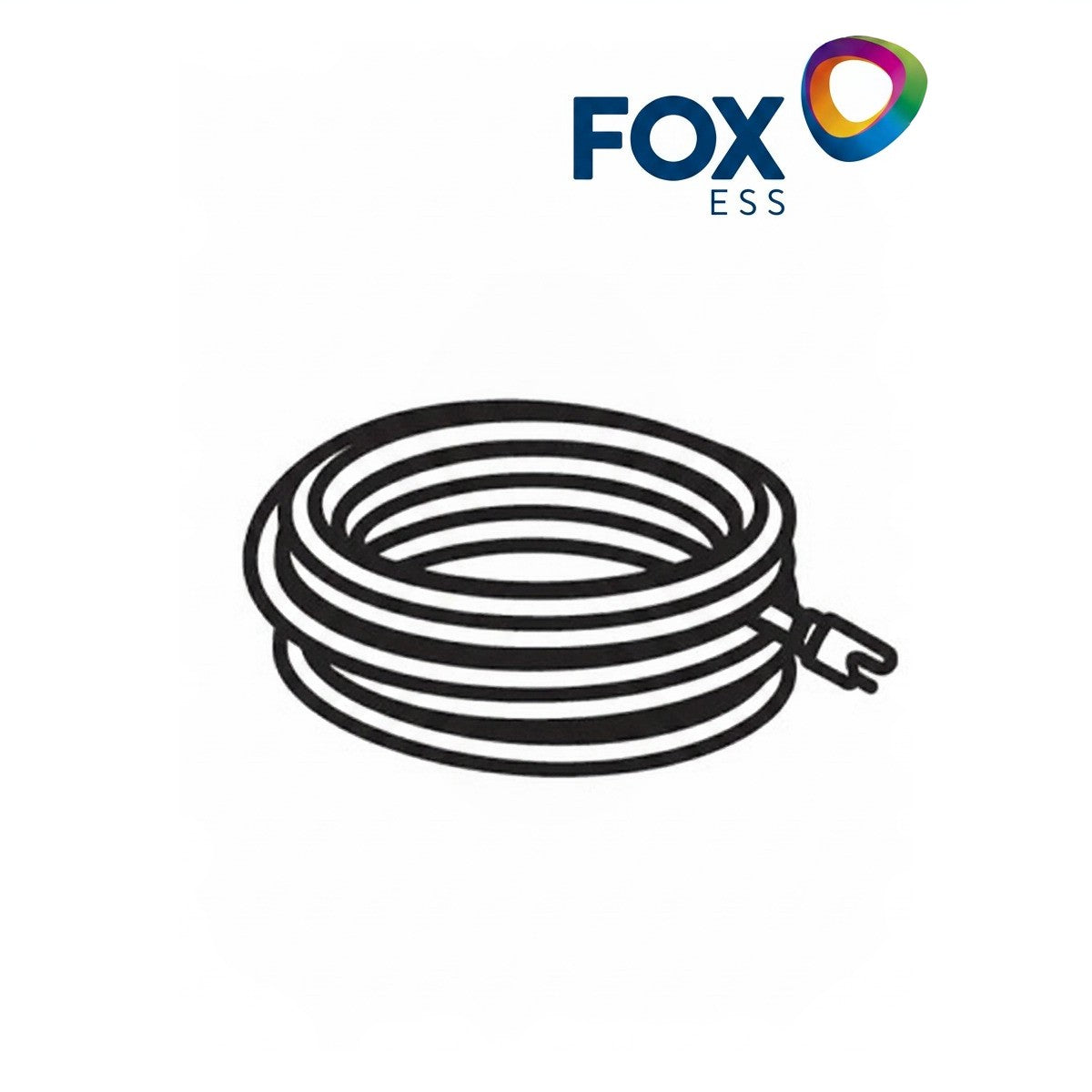

The Fox ESS CQ16 Cable Pack provides the power and communication cabling needed to connect each stack of CQ16 high-voltage battery modules. The pack includes a 1.88m battery negative cable, a 0.41m inter-stack power cable, and a 0.53m inter-stack communication cable, and one pack is required for every stack in a CQ16 battery system.

1

Required per Stack

1.88m

Negative Cable Length

0.41m

Power Cable Length

0.53m

Comms Cable Length

CQ16

Compatible System

H3 Plus

Compatible Inverter

One Pack Required per Stack

A Cable Pack is needed for every stack of CQ16 battery modules in the system. For multi-stack installations, order one Cable Pack per stack.

Part of the Complete CQ16 System

The Cable Pack is one of the required accessories — alongside the BMS Control Box and a Battery Base per stack — needed to complete a working Fox ESS CQ16 battery installation.

Complete Inter-Stack Wiring

The pack bundles the power and communication cables needed to link one stack of CQ16 modules into the wider battery system, reducing the risk of sourcing mismatched third-party cabling.

Purpose-Length Cables

With a 1.88m battery negative cable plus 0.41m power and 0.53m communication cables for linking between stacks, the pack is sized specifically for the CQ16's stacked module geometry.

Simplifies Multi-Stack Systems

Ordering one Cable Pack per stack keeps wiring consistent across larger CQ16 installations, supporting clean, repeatable commissioning as systems scale toward the maximum 241.05kWh configuration.

Pack Contents
Battery Negative Cable	1.88 m
Inter-Stack Power Cable	0.41 m
Inter-Stack Communication Cable	0.53 m
Product Details
Compatible Product	Fox ESS CQ16 battery modules
Quantity Required	1 per battery stack
Compatible Inverter Range	Fox ESS H3 Plus

How many Cable Packs do I need?

One Cable Pack per stack of CQ16 battery modules. If your system has multiple stacks, order one pack for each.

What cables are included in the pack?

Each pack contains a 1.88m battery negative cable, a 0.41m power cable for linking between battery stacks, and a 0.53m communication cable for linking between stacks.

Is the Cable Pack included with the CQ16 battery modules?

No, the Cable Pack is sold separately and must be ordered alongside your CQ16 battery modules and Battery Base to complete the wiring.

What other accessories does a CQ16 system need?

In addition to a Cable Pack per stack, every system requires one BMS Control Box and one Battery Base per stack.
