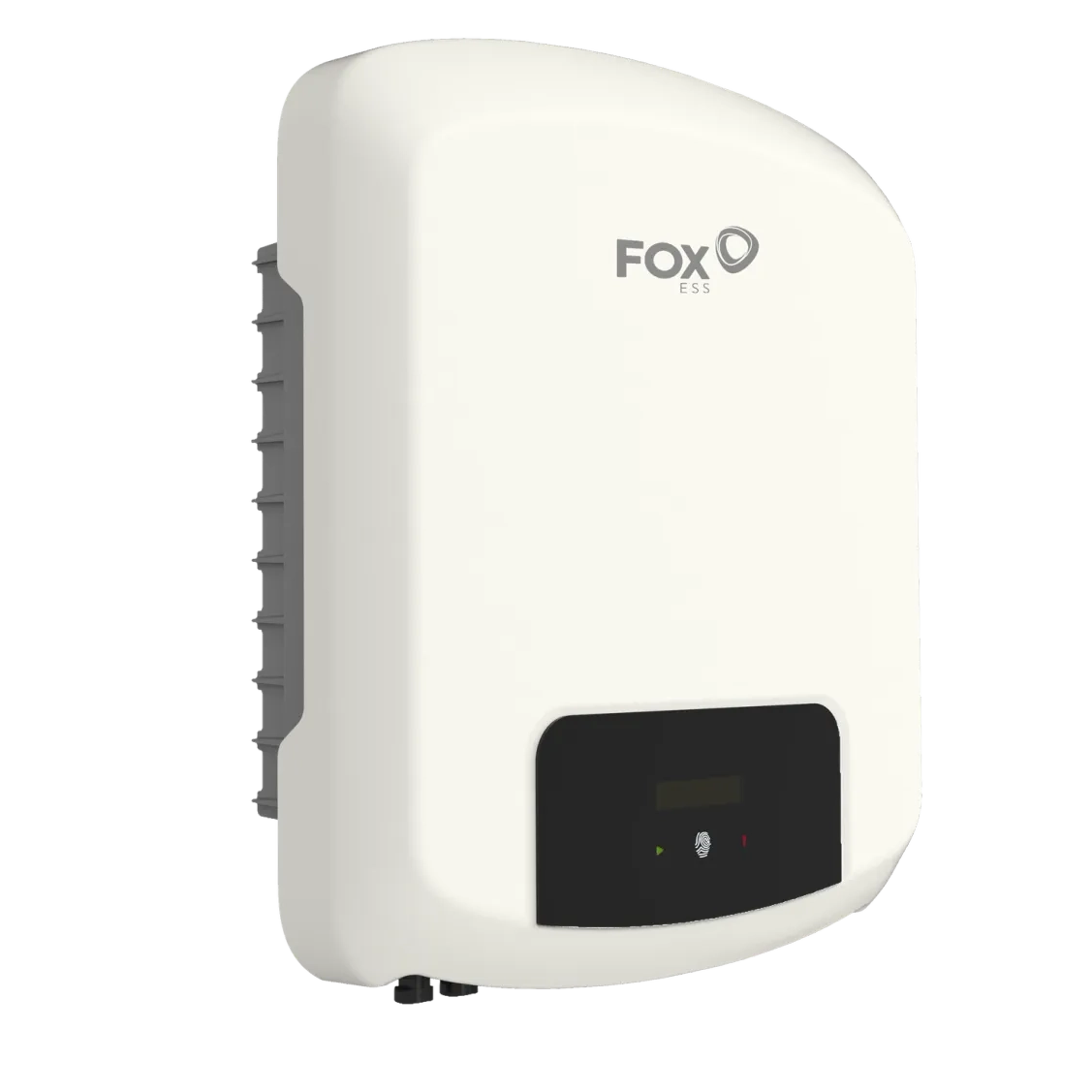

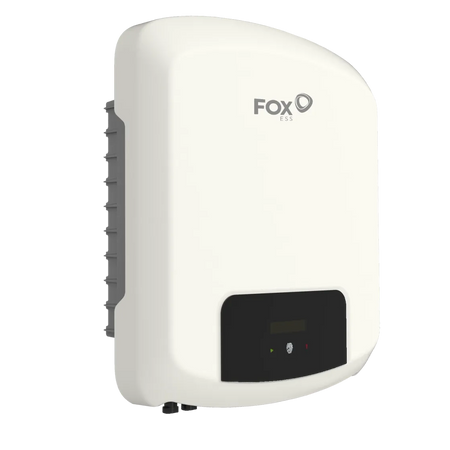

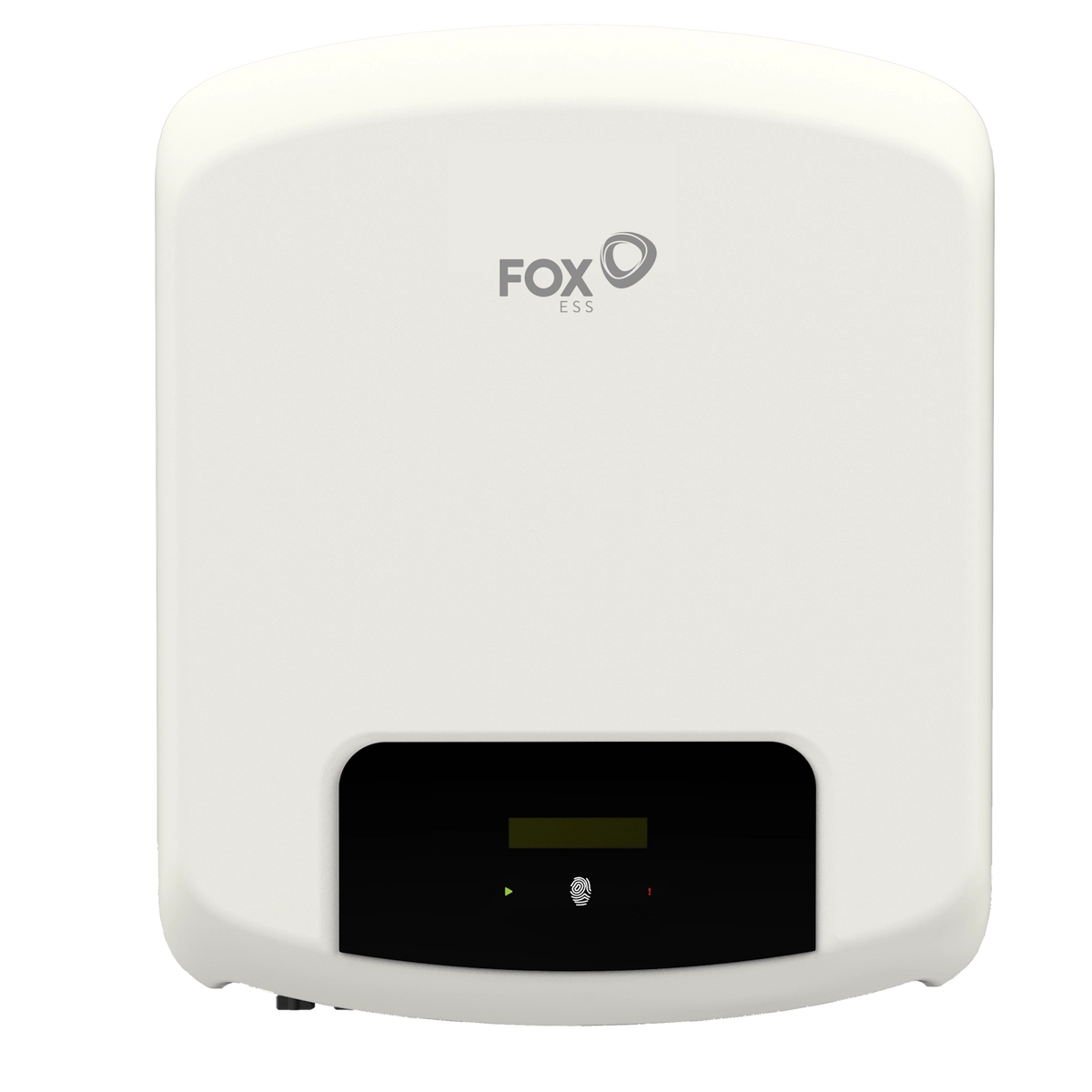

Fox ESS 3kW F Series 1PH Dual Tracker PV Inverter

Description

FE-F3000 | Single-phase 3kW solar inverter with dual MPPT for optimal energy harvest and system flexibility.

Key Features

• 3kW rated power single-phase inverter.
• Dual Maximum Power Point Trackers (MPPT) for flexible solar array design.
• High conversion efficiency up to 97.8%.
• Wide input voltage range and smart MPPT tracking for partial shading optimization.
• Compatible with Fox ESS storage and energy management systems.
• Compact and lightweight design for easy installation.
• Integrated monitoring via Fox ESS cloud platform.
• Complies with G98/G59/Grid Code standards for secure grid feed-in.

Electrical Characteristics

Nominal AC Power	3,000 W
Grid Voltage	220-240 V AC, single phase
Grid Frequency	50/60 Hz
MPPT Voltage Range	80 - 550 V
Max DC Input Power	4,500 W
Max Efficiency	97.8%

Mechanical & Environmental

Dimensions (W×H×D)	320 × 380 × 170 mm
Weight	12 kg
Ingress Protection	IP65
Operating Temperature	-25°C to +60°C
Cooling	Natural convection

Installation & Support

• Wall-mount installation with standard mounts and pre-wired connectors.
• Integrated Wi-Fi / LAN for remote monitoring and firmware updates.
• Comprehensive support and warranty by Fox ESS backed by global certifications.

MPN: FE-F3000
Model: Fox ESS F Series 3kW Single Phase Dual MPPT Inverter

Reliable and efficient inverter solution for small to medium residential solar installations, offering advanced MPPT management and seamless integration with Fox ESS ecosystem.
