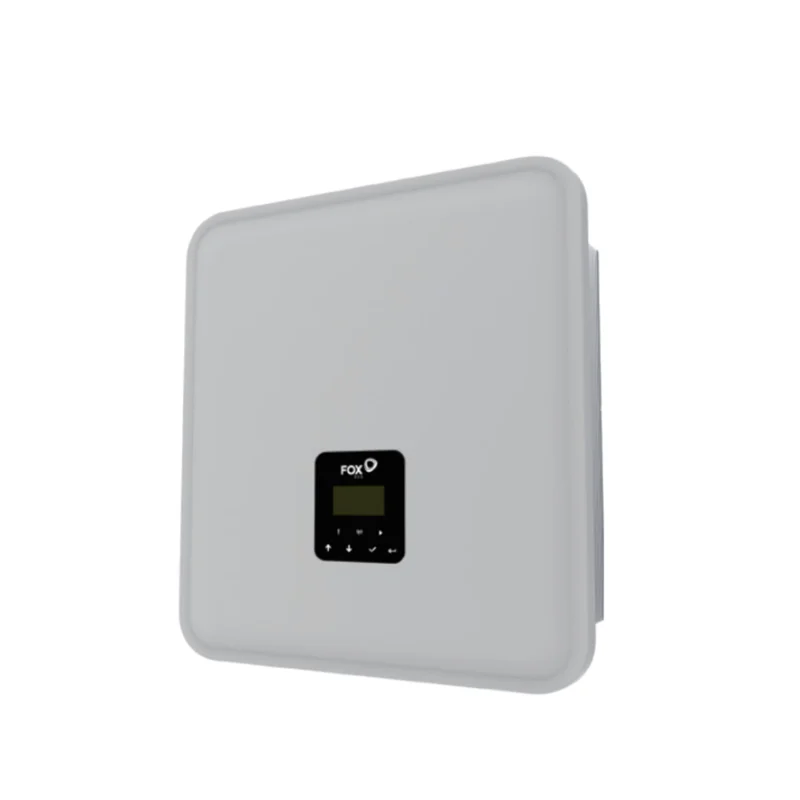

FE-AC3-10.0-E | Three-phase high-voltage AC-coupled charger inverter for Fox ESS battery systems, ideal for commercial storage and large-scale retrofits.
Key Features
- Rated AC charging/discharging power: 10 kW three-phase.
- AC-coupled design for integration with existing three-phase PV inverters.
- Compatible with Fox ESS high-voltage batteries (ECS2900, FOX CUBE series).
- Max efficiency up to 98% with IP65 outdoor-rated enclosure.
- EPS emergency power supply functionality during grid outages.
- Parallel operation up to 10 units for scalable systems up to 100 kW.
- Remote monitoring via FoxESS app and web portal with WiFi standard.
Electrical Characteristics
| Rated AC Power | 10,000 W (3-phase) |
| AC Voltage | 400 V AC (L-N: 230 V) |
| AC Frequency | 50 / 60 Hz |
| Battery Voltage Range | 180-600 V DC |
| Max Efficiency | 98% |
| Protection Rating | IP65 |
Mechanical Specifications
| Dimensions (H×W×D) | 449 × 519 × 198 mm |
| Weight | 28 kg |
| Cooling | Natural convection |
| Parallel Capability | Up to 10 units |
| Communication | CAN bus battery + WiFi/LAN |
| EPS Output | 10 kW continuous |
Installation & Requirements
- Wall-mounted with built-in DC switch and fuse protection.
- Requires separate three-phase CHINT meter for export limitation/monitoring.
- Minimum battery configuration: 1 Master + 2 Slave FOX CUBE modules.
- Suitable for indoor/outdoor installation with wide operating temperature range.
MPN: FE-AC3-10.0-E
Model: Fox ESS AC3 10kW Three-Phase Charger Inverte
Powerful three-phase AC-coupled solution for commercial battery storage projects, supporting scalable high-voltage systems with full EPS backup capability.
