Flamco FlexConsole Plus Wall Mounted Expansion Vessell Arm

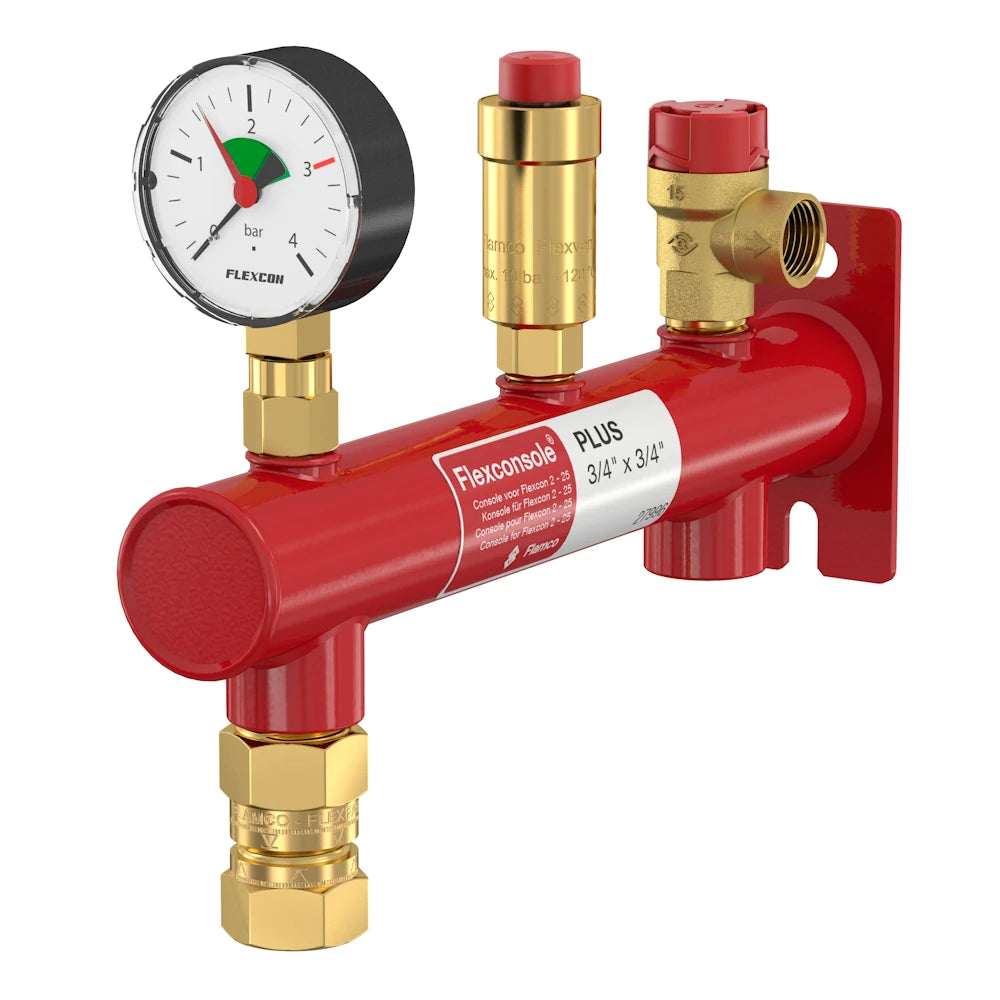

The Flamco FlexConsole Plus Wall Mounted Expansion Vessel Arm (Code: 27996) is a complete mounting solution designed for hanging expansion vessels up to 25 litres on the wall, featuring integrated safety valve, air vent, and isolation valve for secure and compliant installation in heating systems.

Product Description

The FlexConsole Plus is a versatile wall-mounted bracket that allows for the vertical installation of Flexcon expansion vessels (2-25 litres) directly connected to the water supply. It includes a Prescor safety valve (3 bar), Flexvent automatic air vent, and Flexcontrol isolation valve, making it a comprehensive product for sealed heating systems. This setup saves space, ensures easy access for maintenance, and complies with safety standards, ideal for domestic and light commercial applications.

Key Features

• Integrated components: Includes Prescor safety valve, Flexvent air vent, and Flexcontrol isolation valve.
• Wall mounting: Secure bracket for vessels up to 25 litres.
• Vertical installation: Vessel fitted directly to water connection.
• 3 bar pressure rating: Suitable for standard heating systems.
• Easy maintenance: Design allows simple access and servicing.
• Space-saving: Wall-mounted to free up floor space.

Technical Specifications

• Model: FlexConsole Plus 27996.
• Connections: 3/4" x 3/4".
• Pressure rating: 3 bar (safety valve).
• Vessel compatibility: Flexcon expansion vessels 8-25 litres.
• Material: Durable construction for long-term use.

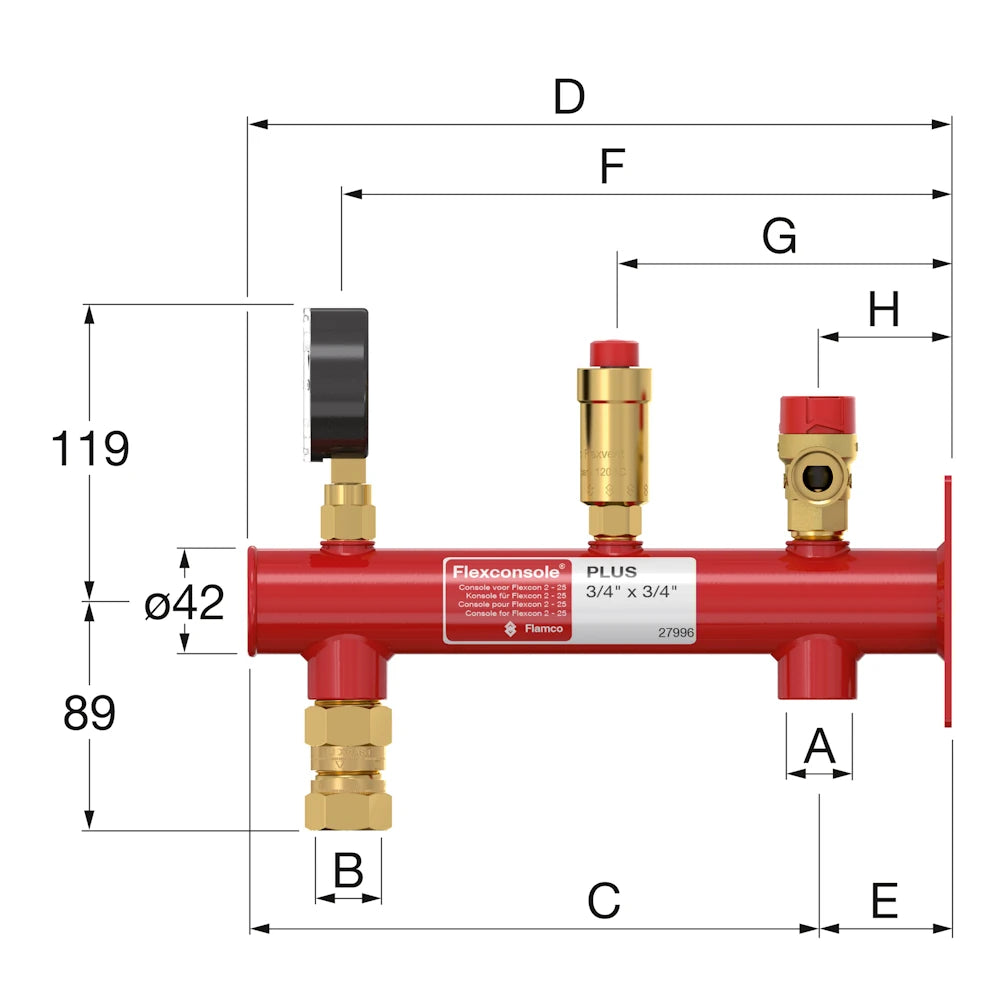

Dimensions & Weights

• Width: Approx. 200 mm.
• Depth: Approx. 150 mm.
• Height: Approx. 300 mm.
• Weight: ~2 kg.

System & Application Notes

• Ideal for sealed heating systems requiring wall-mounted expansion vessels.
• Compatible with Flexcon vessels 2-25 litres.
• Suitable for domestic boilers, heat pumps, and underfloor heating.
• Installation by qualified heating engineers; secure to solid wall.
• Supports system expansion and safety with integrated valves.
