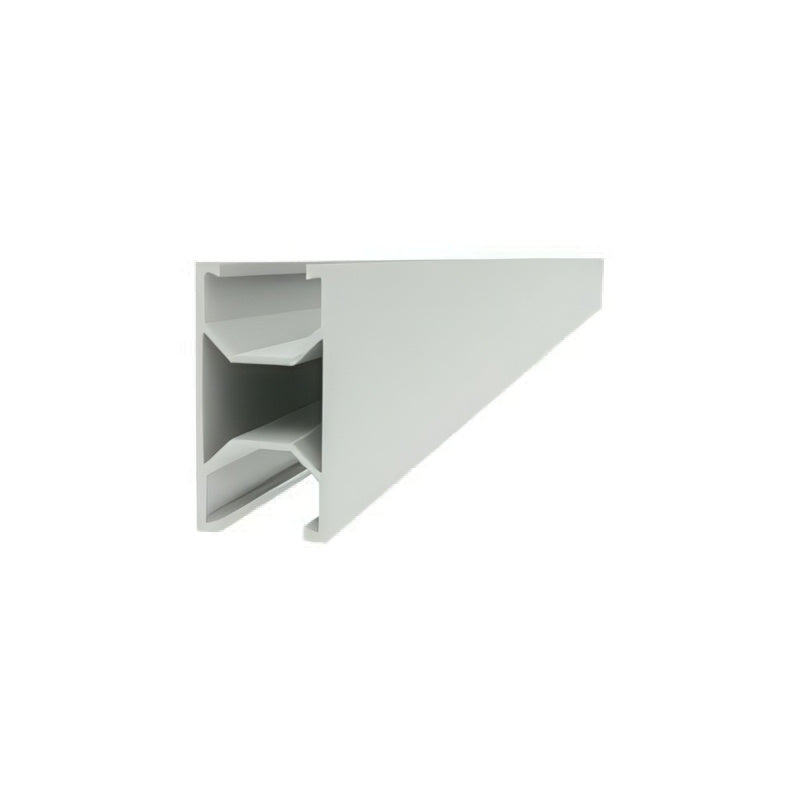

Fastensol 3300mm H-Profile Rail - Aluminium Rail for Triangle Brackets & Bespoke Solar Mounting Projects

Description

The Fastensol 3300mm H-Profile Rail is a specialist rail designed for bespoke mounting projects, where a stronger, symmetrical H-shaped profile is needed in place of the standard silver rail. It is the recommended rail for mounting directly onto Fastensol Triangle Brackets, and is also used in Narrowboat Tilt mounting systems and as part of the GSE Ground Mount System kit.

Manufactured from aluminium in a natural finish, the H-profile rail is suitable for both pitched and flat roof applications, and can be extended for longer runs using the manufacturer's dedicated H-rail splice/joiner.

3300mm

Rail Length

55 x 28mm

Profile Section

Aluminium

Material

Natural

Finish

Pitched & Flat

Roof Suitability

F-R3300-H

Part Number

Good to Know: This H-profile rail is a bespoke-application rail, distinct from the standard Fastensol silver rail used in most pitched roof kits. It is specifically suited to mounting directly onto Triangle Brackets, Narrowboat Tilt systems, and the GSE Ground Mount System.

Designed for Triangle Bracket Mounting

Purpose-suited for mounting directly onto Fastensol Triangle Brackets, providing the rail interface for flat roof and ground-mounted portrait arrays.

Symmetrical H-Profile

The H-shaped aluminium profile gives a robust, versatile rail section suited to bespoke and non-standard mounting applications beyond typical pitched roof installations.

Multi-System Compatibility

Also used in the manufacturer's Narrowboat Tilt Mount system and as part of the GSE Ground Mount System kit, giving flexibility across several mounting applications.

Extendable with Splice Kit

For longer runs, lengths of H-rail can be joined using the manufacturer's dedicated H-rail splice/joiner, sold separately.

Product Details

Product Name

Fastensol H-Profile Rail

Part Number

F-R3300-H

Length

3300mm

Construction

Dimensions

3300 x 55 x 28mm

Material

Aluminium

Colour

Natural

Application

Roof Suitability

Pitched and flat roofs

Typical Uses

Triangle Bracket mounting, Narrowboat Tilt Mount system, GSE Ground Mount System

Extending Rail Runs

Use the Fastensol H-rail splice/joiner (sold separately)

What is the Fastensol H-profile rail used for?

It is a specialist rail for bespoke mounting projects, most commonly used for mounting directly onto Fastensol Triangle Brackets on flat roofs and ground mounts. It is also used in the Narrowboat Tilt Mount system and the GSE Ground Mount System.

How is this different from the standard Fastensol silver rail?

The H-profile rail has a symmetrical H-shaped section (55 x 28mm) designed for specific bespoke applications, whereas the standard silver rail is the general-purpose rail used across most pitched roof kits.

Can I join two lengths of H-rail together?

Yes. The manufacturer offers a dedicated H-rail splice/joiner, sold separately, for connecting multiple lengths together on longer runs.

What material is the rail made from?

The rail is made from aluminium in a natural finish, suitable for both pitched and flat roof applications.
