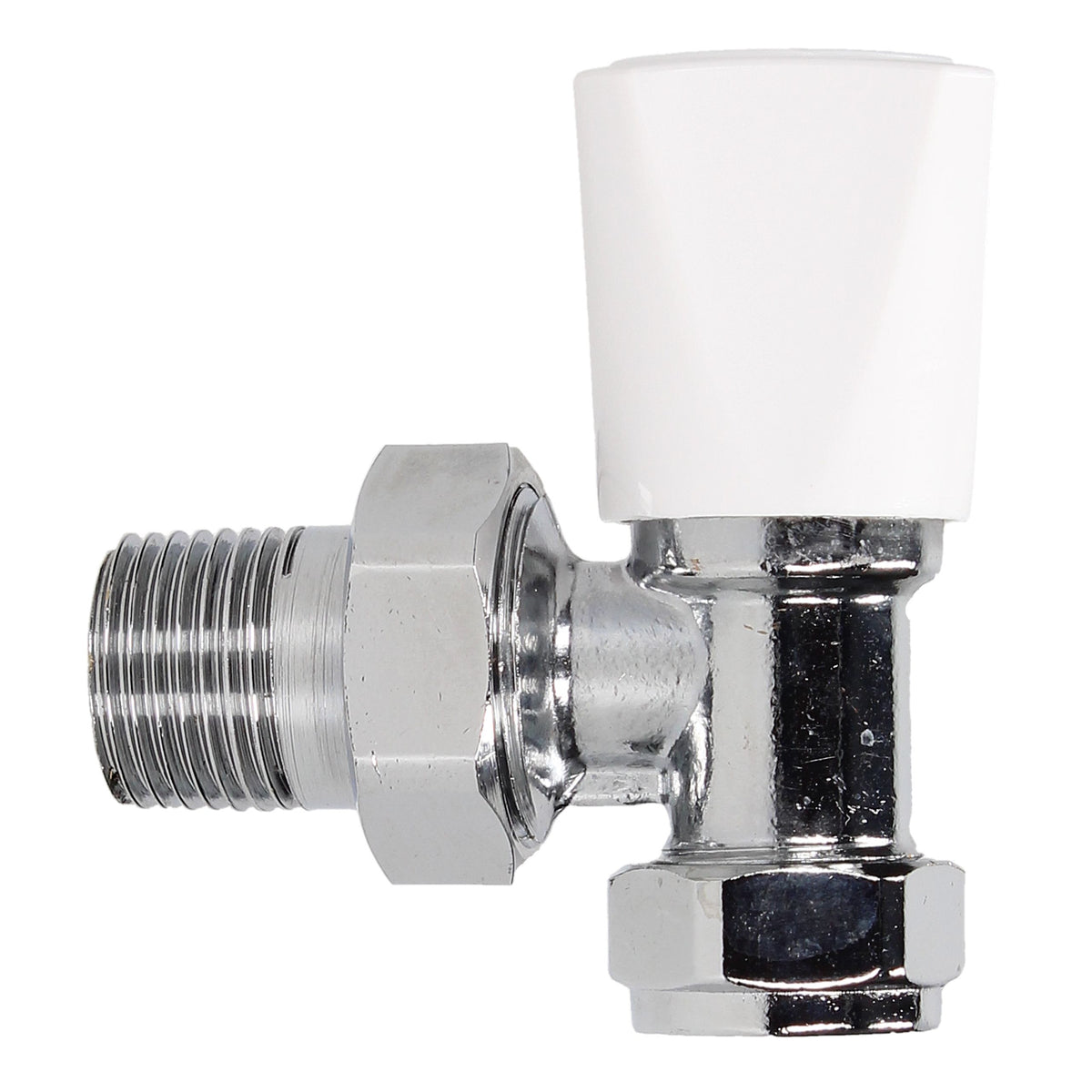

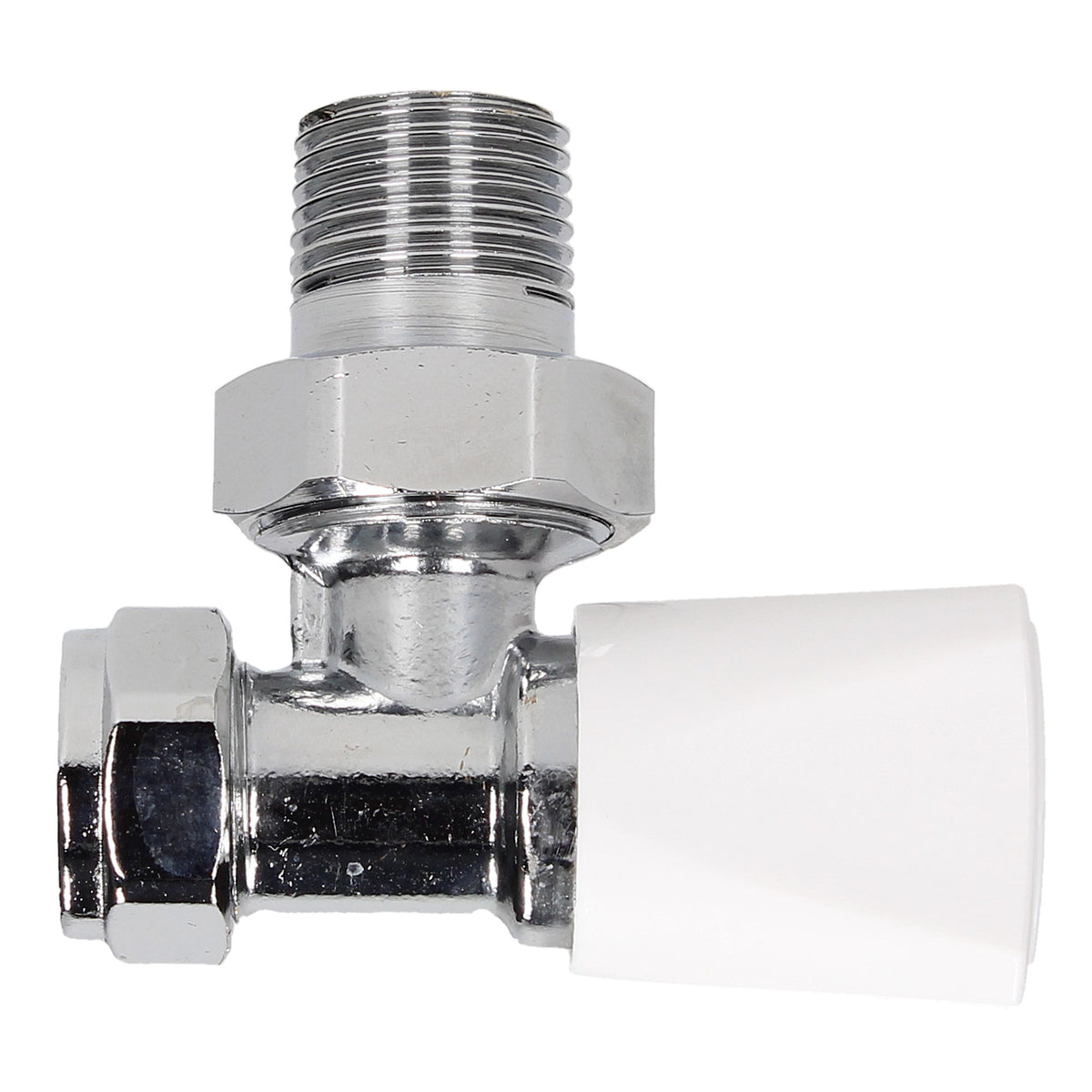

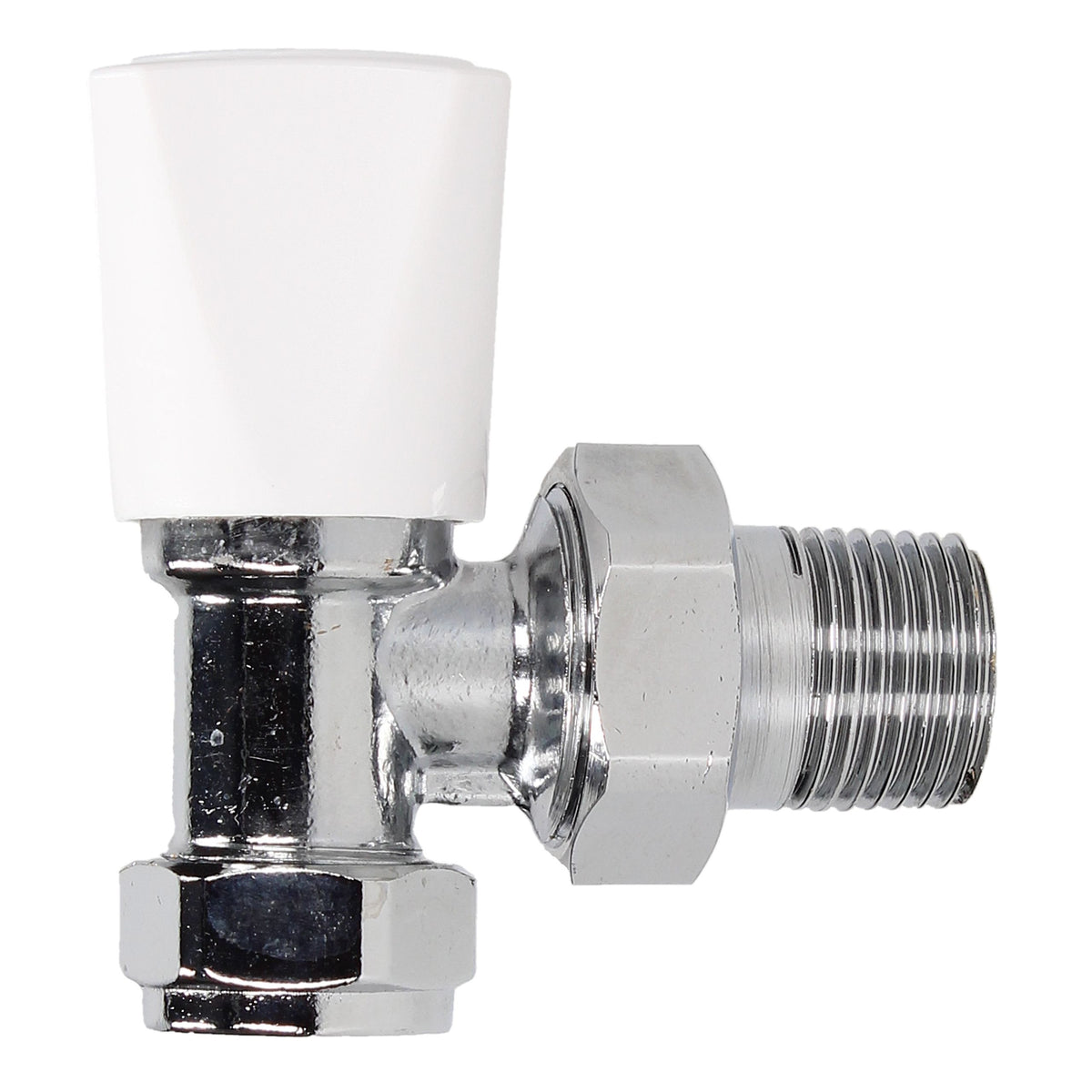

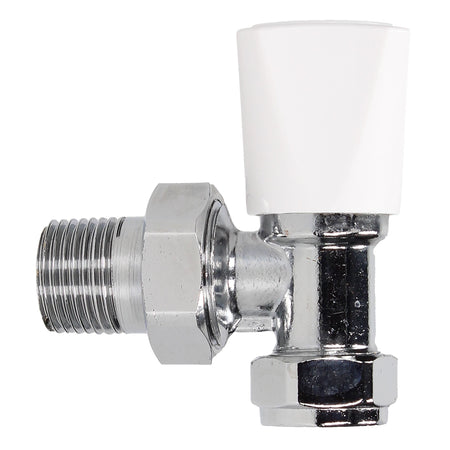

Evolve Angled 15mm Radiator Valve Manual Pair

Description

The Evolve Angled 15mm Radiator Valve is a smart, durable manual valve pair designed for both modern and traditional central heating systems. Made from high-grade brass with a corrosion-resistant chrome-plated finish, it delivers smooth manual operation and reliable flow control for everyday radiator use.

Sold as a matched pair - two angled wheel-head valves - this listing gives you both connections needed for a single radiator in one purchase. The compact angled 15mm design sits neatly behind radiators and towel rails, and the EPDM-sealed brass body is built for long-term, leak-free performance across domestic and light trade installations.

15mm

Pipe Size

Angled

Valve Style

Pair

Pack Contents

10 bar

Max Pressure

Up to 100°C

Water Temp

1 Year

Warranty

Good to Know

This listing includes two angled wheel-head valves - enough for a single radiator - so there's no need to double up on quantity when specifying a standard installation. It is recommended that a fully pressurised system is fitted by a qualified heating engineer, though the compression connections are suited to competent DIY fitting on existing radiators.

Sold as a Matched Pair

Two angled wheel-head valves supplied together, giving both connections needed for one radiator in a single purchase.

Compact Angled Design

The 15mm angled body fits neatly into tight spaces behind radiators and towel rails, reducing the risk of pipework damage.

High-Grade Brass Construction

All visible parts are brass with a durable chrome-plated finish, giving long-term performance and resistance to tarnishing.

Reliable Manual Control

Simple wheel-head operation makes it easy to turn the radiator on or off and adjust flow without any electronics.

EPDM-Sealed for Longevity

Brass valve body with EPDM seals gives reliable shut-off and long-term, leak-free performance.

Standard UK Connections

15mm compression inlet and 1/2" BSP male radiator outlet make it compatible with most domestic central heating pipework and radiator tails.

Product Details

Product type

Manual angled radiator valve pair

Orientation

Angled (90°)

Body material

Chrome-plated brass with EPDM seals

Brand

Evolve

Manufacturer

BiWorld

MPN

EV-CH15A

EAN (GTIN)

6938689700314

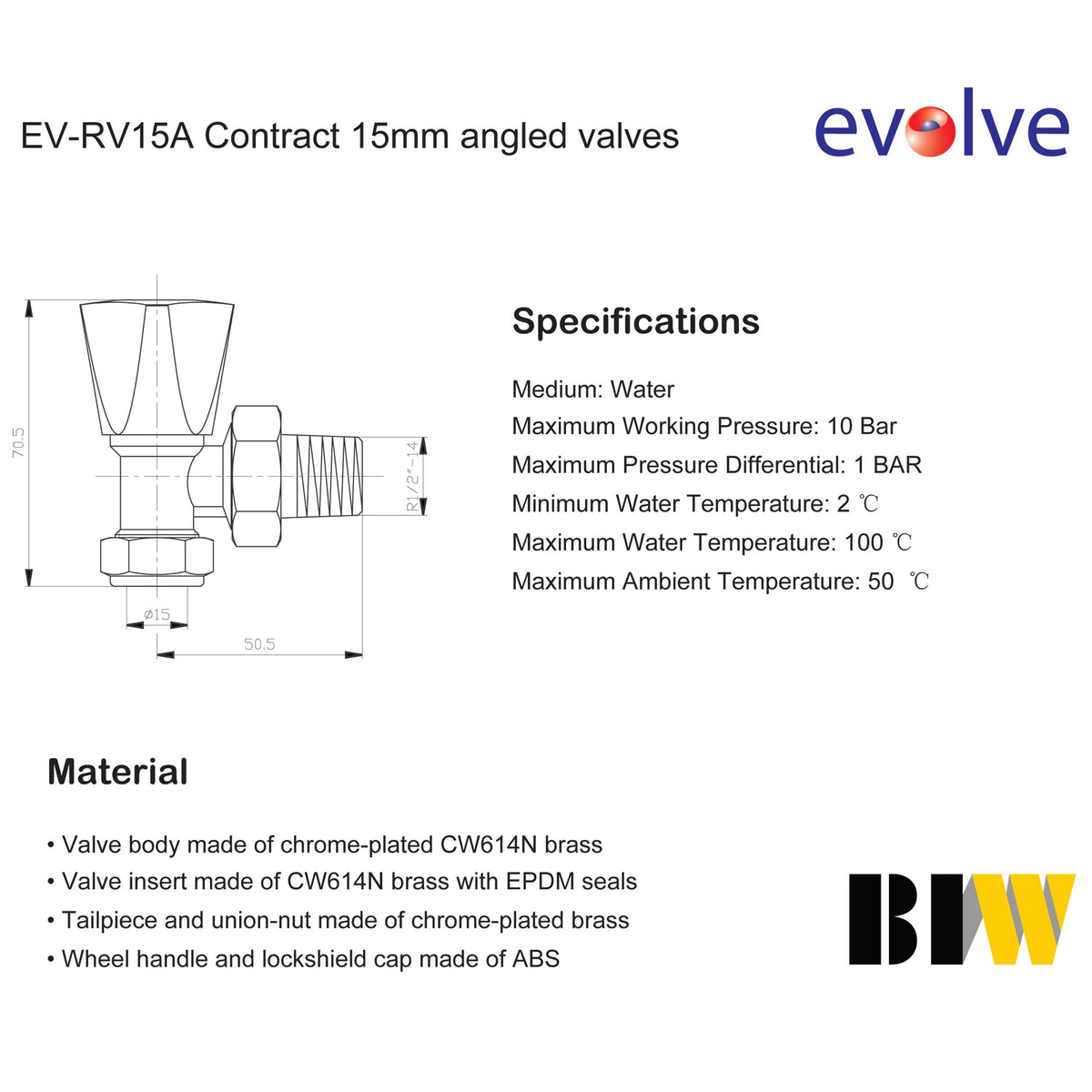

Connections & Sizing

Inlet size

15mm compression (15mm pipe)

Outlet size

1/2" BSP male radiator connector

Performance

Maximum working pressure

10 bar

Maximum water temperature

100°C

Maximum ambient temperature

50°C

What's Included

Pack contents

1 pair of angled radiator valves (2 wheel heads)

Suitable for

Wall-mounted radiators and towel rails fed by 15mm pipework

Warranty

Manufacturer warranty

1 year (subject to normal conditions of use)

How many valves come in this listing?

This listing includes a pair - two angled wheel-head valves - which is normally all you need to fit both connections on a single standard radiator.

Is this a thermostatic or manual valve?

Both valves in this pair are manual, operated by a wheel head. If you want automatic temperature control on one side, pair a single manual valve from this range with a separate thermostatic radiator valve (TRV) instead.

Can I fit this myself?

The 15mm compression fittings are suited to competent DIY installation using basic tools on existing radiators. For a fully pressurised heating system, or if you're unsure, it's recommended to have the work carried out by a qualified heating engineer. Always isolate the system and let it cool before removing or fitting radiator valves.

What pipework and radiator connections does this suit?

The valves use a 15mm compression inlet for standard copper or PEX pipework and a 1/2" BSP male outlet that fits typical UK radiator tappings.
