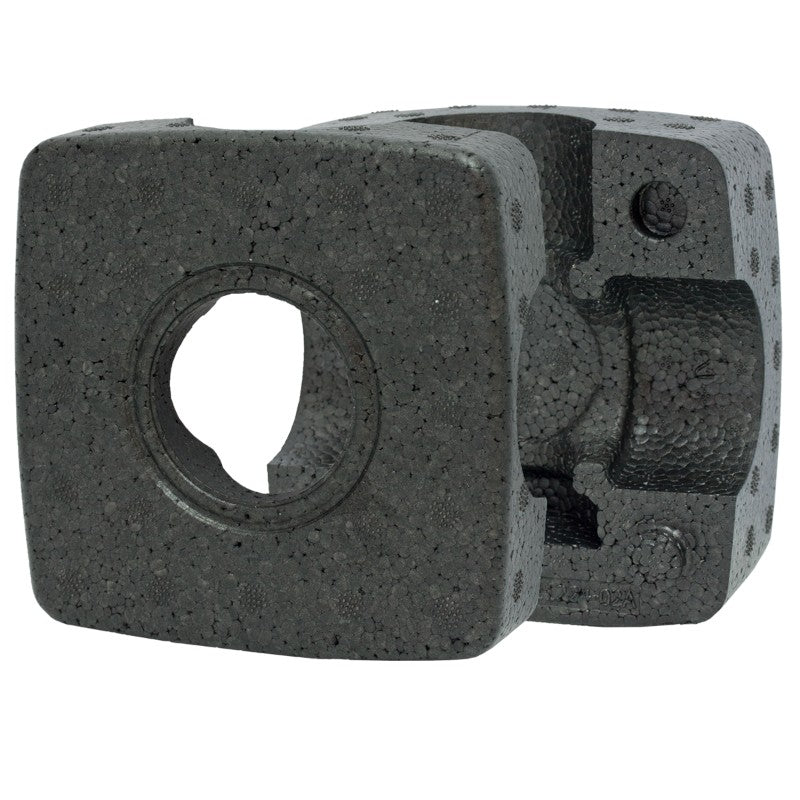

ESBE VRI111 DN25 Insulation Shell for VRG and VRB Valves

Description

Improve the thermal efficiency and safety of your heating system with the ESBE VRI111 DN25 insulation shell. Designed specifically for compatible ESBE rotary valves, this precision fitting EPP shell helps reduce heat loss, limit air circulation around the valve and protect against contact with hot surfaces.

The self locking two piece design provides quick installation without the need for tape, springs or additional fastening accessories. It is suitable for heating, underfloor heating, potable water, solar heating, ventilation and zone control applications.

Key Features

Reduced Heat Loss

Helps reduce heat loss by up to 65% compared with an uninsulated installation.

Made for ESBE Valves

Designed for compatible ESBE VRG100, VRG200, VRG300 and VRB100 valve series.

Secure Self Locking Design

The shell holds together securely without requiring tape, springs or separate fixing accessories.

Heat Resistant Construction

Suitable for media and ambient temperatures from -20°C to +130°C.

Lightweight EPP Material

Manufactured from black expanded polypropylene with a thermal conductivity coefficient of 0.035 W/mK.

Helps Improve Safety

Encloses the hot valve body to help reduce the risk of accidental contact with heated surfaces.

Technical Specifications

Specification	Details
Brand	ESBE
Product series	VRI100
Product reference	VRI111
Nominal size	DN25
Manufacturer article number	16103900
Compatible valve series	ESBE VRG100, VRG200, VRG300 and VRB100
Suitable valve configuration	3 way valves, suitable for 4 way valve use with the prepared opening adapted where required
Material	Black EPP, 35 g/l
Thermal conductivity	0.035 W/mK
Media temperature range	-20°C to +130°C
Ambient temperature range	-20°C to +130°C
Dimensions A × B × C × D	117 × 117 × 84 × 50 mm
Approximate weight	0.023 kg
Conformity	EnEV 2014
Colour	Black

Suitable Applications

Central Heating

Helps retain heat around rotary mixing and diverting valves in domestic and commercial heating systems.

Underfloor Heating

Provides insulation for valve assemblies used in floor-heating manifolds and circuits.

Solar Heating

Suitable for compatible valve installations in solar thermal heating systems within the specified temperature range.

Ventilation and Zone Control

Supports insulated valve installations used for ventilation systems and heating-zone regulation.

A Practical Upgrade for Valve Efficiency

The ESBE VRI111 DN25 insulation shell is a straightforward way to improve insulation around a compatible rotary valve. Its accurate fit, self locking construction and robust EPP material make it a practical choice for installers, heating engineers and homeowners looking to reduce unnecessary heat loss and improve system safety.
