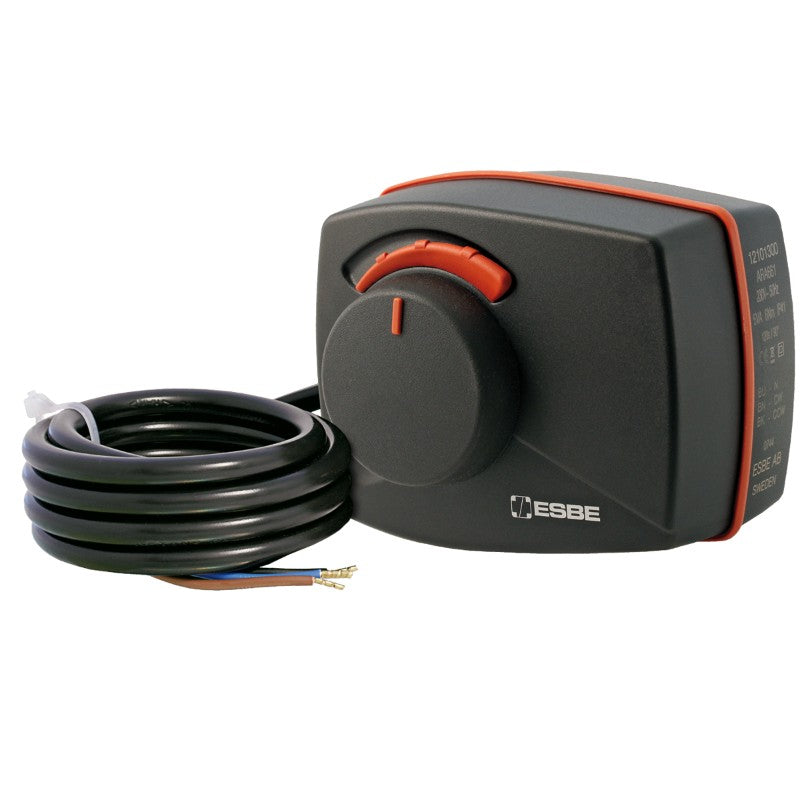

ESBE ARA655 2 Point Actuator for VRG Valves - 230V, 60 Seconds

Description

The ESBE ARA655 is a compact, reliable actuator designed to operate compatible ESBE VRG rotary mixing valves in heating and hydronic control systems. With a 230V AC power supply, 2 point on/off control and a 60 second running time, it is well suited to diverting applications where dependable valve positioning is essential.

Its 90 degree operating range supports accurate rotary valve movement, while the front mounted pull and turn knob allows convenient manual adjustment during installation, commissioning or servicing. The actuator can also be used with a 3 point control signal, providing added system flexibility for professional heating installations.

Key Features

230V AC Operation Designed for electrical systems using a 230V AC, 50Hz power supply.

2 Point Control Uses a straightforward on/off SPST control signal for dependable diverting applications.

60 Second Running Time Provides controlled 90 degree rotary movement for compatible mixing and diverting valves.

Manual Override The front pull and turn knob enables convenient manual operation when required.

VRG Valve Compatibility Suitable for compatible ESBE VRG rotary mixing valves in DN15 - DN50 sizes.

Compact Construction A practical actuator solution for heating, hydronic and valve control installations.

Technical Specifications

Brand	ESBE
Model	ARA655
Manufacturer part number	12120900
Product type	2 point rotary valve actuator
Power supply	230V AC ±10%, 50Hz
Power consumption	5VA
Control signal	2 point on/off, SPST, compatible with 3 point control operation
Running time	60 seconds
Operating range	90 degree
Valve compatibility	ESBE VRG rotary mixing valves
Compatible valve sizes	DN15 - DN50
Ambient temperature	-5°C to +55°C
Enclosure rating	IP41
Protection class	Class II
Approximate product weight	0.4kg
Manual operation	Pull and turn control knob
Warranty	Refer to the seller’s current warranty terms

Suitable Applications

Heating and hydronic systems: Supports dependable rotary valve control in central heating and water based heating installations.

Diverting applications: Ideal for systems that require a valve to direct flow between different heating circuits or system routes.

Professional installations: A practical choice for heating engineers, installers and maintenance teams working with compatible ESBE VRG valves.

Replacement and servicing: The manual override and compact format make commissioning, testing and service work more convenient.
