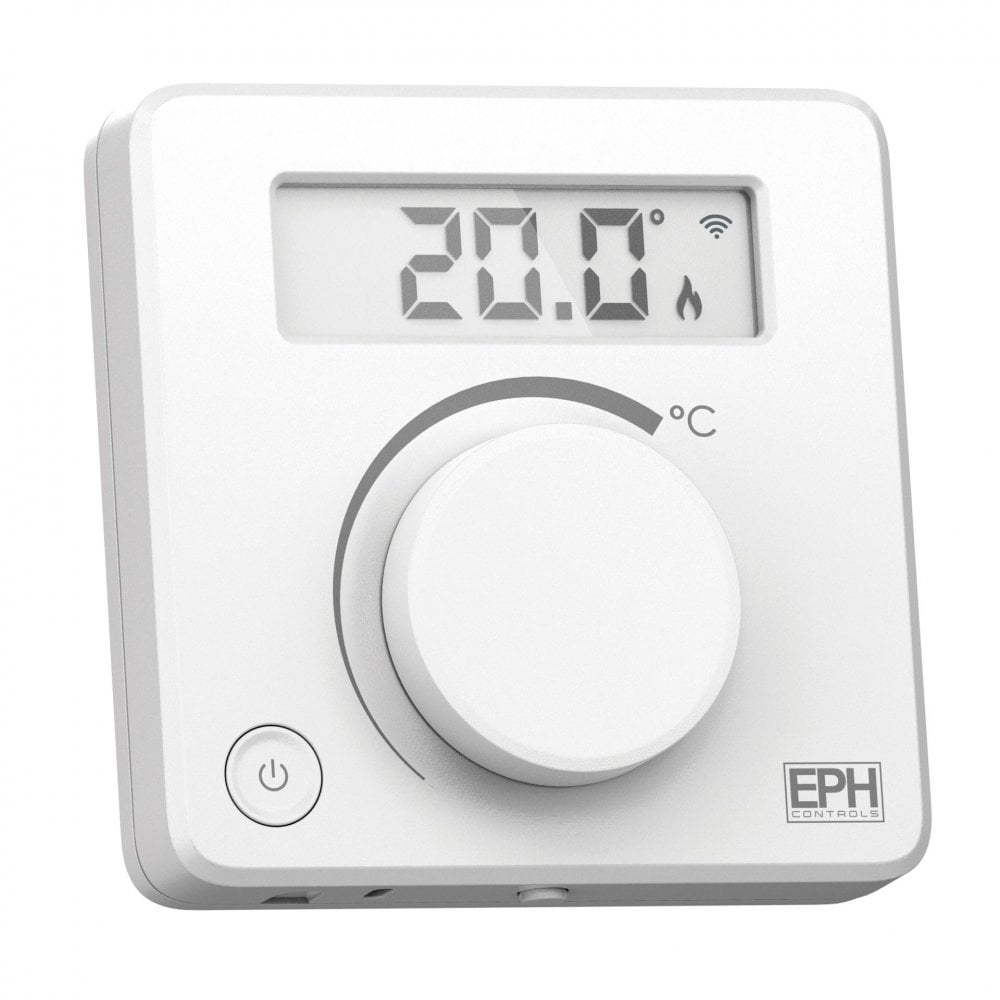

EPH RF Room Thermostat with On-Off Button For UFH10-RF
The EPH RF Room Thermostat with On/Off Button For EC10021 is a high-quality wireless thermostat designed for precise and convenient control of electric heating systems. Utilizing radio frequency (RF) communication, it integrates seamlessly with EPH RF-compatible devices including RF programmers and the UFH10-RF wiring centre.
Equipped with an easy-to-use on/off button alongside temperature adjustment, this thermostat ensures user-friendly operation while optimizing energy efficiency in residential applications.
Key Features & Benefits
- Wireless RF communication enables hassle-free installation and control without additional wiring.
- Manual on/off button for straightforward activation and deactivation of heating.
- Compatible with EPH RF heating control systems, including the EC10021 system components.
- Operates with AAA batteries supplied for convenient, power-efficient usage.
- Compact design suitable for wall mounting or free-standing placement.
- Supports frost protection mode to prevent freezing temperatures when idle.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number (MPN) | RFRB-V2 |
| Temperature Control Range | 0°C to 35°C |
| Temperature Sensor Type | NTC 100K Ohm @ 25°C |
| Switching Differential | Adjustable, approx. 0.4°C |
| Power Supply | 2 x AAA Alkaline Batteries (included) |
| Power Consumption | Approx. 50 µA |
| Dimensions (HxWxD) | 80 mm x 80 mm x 25 mm |
| Operating Ambient Temperature | 0°C to 45°C |
| Mounting Type | Wall mounted or free standing |
| Wireless Range | Up to 30 metres (typical indoor range) |
This thermostat also features frost protection mode, which automatically activates heating if the temperature falls below 5°C when the system is switched off, preventing frozen pipes and cold damage.
Installation & Usage: For optimal performance and safety, installation should be carried out by a qualified heating engineer or electrician. Once installed, this device offers reliable, flexible wireless control over your heating system, enhancing comfort and reducing energy costs.
