The Enphase IQ Battery 5P Lifting Handles (part number IQ-BATTERY-HANDLES, manufacturer code IQBATTERY-HNDL-5) are the official reusable installation handles for the IQ Battery 5P. The IQ Battery 5P is a substantial unit, and these ergonomically designed left-side and right-side handles provide a safe, controlled grip to lift the battery from its packaging and position it onto a wall bracket or floor pedestal. Critically, the handles are reusable across multiple installations, making them a worthwhile trade investment for any installer who regularly works with IQ Battery 5P systems.
1 Pair
Left + Right Handle Included
0.75 kg
Handle Set Weight
Reusable
For Multiple Installations
IQ 5P
Dedicated Compatibility
⚠ Safe Handling: The IQ Battery 5P weighs approximately 75 kg. A minimum two-person lift is required. Always use the lifting handles in conjunction with correct manual handling technique. Do not attempt to install the battery without appropriate handles or mechanical lifting aids.
ℹ Installer Note: These handles are designed to be kept after each installation and reused on future jobs. Unlike single-use accessories, they do not remain with the installed battery — remove them once the unit is secured in position.

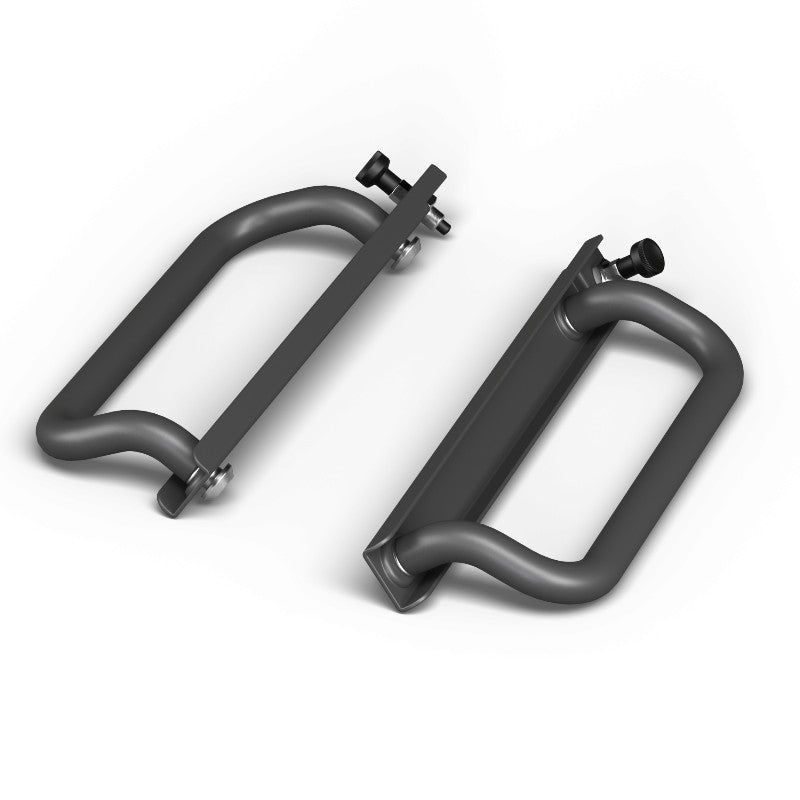

Left and Right Configuration
The kit includes one left-side handle and one right-side handle, purpose-designed to attach to the IQ Battery 5P during lifting. The asymmetric design ensures each handle locates correctly on its respective side, giving both installers a secure, balanced grip during the lift and placement procedure.

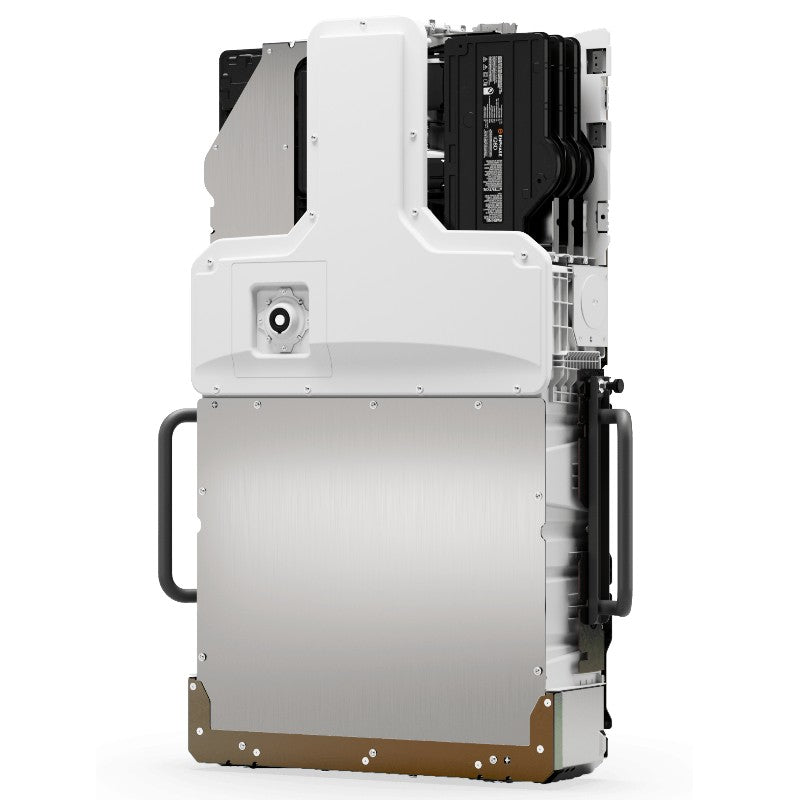

Works with Both Mounting Methods
The handles are equally useful whether the IQ Battery 5P is being wall-mounted using the included wall bracket or floor-mounted using the optional pedestal kit. They ease the battery out of its shipping carton and allow precise positioning before securing — reducing the risk of damage to the unit or injury to installers.
Compact, Lightweight Tool
The complete handle pair weighs only 0.75 kg with dimensions of 388 mm × 220 mm × 100 mm, making them easy to transport between sites. Their robust construction ensures they withstand repeated use across many installations without performance degradation.
Official Enphase Accessory
These are genuine Enphase-manufactured handles designed specifically for the IQ Battery 5P. Using manufacturer-approved handling equipment ensures the battery unit is not subjected to stresses or impacts that could void warranty or damage internal components such as the embedded BMS or microinverters.
| Technical Specifications — IQ Battery 5P Lifting Handles (IQBATTERY-HNDL-5) |
| Manufacturer Part Number |
IQBATTERY-HNDL-5 |
| AIZO Part Number |
IQ-BATTERY-HANDLES |
| Contents |
One left-side lifting handle + one right-side lifting handle |
| Compatible Battery |
Enphase IQ Battery 5P |
| Weight (handle pair) |
0.75 kg |
| Dimensions (W × H × D) |
388 mm × 220 mm × 100 mm |
| Reusability |
Yes — designed for repeated use across multiple installations |
| Remains with battery after installation? |
No — removed after battery is secured; returned to installer's toolkit |
Are the lifting handles required for installation?
Enphase strongly recommends using the lifting handles whenever installing the IQ Battery 5P. Given the battery's weight, the handles are essential for safe two-person handling — they provide secure grip points to lift the unit from its box and position it onto the wall bracket or pedestal safely.
Do I need to buy new handles for each battery I install?
No. The handles are reusable. Once the IQ Battery 5P is secured in place, remove the handles and keep them for your next installation. One set of handles is sufficient for an installer doing multiple jobs.
Are these handles compatible with other Enphase batteries?
These handles are designed specifically for the IQ Battery 5P. Other Enphase battery products (such as the IQ Battery 10C or legacy Encharge batteries) use different handle kits designed for their specific form factors.
Are the handles included with the IQ Battery 5P?
No. The lifting handles are a separately purchased accessory. The IQ Battery 5P unit ships with the battery, ID cover, conduit cover, and wall mounting bracket — but not the lifting handles. Order handles separately before your installation date.
