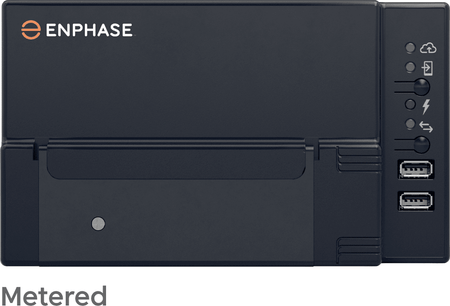

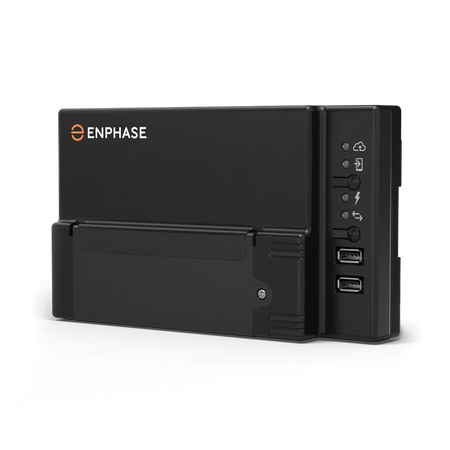

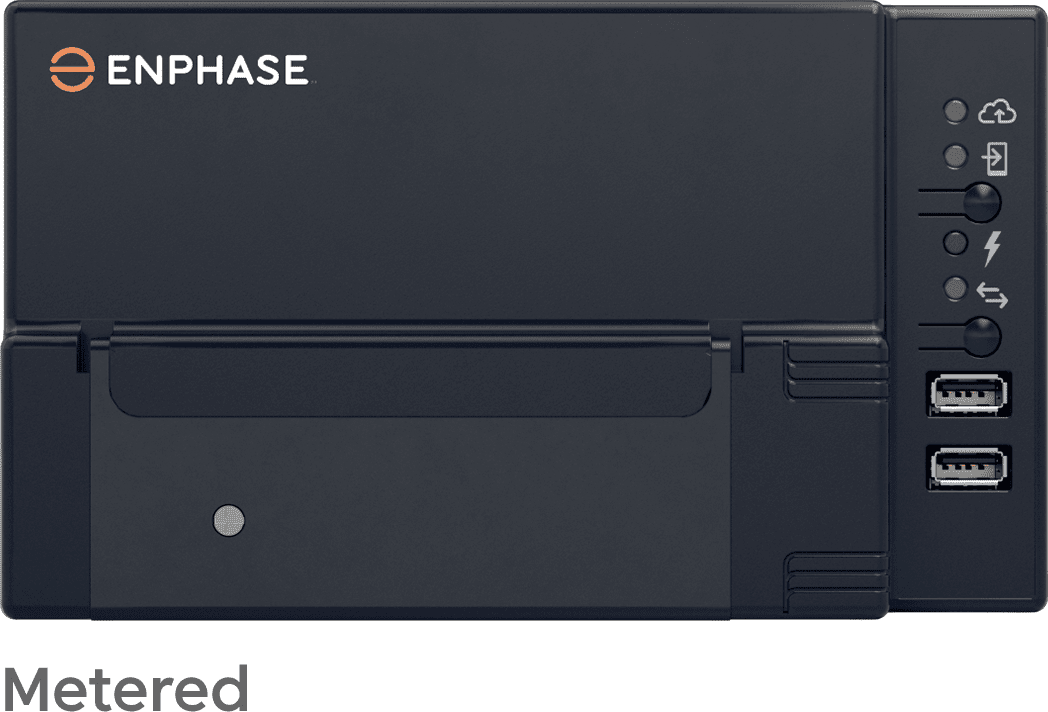

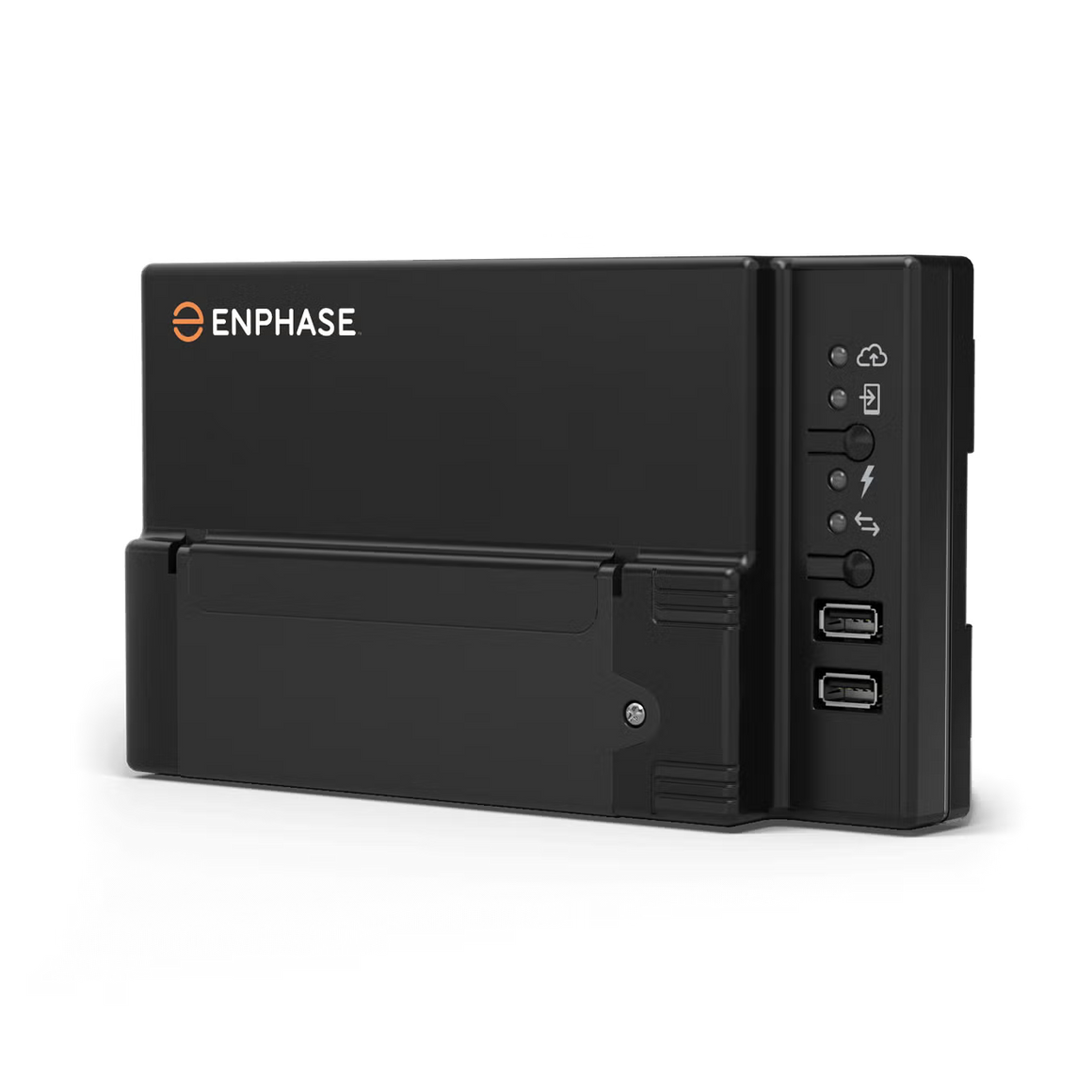

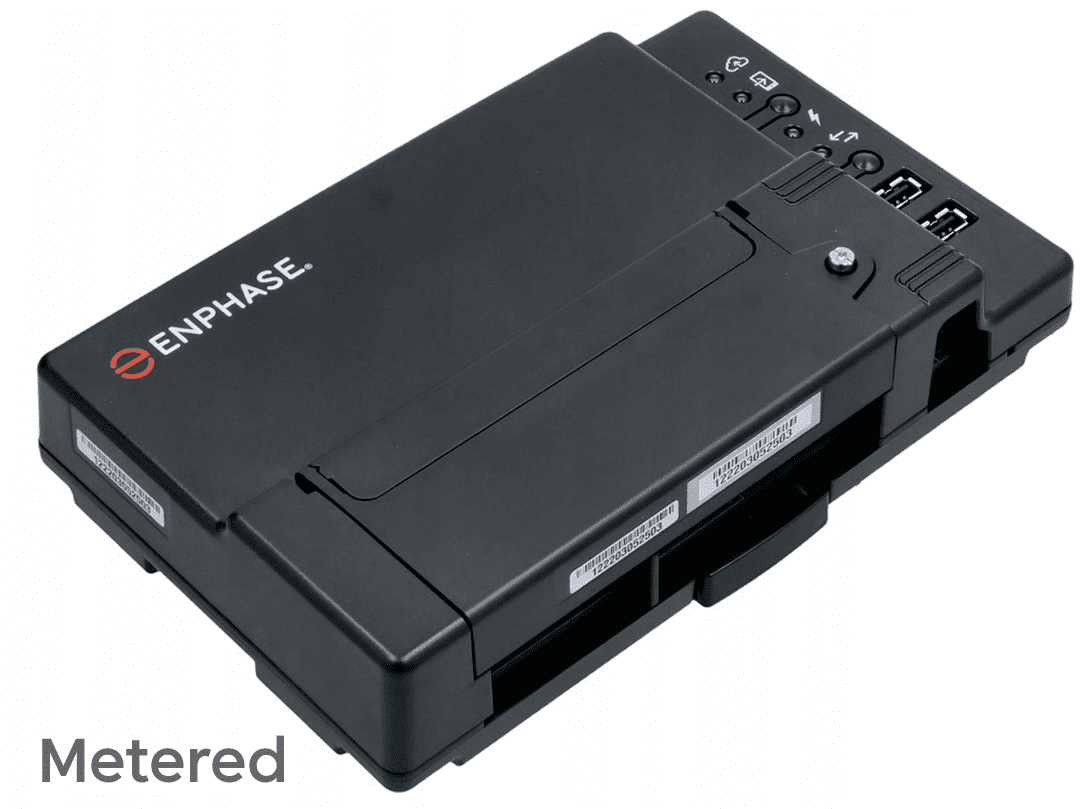

Enphase Envoy-S Metered Single Phase / Multi Phase
Product Description
The Enphase Envoy-S Metered is the communication gateway and control centre for Enphase microinverter systems, enabling comprehensive energy management for both single-phase and multi-phase (three-phase) installations. Bridging communications from rooftop microinverters to the Enphase App and the Enlighten Cloud, it provides real-time solar generation and energy consumption monitoring, allowing installers and homeowners to track performance, receive remote software updates, and optimise energy use.
- Full Energy Visibility: Monitors solar production and whole-home consumption with included or optional current transformers (CTs).
- Remote Monitoring & Control: Enables web-based system insights, alerts, and diagnostics through the Enphase App and Enlighten portal.
- Bidirectional Communication: Supports remote upgrades and load management for smart grid participation and future expandability.
- Flexible Networking: Connects via integrated Wi-Fi, Ethernet, or optional Enphase Mobile Connect cellular modem.
- Supports Export Limiting: Enables zero-export and power feed-in limitation for compliance with grid regulations.
- High System Capacity: Supports up to 600 compatible microinverters per Envoy-S.
- Easy Setup: Configurable via the Enphase Installer Toolkit mobile app.
- Reliable System Design: Hardwired device with indoor or protected outdoor mounting options. Backed by a 5-year warranty.
Key Technical Specifications
| Compatible Microinverters | M Series, S Series for Envoy-S Metered IQ Series for IQ Gateway Metered (see below for IQ Gateway IQ8 compatibility) |
| Supported Phases | Single-phase and multi-phase (three-phase) |
| Capacity | Up to 600 microinverters |
| Power Supply | 230 VAC or 400Y/230 VAC, 50 Hz |
| Environmental Rating | IP30 (indoor) or IP54 (if enclosed and protected) |
| System Dimensions | 213 x 126 x 45 mm |
| Weight | 0.5 kg |
| Operating Temperature | -40°C to 65°C |
| Communication | Powerline from microinverters, Wi-Fi/Ethernet/cellular to internet |
| Networking | Wi-Fi 802.11 b/g/n, Ethernet, optional Enphase Mobile Connect modem |
| Metering Accuracy | Production: ±0.5%, Consumption: ±2.5% |
| USB Ports | Two USB 2.0 (auto-sensing, for accessory connections) |
| Typical Power Consumption | 5 W |
| Warranty | 5 years |
Variations and Accessories
- Envoy-S Metered Kit: Includes the Envoy-S, one production CT, and two consumption CTs for three-phase systems.
- IQ Gateway Metered: For Enphase IQ Series microinverters, offering similar features, compact form factor, remote upgrades, and consumption/production monitoring via CTs.
- Optional: Enphase Mobile Connect (cellular modem), Q-Relay for mechanical grid protection (where required).
Applications
- Residential and commercial solar PV systems
- Installations needing module-level monitoring and accurate consumption/production analytics
- Projects requiring grid export limitation or complex phase layouts
- Compatible with M, S, and (via IQ Gateway) IQ Series systems
What's Included?
- 1 × Enphase Envoy-S Metered (single-phase or three-phase model)
- 1 × Production CT (200 A)
- 2 × Consumption CTs for three-phase systems
- Mounting hardware and installation guide
Why Choose Enphase Env
- Type Solar
- Vendor Enphase
- SKU ENV-S-EM-230
