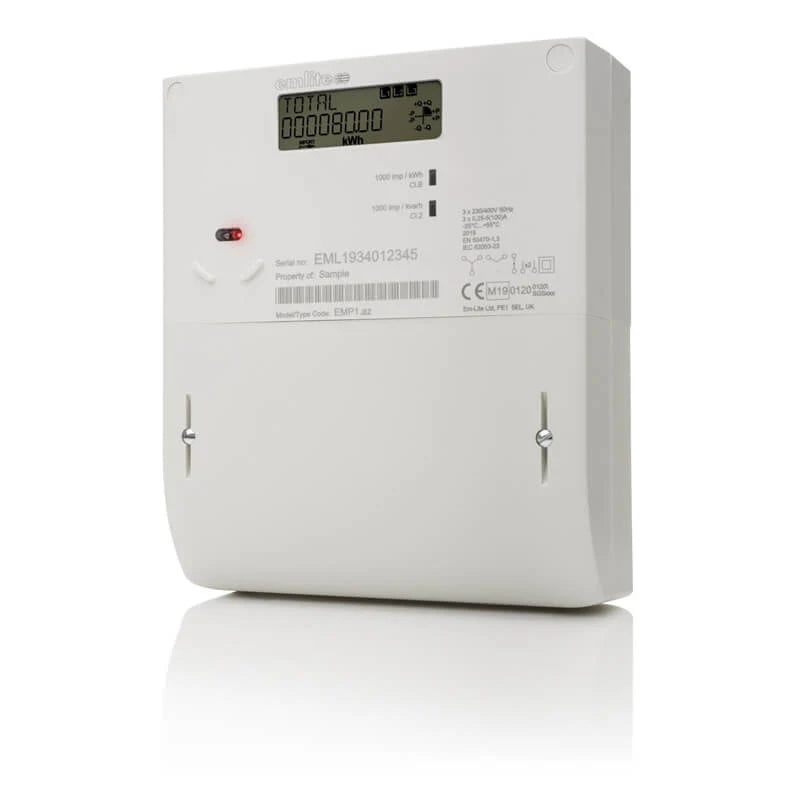

Emlite 3-Phase Bi-Directional Generation Meter EMP.AZ 100A (1000 Pulse/kWh)
The Emlite 3-Phase Bi-Directional Generation Meter EMP.AZ 100A is a highly accurate metering solution designed for renewable energy systems requiring precise energy generation and consumption measurement. Built for 3-phase power with a 100A rating per phase, this meter supports bi-directional metering with a high-resolution 1000 pulses per kWh pulse output, ideal for integration with advanced energy management and monitoring systems.
Key Features
- Bi-directional measurement tracks energy imported from and exported to the grid
- Rated current: 100A per phase, suitable for residential and commercial 3-phase setups
- Pulse output: 1000 pulses/kWh for accurate telemetry and data logging
- Compliant with MID (Measuring Instruments Directive) ensuring legal metering accuracy
- Clear backlit LCD display for easy energy reading in all lighting conditions
- DIN rail mountable housing for streamlined panel installation
- Four-quadrant power measurement including active and reactive energy
- Robust construction with tamper-resistant features and optional terminal covers
Specifications
- Voltage: 3-phase, 230V / 400V AC
- Frequency: 50Hz
- Accuracy Class: Class 1 (±1%)
- Operating temperature range: -10°C to +55°C
- Dimensions: Approx. 125mm (H) x 125mm (W) x 40mm (D)
- Weight: ~1.05 kg
- Optional power quality information available
- Manufacturer Part Number: EMP1-AZ
Applications
- Monitoring 3-phase solar PV, wind, and other renewable energy generation
- Energy management in commercial and residential 3-phase systems
- Grid-tied installations requiring precise import/export energy tracking
- Compatible with feed-in tariffs, net metering, and advanced energy monitoring setups
What's Included
- Emlite 3-Phase Bi-Directional Generation Meter EMP.AZ 100A (1000 Pulse/kWh)
- User manual and installation guide
Installation by a qualified electrician is recommended to guarantee safety and accurate metering.
The product is backed by a two-year manufacturer warranty for additional assurance.
- Type Metering
- Vendor Emlite
- SKU EMP1-AZ
