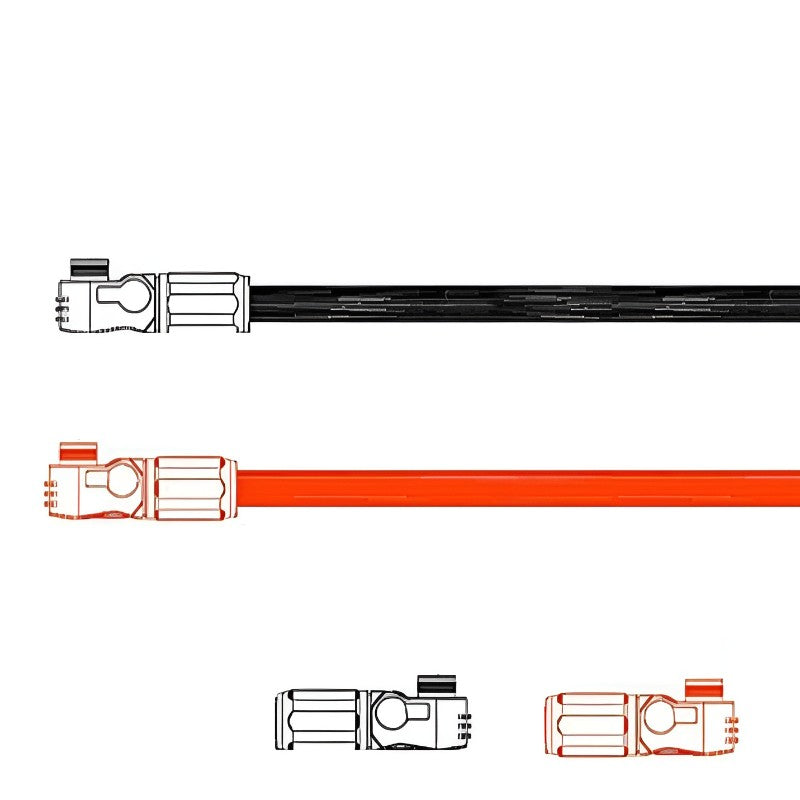

Eleven Energy Battery Enclosure Parallel Cable Set 1.2m

Eleven Energy Battery Enclosure Parallel Cable Set 1.2m is a long, heavy‑duty parallel cable pair for linking Eleven Volta sodium‑ion batteries installed in separate Eleven battery enclosures. It is designed for multi‑cabinet layouts where batteries are not directly adjacent, keeping high‑current DC links safe and tidy.

Key Features

• 1.2 m battery-to-battery links – extended length cables to bridge the gap between separate Eleven battery enclosures in a multi‑battery system.
• For multi-enclosure systems – typically one pair is required for systems with 3–4 batteries, two pairs for 5–6 batteries, and so on, allowing each additional enclosure to be paralleled into the bank.
• Matched to Volta batteries – intended for use with Eleven Volta sodium‑ion batteries as the approved enclosure‑to‑enclosure parallel connection set.
• High-current capable – built from appropriately sized 35 mm² battery cable to handle the DC currents associated with parallel battery banks.

Application & Use

• Enclosure-to-enclosure links – ideal where batteries are housed in multiple Eleven Battery Enclosures, spaced further apart than short inter‑battery cables can reach.
• Supports balanced parallel banks – helps maintain sensible, consistent cable routing between cabinets so that parallel packs share current effectively.
• Complements short parallel sets – used alongside the shorter 235 mm battery‑battery parallel cable sets that link batteries within a single enclosure.

Installation Notes

• On-site crimping required – one end of each cable is supplied uncrimped and must be terminated on site; a crimping die suitable for 35 mm² cable is required.
• Correct polarity – always connect positive to positive and negative to negative, with suitable DC isolation and fusing for the overall battery bank.
• Cable routing – route cables neatly between enclosures, protect against abrasion and strain, and observe bend radius and manufacturer installation guidance.
• Competent installation – all high‑current DC work should be carried out by a suitably qualified or competent installer, following the Volta battery and enclosure instructions.
