Eleven Energy Volta Battery-Battery Parallel Cable Set 235mm

Description

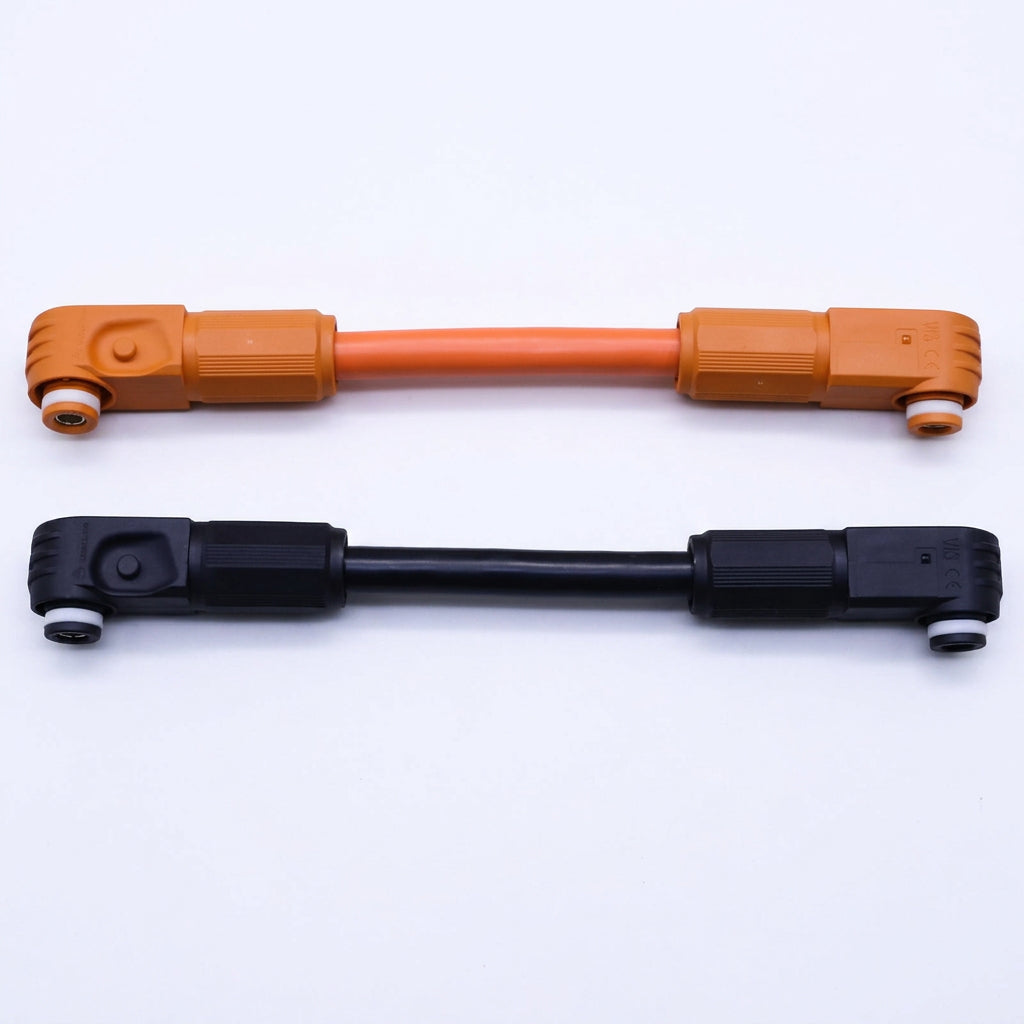

The Eleven Energy Volta 235mm Battery-Battery Parallel Cable Set is the short power link for connecting two Volta 4.5 kWh sodium-ion battery packs in parallel. At 235 mm long, it is made for packs sitting close together, either side by side or stacked, so the battery bank stays compact and tidy.

Paralleling Volta packs lets the system grow in capacity: up to eight packs can be connected for 33.12 kWh of usable capacity, with each pack identified by its own DIP switch setting. These short cables are the right choice where packs are adjacent; they are not for packs housed in separate enclosures.

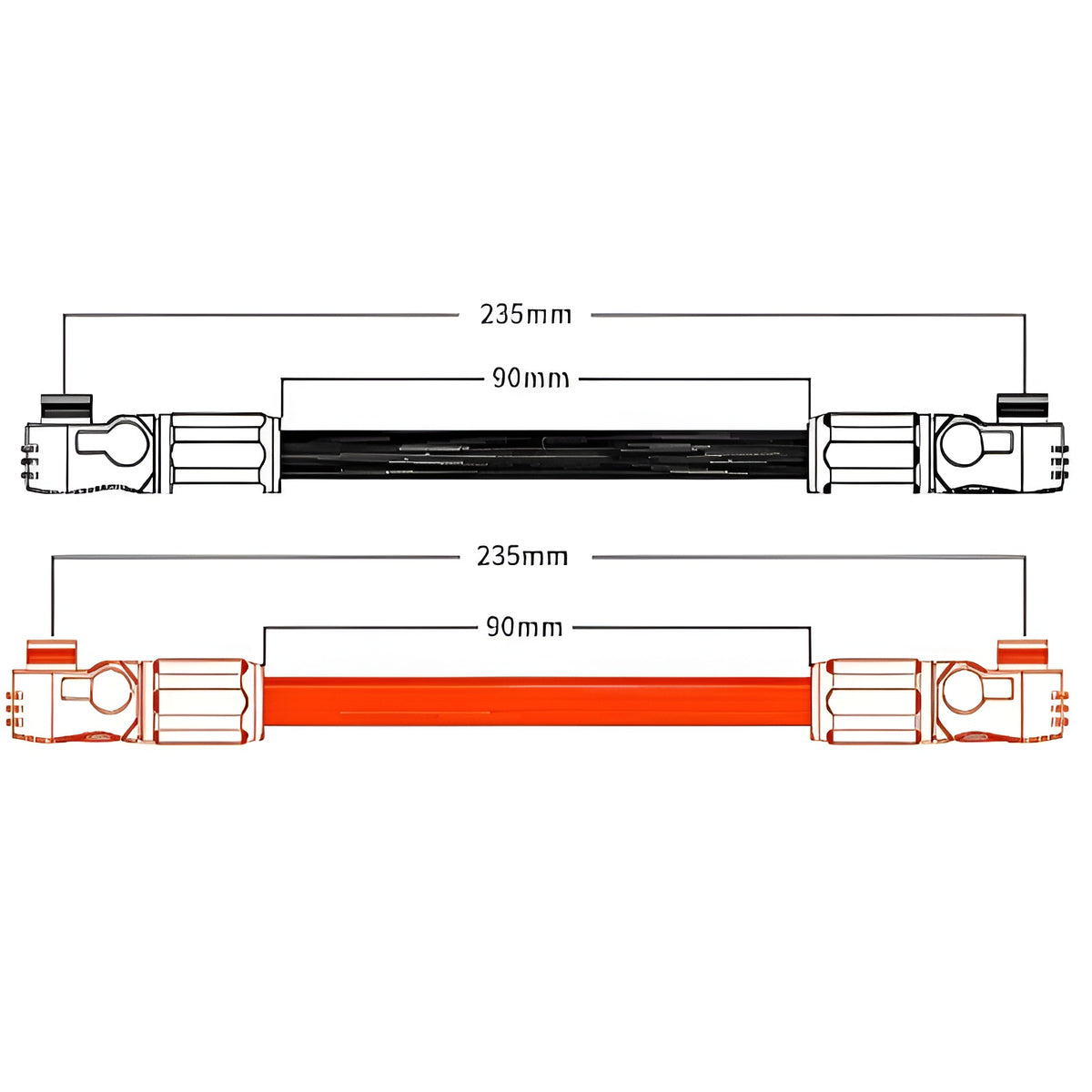

235 mm

Cable length

Up to 8

Volta packs in parallel

33.12 kWh

Max usable capacity

45 V

Volta rated voltage

100 A

Volta max charge / discharge

4.5 kWh

Volta pack capacity

Safety: Power off the inverter and every battery before connecting. Never connect or disconnect battery cables while the inverter is operating. Do not connect Volta packs in series; they must be paralleled only. Observe correct polarity, and fit an earth bond between all batteries and the inverter. Installation must be carried out by a qualified, UK-registered electrician in accordance with BS 7671 (18th Edition).

Same state of charge: When connecting two or more batteries, all packs must be at the same State of Charge (SoC). Each pack must also be given a unique DIP switch setting (single pack: all OFF).

Stacking: Eleven Energy states that battery packs must not be stacked directly on top of each other, and supplies a stacking kit with each pack. Use the stacking kit as shown in the installation manual when arranging packs for these short cables.

Power links only: This listing covers the power cables. Parallel packs also share a communication data link between the RS485-2 ports; confirm the data cable you need separately.

Compatibility: For use with Eleven Energy Volta sodium-ion batteries only. The manufacturer states its battery packs must not be connected to any other brand of inverter or battery pack.

Key features

Short 235 mm links

Compact 235 mm cables keep adjacent packs connected without excess cable to manage.

Side by side or stacked

Suitable for packs arranged horizontally or vertically, within the manufacturer's stacking guidance.

Built for Volta

Made for the Eleven Energy Volta sodium-ion pack, the approved way to link two packs in parallel.

Scalable capacity

Add packs to reach up to eight in parallel and 33.12 kWh of usable capacity.

Cold-tolerant system

Volta packs charge from -20°C to 55°C, suiting garages, utility rooms and outbuildings.

Locking connectors

Volta power terminals use locking connectors; make sure each one is fully clicked into place.

Specification

Cable set

Brand

Eleven Energy

Product type

Battery-to-battery parallel power cable set

Length

235 mm

Use

Short links between adjacent Volta packs

Not suited to

Packs in separate enclosures (longer cables required)

Parallel configuration

Max packs in parallel

8

Max usable capacity

33.12 kWh

Series connection

Not permitted

Pack identification

Unique DIP switch setting per pack

Parallel communication

RS485-2 ports

Compatible Volta battery pack

Battery type

Sodium-ion

Capacity

4.5 kWh

Rated voltage

45 V

Operating voltage range

33 V - 59.2 V

Max charge / discharge current

100 A / 100 A

Charging temperature

-20°C to 55°C

Discharging temperature

-30°C to 55°C

Dimensions (W x H x D)

550 x 525 x 155 mm

Weight

54.5 kg

Standards

EN IEC 61000-6, EN IEC 62619

Frequently asked questions

What is this cable set for?

It links two Volta sodium-ion battery packs in parallel using short 235 mm power cables, for packs installed close together.

How many Volta packs can I parallel?

Up to eight packs can be connected in parallel, giving 33.12 kWh of usable capacity. Packs must never be connected in series.

Can I use it for packs in separate enclosures?

No. These are the short cables for adjacent packs. Packs housed in separate enclosures need longer parallel cables.

Do the batteries need to match before connecting?

Yes. When connecting two or more batteries, all packs must have the same State of Charge, and each pack needs its own DIP switch setting.

Can I mix Volta packs with other battery brands?

No. Eleven Energy states its battery packs must not be connected to other brands of inverter or battery pack.

Does it include the communication cable?

This listing is for the power cables. Parallel packs also communicate through their RS485-2 ports, so confirm the data cable you need separately.
