EHC SlimJim Electric Flow Boiler 12kW
Couldn't load pickup availability
Payment details
EHC SlimJim Electric Flow Boiler 12kW
Product Description
The EHC SlimJim 12kW Electric Flow Boiler is a compact, fully-electric boiler designed for efficient wet central heating where installation space is at a premium. Ideal for homes or apartments lacking a gas supply, this boiler operates virtually silently and is suitable for both traditional radiator heating and underfloor systems. Compatible with open-vented or sealed heating systems, it offers the flexibility of central heating only or integration with indirect hot water cylinders for DHW (domestic hot water).
- 100% efficiency at point of use—no flue, condensate, or emissions

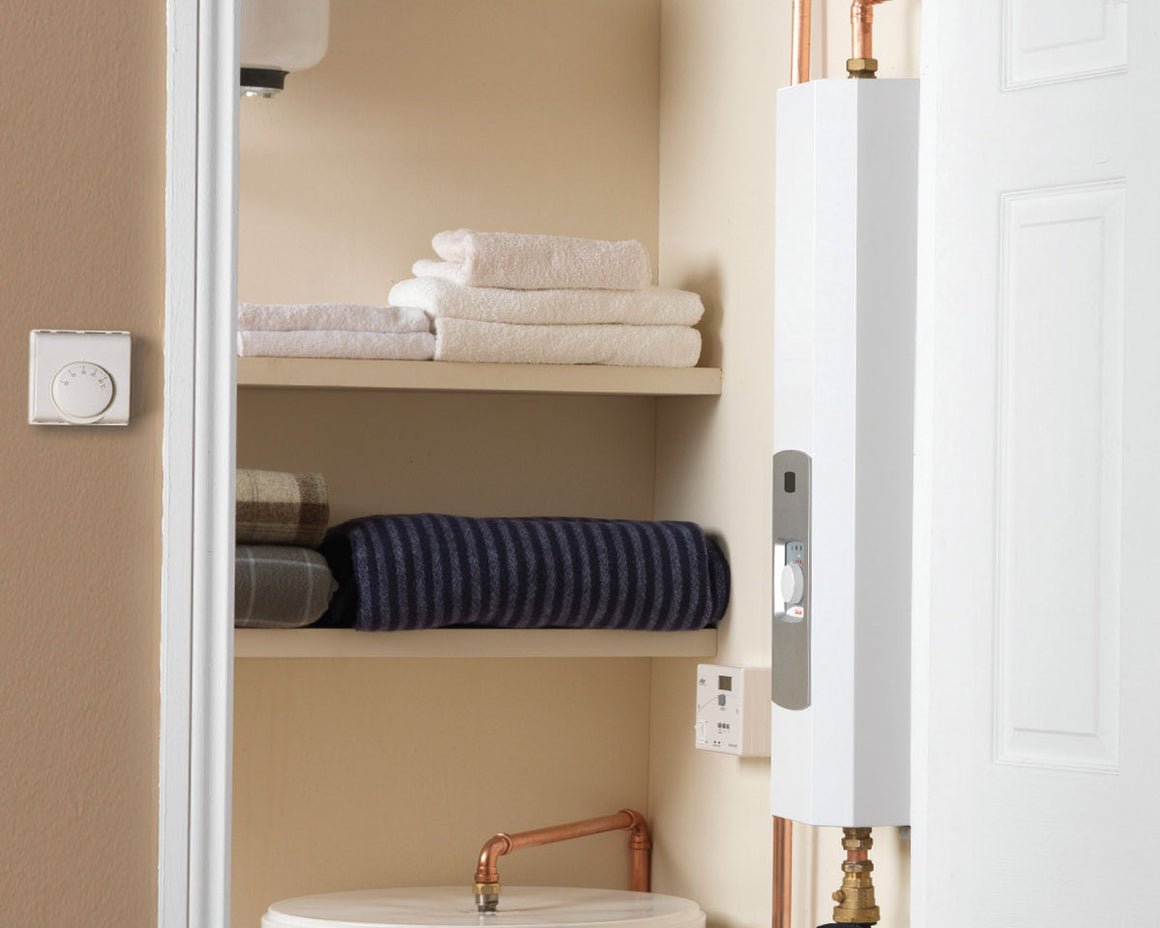

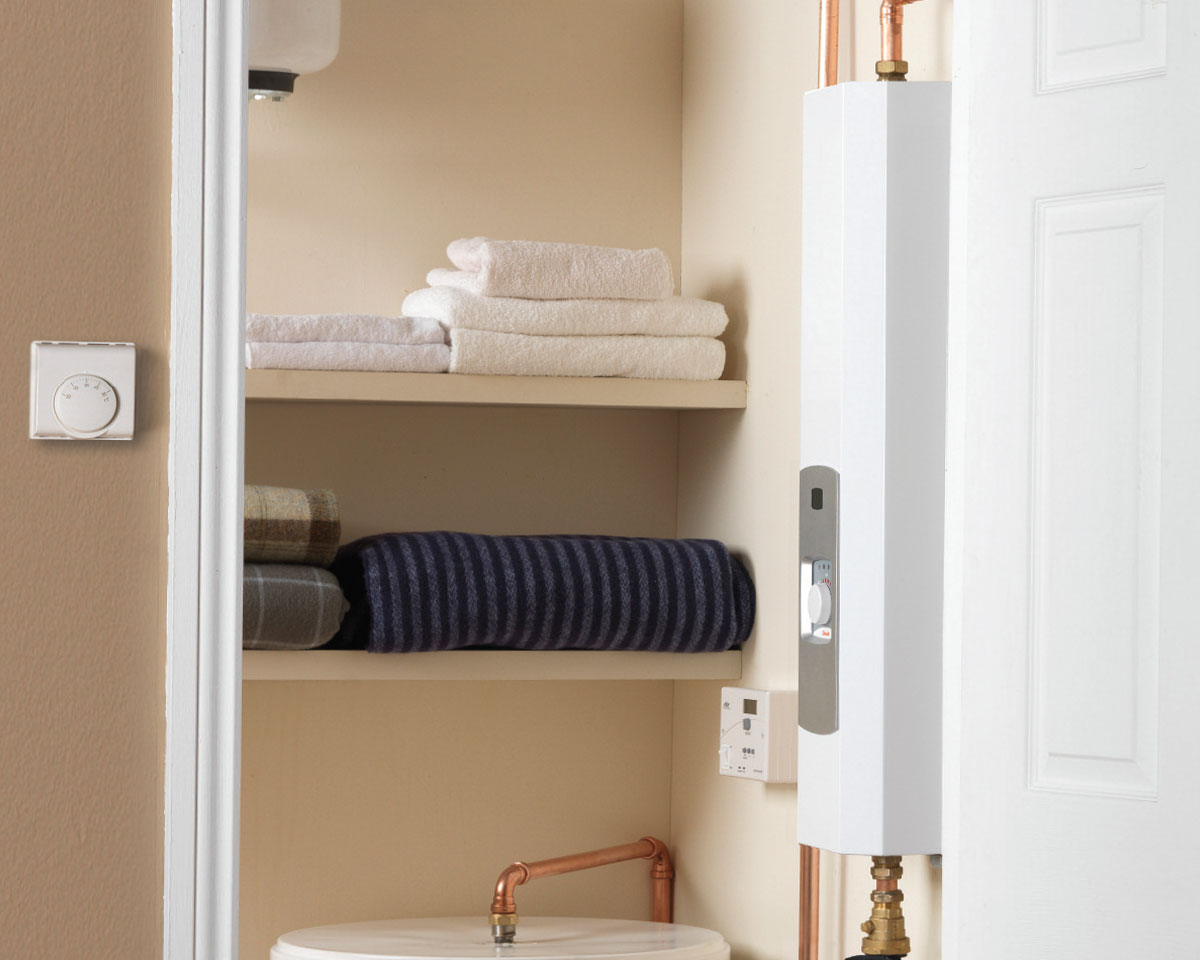

- Minimalist, slimline design: fits in kitchen cupboards or tight utility spaces
- Runs quietly, with no moving combustion parts
- Simple user interface with temperature control dial (30°C–80°C)
- Front-mounted heat/fault diagnostic indicators

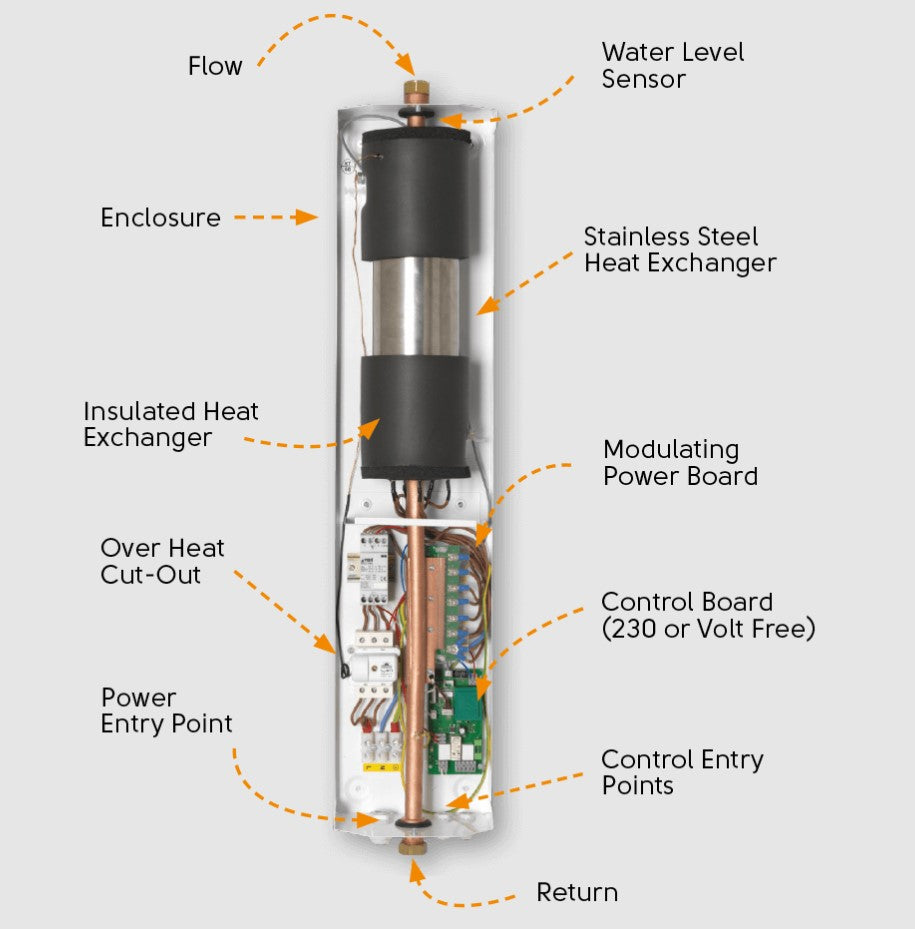

- Stainless steel, insulated heat exchanger for energy retention
- Run-Dry water level sensor prevents overheating in case of water loss
- Built-in high current thermal cut-out for safety
- No mandatory annual servicing required
- Compatible with “S” and “Y” plan heating configurations
Key Technical Specifications
| Model | EHCSJIM12KW |
| Output | 12 kW |
| Voltage / Phase | 230V, Single Phase |
| Current (Amps) | ~50A |

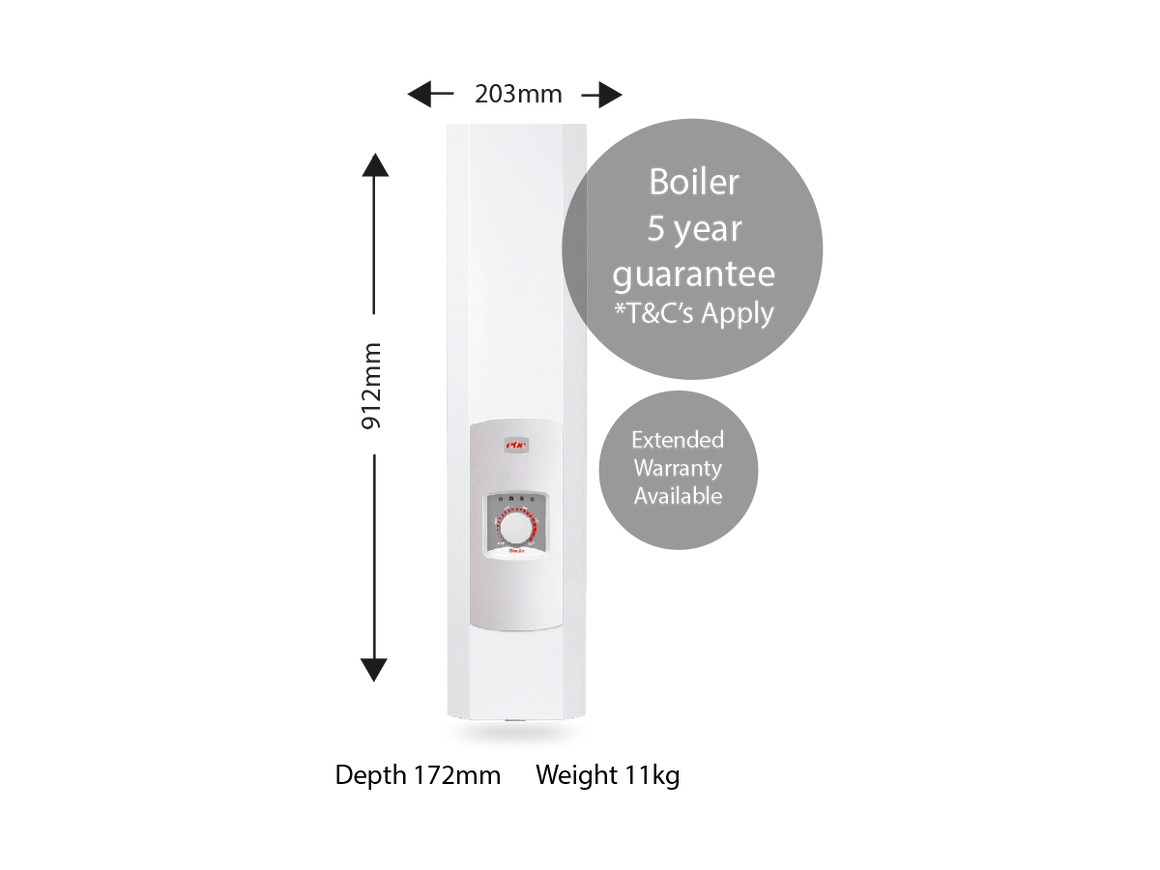

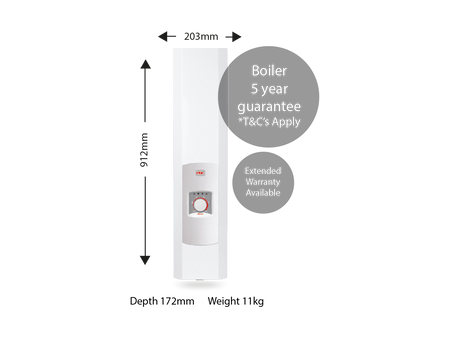

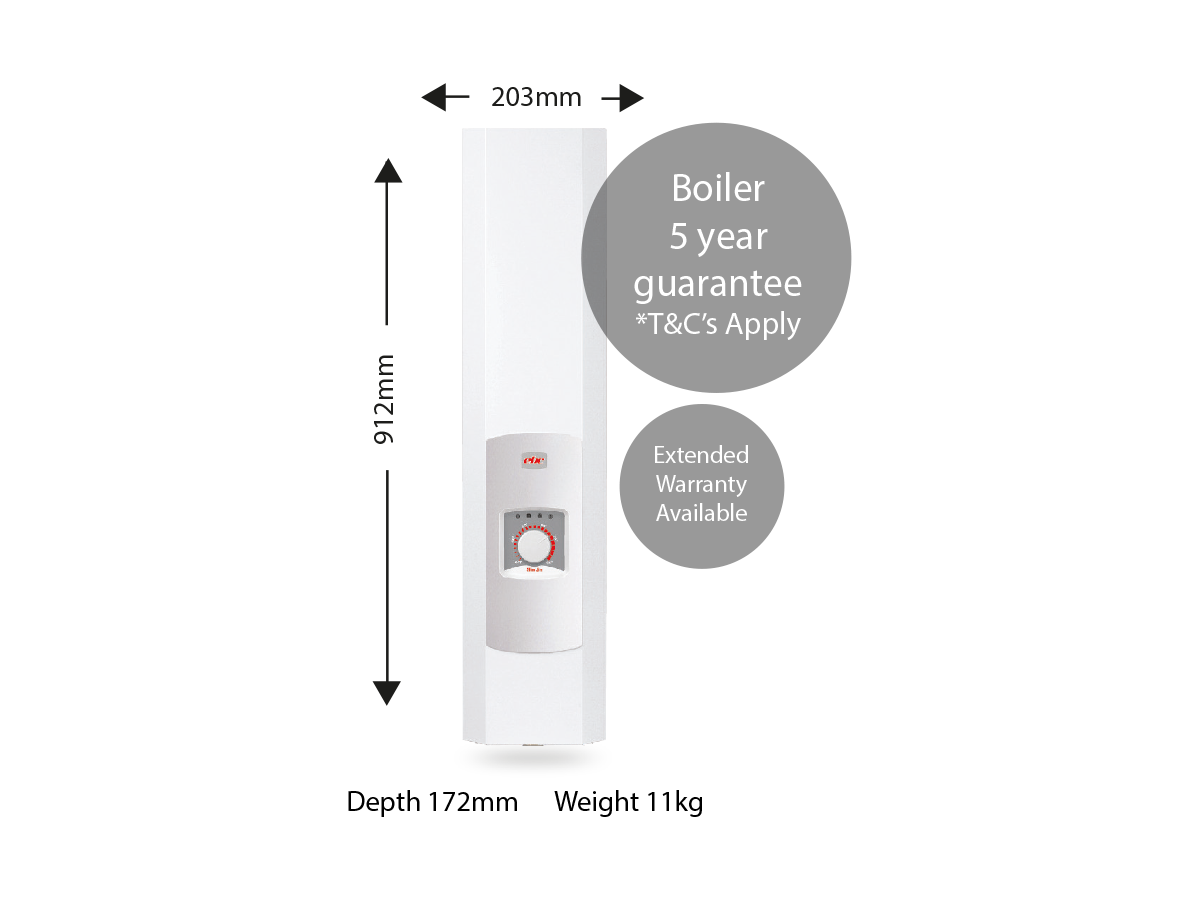

| Dimensions (HxWxD) | 912 × 203 × 172 mm |
| Weight | ~11 kg |
| Temperature Range | 30°C – 80°C |
| Energy Efficiency | 100%, ErP D |
| Warranty | 5 years |
| Water Pressure | Suits open-vented or sealed systems |
| Noise Level | <15 dB (virtually silent) |
Applications
- Small- to medium-sized residential properties without gas supply
- Where flue installation is not possible
- Renovations, extensions, lofts, or conversions where space is limited
- Wet heating circuits (radiators or underfloor heat)
- Compatible with indirect hot water cylinder (system or S-plan setups)
What's Included?
- EHC SlimJim 12kW Electric Flow Boiler (EHCSJIM12KW)
- User and installation manual
Why Choose EHC SlimJim 12kW?
- 100% electric with no local emissions and silent running
- Installed almost anywhere due to compact, space-saving design
- Simple, safe, and reliable with integrated safety controls
- 5-year manufacturer warranty for peace of mind
- Type Electric Boilers
- Vendor EHC
- SKU EHCSJIM12KW
