EcoFlow PowerPulse 2 7kW Untethered EV Charger | Type 2 Socket

Description

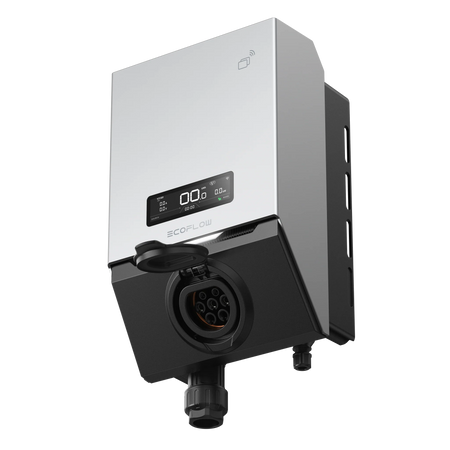

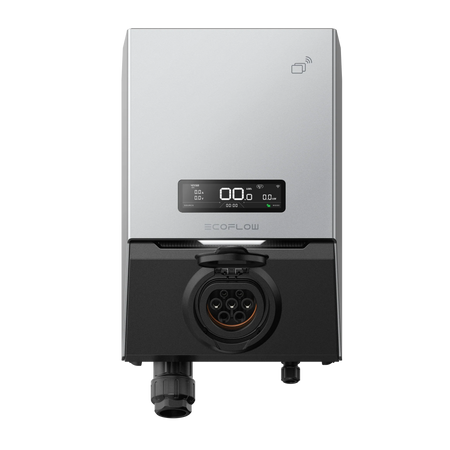

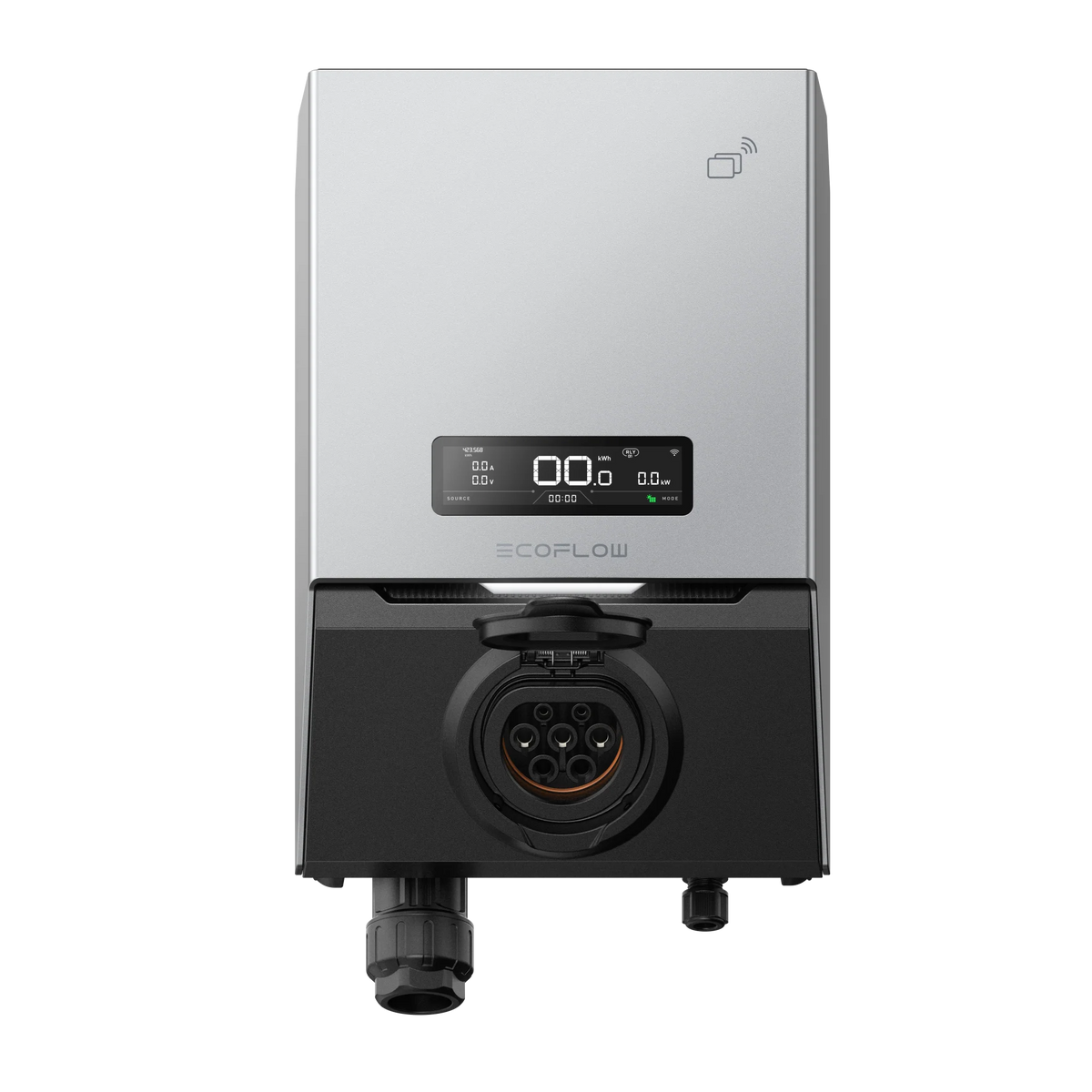

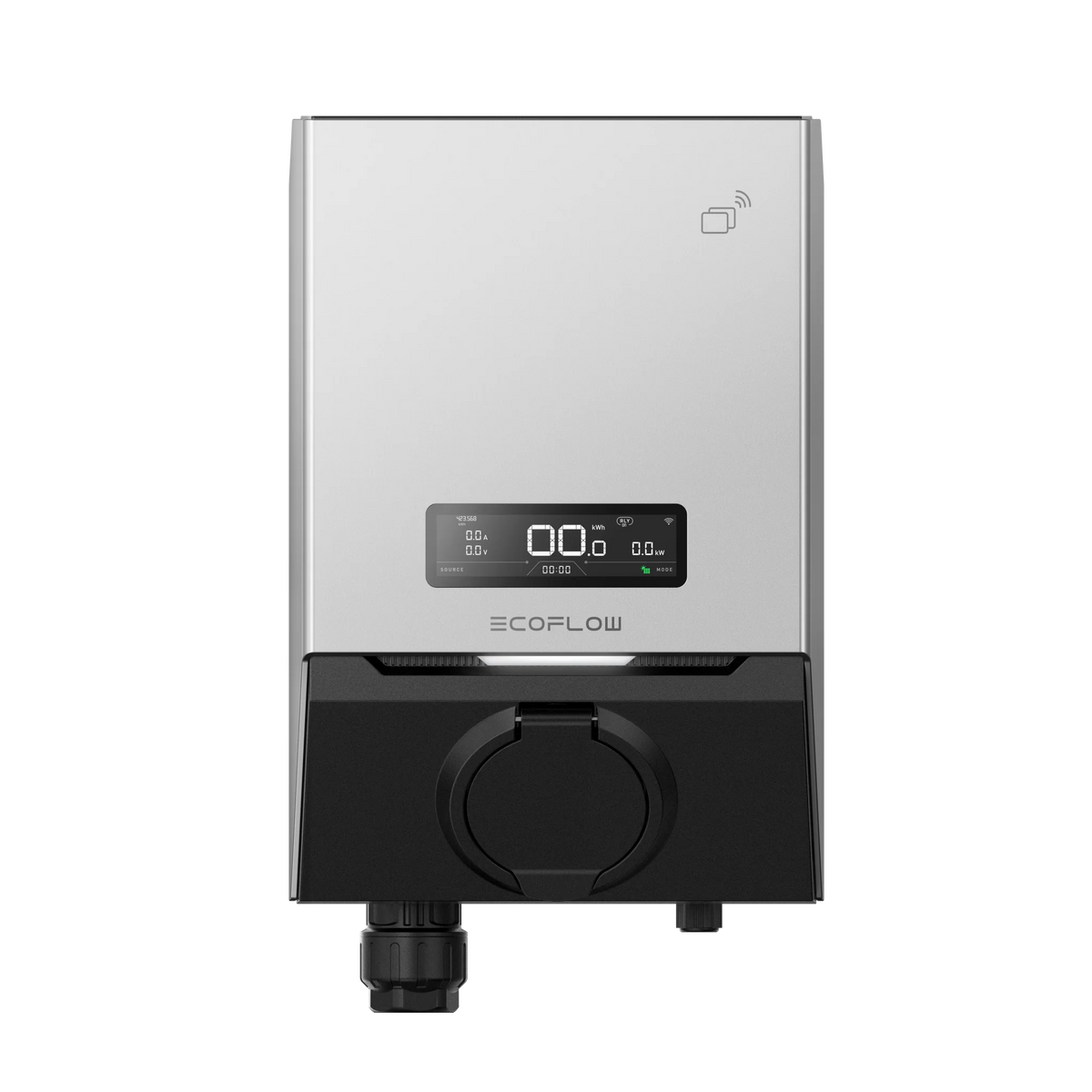

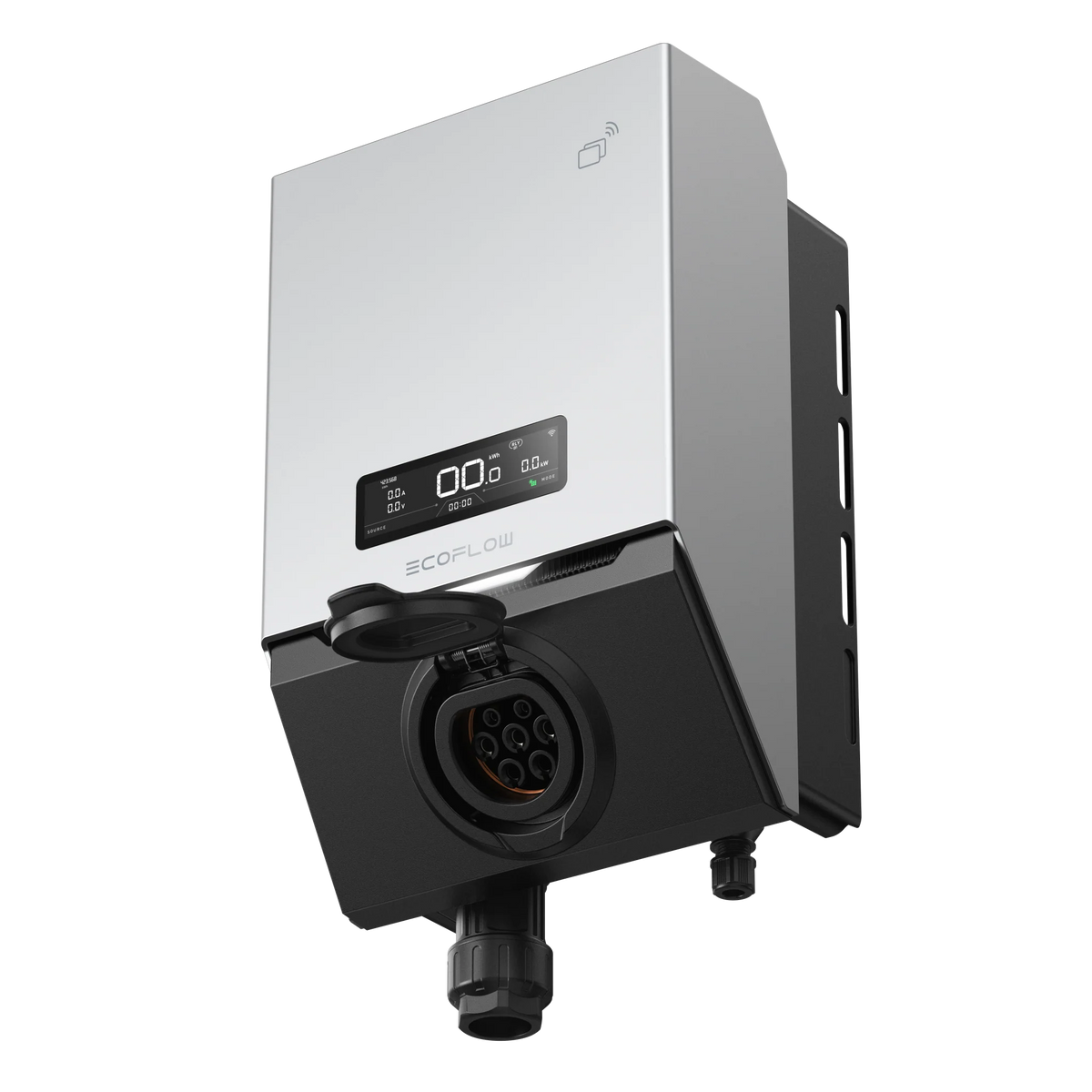

The EcoFlow PowerPulse 2 7kW EV Charger is a smart, wall-mounted, single-phase home charger with a Type 2 socket (untethered), delivering up to 7 kW at 32 A. It is built around solar-first smart charging: it can prioritise surplus solar generation, follow dynamic or time-of-use tariffs, and balance load in real time so your car charges at the right speed without overloading the circuit.

Choose from Smart, Fast, Scheduled and Solar charging modes, start a session simply by plugging in, tapping an RFID card or using the EcoFlow app, and keep an eye on progress on the built-in LCD display. It integrates natively with EcoFlow PowerOcean systems, supports third-party solar, and speaks OCPP 1.6-J and Modbus-RTU for open integration. Rated IP55 for indoor or outdoor use, it weighs just 3.5 kg and comes with a 3-year warranty.

7 kW

32 A, 230 V single-phase

Type 2

Untethered socket (IEC 62196-2)

IP55

Plugged in (IP54 unplugged)

OCPP 1.6-J

Plus Modbus-RTU

3.5 kg

Wall mounted

3 years

Manufacturer warranty

Safety and installation

Installation must be carried out by a qualified electrician in accordance with BS 7671 and the EcoFlow installation guide. An external RCCB is required (Type A or Type B according to local regulations), and the supply must be a TN or TT earthing arrangement. The UK version provides earthing protection in line with BS 7671:2018+A2-2022. The charger accepts cable up to 10 mm2.

Charging cable not included

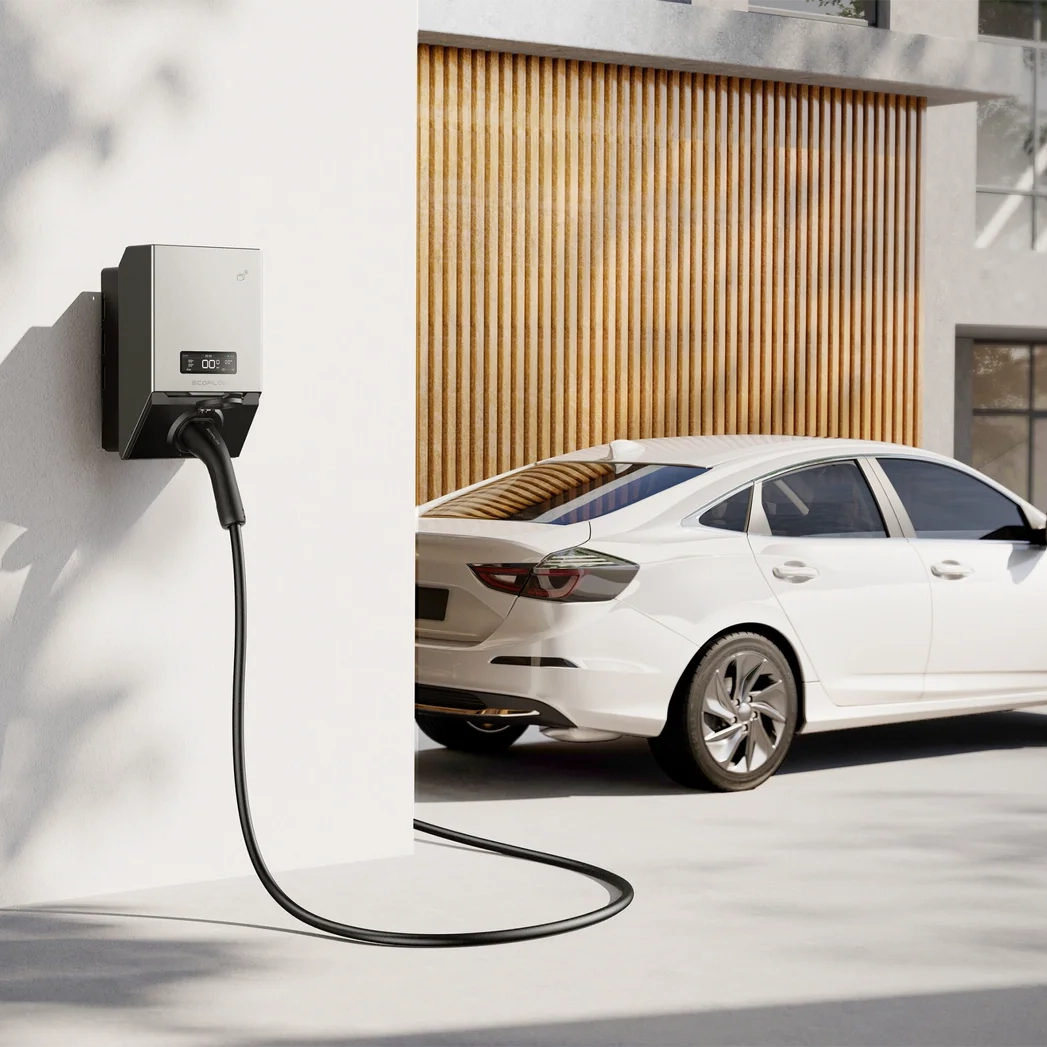

This is an untethered charger, so it has a Type 2 socket and no fixed cable. You will need a Type 2 charging cable to connect it to your vehicle. EcoFlow offers a 7.5 m cable designed for the PowerPulse 2, sold separately.

Solar and tariff features

Solar Mode works with an EcoFlow PowerOcean system or a third-party solar installation, and the Smart Mode tariff features depend on a supported dynamic tariff provider. EcoFlow lists Octopus Energy among its supported providers, but availability varies by country, so confirm your tariff and solar set-up with the installer before ordering.

Manufacturer warranty

The EcoFlow PowerPulse 2 is covered by a 3-year warranty from EcoFlow.

Key features

Solar-first charging

Solar Mode charges from surplus solar whenever it is available, topping up from the grid if sunlight dips, and links directly with EcoFlow PowerOcean or third-party solar.

Four charging modes

Smart (set energy goals and ready-by times), Fast Charge, Scheduled Charging for off-peak rates, and Solar Mode, all switched from the EcoFlow app.

Real-time load balancing

Dynamic load balancing adjusts charging power in real time to keep charging safe and continuous without circuit overloads.

LCD, RFID and app control

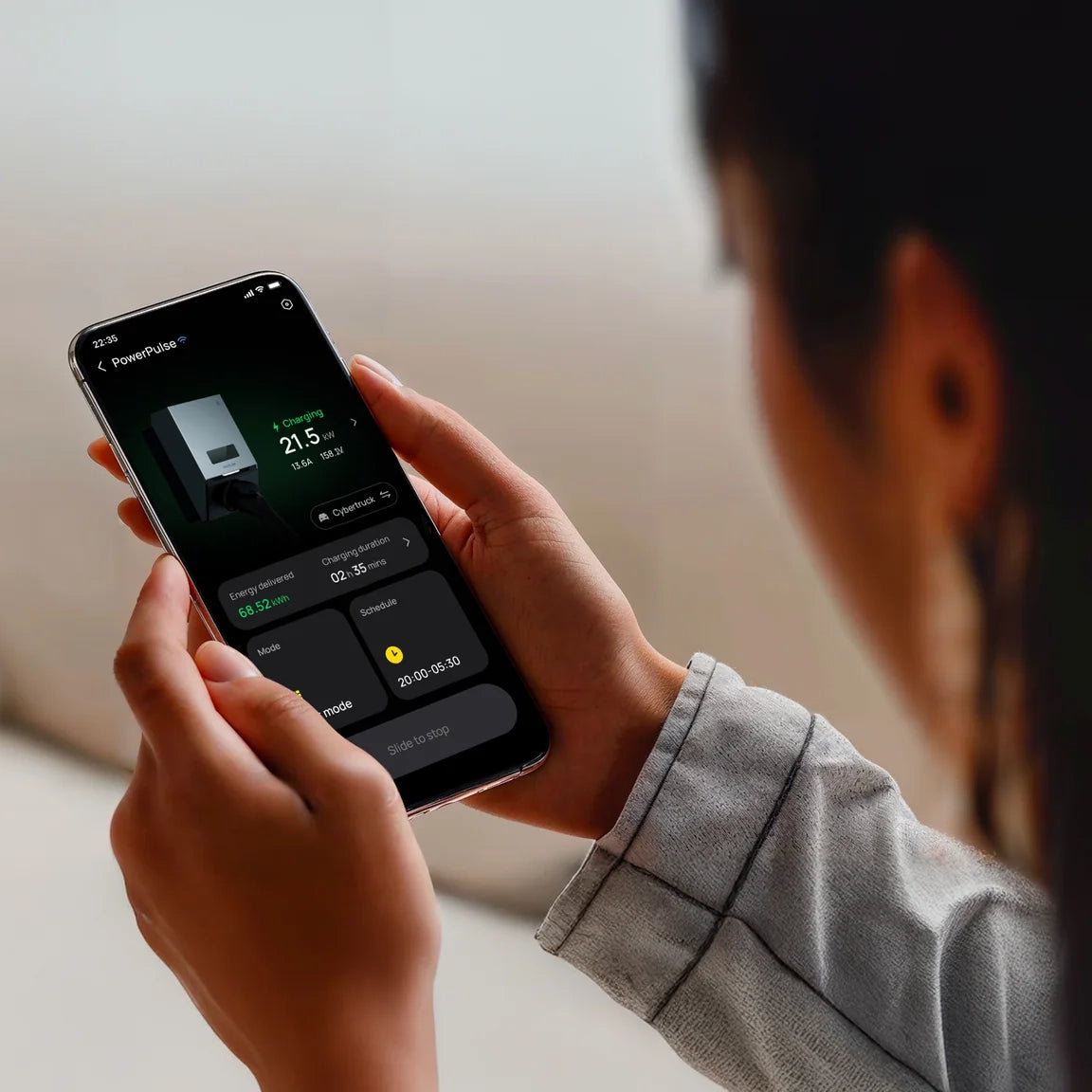

A built-in LCD shows status, mode and progress. Start with plug-and-play, an RFID card or the EcoFlow app, with remote monitoring from anywhere.

Outdoor-ready build

IP55 (IP54 unplugged), IK08 impact rating and a -30 to +50 °C operating range for indoor or outdoor mounting.

Open and connected

WiFi 2.4G, Bluetooth, RS485 and CAN communications with OCPP 1.6-J, Modbus-RTU protocols for third-party integration.

Technical specification

Electrical

Charge power (configurable)

7 kW

Rated voltage

230 V, single-phase

Rated current (configurable)

32 A

Rated frequency

50 Hz

Vehicle connection

Type 2 socket (IEC 62196-2), untethered

Charging mode

Mode 3

Approved grid configurations

TN, TT

Cable cross-sectional area

Up to 10 mm2

Residual current protection

External RCCB required (Type A or Type B per local regulations); onboard RCD Type A with 6 mA DC detection

Earthing protection

In accordance with BS 7671:2018+A2-2022 (UK version)

Protective class

Class I

Smart features and connectivity

Working modes

Fast Charge, Scheduled Charge, Customized Charge, Photovoltaic Charge, Smart Charge

Communication

WiFi (2.4G), Bluetooth, RS485, CAN

Authentication

RFID, EcoFlow app, Bluetooth

Remote control and monitoring

EcoFlow app (users), EcoFlow Pro app and web portal (installers)

Protocols

OCPP 1.6-J, Modbus-RTU, DL/T645

Display

Built-in LCD

Energy system integration

EcoFlow PowerOcean; third-party solar

Physical and environmental

Dimensions (W x D x H)

333 x 226 x 145 mm

Net weight

Approximately 3.5 kg

Installation

Wall mounted

IP rating

IP55 with a charging cable plugged in; IP54 without

IK rating

IK08

Environmental category

Indoor / outdoor

Operating temperature

-30 to +50 °C (derates above 50 °C)

Storage temperature

-40 to +70 °C

Relative humidity

5% to 95%

Maximum altitude

2,000 m

Protection and compliance

Protection

AC overvoltage, AC undervoltage, output overcurrent, AC overfrequency, AC underfrequency, short-circuit, RCD (Type A with 6 mA DC detection), overtemperature, leakage, surge, relay contact sticking and protective cover open alarm

Standards

EN IEC 61851-1, IEC 62955, IEC 61008-1

Warranty

3 years

Actual charging speed is limited by the lowest of the charger, the property supply and your vehicle's onboard charger. Specifications are subject to change by the manufacturer without notice.

Frequently asked questions

Is a charging cable included?

No. The PowerPulse 2 is untethered, with a Type 2 socket and no fixed cable, so you need a Type 2 charging cable to connect it to your vehicle. EcoFlow makes a 7.5 m cable for it, sold separately.

What electrical protection does it need?

An external RCCB is required (Type A or Type B according to local regulations). The charger itself includes an onboard Type A RCD with 6 mA DC detection, and the UK version provides earthing protection per BS 7671:2018+A2-2022. Your installer will specify the full protection for the installation.

Do I need solar panels or a PowerOcean system?

No. Fast Charge and Scheduled Charging work on any supply. Solar Mode links with an EcoFlow PowerOcean system or a third-party solar installation, and Smart Mode uses dynamic or time-of-use tariff pricing where your provider is supported.

How do I start and stop a charge?

Simply plug in and the charger starts automatically, or authenticate with an RFID card or the EcoFlow app. The LCD display shows status, mode and charging progress, and you can switch modes with a tap of your RFID card.

Can it be installed outdoors?

Yes. It is IP55 with a cable plugged in (IP54 without), IK08 impact rated and suitable for indoor or outdoor use from -30 to +50 °C. It is wall mounted and weighs about 3.5 kg.

How fast will it charge my car?

The charger delivers up to 7 kW (32 A, 230 V single-phase). Your actual speed is limited by the lowest of the charger, your property supply and your vehicle's onboard AC charger, and dynamic load balancing may reduce power to protect the circuit.
