Easee Charge 1P & 3P 22kW EV Charger Untethered | 10243

Description

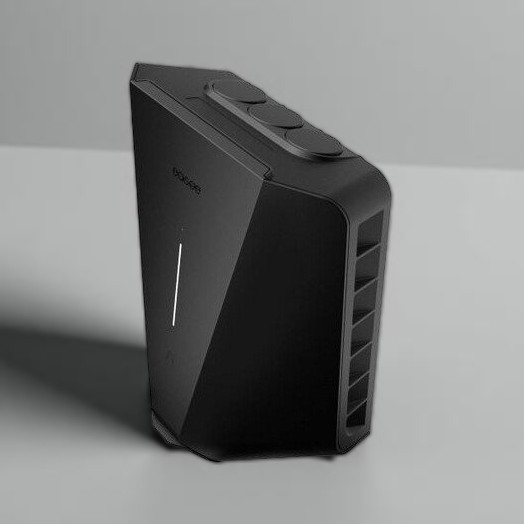

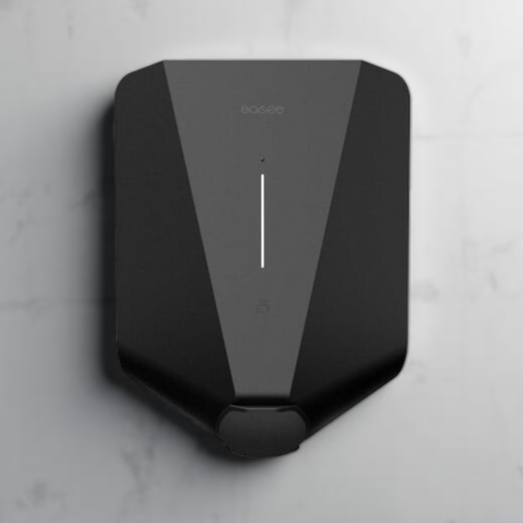

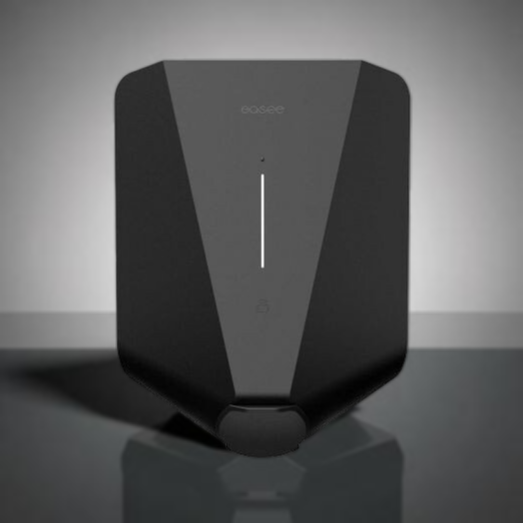

The Easee Charge (10243) is a compact, smart untethered EV charger built for commercial charging at workplaces, apartment blocks, car parks and fleet depots. It charges on single or three phase, delivering up to 7.4 kW on single phase and up to 22 kW on three-phase TN through a standard Type 2 socket, with a clean black finish and a body weighing just 1.5 kg.

Built for scale, Easee Charge supports an unlimited number of chargers per site with load and phase balancing that keeps working even offline, an automatic queuing system for fair sharing, and daisy-chain wiring that cuts installation cost. Wi-Fi, Bluetooth, built-in LTE Cat M1 and OCPP 1.6J let you manage the site through Easee Control or a third-party platform, while an integrated energy meter (±2%) and RFID/NFC access control keep usage visible and secure.

22 kW

3-phase TN

7.4 kW

Single phase

Unlimited

Chargers per site

IP54

IK10 rated

1.5 kg

Weight

3 years

Warranty

Electrical safety and regulations

Installation must be carried out by a competent electrician in line with BS 7671, the IET Code of Practice for EV Charging Equipment Installation and, for domestic premises, Part P.

Cable and energy balancing

The charger is untethered and sold without a charging cable. Automatic current adjustment and phase balancing against the building’s total load require an Easee Equalizer. For MID-certified billing readings, see the Easee Charge Max (small sites) or Charge Pro (large sites).

Name and rating

Easee Charge is rated up to 22 kW. The actual rate depends on your supply: 1.4 to 7.4 kW on single phase, 4.1 to 22 kW on three-phase TN and 2.4 to 12.7 kW on three-phase IT.

Key features

Scalable commercial charging

Unlimited chargers per site, daisy chaining and the patented Easee Ready system keep multi-bay installs fast and predictable.

Intelligent energy management

Chargers communicate locally by radio or Wi-Fi to load and phase balance all available energy, with a queuing system for fair sharing.

Fully connected

Wi-Fi, Bluetooth, e-SIM (LTE Cat M1) and cloud OCPP 1.6J, plus the Easee App and Easee Control for site overview.

Smart safety

Integrated earth fault protection (RCD), overload protection, multiple temperature sensors, IP54 and IK10 impact resistance.

Access and theft protection

Built-in RFID/NFC reader, a permanently lockable charging cable and a padlock bracket for the charger unit.

Compact Nordic design

Just 256 × 193 × 106 mm and 1.5 kg, with replaceable front covers available in other colours.

Specification

Charging performance

Single-phase charging power

1.4 kW (6 A) to 7.4 kW (32 A)

3-phase TN charging power

4.1 kW (6 A) to 22 kW (32 A)

3-phase IT charging power

2.4 kW (6 A) to 12.7 kW (32 A)

Supply voltage

3 × 230/400 V AC (±10%), 50 Hz

Power grid

TN, IT and TT

Connection point

Type 2 socket (untethered)

Chargers per site

Unlimited

Load balancing

Up to 101 chargers per circuit

Energy meter

Built-in, ±2%

Connectivity and control

Wi-Fi

2.4 GHz b/g/n

Bluetooth

4.2

Mobile

Built-in e-SIM (LTE Cat M1)

Protocol

Cloud OCPP 1.6J

Local communication

Easee Link 868 MHz radio, with Wi-Fi where available

Access control

Built-in RFID/NFC reader

Apps and portals

Easee App for control, scheduling and monitoring; Easee Control

Safety and construction

Protection

Overload protection to EN IEC 61851-1:2019; integrated earth fault protection (RCD); multiple temperature sensors

Ingress protection

IP54 (backplate IP22 without cover)

Impact resistance

IK10

Overvoltage category

III

Theft protection

Charging cable can be locked permanently; padlock bracket for the charger unit

Colour

Black (other colour covers sold separately)

Dimensions and product information

Dimensions (H × W × D)

256 × 193 × 106 mm

Weight

1.5 kg

Operating temperature

-30 °C to +40 °C

Circuit breaker

Maximum 80 A

Terminal wire cross-section

Up to 16 mm² single cable, up to 10 mm² parallel connection

Part number

10243

Manufacturer warranty

3 years (UK)

Country of origin

Norway

Frequently asked questions

Is the charging cable included?

No. Easee Charge is untethered with a Type 2 socket. Add a Type 2 cable separately and, if you wish, lock it permanently into the charger.

What charging speed will I get?

Up to 7.4 kW on single phase and up to 22 kW on three-phase TN, provided your supply, installation and vehicle allow it.

How many chargers can I connect on one site?

An unlimited number per site, with load balancing for up to 101 chargers on one circuit. Balancing runs locally between the chargers, even without an internet connection.

Do I need an Easee Equalizer?

Only to balance charging against the whole building’s consumption and adjust speed automatically to available current. Balancing between Easee chargers works without it.

Can it be used with a management or payment platform?

Yes. OCPP 1.6J and the Easee Control portal support integration with compatible management and payment systems.

Can I mount it on a post?

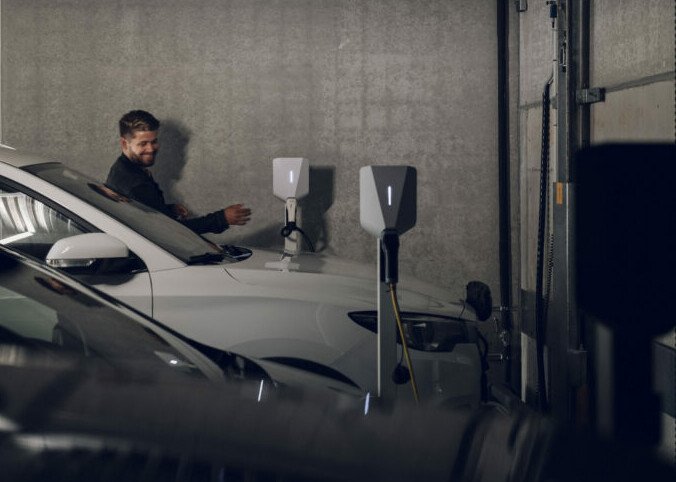

Yes. Easee Charge is compatible with the Easee Base charging post, which suits car parks and driveways where wall mounting is not possible.
