Easee Base 1-Way EV Charger Post, 120cm Column | 92001

Description

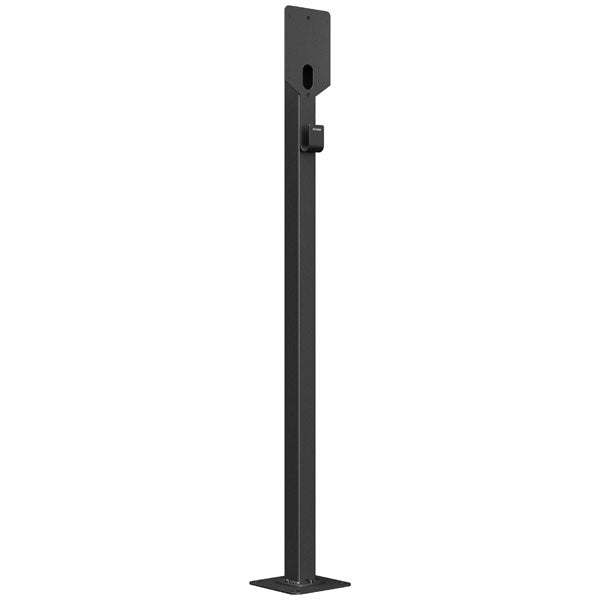

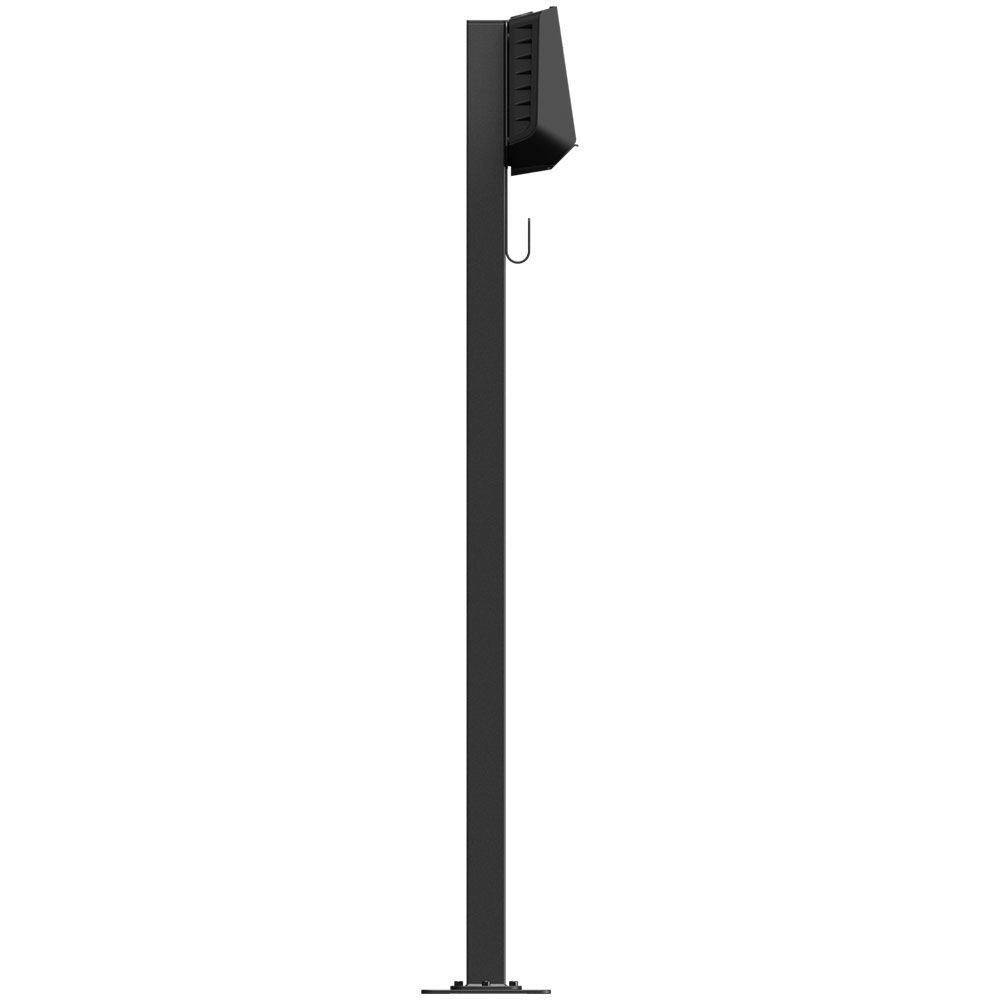

The Easee Base 1-Way Kit (92001) bundled with the Easee Base Column (92000) gives you a complete, weatherproof floor-standing post for a single Easee charger – ideal where wall mounting isn’t possible, such as driveways, car parks and open parking bays. The 120 cm column (1170 mm overall height) is built from aluminium and stainless steel with a scratch-resistant black powder coat, and houses an integrated Power Rail for simple wiring.

This bundle contains everything needed to build a 1-way post: the column, side panel and end cap, plus the 1-way kit with its mounting plate, 1-way cover, Power Rail with ground connection plate and 45° adapter plate. Integrated cable hooks are available on 1-way posts, and the charging cable can be permanently locked in the Easee Charger. Designed and manufactured in Norway.

1 charger

Per post

1170 mm

Overall height

IP44

Weatherproof

IK10

Impact resistance

950 mm

Socket-outlet height

3 years

Warranty

Electrical safety

Connection via the Power Rail requires an RCD-protected circuit. Installation must be carried out by a competent electrician in line with BS 7671 and, for domestic premises, Part P.

Charger not included

The Easee Base is delivered without the Easee Charger. Order the charger separately.

Replaces legacy item

This 92001 kit with the 92000 column is the current successor to the legacy Base 1-way item 90322.

Key features

Single-charger post

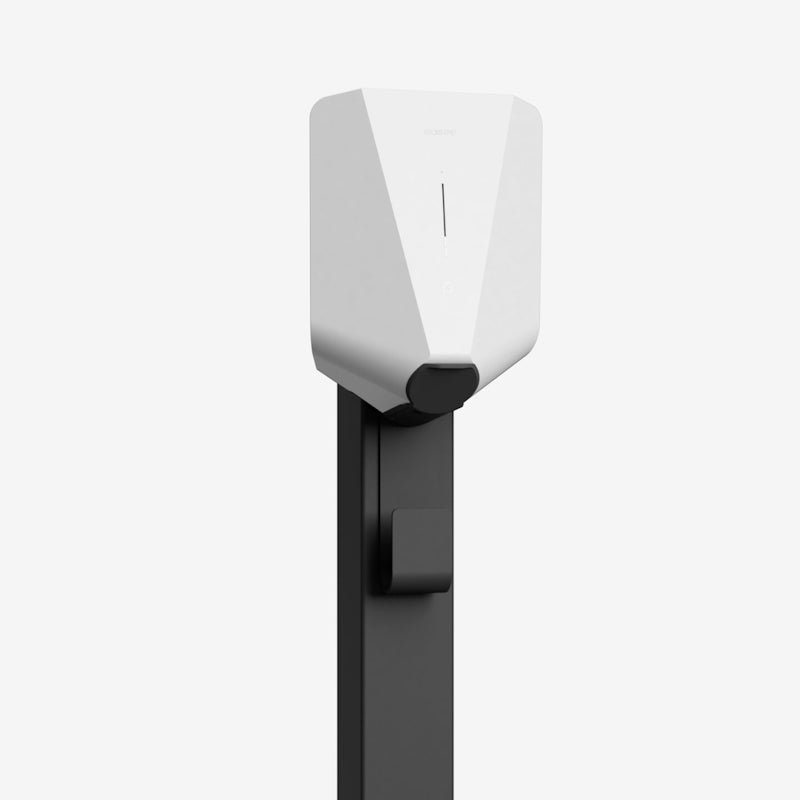

Mount one Easee Charger exactly where the vehicle parks, without needing a wall.

Integrated Power Rail

Connects the charger and allows multiple Bases to be linked in series using a single power cable, cutting install time and cabling.

Durable build

Aluminium and stainless steel with a scratch-resistant powder coating, rated IP44 and IK10.

45° adapter plate

Rotate the post in 45 degree intervals – ideal for uneven foundations or angled placement.

Integrated cable hooks

Built-in hooks keep the charging cable tidy on 1-way posts.

Made in Norway

Clean, minimalist design that blends seamlessly with Easee chargers.

Specification

Configuration and dimensions

Configuration

1-way (one charger)

Kit part number

92001 (1-Way Base Kit)

Bundle contents

Column, side panel and end cap (92000); mounting plate, 1-way cover, Power Rail with ground connection plate, adapter plate (92001)

Overall dimensions (H × W × D)

1170 × 160 × 80 mm

Mounting plate (H × W × D)

380 × 160 × 45 mm

Weight (column + kit)

Approx. 6.7 kg (column 3.2 kg, kit 3.5 kg)

Supplied in

Two cartons: column 140 × 140 × 1200 mm (3.61 kg); kit 387 × 215 × 82 mm (3.7 kg)

Technical specification

Column part number

92000 (Easee Base Column, 120 cm series)

Material

Aluminium and stainless steel (adapter plate and mounting plate)

Finish and colour

Scratch-resistant powder coating, black

IP rating

IP44

Impact resistance

IK10

Insulation class

Class I (with Power Rail)

Charging socket-outlet height

950 mm

Adapter plate

Fits c/c 160 mm foundation; supports 22 mm bolts; 45 degree rotation intervals

Fixings

Screws and nuts included

Power Rail supply conductors

Up to 16 mm² flexible with ferrules, or 25 mm² solid; copper or aluminium

Power Rail to charger cable length

135 cm

Electrical connection

Circuit must be RCD protected; multiple posts can be connected in series

Country of origin

Norway

Manufacturer warranty

3 years

Frequently asked questions

Is the Easee Charger included?

No. The Easee Base is delivered without the charger. This bundle supplies the post, Power Rail and mounting hardware only.

Do I need to order the column separately?

No. This listing includes the 92000 Easee Base Column together with the 92001 1-Way Kit.

Can I add more posts later?

Yes. The Power Rail allows multiple Bases to be linked in series using a single power cable.

Can the post be turned or installed at an angle?

Yes. The adapter plate allows rotation in 45 degree intervals and suits c/c 160 mm foundations with up to 22 mm bolts.

Does the post have cable hooks?

Yes. Integrated cable hooks are available for 1-way and 2-way setups.

What warranty applies?

The manufacturer warranty period is 3 years.
