Easee Base 4-Way EV Charger Post, 120cm Column | 92004

Description

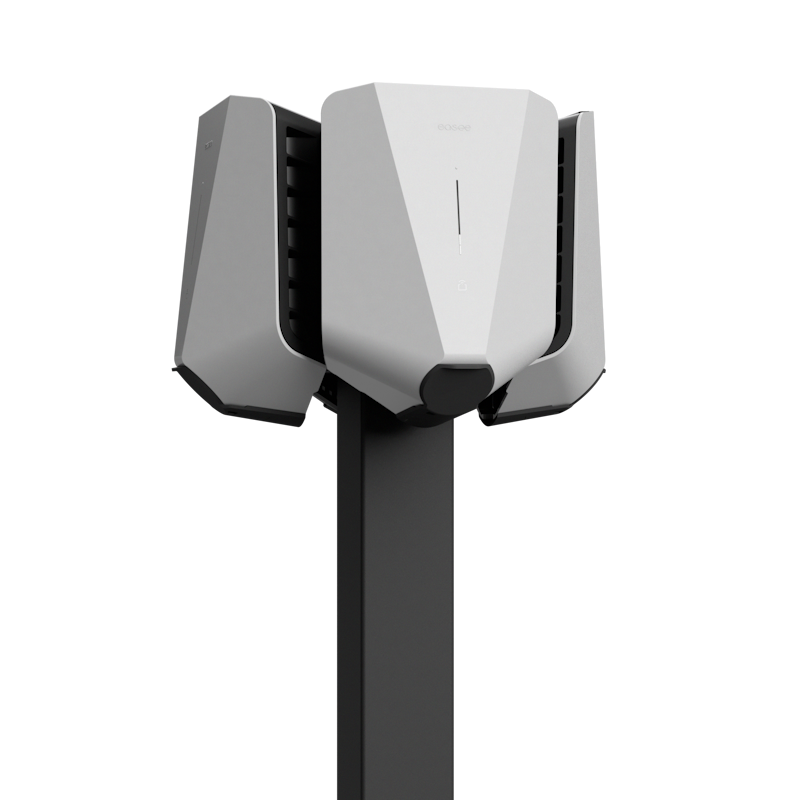

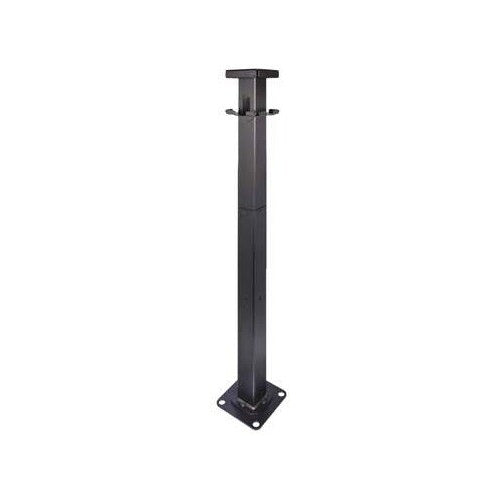

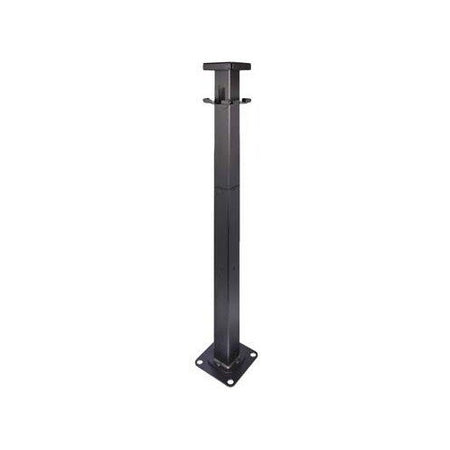

The Easee Base 4-Way Kit (92004) bundled with the Easee Base Column (92000) is a weatherproof floor-standing post for up to four Easee chargers, with one charger on every side. It is the most space-efficient option for car parks, workplaces and residential developments where wall mounting isn’t possible. The 120 cm column (1170 mm overall height) is built from aluminium and stainless steel with a scratch-resistant black powder coat and an integrated Power Rail.

The bundle includes the column, side panel and end cap, plus the 4-way kit with top frame, top plate, bottom frame, Power Rail with ground connection plate and 45° adapter plate. Need three chargers instead of four? The optional 3-Way cover (90300) is sold separately. Designed and manufactured in Norway.

Up to 4

Chargers per post

1170 mm

Overall height

IP44

Weatherproof

IK10

Impact resistance

950 mm

Socket-outlet height

3 years

Warranty

Electrical safety

Connection via the Power Rail requires an RCD-protected circuit. Installation must be carried out by a competent electrician in line with BS 7671 and, for domestic premises, Part P.

Chargers not included

The Easee Base is delivered without the Easee Chargers. Integrated cable hooks are not available on 4-way setups.

Replaces legacy item

This 92004 kit with the 92000 column is the current successor to the legacy Base 4-way item 90324.

Key features

Four chargers, one post

Mount up to four Easee Chargers, one on each side, for the smallest possible footprint per charger.

Integrated Power Rail

Connects every charger and lets you link multiple Bases in series with a single power cable.

Durable build

Aluminium and stainless steel with a scratch-resistant powder coating, rated IP44 and IK10.

45° adapter plate

Rotate the post in 45 degree intervals for uneven foundations or angled placement.

Scalable layouts

Suited to single installations and larger sites, with a clean, future-proof setup.

Made in Norway

Minimalist styling that blends with Easee chargers.

Specification

Configuration and dimensions

Configuration

4-way (up to four chargers)

Kit part number

92004 (4-Way Base Kit)

Bundle contents

Column, side panel and end cap (92000); top frame, top plate, bottom frame, Power Rail with ground connection plate, adapter plate (92004)

Overall dimensions (H × W × D)

1170 × 186 × 186 mm

Mounting plate (H × W × D)

380 × 160 × 45 mm

Optional accessory

3-Way cover, part number 90300 (sold separately)

Weight (column + kit)

Approx. 6.7 kg (column 3.2 kg, kit 3.5 kg)

Supplied in

Two cartons: column 140 × 140 × 1200 mm (3.61 kg); kit 387 × 215 × 82 mm (3.7 kg)

Technical specification

Column part number

92000 (Easee Base Column, 120 cm series)

Material

Aluminium and stainless steel (adapter plate and mounting plate)

Finish and colour

Scratch-resistant powder coating, black

IP rating

IP44

Impact resistance

IK10

Insulation class

Class I (with Power Rail)

Charging socket-outlet height

950 mm

Adapter plate

Fits c/c 160 mm foundation; supports 22 mm bolts; 45 degree rotation intervals

Fixings

Screws and nuts included

Power Rail supply conductors

Up to 16 mm² flexible with ferrules, or 25 mm² solid; copper or aluminium

Power Rail to charger cable length

135 cm

Electrical connection

Circuit must be RCD protected; multiple posts can be connected in series

Country of origin

Norway

Manufacturer warranty

3 years

Frequently asked questions

Are the Easee Chargers included?

No. The Easee Base is delivered without the chargers. This bundle supplies the post, Power Rail and mounting hardware only.

Do I need to order the column separately?

No. This listing includes the 92000 Easee Base Column together with the 92004 4-Way Kit.

Can I fit only three chargers?

Yes. Use the 3-Way cover (part number 90300), sold separately, to close off the unused side.

Can several posts be linked together?

Yes. The Power Rail allows multiple Bases to be linked in series using a single power cable.

Can the post be installed at an angle?

Yes. The adapter plate allows rotation in 45 degree intervals and suits c/c 160 mm foundations with up to 22 mm bolts.

Does a 4-way post have cable hooks?

No. Integrated cable hooks are available for 1-way and 2-way setups only.

What warranty applies?

The manufacturer warranty period is 3 years.
