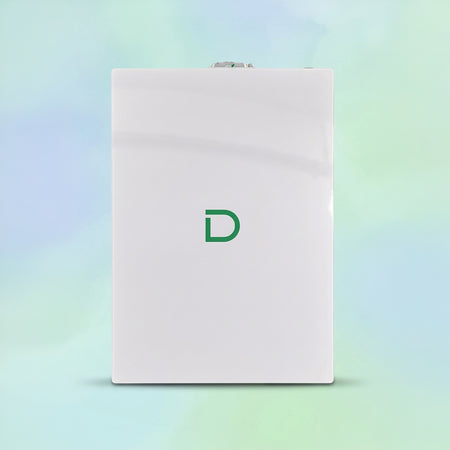

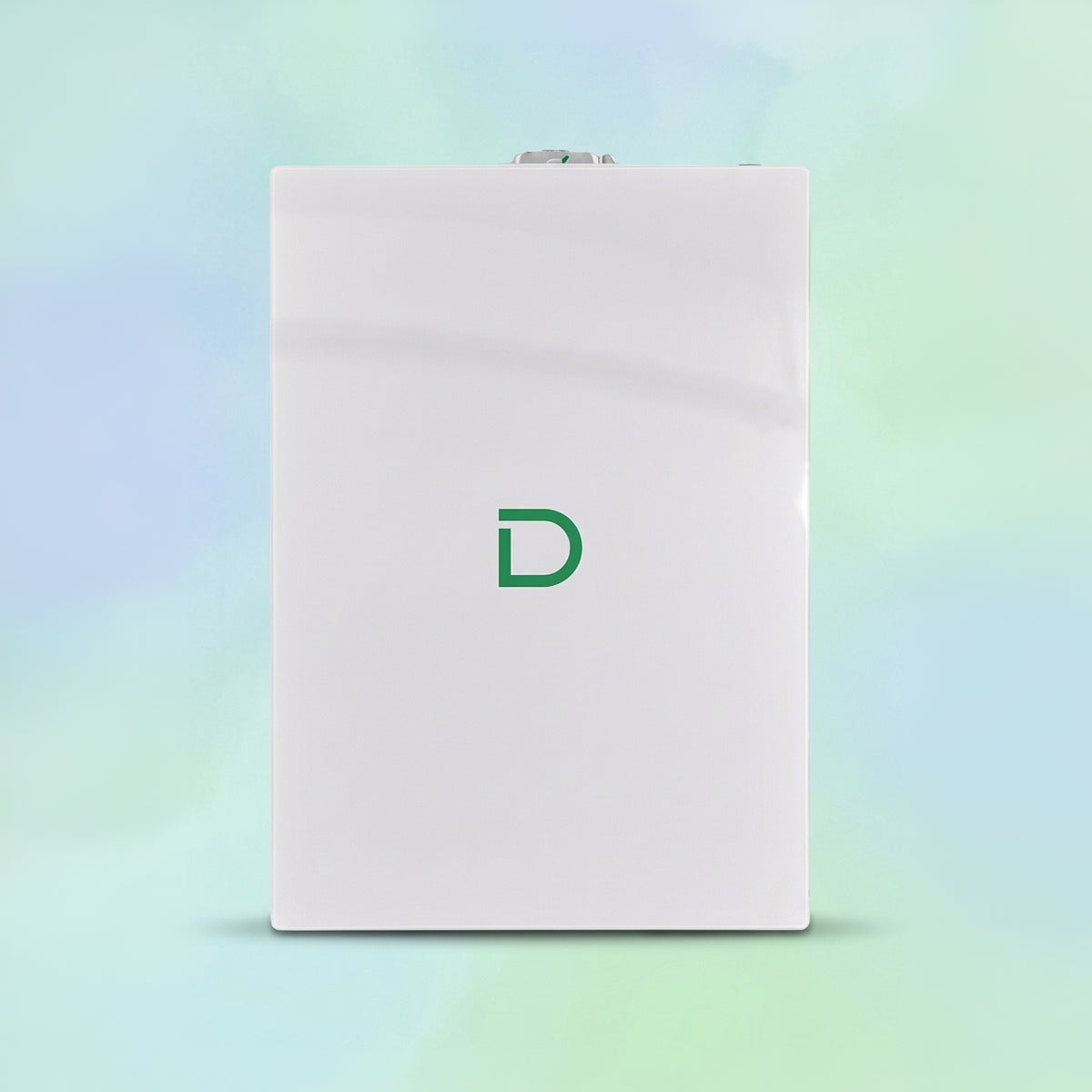

The Dyness PowerDepot G2 is a 5.12 kWh low-voltage lithium iron phosphate (LiFePO4) battery built for residential energy storage. With 51.2 V and 100 Ah, 100 A maximum discharge and a slim 165 mm profile, it fits wall-mounted or floor-mounted installations where space is limited.
Scale from 5.12 kWh up to 256 kWh with up to 50 units in parallel. Battery equalization lets you mix modules at different states of charge without shortening battery life. It is rated IP66 for outdoor installation, and an optional self-heating function extends charging down to -20 °C.
Safety is built in: a built-in aerosol fire extinguisher detects and extinguishes fires within 5 seconds, an explosion-proof valve releases pressure, and a DC circuit breaker and smart BMS protect against faults. CAN and RS485 communication, a built-in Wi-Fi module with app OTA updates and a rated life of 8000 cycles or more over 10 years complete the package.
5.12 kWh
nominal energy
100 A
max discharge current
≥8000
cycles over 10 years
IP66
outdoor protection
50 units
in parallel, up to 256 kWh
54.4 kg
net weight
Plan the lift and the fixing
- The battery weighs 54.4 kg. Use a two-person lift or suitable lifting equipment.

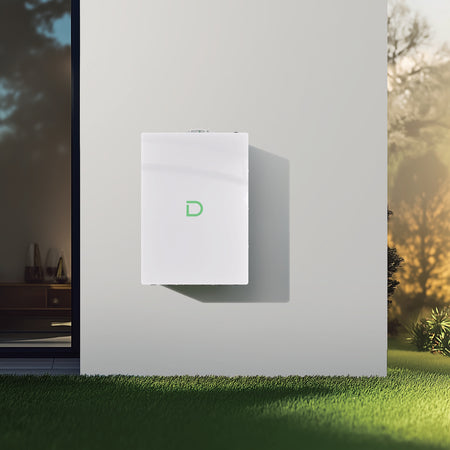

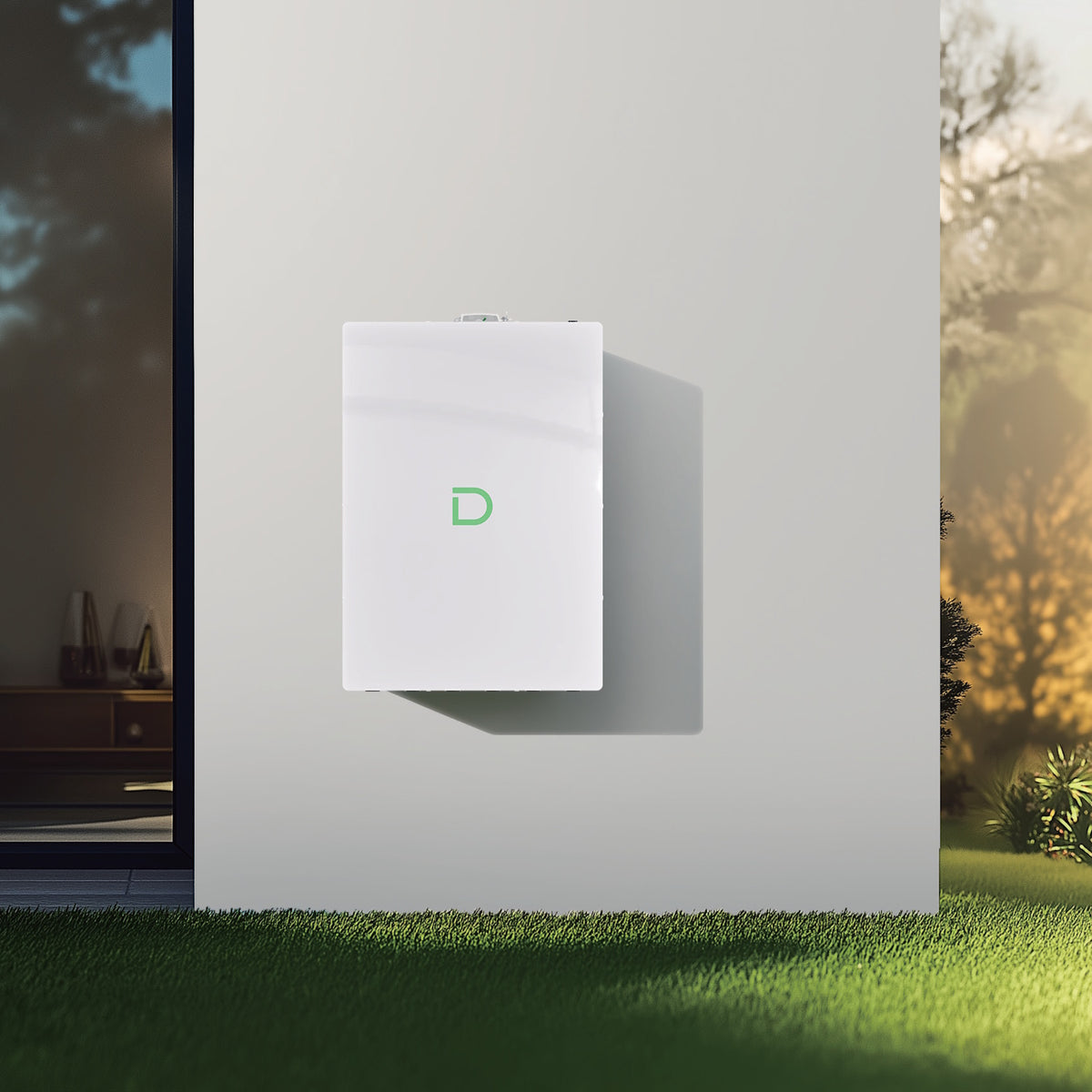

- Wall mounting needs a solid brick or cement wall at least 100 mm thick. The bottom of the unit sits about 300 mm above the floor.
- Earth the battery shell with a cable of at least 6 mm² (M6 ring terminal, 6 Nm).
- Fit only by trained professionals. In a fire, do not use water and keep a dry powder extinguisher nearby. Never mix batteries of different makes, models or ages.
- For UK installations, follow BS 7671 and the IET Code of Practice for Electrical Energy Storage Systems, and notify your DNO for the overall system as required (G98/G99).
Specification points to confirm
- The self-heating function is optional. Standard charging range is 0 to 55 °C, and charging down to -20 °C needs the heating option, so confirm it is fitted if the battery will sit in an unheated space.
- Peak discharge differs between documents: the datasheet states 120 A for 10 minutes, while the user manual quotes 200 A for 2 minutes. Size your design on the 100 A maximum discharge.
- Allow for a height of 660 mm (datasheet). The user manual lists 640 mm.
Inverter communication and DIP switches
The battery talks to the inverter over CAN or RS485 through the supplied RJ45 cable. Factory DIP setting is 0000 for Solis, GoodWe, SAJ and SolaX. Switch #3 ON is used for SMA, Ingeteam, Solplanet, SOFAR, Deye, Luxpower and others. Some brands need different settings, so check the latest Dyness inverter compatibility list. The DIP switches sit under a tamper label, and Dyness must authorise opening the cover before you change them. Banks of more than 12 units need a CAN terminating resistor on the last battery's CAN OUT port.
Recommended inverter settings and sizing
- Max charge (bulk) voltage 57.6 V, absorption 56.5 V, float 56 V.
- Shut-down voltage 48 V, shut-down SOC 5%, restart voltage 52 V.
- Max charge current 75 A and max discharge current 100 A.
- Recommended continuous charge and discharge current is 50 A (0.5C).
- Matching guide: 5 kW inverter with 1 unit, 10 kW with 1 to 2 units, 15 kW with 2 to 3 units.
Key features
Flexible expansion
Up to 50 units in parallel gives 5.12 kWh to 256 kWh of capacity to grow with demand.
IP66 protection
Sealed for outdoor installation, with strong environmental adaptability and a built-in Wi-Fi module for monitoring.
Ultra safe
Intelligent fire extinguishing detects and extinguishes fires in 5 seconds. Includes an explosion-proof valve and a DC breaker.
Automatic self-heating
Optional heating function gives a -20 °C to 55 °C operating range, including charging.
Easy installation
Supports wall-mounted and floor-mounted installs with a slim 165 mm depth and high space utilisation.
Battery equalization
Supports mixing modules at different SOC to protect battery life as you expand the bank.
Technical specifications
Inverter power matching
Supplied in the box
Per the manufacturer packing list: the PowerDepot G2 battery, red and black power cables (3 AWG, 2.05 m), a 2 m parallel communication cable and a 2 m inverter communication cable (RJ45), the wall bracket, 4 × M8 shoulder screws, 4 × M6 expansion bolts, 4 × M6 tapping screws, a positioning cardboard, an unlock piece, user manual and warranty card.
