The Drayton Wiser 2nd Generation Thermostat Kit 3, part number CCTFR6903G2D, provides smart control of 2 heating zones and hot water, via relay switching. It is built for larger properties with a conventional boiler serving two independent heating zones plus a separate hot water cylinder — a common setup in bigger or extended homes with a thermostat upstairs and downstairs.
The kit includes a 3-Channel 2nd Generation Wiser HubR and two wireless Wiser Room Thermostats — one per zone. The HubR can also interface with heat pumps to control heating according to heat demand, and uses Zigbee 2.4GHz radio with Matter compatibility for wider smart home integration beyond heating alone.
Connect Wiser Radiator and Room Thermostats for independent room scheduling within either zone, or add Wiser Smart Home devices — window and door sensors, motion sensors, smoke alarms, smart plugs — for automation and security across the property. Everything is controlled via the Wiser Home app, with Amazon Alexa and Google Assistant support, and Insights & Heat Report tracking for both zones.
Independent research by BEAMA found that upgrading from basic heating controls to a smart multi-zone system like Wiser can offer savings of up to 30% on an average heating and hot water bill, with further savings available from Eco Mode and Away Mode.
3-Channel
2nd Gen HubR (2 zones + hot water)
2x
Room Thermostats included
Zigbee 2.4GHz
IEEE 802.15.4 mesh radio
Matter
Compatible smart home bridge
Heat Pump
Interface via On/Off control
No Subscription
Full app functionality included
Installer Requirement
The HubR requires fixed mains wiring, to comply with current IET Wiring Regulations (BS7671). Mains wiring should be carried out by a competent person.
Boiler Compatibility Check
Thermostat Kit 3 is designed for conventional boilers with two independent heating zones and a separate hot water cylinder. For a single-zone conventional boiler, choose Thermostat Kit 2 (CCTFR6902G2D). For a combi boiler, choose Thermostat Kit 1 (CCTFR6901G2D).
Buildable System
Add Wiser Radiator Thermostats at any time to bring individual rooms within either zone under independent scheduled control, and connect Wiser Smart Home devices for automation and security.
Two-Zone Independent Control
The 3-channel HubR controls 2 heating zones and hot water via relay switching, each on a fully separate schedule — ideal for larger homes.
Two Room Thermostats Included
Comes with two wireless Room Thermostats — one per zone — so both areas of the home are covered from the outset.
Heat Pump Interface
The 2nd Generation HubR can interface with heat pumps via On/Off controls to manage heating according to heat demand.
Matter Compatibility
Wiser 2nd Generation acts as a Matter bridge, letting the hub link into existing Matter smart home ecosystems.
Buildable Multi-Zoning
Add Radiator Thermostats, an Underfloor Heating Controller, or an Electrical Heat Switch to either zone as required.
Voice & App Control
Full control via the Wiser Home app, with Amazon Alexa and Google Assistant compatibility across both zones.
Insights & Heat Report
Track energy saved and how outdoor weather is affecting heating demand for both zones directly in the app.
Boost & Cancel All
Boost every device across both zones, or cancel all overrides, with a single tap — useful for testing the whole installation after setup.
Kit Contents
Part number
CCTFR6903G2D
Includes

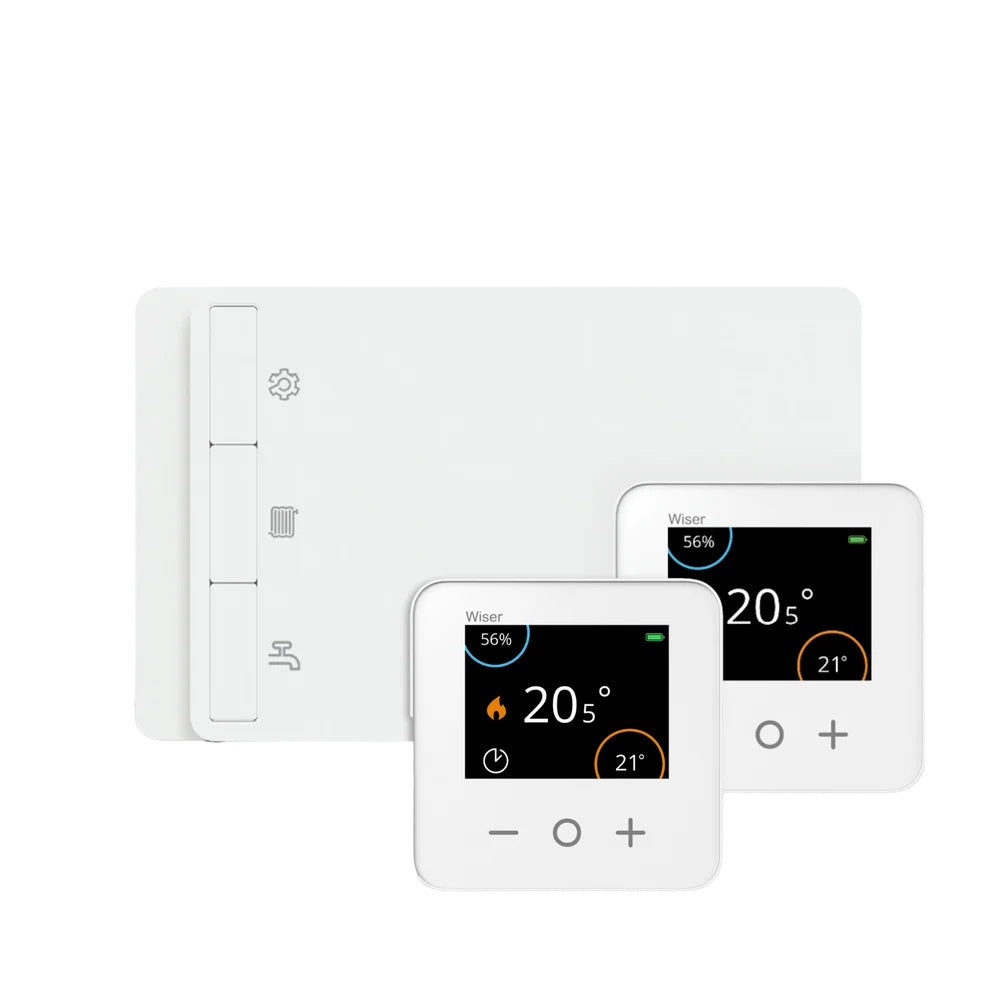

1 x 3-Channel 2nd Generation HubR, 2 x Room Thermostats
Also included
1 x installation manual, 4 x AA batteries
3-Channel HubR Specification
Dimensions
150.8mm (w) x 94mm (h) x 30.25mm (d)
Power supply
230V a.c. ±10%, 50Hz
Switch rating
2A resistive 230V a.c. each switch (not suitable for inductive loads)
Wiring
Fixed wiring only, to BS7671
Radio technology
Wi-Fi 2.4GHz (IEEE 802.11 b/g/n), Zigbee 2.4GHz (IEEE 802.15.4)
Radio signal range
Max. 30m in free air
Operating temperature
0°C to 45°C
Ingress protection
IP30
Room Thermostat Specification
Dimensions
76mm (w) x 76mm (h) x 25mm (d)
Power supply
2 x 1.5V IEC LR6 (AA) alkaline batteries (per thermostat)
Wiring
No wiring required
Set-point range
5°C to 30°C
Control accuracy
<0.6°C at 4°C/hour
Ingress protection
IP20
What boiler setup is this kit for?
Thermostat Kit 3 (CCTFR6903G2D) is designed for conventional boilers with two independent heating zones plus a separate hot water cylinder. If you only have one heating zone, choose Thermostat Kit 2 (CCTFR6902G2D).
Can I schedule each zone independently?
Yes. The 3-channel HubR allows fully independent schedules for each of the two heating zones and for hot water, via relay switching.
Why does this kit include two Room Thermostats?
Each heating zone needs its own Room Thermostat to sense and control temperature independently, so two are included — one per zone.
Can this control a heat pump?
Yes. The 2nd Generation HubR can interface with heat pumps via On/Off controls, in addition to standard conventional boilers.
Can I add radiator thermostats to either zone?
Yes. Wiser Radiator Thermostats can be added to either zone at any time to bring individual rooms under independent scheduled control.
Is this suitable for a home with an upstairs and downstairs thermostat?
Yes. Thermostat Kit 3 is specifically designed for a heating system with two existing thermostats — commonly one upstairs and one downstairs — replacing both with independently scheduled smart control.
Is this compatible with a Wiser 1st Generation system?
This kit uses the 2nd Generation HubR, a separate platform from Wiser 1st Generation. Wiser Smart Home devices such as sensors and micro modules require a 2nd Generation Hub and are not compatible with a 1st Generation HubR.
What's included in the box?
The kit includes 1 x 3-Channel 2nd Generation HubR, 2 x Wiser Room Thermostats, an installation manual, and 4 x AA batteries.
