The Drayton Wiser 2nd Generation Thermostat Kit 1, part number CCTFR6901G2D, provides smart control of heating for combi boilers, either via OpenTherm or relay switching. It is the entry point into the Wiser 2nd Generation smart home platform, replacing a single existing thermostat with an app-controlled, expandable system — and the natural upgrade path for anyone still running a Wiser 1st Generation setup.
The kit includes a 1-Channel 2nd Generation Wiser HubR and a wireless Wiser Room Thermostat. The 2nd Generation HubR can also interface with heat pumps to control heating according to heat demand, and is built on Zigbee 2.4GHz radio technology with Matter compatibility, so it connects easily into a wider smart home ecosystem rather than staying limited to heating alone.
Connect Wiser Radiator and Room Thermostats at any time for independent room scheduling, or add Wiser Smart Home devices — window and door sensors, motion sensors, smoke alarms, smart plugs — for automation and security on the same hub. Everything is managed through the Wiser Home app, which is compatible with Amazon Alexa and the Google Assistant, and includes Insights & Heat Report tracking so you can see how much energy your schedule is actually saving.
Independent research by BEAMA found that upgrading from basic heating controls to a smart multi-zone system like Wiser can offer savings of up to 30% on an average heating and hot water bill, with Wiser user data showing an additional saving from using Eco Mode and Away Mode on top of that.
1-Channel
2nd Gen HubR (combi boilers)
Zigbee 2.4GHz
IEEE 802.15.4 mesh radio
Matter
Compatible smart home bridge
Heat Pump
Interface via On/Off control
OpenTherm
Digital boiler interface
No Subscription
Full app functionality included
Installer Requirement
The HubR requires fixed mains wiring, to comply with current IET Wiring Regulations (BS7671). Mains wiring should be carried out by a competent person.
Boiler Compatibility Check
Thermostat Kit 1 is designed for combi boilers controlled via OpenTherm or relay switching. For a conventional boiler with a separate hot water cylinder, choose Thermostat Kit 2 (CCTFR6902G2D). For two heating zones plus hot water, choose Thermostat Kit 3 (CCTFR6903G2D).
Buildable System
Add Wiser Radiator Thermostats at any time to bring individual rooms under independent scheduled control, and connect Wiser Smart Home devices for automation and security on the same hub.
Digital Boiler Interface
OpenTherm connectivity enables more efficient, modulating boiler control on supported systems, alongside standard relay switching.
Heat Pump Interface
The 2nd Generation HubR can interface with heat pumps via On/Off controls to manage heating according to heat demand.
Matter Compatibility
Wiser 2nd Generation acts as a Matter bridge, letting the hub link into existing Matter smart home ecosystems.
Buildable Multi-Zoning
Add Radiator Thermostats, an Underfloor Heating Controller, or an Electrical Heat Switch as required to expand zoning across the home.
Smart Home Ready
Connect Wiser Smart Home devices — sensors, smoke alarms, smart plugs — for automation and security via the same hub.
Voice & App Control
Full control via the Wiser Home app, with Amazon Alexa and Google Assistant compatibility and no ongoing subscription fee.
Insights & Heat Report
Track system performance in the app to see energy saved, how many hours you've spent in Away Mode, and how outdoor weather is affecting your heating demand.
Boost & Cancel All
Boost every device in the system, or cancel all overrides, with a single tap — useful for quickly testing the whole installation after setup.

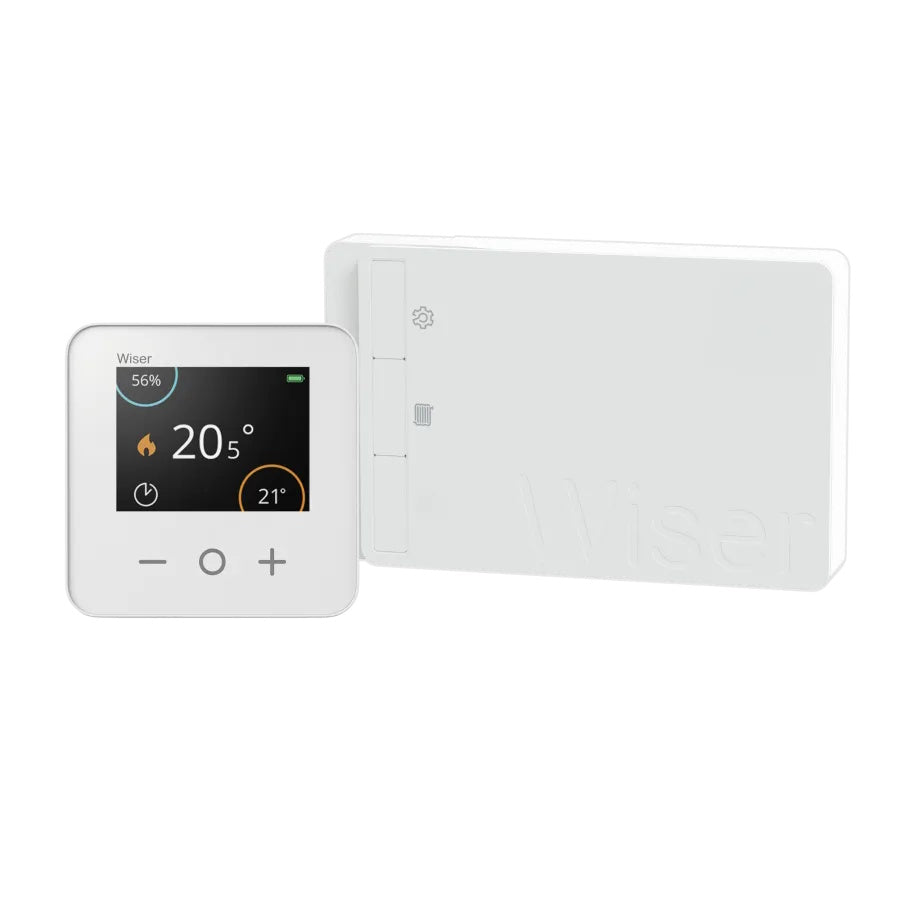

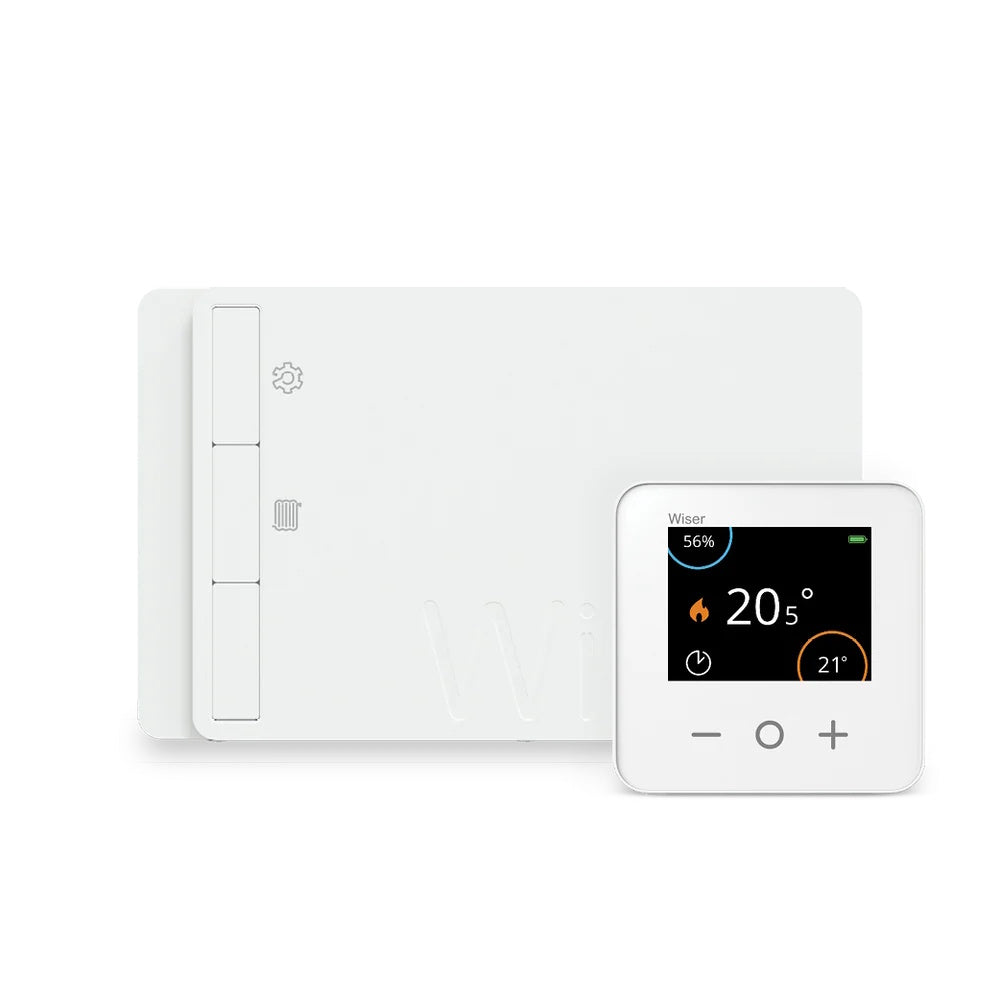

Kit Contents
Part number
CCTFR6901G2D
Includes
1 x 1-Channel 2nd Generation HubR, 1 x Room Thermostat
Also included
1 x installation manual, 2 x AA batteries

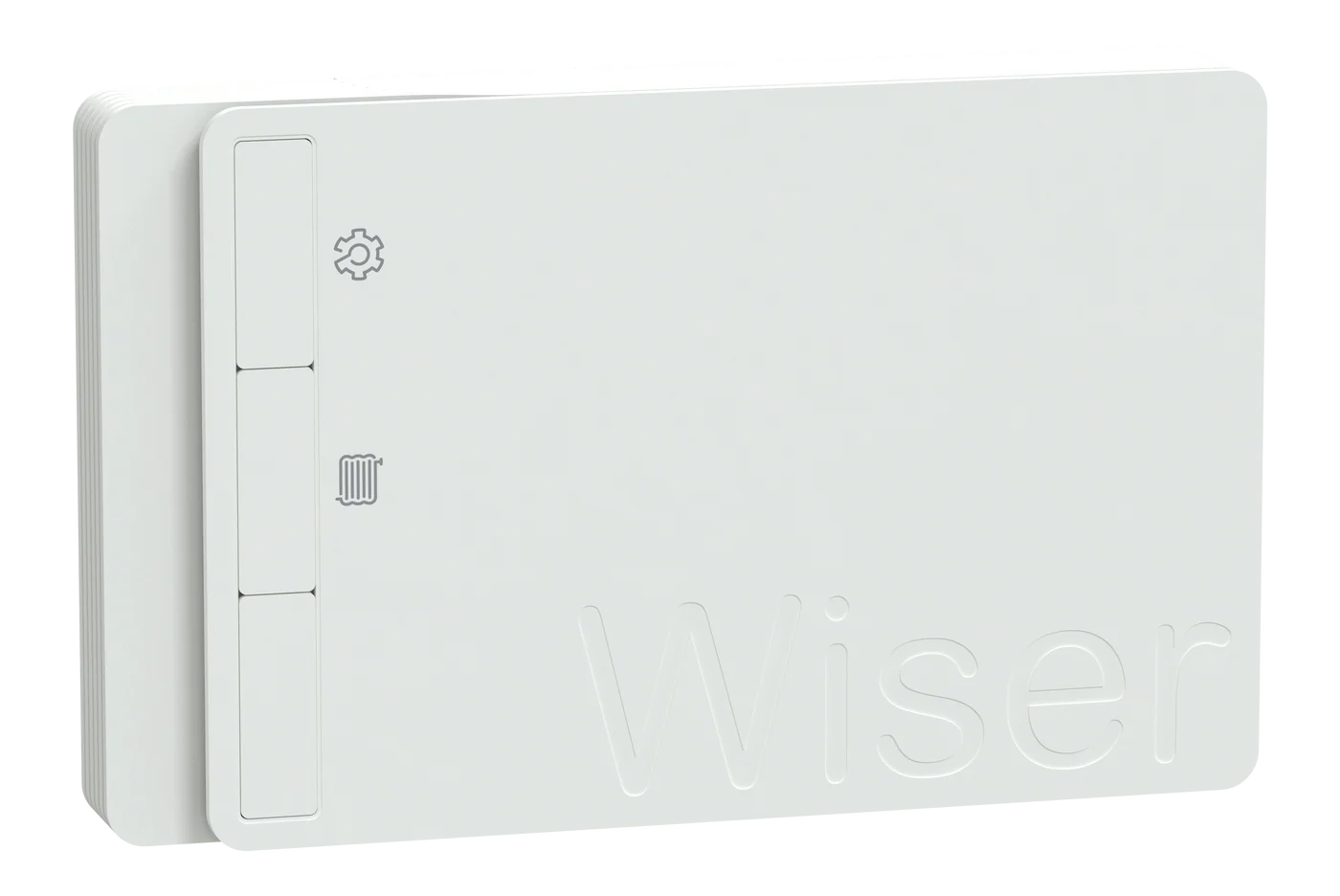

1-Channel HubR Specification
Dimensions
150.8mm (w) x 94mm (h) x 30.25mm (d)
Power supply
230V a.c. ±10%, 50Hz
Switch rating
2A resistive 230V a.c. each switch (not suitable for inductive loads)
Wiring
Fixed wiring only, to BS7671
Radio technology
Wi-Fi 2.4GHz (IEEE 802.11 b/g/n), Zigbee 2.4GHz (IEEE 802.15.4)
Radio signal range
Max. 30m in free air
Operating temperature
0°C to 45°C
Ingress protection
IP30
Room Thermostat Specification
Dimensions
76mm (w) x 76mm (h) x 25mm (d)
Power supply
2 x 1.5V IEC LR6 (AA) alkaline batteries
Wiring
No wiring required
Set-point range
5°C to 30°C
Control accuracy
<0.6°C at 4°C/hour
Ingress protection
IP20
Is this kit suitable for a conventional boiler?
No. Thermostat Kit 1 (CCTFR6901G2D) is designed for combi boilers. For a conventional boiler with a separate hot water cylinder, choose Thermostat Kit 2 (CCTFR6902G2D).
Can this control a heat pump?
Yes. The 2nd Generation HubR can interface with heat pumps via On/Off controls, in addition to standard gas and oil combi boilers.
What's the difference between this and Multi-Zone Kit 1?
Thermostat Kit 1 includes only the HubR and Room Thermostat, controlling heating as a single zone. Multi-Zone Kit 1 (CCTFR69041G2D) uses the same 1-channel HubR but also includes two Radiator Thermostats for room-by-room control from the outset.
Does this work with Matter and Zigbee smart home devices?
Yes. The 2nd Generation HubR uses Zigbee 2.4GHz and acts as a Matter bridge, so it can connect to Wiser Smart Home devices and existing Matter ecosystems.
Do I need a subscription to use the app?
No. The Wiser Home app, scheduling, and voice assistant integrations all work with no ongoing subscription fee.
Is this compatible with my existing Wiser 1st Generation devices?
The 2nd Generation HubR is a separate platform from the Wiser 1st Generation HubR. Some Wiser Radiator and Room Thermostats are compatible across both generations, but Wiser Smart Home devices such as sensors and micro modules require a 2nd Generation Hub and are not compatible with a 1st Generation HubR.
How much can I expect to save on heating bills?
Independent BEAMA research shows smart multi-zone systems like Wiser can offer savings of up to 30% on an average heating and hot water bill, with additional savings available from using Eco Mode and Away Mode.
What's included in the box?
The kit includes 1 x 1-Channel 2nd Generation HubR, 1 x Wiser Room Thermostat, an installation manual, and 2 x AA batteries for the Room Thermostat.
