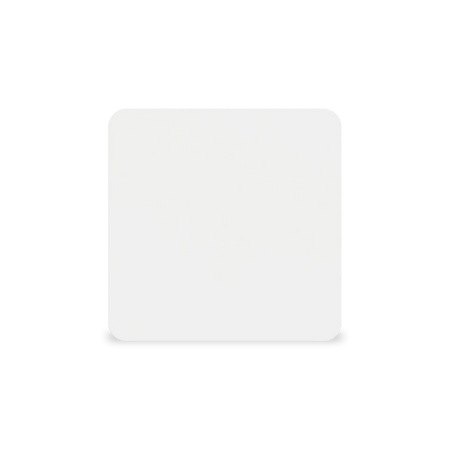

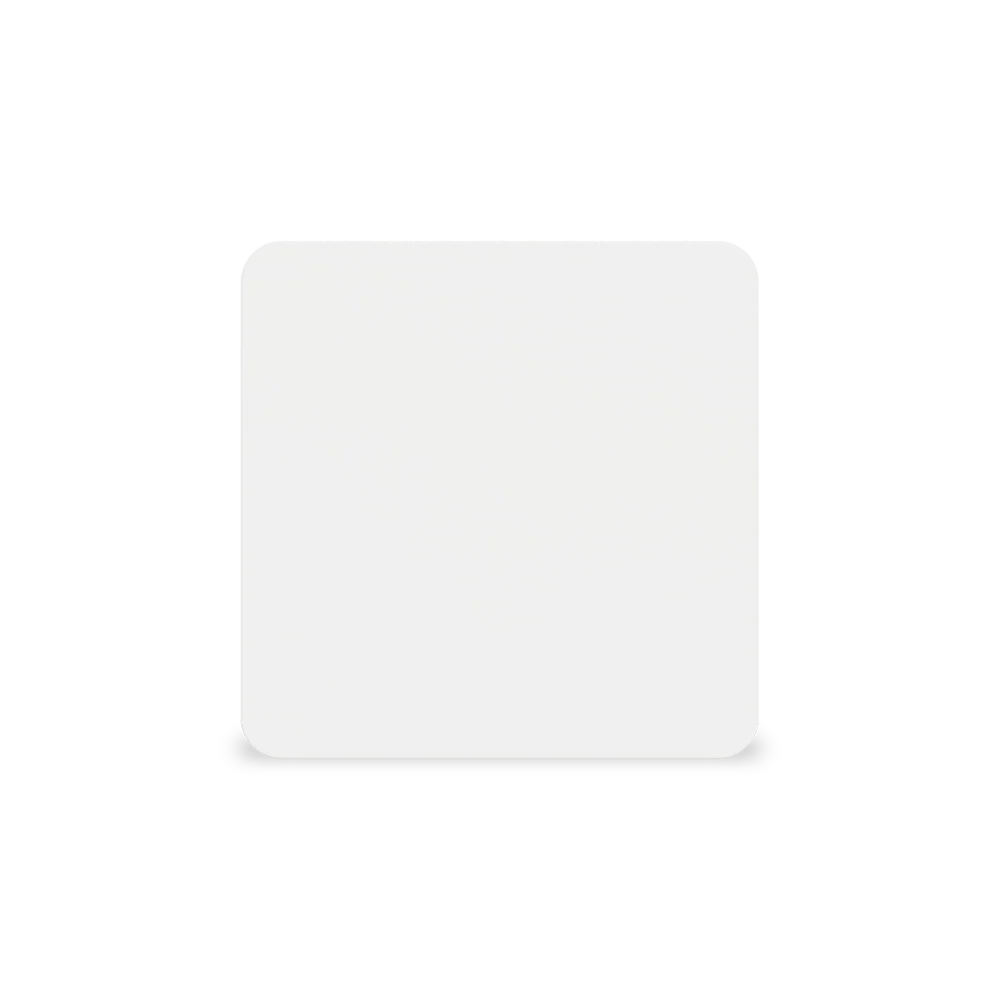

The Drayton Wiser Temperature & Humidity Sensor (CCT593012) is a compact, battery-powered Zigbee 3.0 sensor that reports room temperature and relative humidity to your Wiser system. Pair it with any Wiser 2nd Generation Hub and every reading appears in the Wiser Home app, ready to feed heating decisions and smart home automations.
It is Drayton's discreet, low-cost alternative to the Wiser Room Thermostat: ideal for rooms where you want accurate readings without a display or buttons on the wall. Because it also measures humidity, it adds humidity-based automations that a standard thermostat cannot offer. For example, you can link it with other Wiser devices such as the Wiser Plug, Room Thermostats and Radiator Thermostats to react to changing conditions.
Powered by a single CR2450 coin cell with up to 5 years of battery life, the sensor needs no wiring. Fix it with the supplied base plate, screws and wall plugs, or use the adhesive pad for a screw-free fit. It also works with Amazon Alexa, Google Home and IFTTT, so it slots straight into an existing smart home setup.
Zigbee 3.0
Certified wireless protocol
5 years
Battery life, up to
0.1°C
Temperature resolution
10–95%
Humidity range, non-condensing
40 m
Radio range in free air
45 × 45 mm
Footprint, only 17.2 mm deep
Compatibility: Wiser 2nd Generation Hub required
This sensor connects to any Wiser 2nd Generation Hub (1, 2 or 3 channel HubR, or the Non-relay 2nd Generation Hub). It is not compatible with the Wiser 1st Generation HubR and cannot work on its own. The hub is sold separately.
Using the sensor as the heating temperature source
In the Wiser Home app you can set the sensor as the temperature source for a room, so its readings help control the heating. This option is only available where a compatible Wiser heating device is installed in that room, for example a Wiser Radiator Thermostat. When several temperature devices share a room, the system averages their readings.
Indoor, dry-location use only

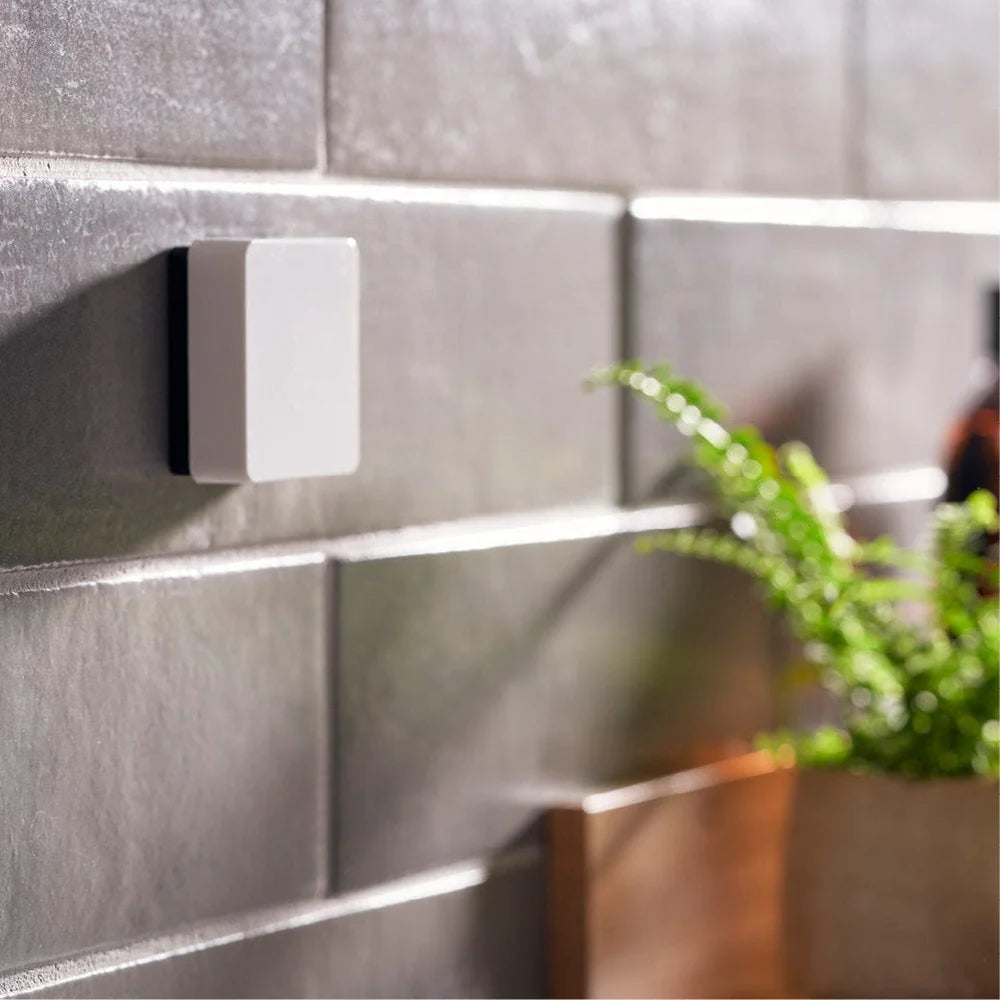

The sensor is rated IP20 and its humidity range is 10% to 95% non-condensing. Do not fit it where it can be splashed or where water can condense on it, such as inside a shower enclosure or directly above a bath.
Accuracy at a glance
Temperature accuracy is ±1.5°C with 0.1°C resolution, and humidity accuracy is ±5%. For the most representative readings, position the sensor away from direct heat sources, draughts and direct sunlight.
Key Features
Dual temperature & humidity sensing

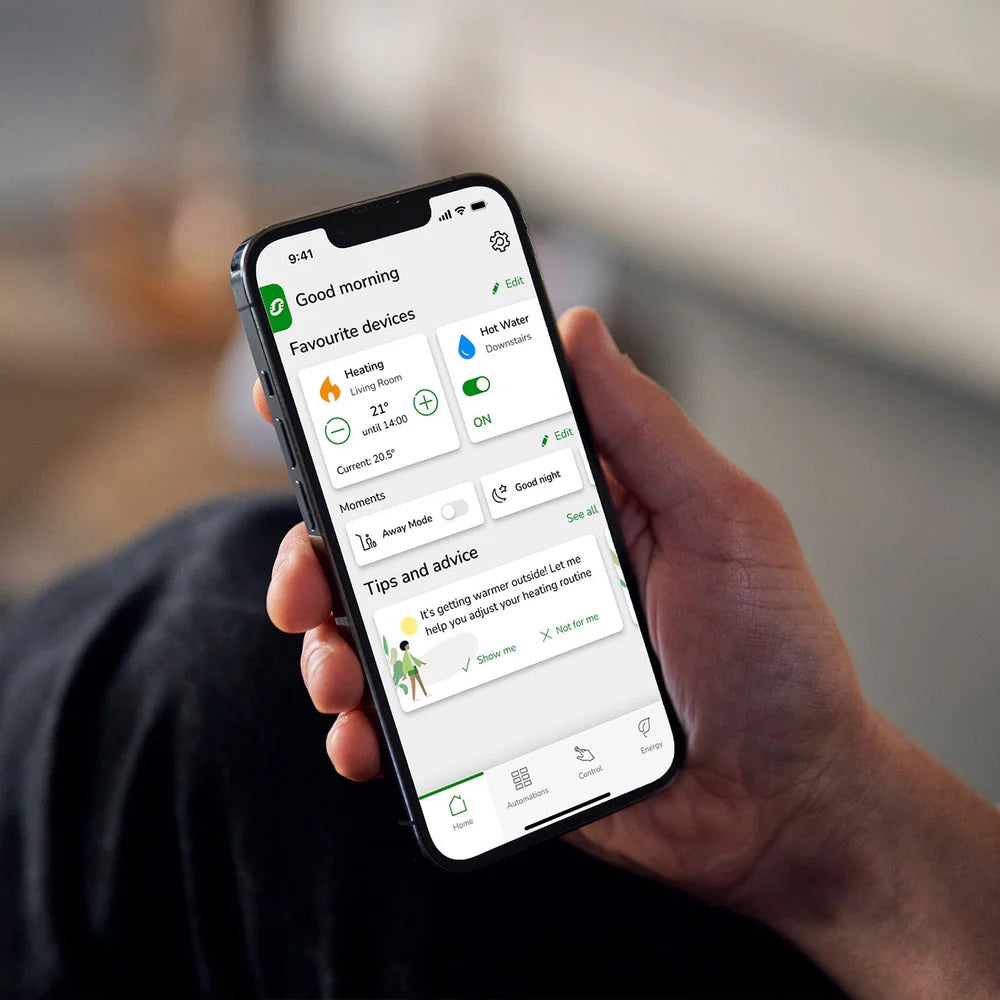

Two sensors in one unit measure temperature and humidity where it is installed. View real-time values and device history in the Wiser Home app.
Room Thermostat alternative
A discreet, cost-effective option for rooms where app-based control is enough. Set it as the room’s temperature source alongside a compatible Wiser heating device.
Automations & Moments
Create automations and Moments in the Wiser Home app that pair the sensor with other Wiser devices to act on temperature- and humidity-related events.
Up to 5-year battery life
A CR2450 3 V coin cell delivers up to 5 years of operation, depending on usage, firmware update frequency and environment. Replacing it takes minutes.
Simple, wire-free installation

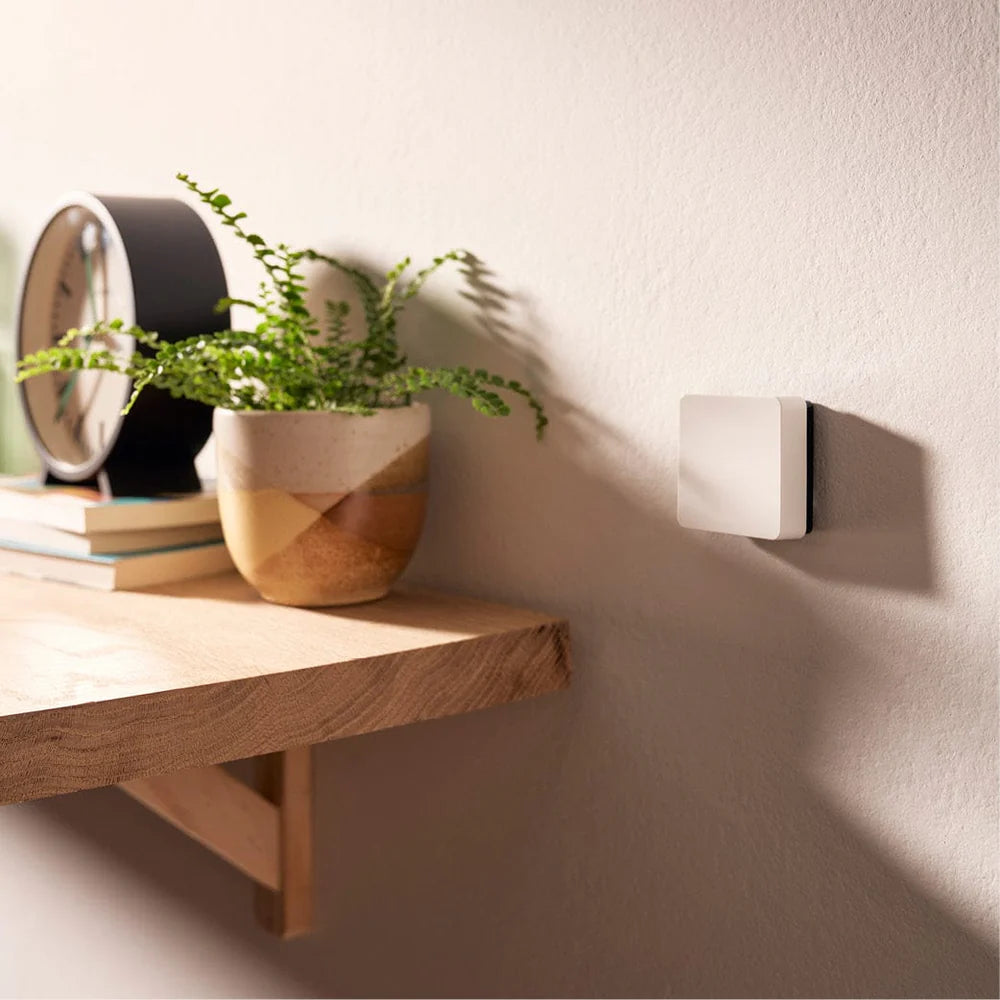

Mount with screws and wall plugs or the adhesive pad on the supplied base plate. No wiring required, and the slim 17.2 mm profile stays unobtrusive.
Zigbee 3.0 & smart home ready
Zigbee 3.0 certified communication with the Wiser hub, up to 40 m in free air. Works with Amazon Alexa, Google Home and IFTTT.
Technical Specifications
Product Identity
Brand
Drayton by Schneider Electric
Part number
CCT593012
Range
Wiser 2nd Generation smart sensors
Product type
Wireless temperature and humidity sensor
Colour
White
Sensing Performance
Temperature accuracy
±1.5°C
Temperature resolution
0.1°C
Humidity range
10% to 95% (non-condensing)
Humidity accuracy
±5%
Power
Battery
CR2450, 3 V coin cell
Battery life
Up to 5 years (varies with usage, firmware update frequency and environment)
Wiring
No wiring required
Wireless & Connectivity
Protocol
Zigbee 3.0 certified (2.4 GHz, IEEE 802.15.4)
Operating frequency
2405 – 2480 MHz
Radio range
Up to 40 m in free air
Hub requirement
Any Wiser 2nd Generation Hub (sold separately)
Not compatible with
Wiser 1st Generation HubR
App
Wiser Home app
Voice & integrations
Amazon Alexa, Google Home, IFTTT
On-device interface
Push button and LED
Physical & Environmental
Dimensions (H × W × D)
45 × 45 × 17.2 mm
Operating temperature
−10°C to 50°C
Storage temperature
−20°C to 60°C
Ingress protection
IP20 (indoor, dry locations)
Mounting
Screw or supplied adhesive strip, via base plate
In the Box
Sensor
1 × Wiser Temperature & Humidity Sensor
Mounting parts
1 × base plate, 1 × adhesive pad, 4 × screws (2 × ST2.3 × 15 mm and 2 × M2 × 3 mm), 2 × wall plugs
Documentation
1 × installation instructions
Standards & Directives
Directives
Radio Equipment Directive (RED) 2014/53/EU, Batteries Directive 2006/66/EC, RoHS Directive 2011/65/EU
Applied standards
EN 60669-1 & 60669-2-5, EN 60730-1 & 60730-2-9 & 60730-2-13, EN 301 489
