Home » Drayton Wiser Remote Floor Sensor - Smart Electric Underfloor Heating
SKU: 193720
(0)

Drayton Wiser Remote Floor Sensor - Smart Electric Underfloor Heating

Drayton Controls
£19.95 Inc. VAT £16.63 Exc. VAT
  • FREE Express Delivery (1-3 days) in UK Mainland on most orders*
  • Excluding: Solar Panels (£170 delivery / free above £2,500), Batteries (£39 delivery), Small Items (£4.95/5.95 delivery / free above £500)
  • Contact Us to check for Next Working Day Delivery or Same-day Delivery options
  • Contact Us for Click & Collect options
  • Custom quote available on request
*See checkout or shipping policy for full details

Payment options

  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Do you have a question
about this product?

One of our expert advisors will be happy to help you!

Contact Us
Question Image

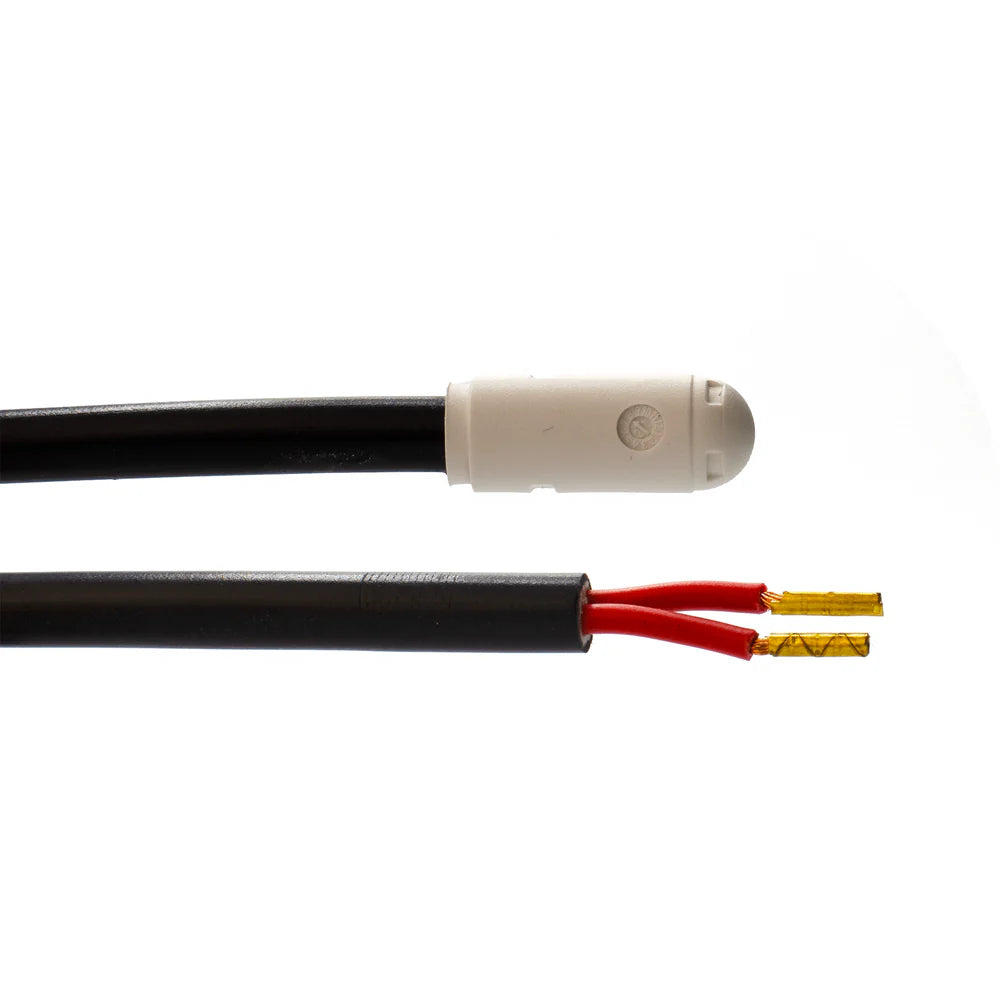

The Wiser Remote Floor Sensor is a temperature probe designed to pair with the Wiser Electrical Heat Switch and a Smart Room Thermostat, bringing smart, app-controlled scheduling to a single zone of electric underfloor heating.

Fitted beneath the floor covering, the sensor continuously monitors floor temperature and feeds this back to the Electrical Heat Switch, helping prevent overheating of the floor build-up while the connected Smart Room Thermostat or the Wiser Home app manages the heating schedule.

4m
Cable Length
33kΩ
NTC Resistance
1
Zone per Sensor
3 Yr
Extended Warranty
Wiser
System Range
Hub R
Required

⚠ Important Safety Information: This sensor requires a Wiser Electrical Heat Switch, a Smart Room Thermostat, and a Wiser Hub R to operate — it cannot function as a standalone device. Confirm these are already part of your system, or ordered alongside, before installation.

ℹ Good to Know: The 4-metre cable gives flexible placement beneath the floor surface, letting installers position the sensing element at the most representative point of the heated zone rather than close to the manifold or wiring centre.

Overheat Protection
Continuous floor temperature monitoring lets the Wiser Electrical Heat Switch cut power before floor coverings such as wood or vinyl are put at risk from excessive heat.
Single-Zone Smart Control
Paired with a Smart Room Thermostat, the sensor enables one zone of electric underfloor heating to be scheduled, adjusted, and monitored through the touch interface or the Wiser Home app.
Remote & Voice Control
Once integrated into the Wiser system via Hub R, the zone can be controlled from anywhere using the app or compatible voice assistants.
Generous Cable Run
A 4-metre cable provides enough reach to route from the floor build-up back to the Electrical Heat Switch without extending or splicing in most single-room installations.
No Subscription Fees
Smart scheduling and remote access through the Wiser Home app are included with no ongoing subscription cost.
Simple System Integration
Compatible with all Wiser systems when paired with the Electrical Heat Switch and a Smart Room Thermostat, so it slots into an existing multi-room Wiser installation.
General
SKU 193720
Range Wiser
Product type Floor sensor
Device application Remote temperature sensor for Wiser Underfloor Heating Controller and Wiser Electrical Heat Switch
Compatibility Wiser Electrical Heat Switch
Kit composition 1 x Wiser Remote Floor Sensor
Warranty 3-year extended warranty
Technical

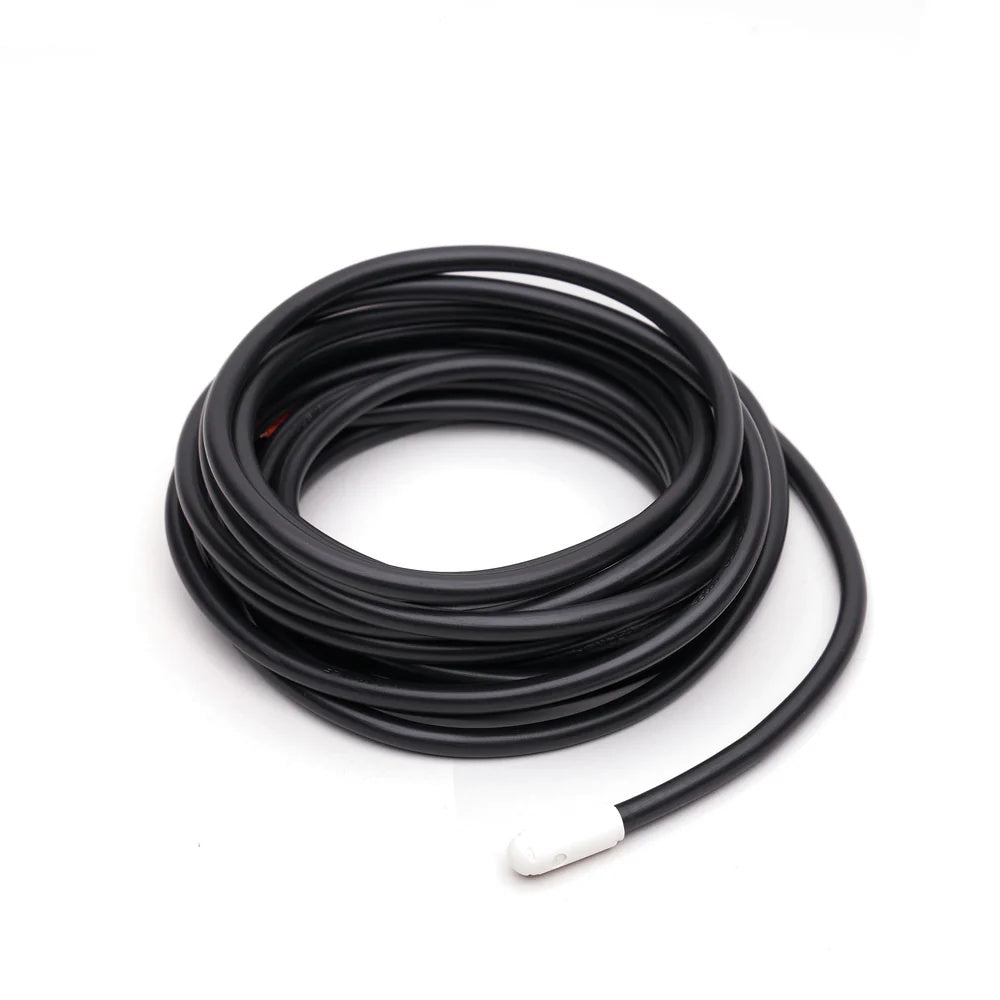

Cable length 4 metres
Resistance value NTC 33kΩ
Required hub Wiser Hub R
Required companion devices Wiser Electrical Heat Switch, Smart Room Thermostat
What does the Wiser Remote Floor Sensor do?
It monitors floor temperature in an electric underfloor heating zone, helping prevent overheating and supporting comfortable, efficient operation when paired with the Wiser Electrical Heat Switch and Smart Room Thermostat.
Do I need other Wiser devices to use this sensor?
Yes. It must be used with a Wiser Electrical Heat Switch, a Smart Room Thermostat, and a Wiser Hub R. Together these manage a single zone of electric underfloor heating.
How long is the cable and where should the sensor be installed?
The sensor has a 4-metre cable, giving flexible placement beneath the floor surface within the heated zone.
Is it compatible with all Wiser systems?
Yes, it's compatible with all Wiser systems when paired with the Electrical Heat Switch and a Smart Room Thermostat, enabling smart scheduling and remote control via the app or voice assistants.
What is the sensor's resistance value?
The sensor has an NTC 33kΩ resistance value, matched to the Wiser Electrical Heat Switch's expected sensor input.
