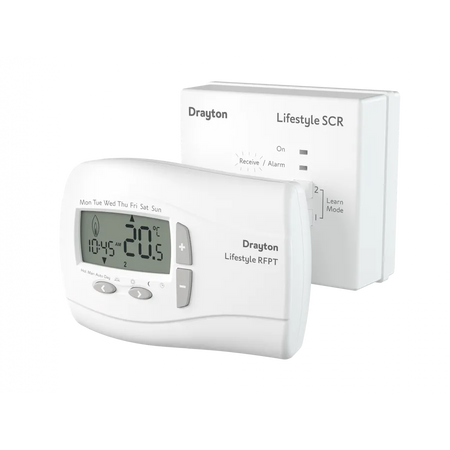

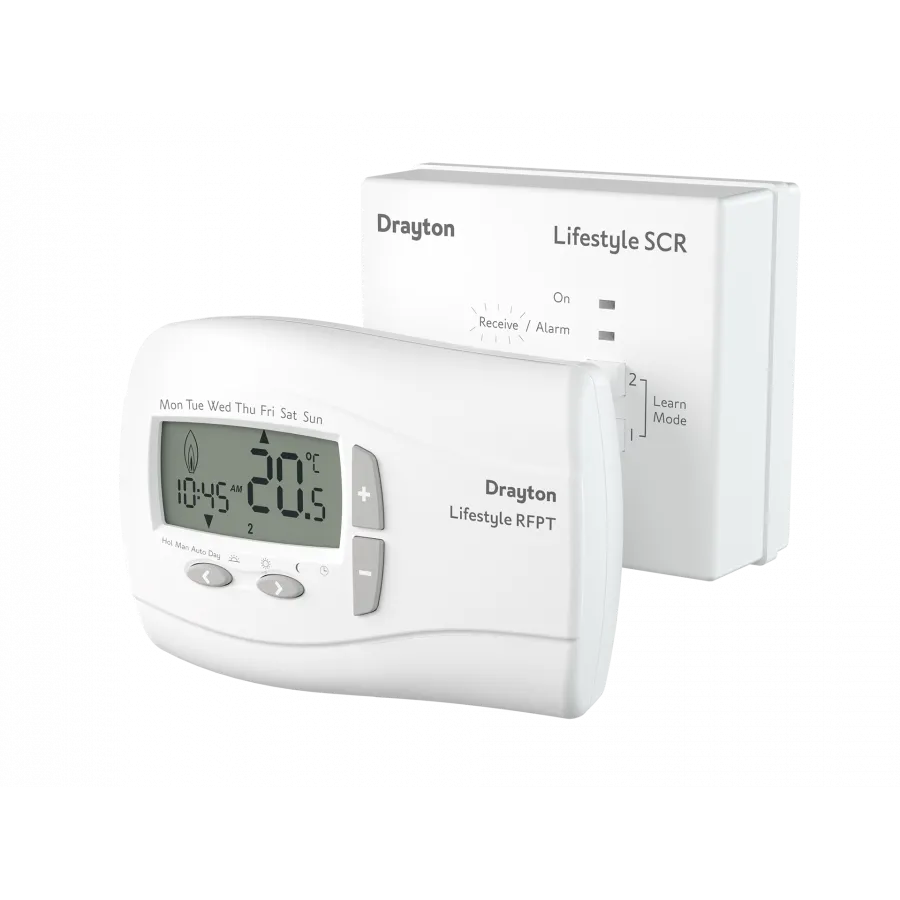

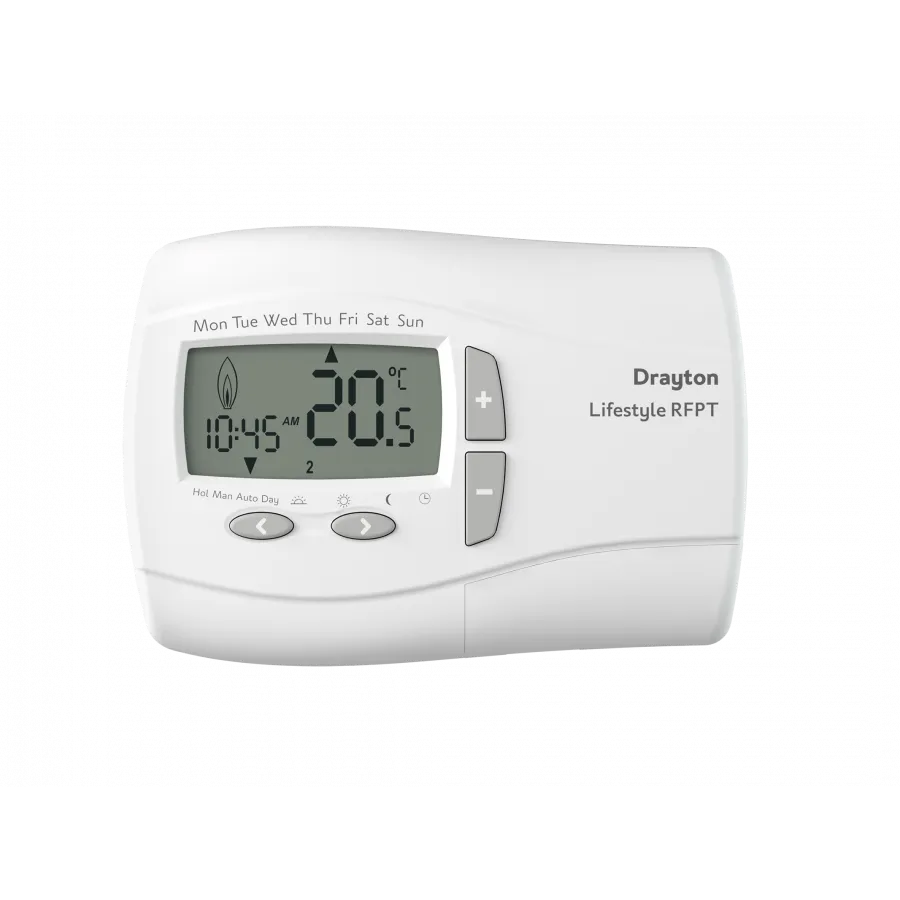

Drayton Lifestyle RFPT Wireless Programmable Thermostat

The Drayton Lifestyle RFPT Wireless Programmable Thermostat is a battery-powered single-channel 7-day wireless programmable room thermostat designed for upgrading heating systems to improve comfort and efficiency without extensive installation.

Product Description

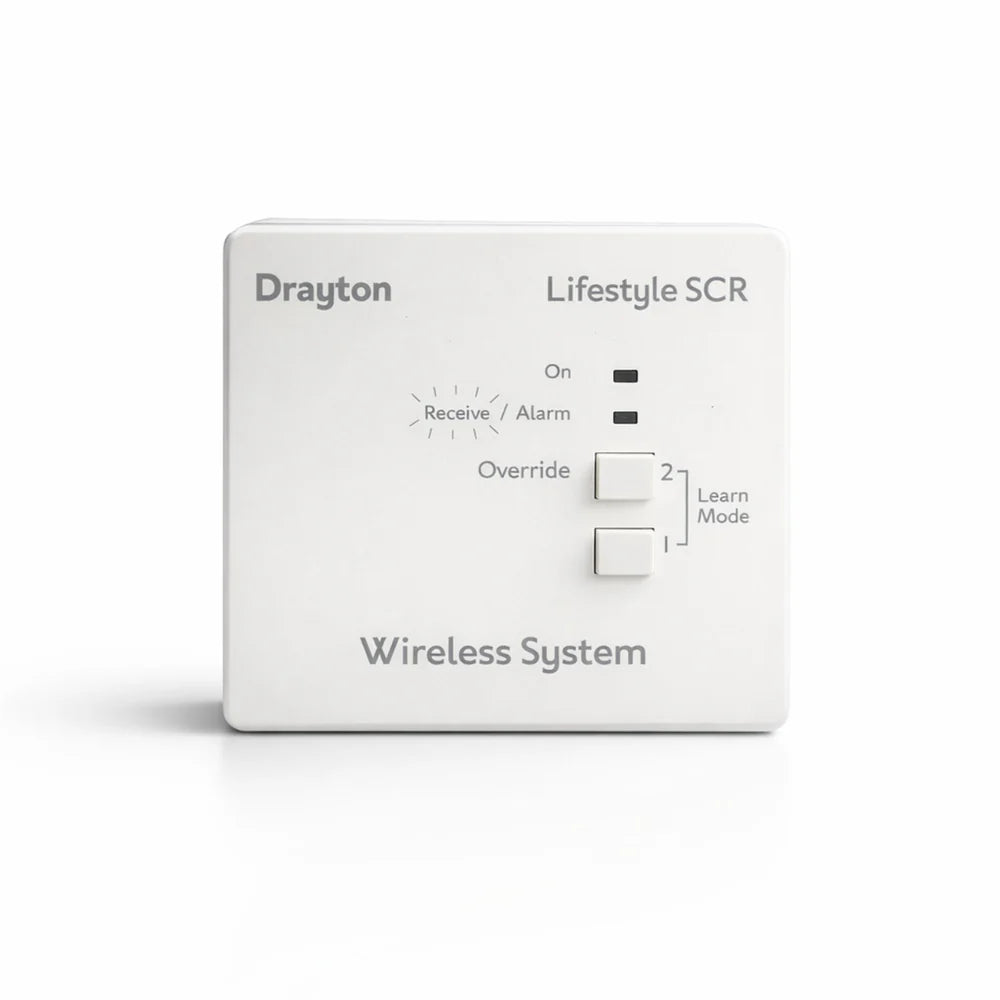

The Lifestyle RFPT is a modern wireless programmable thermostat using SCR receiver technology to control heating wirelessly, eliminating the need for wiring between the thermostat and boiler. With flexible scheduling options and an easy-to-use interface, it is ideal for homes, rented properties, and social housing where tamper-proof settings are beneficial.

Key Features

• Flexible scheduling: 24hr, 5/2 day or 7 day schedule with up to 6 time/temperature events per day.
• Wireless installation: No need for chasing plasterwork or redecorating.
• Auto time updates: Automatic summer/winter time change.
• Pre-defined programmes: 3 built-in programmes for quick setup.
• LCD display: Clear backlit display for easy reading.
• Tamper-proof: Min/max temperature settings and access protection lock.
• Energy efficient: ON/OFF load compensation and holiday mode.
• Memory saver: Programme retained during power outages.

Technical Specifications

• Model: THD22120 – Lifestyle RFPT 7-Day Wireless Programmable Thermostat.
• Power supply: Thermostat: 2 x 1.5V AA batteries; Receiver: 230V AC 50Hz.
• Switch rating: SPDT (voltage free) 2(1)A 230V AC.
• Battery life: 2 years typical.
• Temperature range: 5 °C to 32 °C.
• Ambient temperature: Operating 0 °C to 40 °C.
• Radio frequency: 433 MHz, range up to 30m.
• Protection: IP30.
• ErP class: IV (2% energy savings).

Dimensions & Weights

• Thermostat width: 96.5 mm.
• Thermostat depth: 31.3 mm.
• Thermostat height: 137 mm.
• Receiver width: 95 mm.
• Receiver depth: 35 mm.
• Receiver height: 85 mm.
• Dry weight (receiver): 0.3 kg.

System & Application Notes

• Ideal for combi-boilers, zoning, and all heating systems.
• Compatible with existing Drayton Digistat models as a direct replacement.
• Easy installation using standard UK wallplate for receiver; thermostat can be surface or conduit box mounted.
• Suitable for rented and social housing with tamper-proof features.
• Installation by competent electricians or heating engineers following Drayton guidelines.
