Doncaster SY 1.5mm 5 Core Control Cable 50m Clear | SY1.55C050

Description

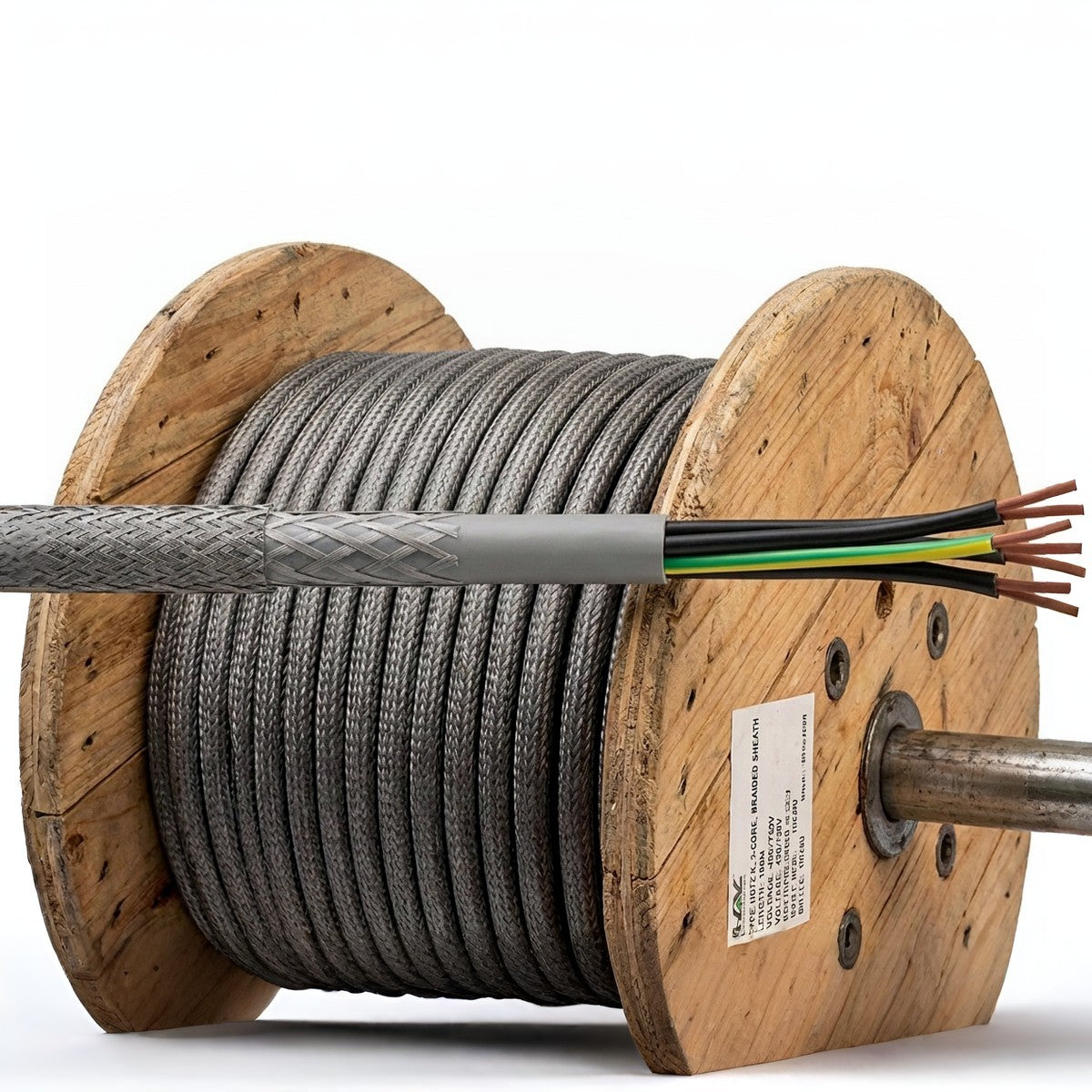

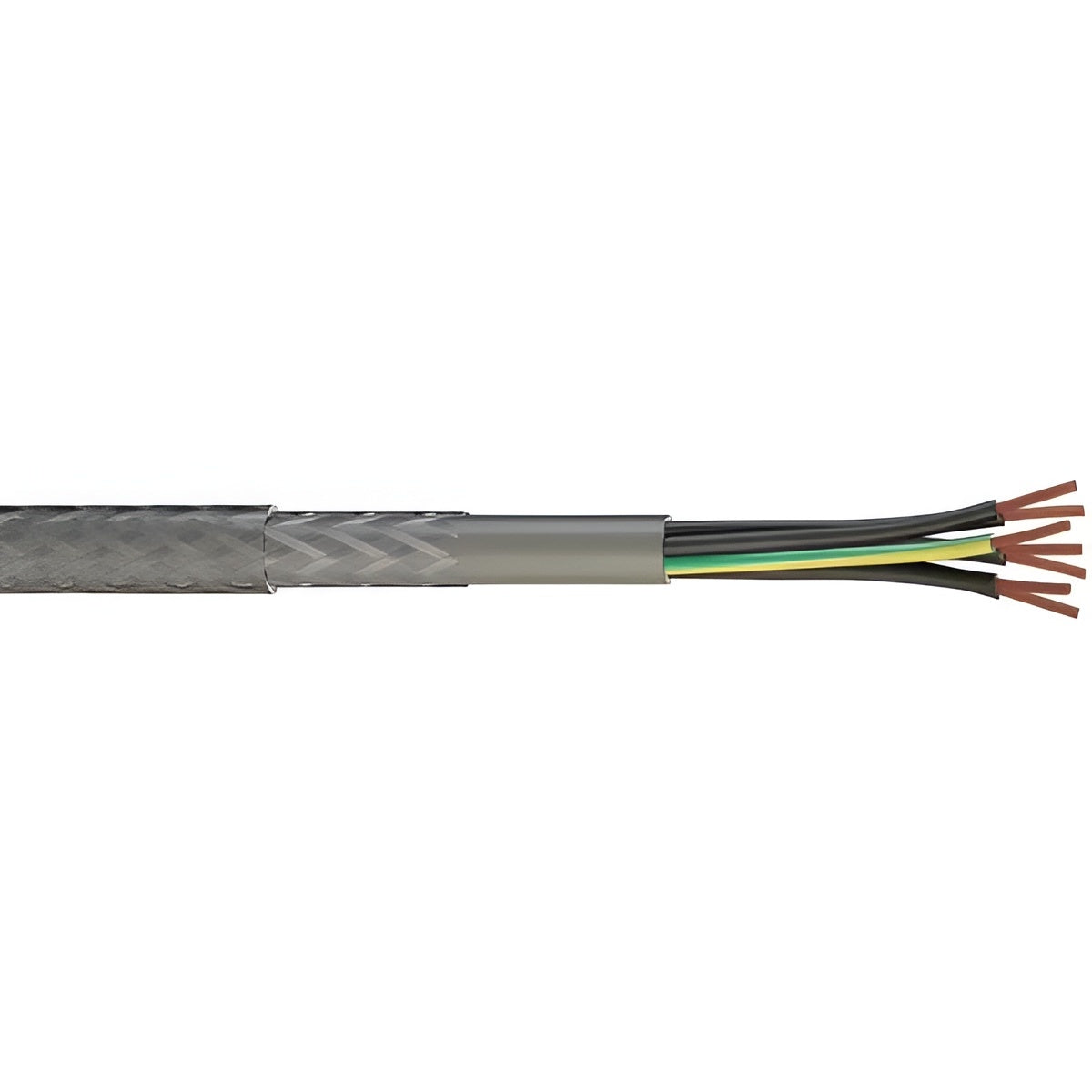

This Doncaster Cables SY 1.5mm² 5 core flexible control cable comes on a 50 metre reel with a clear PVC outer sheath. Each core is Class 5 flexible copper with PVC insulation, and a galvanised steel wire braid sits under the sheath to give extra mechanical protection. The 5 cores include a green/yellow earth core.

SY is designed as an interconnecting cable for measuring, controlling and regulation in control equipment, assembly and production lines, conveyors and computer units. It is widely used across building and construction, rail and transport, automation and process control, and by electricians in fixed installations where only light mechanical stress occurs. It is best suited to dry or moist conditions indoors; outdoors it should be protected.

300/500 V

Rated voltage

5G1.5 mm²

5 cores incl. earth

12.3 mm

Overall diameter

50 m

Reel length

Class 5

Flexible copper

70 °C

Max operating temp

Safety and regulations: SY is a flexible control cable, not armoured cable, and is not designed for direct burial or heavy mechanical stress. Installation must be carried out by a competent person in line with BS 7671. Size the cable and its protective device to the load, and terminate the steel braid in line with the equipment manufacturer's instructions.

Good to know: This listing supplies one 50 metre reel of clear sheathed SY cable. The clear sheath makes it easy to inspect the braid and core layout at the point of termination.

Key Features

Steel wire braid

Galvanised steel wire braid adds mechanical protection and a screen around the cores.

Highly flexible

Class 5 finely stranded copper cores are easy to route into control panels and machinery.

Clear PVC sheath

Transparent PVC sheath with a flame retardant, chemical resistant finish.

Earth core included

5 cores with a green/yellow earth for control and power connections.

Compact 12.3 mm profile

12.3 mm overall diameter suits glands and trunking commonly used on control wiring.

Full 50 m reel

A continuous 50 metre length for long runs without joints.

Technical Specification

Identification

Manufacturer

Doncaster Cables

Part code

SY1.55C050

Cable type

SY steel wire braid flexible control cable

Reel length

50 m

Construction

Number of cores

5 (including green/yellow earth)

Cross-sectional area

1.5 mm²

Conductor

Bare copper, Class 5 flexible

Insulation

PVC

Screen

Galvanised steel wire braid

Sheath

PVC, clear

Overall diameter

12.3 mm

Electrical and Environmental

Rated voltage

300/500 V

Maximum operating temperature

70 °C

Conductor resistance

13.3 Ω/km maximum at 20 °C

Suitable locations

Dry and moist indoor areas; protected if used outdoors

Frequently Asked Questions

What is SY cable used for?

SY is a steel braided flexible control cable used to connect control equipment, machinery, production lines and conveyors, and in light fixed installations.

What is the difference between SY and YY cable?

YY is a PVC insulated and sheathed flexible control cable with no braid. SY adds a galvanised steel wire braid for extra mechanical protection and screening.

Can SY cable be used outdoors?

It is best suited to dry or moist indoor conditions. If used outdoors it must be protected, for example in conduit or trunking. It is not intended for direct burial.

How tightly can I bend this cable?

A minimum bending radius of 6 x the overall diameter is commonly quoted, with some manufacturers specifying up to 10 x. Allow 10 x (about 123 mm) if you are unsure.

How much cable do I receive?

One 50 metre reel of 1.5mm² 5 core SY cable with a clear PVC sheath, part code SY1.55C050.
