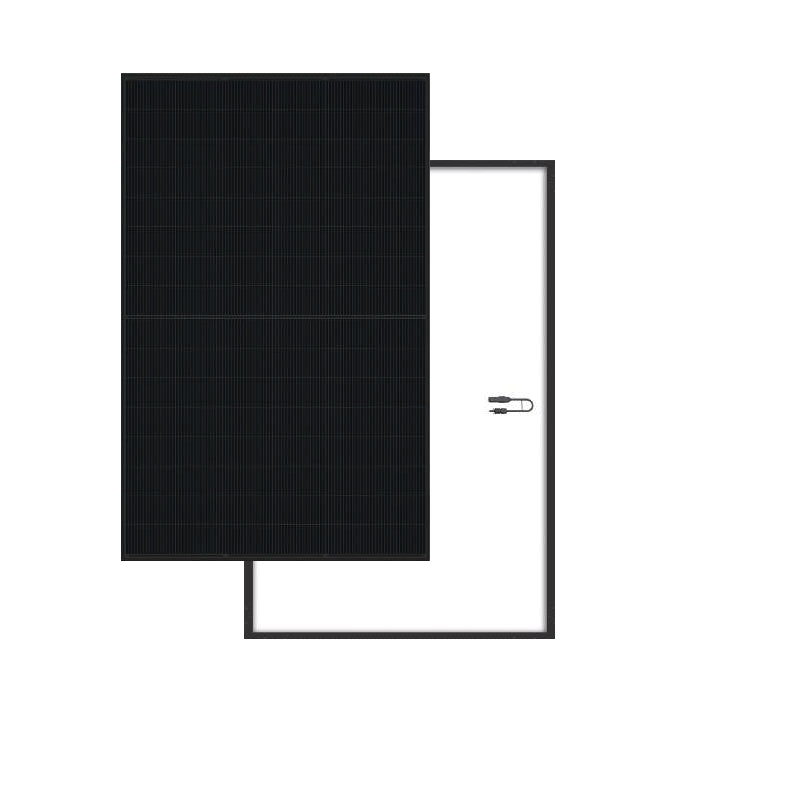

DMEGC Solar 465W Infinity RT 96 Cut Dual Glass N-type Mono Solar Module - Full Black

Description

The DMEGC DM465G12RT-G48HBB is a 465 W N-type mono-crystalline solar module from DMEGC's Infinity RT range, finished in full black using DMEGC's Advanced Black Technology for a uniform, premium appearance on visible or contemporary roofs. It combines a 96-cell (6×16) half-cut layout with a dual-glass construction, giving installers a high-wattage panel that looks as good as it performs.

With a module efficiency of up to 23.5%, low year-on-year degradation, and a 30-year linear power warranty, this module is built for long-term, low-maintenance energy generation on residential and commercial rooftops alike.

465 W

Nominal power

23.5%

Module efficiency

96

Half-cut cells (6×16)

N-Type

Cell technology

30 Yr

Linear power warranty

Full Black

Dual-glass module

Informational: This full-black variant is a mono-facial module (front-side generation only) — it does not produce the rear-side bifacial gain seen on DMEGC's transparent or white-backsheet Infinity RT modules.

N-Type Mono-Crystalline Cells

Lower degradation than conventional P-type panels — DMEGC rates this module at ≤1% first-year and ≤0.4% annual degradation over 30 years.

96 Half-Cut Cell Design

A 6×16 half-cut cell layout that reduces resistive losses and improves tolerance to partial shading versus full-cell modules.

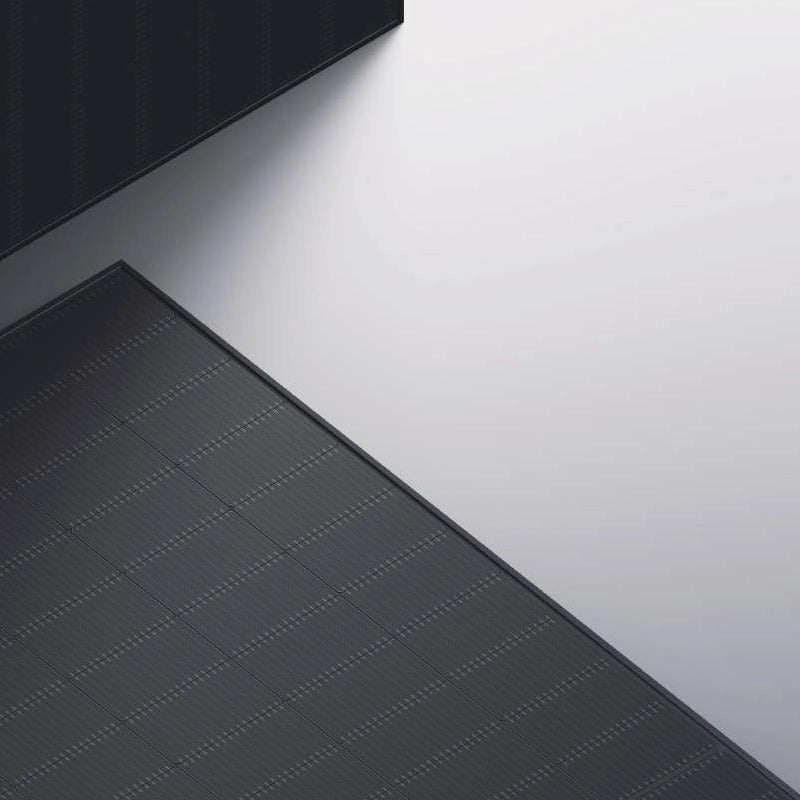

Full-Black Aesthetic

Manufactured with DMEGC Advanced Black Technology for a uniform black frame and backsheet finish suited to visible, modern roof installations.

Dual-Glass Construction

2 mm heat-strengthened front and rear glass with an anti-reflective coating for improved durability and low-light performance.

Extended Stress Testing

TÜV Rheinland-certified against ammonia corrosion, salt mist corrosion, LeTID and dust/sand exposure for demanding site conditions.

30-Year Linear Power Warranty

Guaranteed output of 87.4% of nominal power at year 30, backed by a separate 25-year product warranty.

Electrical Specifications (STC)

Maximum Power (Pmax)

465 W

Maximum Power Voltage (Vmp)

31.21 V

Maximum Power Current (Imp)

14.91 A

Open-Circuit Voltage (Voc)

36.46 V

Short-Circuit Current (Isc)

15.88 A

Module Efficiency (STC)

23.5%

Power Output Tolerance

0 ~ +3%

Electrical Specifications (NMOT)

Maximum Power (Pmax) @ NMOT

354 W

Maximum Power Voltage (Vmp) @ NMOT

29.28 V

Maximum Power Current (Imp) @ NMOT

12.11 A

Open-Circuit Voltage (Voc) @ NMOT

35.09 V

Short-Circuit Current (Isc) @ NMOT

12.80 A

NMOT test condition

800 W/m², 20°C ambient, AM 1.5, 1 m/s wind

Temperature Characteristics

Nominal Module Operating Temp (NMOT)

42 ± 2°C

Temperature Coefficient of Pmax

-0.29 %/°C

Temperature Coefficient of Voc

-0.25 %/°C

Temperature Coefficient of Isc

+0.048 %/°C

Operating Temperature Range

-40°C to +85°C

Mechanical & Construction

Cell Type

N-type mono-crystalline, 96 cells (6×16), half-cut

Dimensions (L × W × H)

1,762 × 1,134 × 30 mm

Weight

24.0 kg

Front Cover

2 mm heat-strengthened glass, anti-reflective coating

Rear Cover

2 mm heat-strengthened glass

Frame / Backsheet

Full black — black frame and black backsheet

Junction Box

3 diodes, IP68 rated (IEC 62790)

Output Cables

4 mm² — Portrait: 300 mm (+) / 200 mm (-); Landscape: 1,100 mm (+/-)

Connector Type

PV-ZH202B or MC4-EVO2A (1500 V)

Protection Class

Class II

System & Certification

Maximum System Voltage

1,500 V DC (IEC)

Overcurrent Protection Rating

25 A

Max. Design Load, Front/Back

3,600 Pa / 1,600 Pa

Max. Test Load, Front/Back

5,400 Pa / 2,400 Pa

Product Certification

IEC 61215, IEC 61730

Extended Testing

Ammonia corrosion (IEC 62716), salt mist (IEC 61701), LeTID (IEC TS 63342), dust & sand (IEC 60068)

Product Warranty

25 years

Linear Power Warranty

30 years — 87.4% of nominal power at year 30

Frequently Asked Questions

Is this panel bifacial?

No. This full-black variant is mono-facial — it generates from the front surface only. DMEGC's transparent and white-backsheet Infinity RT modules in this range do offer bifacial rear-side gain, but the full-black finish does not.

What does "N-type" mean and why does it matter?

N-type cells use a different base wafer doping than standard P-type panels, giving lower degradation rates over time — DMEGC specifies ≤1% in the first year and ≤0.4% annually thereafter, supporting the 30-year linear power warranty.

Is this module suitable for coastal or agricultural sites?

Yes. It carries TÜV Rheinland-certified ammonia and salt mist corrosion resistance (IEC 62716 and IEC 61701), making it a suitable choice for coastal, farm, and industrial environments.

What warranty coverage applies to this panel?

DMEGC provides a 25-year product warranty and a separate 30-year linear power warranty, guaranteeing at least 87.4% of nominal output at year 30 — performance warranty terms apply to front-side (STC) output.

What connector type does this module use?

It's fitted with a PV-ZH202B or MC4-EVO2A connector rated to 1,500 V on 4 mm² output cables, compatible with most standard UK inverter and cable systems.
