Dimplex FX20VE 2kW Downflow Fan Heater with Pullcord and Timer
Couldn't load pickup availability
Payment details

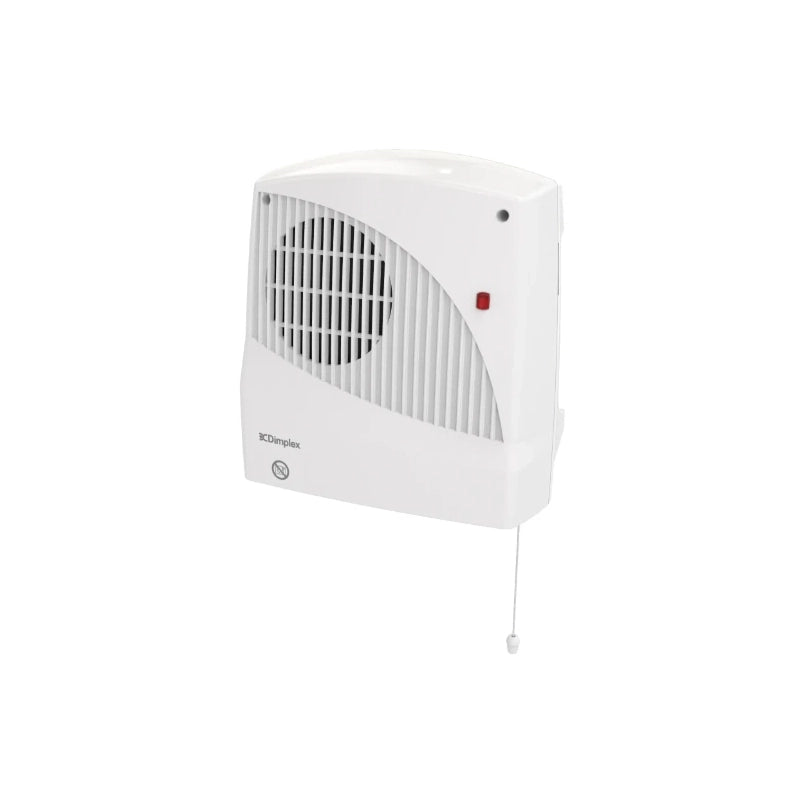

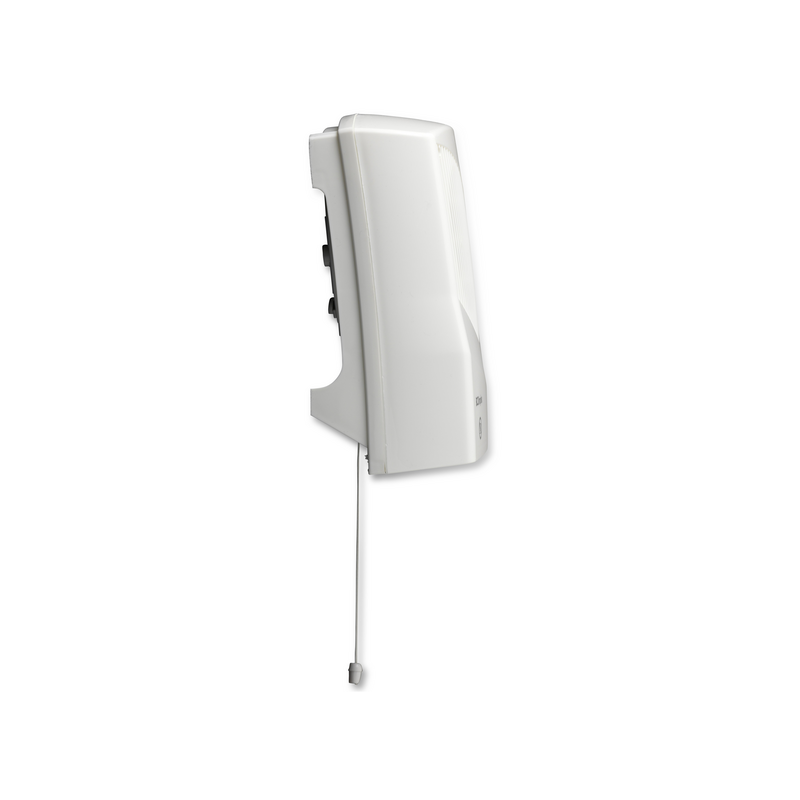

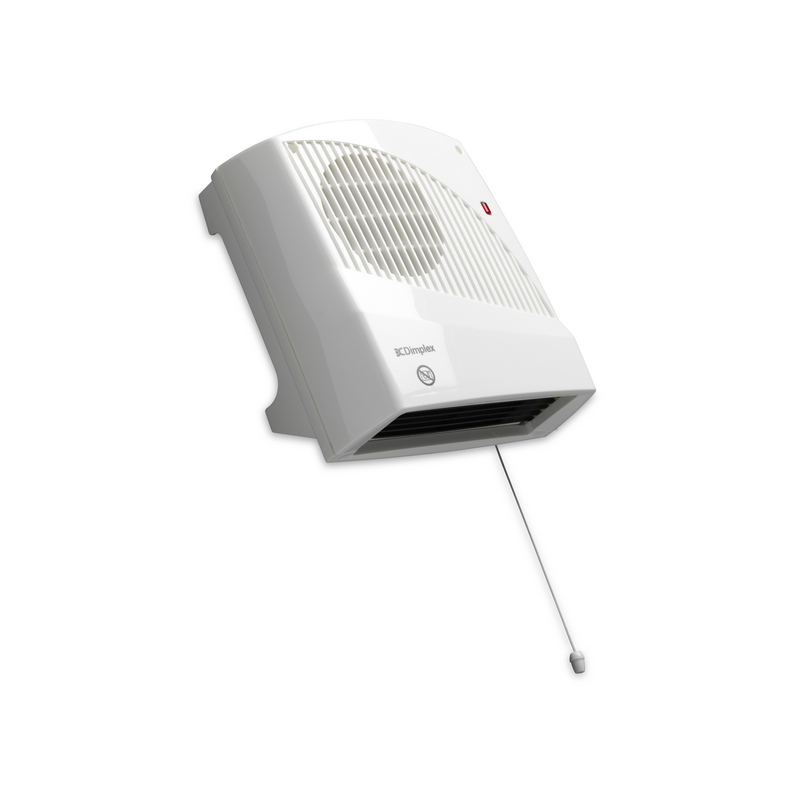

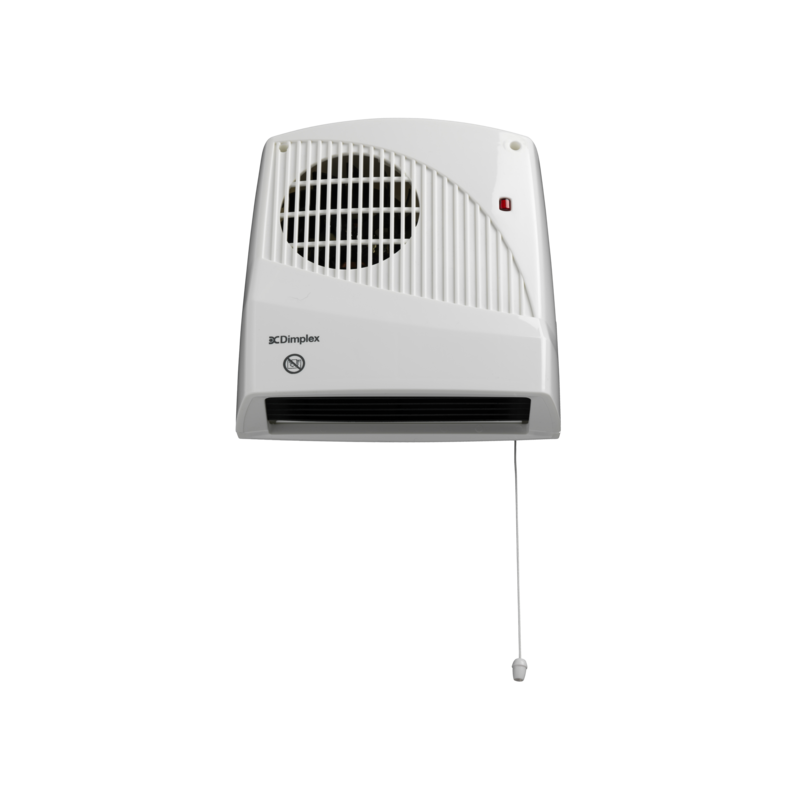

Dimplex FX20VE 2kW Downflow Fan Heater with Pullcord and Timer
The Dimplex FX20VE is a powerful and versatile downflow fan heater designed for efficient wall-mounted heating in various indoor spaces such as bathrooms, utility rooms, and small rooms. It offers a maximum heat output of 2kW, with a selectable 1kW option on installation to suit different room sizes and conserve energy.
This model features a convenient pullcord operation with an energy-saving 30-minute electronic run-back timer, which automatically switches the heater off after a preset period to prevent it from being left on accidentally. It also includes a neon indicator for easy operation status checking.
Key Features of the Dimplex FX20VE
- Adjustable Heat Output: Select either 1kW or 2kW heat output at the time of installation to suit room size.
- Energy Saving Timer: Electronic 30-minute run-back timer automatically switches off the heater to save energy and enhance safety.
- Compact & Easy to Install: Wall mounted via two keyhole slots and a third fixing hole; ideal for retrofitting due to unchanged footprint.
- Safety Features: Manually resettable thermal overload cut-out and thermal fuse link provide double protection against overheating.
- Durable & Fire Safe: Made from flame-retardant, self-extinguishing grade nylon.
- Recommended Mounting Height: Minimum 1.8 meters for optimum performance and safety.
Please note, the cable is not included with the heater, and all electrical installations must comply with current wiring regulations.
Technical Specifications - Dimplex FX20VE Downflow Fan Heater
| Specification | Details |
|---|---|
| Model | FX20VE |
| Power Output | Selectable 1kW or 2kW |
| Operational Voltage | 230V, 50Hz |
| Dimensions (H x W x D) | 242 mm x 229 mm x 109 mm |
| Weight | 1.1 kg |
| Timer | 30-minute electronic run-back timer |
| Controls | Pull cord operated with manual override |
| IP Rating | IPX2 (Suitable for bathroom zones 2 and 3) |
| Material | Flame retardant self-extinguishing nylon |
| Safety Features | Thermal cut-out, thermal fuse link, double insulation |
| Mounting | Wall mounted with keyhole slots and fixing hole |
| Recommended Mounting Height | Minimum 1.8 meters |
| Certifications | CE Compliant |
| Warranty | 2 Years |
| EAN | 5011139016270 |
- Type Fan Heaters
- Vendor Dimplex
- SKU FX20VE
