Deta eVolo eDock 7.4kW Single Phase 32A Domestic EV Charge Point

Deta eVolo eDock 7.4kW Single Phase 32A Domestic EV Charge Point (EVC7001)

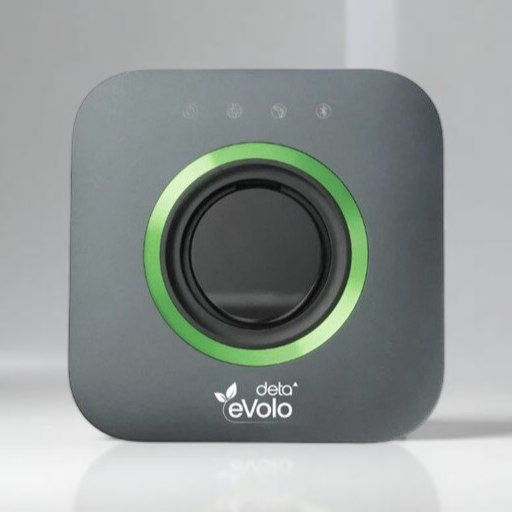

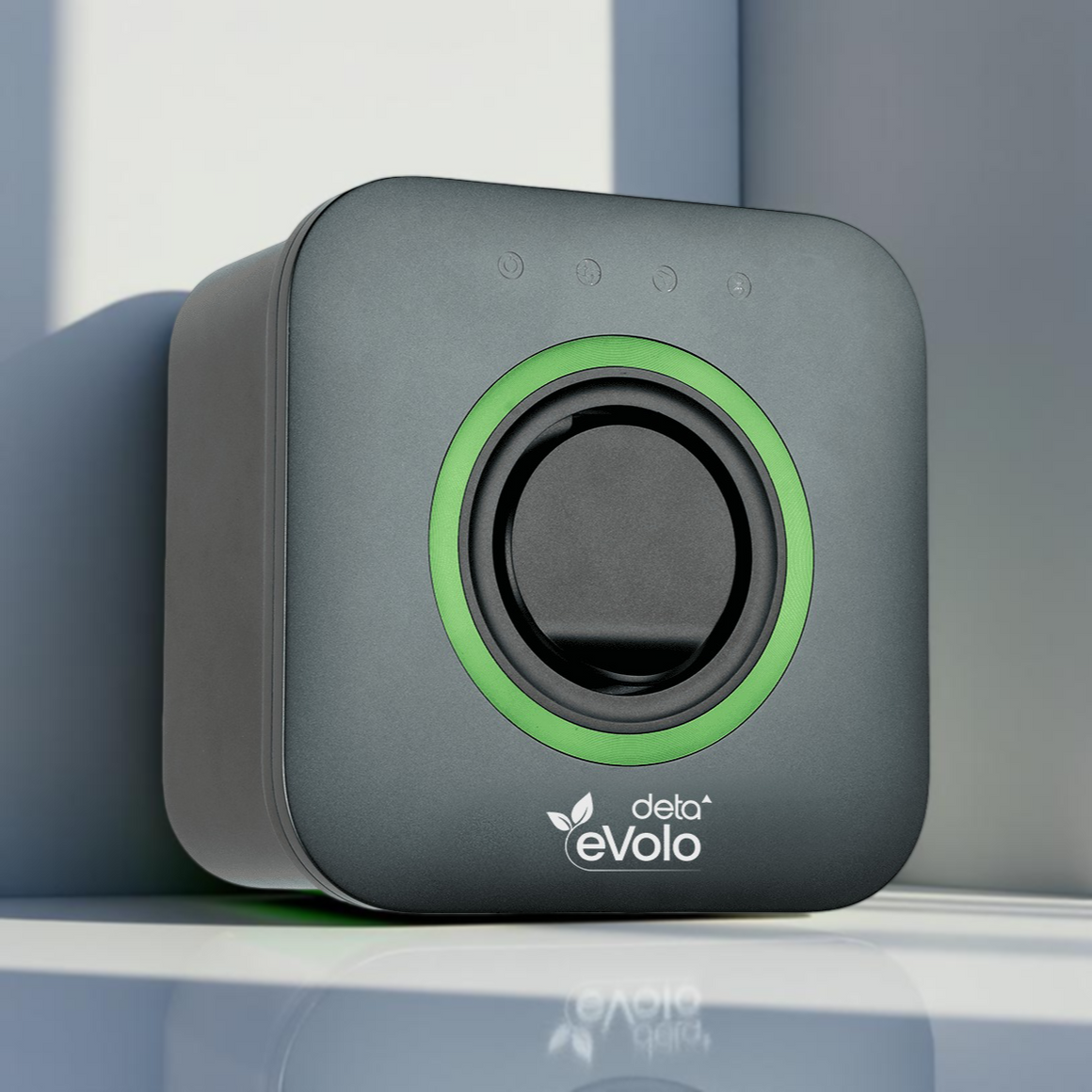

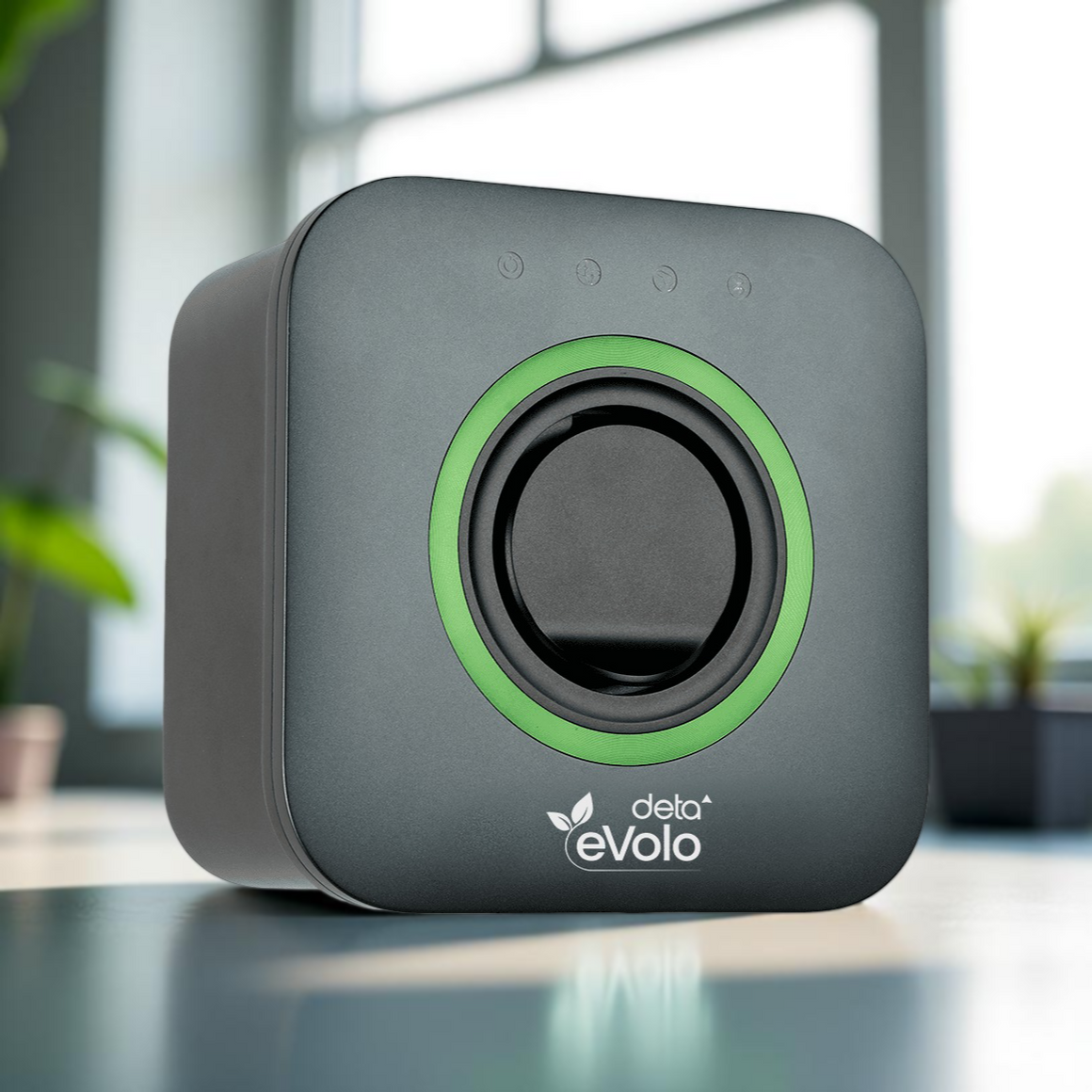

The Deta eVolo eDock is a compact, untethered Mode 3 EV charge point designed for domestic properties. Offering up to 7.4kW charging power at 32A single phase, it features a Type 2 socket and smart connectivity for convenient control and scheduling via the dedicated smartphone app.

Key Features

• 7.4kW charging power (max. 32A, single phase)
• Untethered Type 2 socket for flexible cable use
• Smartphone app control for charge point management, scheduling, and energy monitoring
• Bluetooth commissioning with mobile device
• WiFi and Ethernet connectivity for remote management
• Built-in PEN fault detection and isolation for enhanced safety
• Integrated 30mA AC and 6mA DC earth leakage protection
• RS485 communication for load management systems
• Firmware updates over-the-air (OTA) once registered
• RFID ready (feature enabled via eVolo website)
• Suitable for wall or post mounting with multiple cable entry options
• Compact dimensions: 202 × 202 × 115 mm; weight approx. 2.5 kg
• IP54 ingress protection and IK10 impact resistance
• Complies with IEC 61851-1:2019, IEC 62955, EMC 2016, ROHS 2012, RED 2014/53/EU, and UK Smart Charge Point Regulations 2021
• Installation in accordance with BS7671

Technical Specifications

• Voltage: 220–240V AC, 50Hz, single phase
• Max Charging Current: 32A
• Connector Type: Type 2 socket (untethered)
• Load Management: Maximum charging current adjustable via app
• Cable Size: Up to 10mm²
• Built-in RCD: 30mA AC and 6mA DC
• Built-in PEN Fault Detection: Yes
• Built-in Metering Accuracy: ±2%
• Surge Protection: Level III lightning protection (4000 V recommended Type 2 SPD in consumer unit)
• Isolation: Class II
• Ingress Protection: IP54
• Impact Protection: IK10
• Operating Temperature: –30°C to +50°C
• Weight: Approx. 2.5 kg
• Dimensions (W × H × D): 202 × 202 × 115 mm

Applications

• Domestic electric vehicle charging
• Smart home integration with solar and battery storage
• Flexible installation on wall or post
• Remote management and scheduling for energy optimisation
