Delta Dore Tybox 33 Wireless Room Thermostat | 6053002 | Boiler/HP

Description

The Delta Dore Tybox 33 (6053002) is a simple, dependable wireless room thermostat for a boiler or non-reversible heat pump. A central selector dial and a backlit screen make it easy to use and easy to read, and the battery-powered thermostat can sit wherever the room temperature is best measured.

Choose from four operating modes: Comfort, Reduced, Frost Protection and Off, see the room or setting temperature on screen, and use the timed economy function to turn the heating down during a short absence. The pack includes the mains-powered wireless receiver and the thermostat carries a 5-year guarantee.

4 Modes

Comfort, Reduced, Frost, Off

Class IV

Temperature control (2% gain)

100 m

Transmitter wireless range

2 Years

Battery life (2 × AAA)

-5 to 40°C

Operating range

5 Years

Manufacturer guarantee

What is in the pack

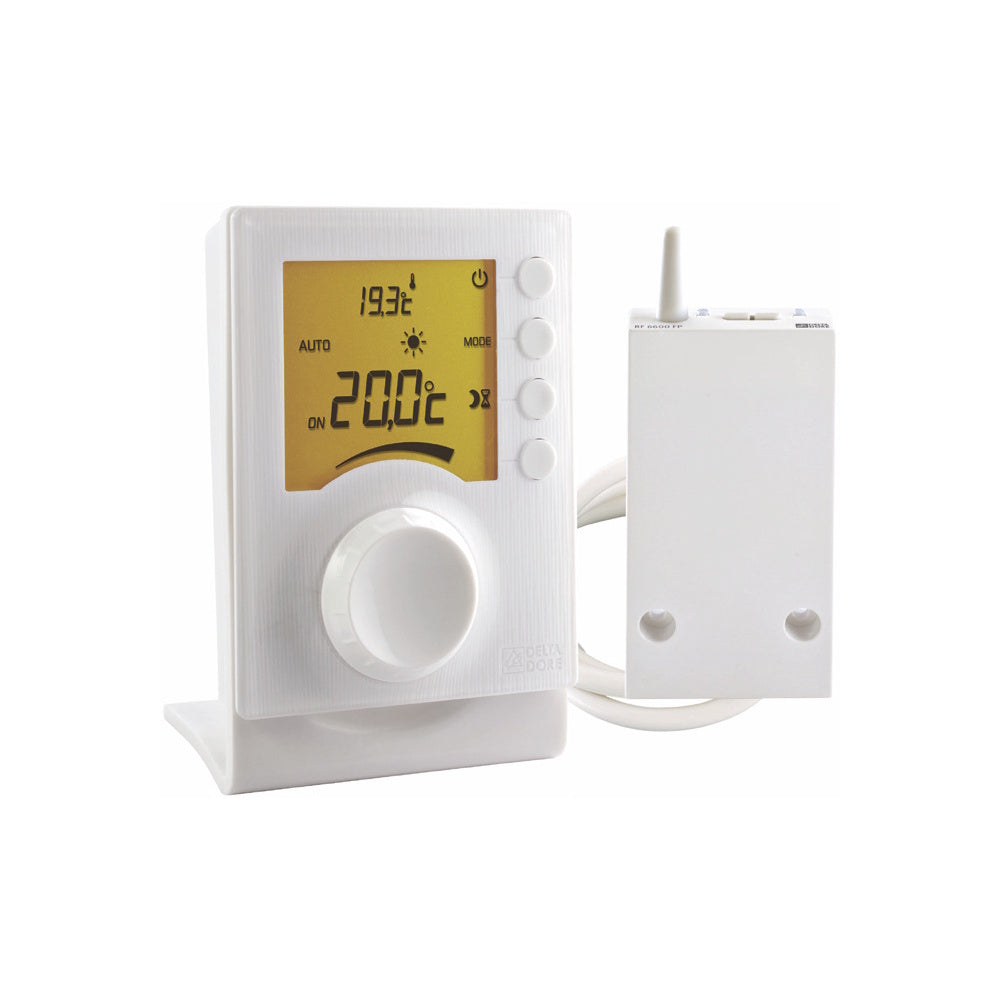

Tybox 33 wireless thermostat with 2 × alkaline LR03 (AAA) batteries and the mains-powered wireless receiver (230 V ±10%) that connects to your boiler or heat pump control input.

Manual thermostat, not a weekly programmer

The Tybox 33 is controlled with the selector dial, with Comfort, Reduced, Frost Protection and Off modes plus a timed economy function. It does not have a weekly time schedule. If you need scheduled heating and app control, look at the Tybox 137+ or Tybox RF 210 with a Tydom hub.

Receiver wiring

The receiver is mains powered and connects to the thermostat input of the boiler or heat pump. Isolate the supply before work and have it connected by a competent installer (Gas Safe registered for gas boilers) in line with the manufacturer's instructions.

Key Features

Easy Central Selector

One selector dial gives direct access to every mode and setting, so anyone in the household can use it.

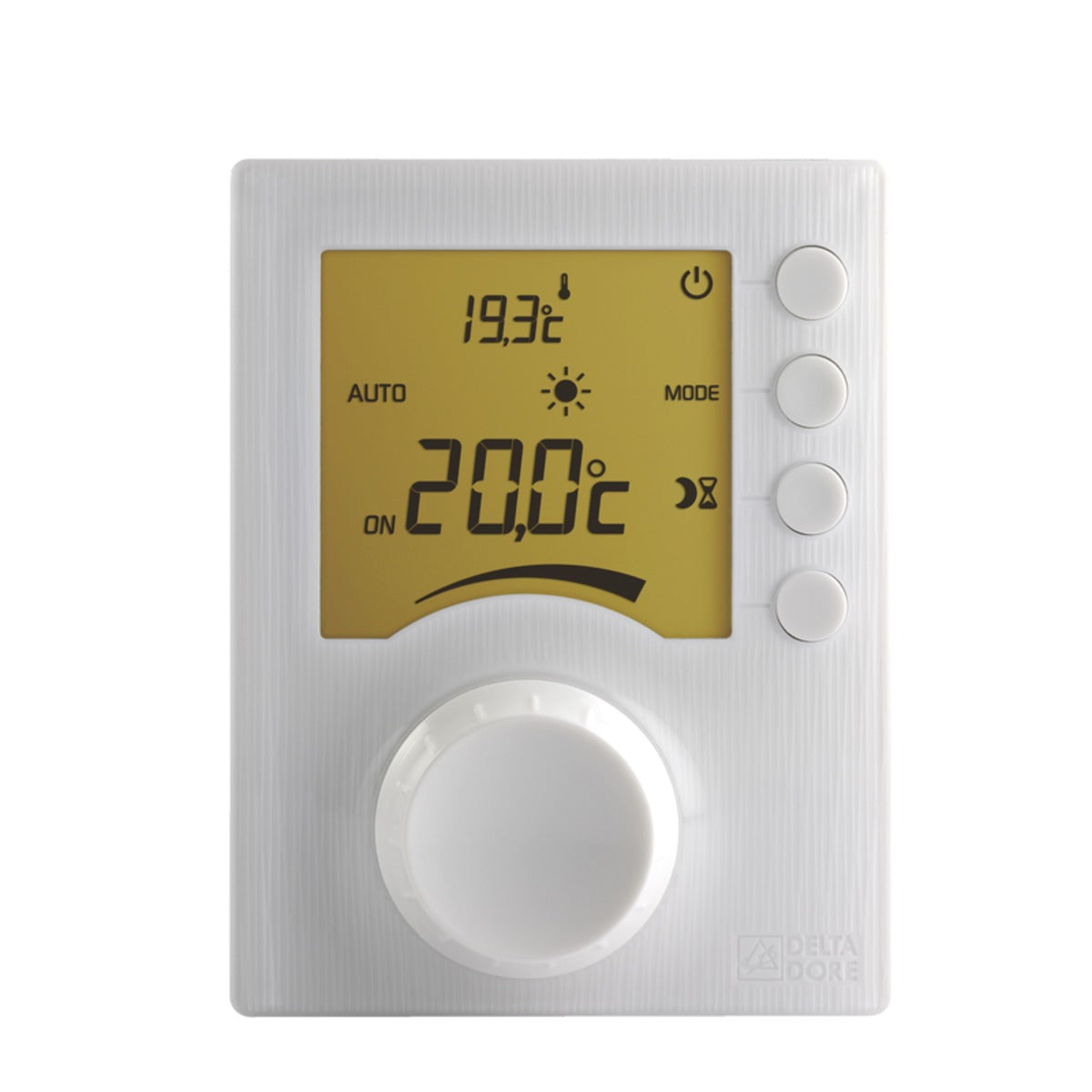

Backlit Display

A backlit screen shows the room temperature or the setting temperature clearly, even in a dark hallway.

Four Operating Modes

Comfort, Reduced, Frost Protection and Off cover every day of the year, from daily use to summer shutdown.

Timed Economy Function

Reduce the heating for a temporary absence and let it return to normal automatically.

Boiler or Heat Pump Control

Designed for boilers and non-reversible heat pumps. It is not intended for cooling or reversible systems.

Wireless Installation

No cable between thermostat and receiver, with a wireless range of 100 to 300 m depending on conditions. Place the thermostat where the temperature is most representative.

Technical Specifications

Product

Brand

Delta Dore

MPN

6053002

Type

Wireless room thermostat for boiler or non-reversible heat pump

Operating modes

Comfort, Reduced, Frost Protection, Off

Energy efficiency

Temperature control class IV (2% gain)

Guarantee

5 years

Thermostat (Transmitter)

Dimensions (H × W × D)

103 × 80 × 25 mm

Power supply

2 × alkaline LR03 (AAA) supplied

Battery life

2 years

Wireless range

100 m

Operating temperature

-5°C to +40°C

Place of use

Indoor

Receiver

Dimensions (H × W × D)

102 × 54 × 20 mm

Power supply

Mains, 230 V ±10%

Wireless range

100 to 300 m

Operating temperature

-5°C to +40°C

Place of use

Indoor

Frequently Asked Questions

Is the Tybox 33 programmable?

No weekly schedule is listed by Delta Dore. It is operated with the selector dial across Comfort, Reduced, Frost Protection and Off, with a timed economy function for short absences.

What systems does it control?

A boiler or non-reversible heat pump through the supplied receiver.

Does it work with the Tydom app?

Delta Dore's product information for the Tybox 33 does not list Tydom connectivity. For app and voice control choose the Tybox 137+ or Tybox RF 210 with a Tydom hub.

What batteries does it use and how long do they last?

Two alkaline LR03 (AAA) batteries are supplied and give about 2 years of operation.

What is the wireless range?

Delta Dore quotes 100 m for the transmitter and 100 to 300 m for the receiver. Walls, metal and the building structure reduce real-world range.
