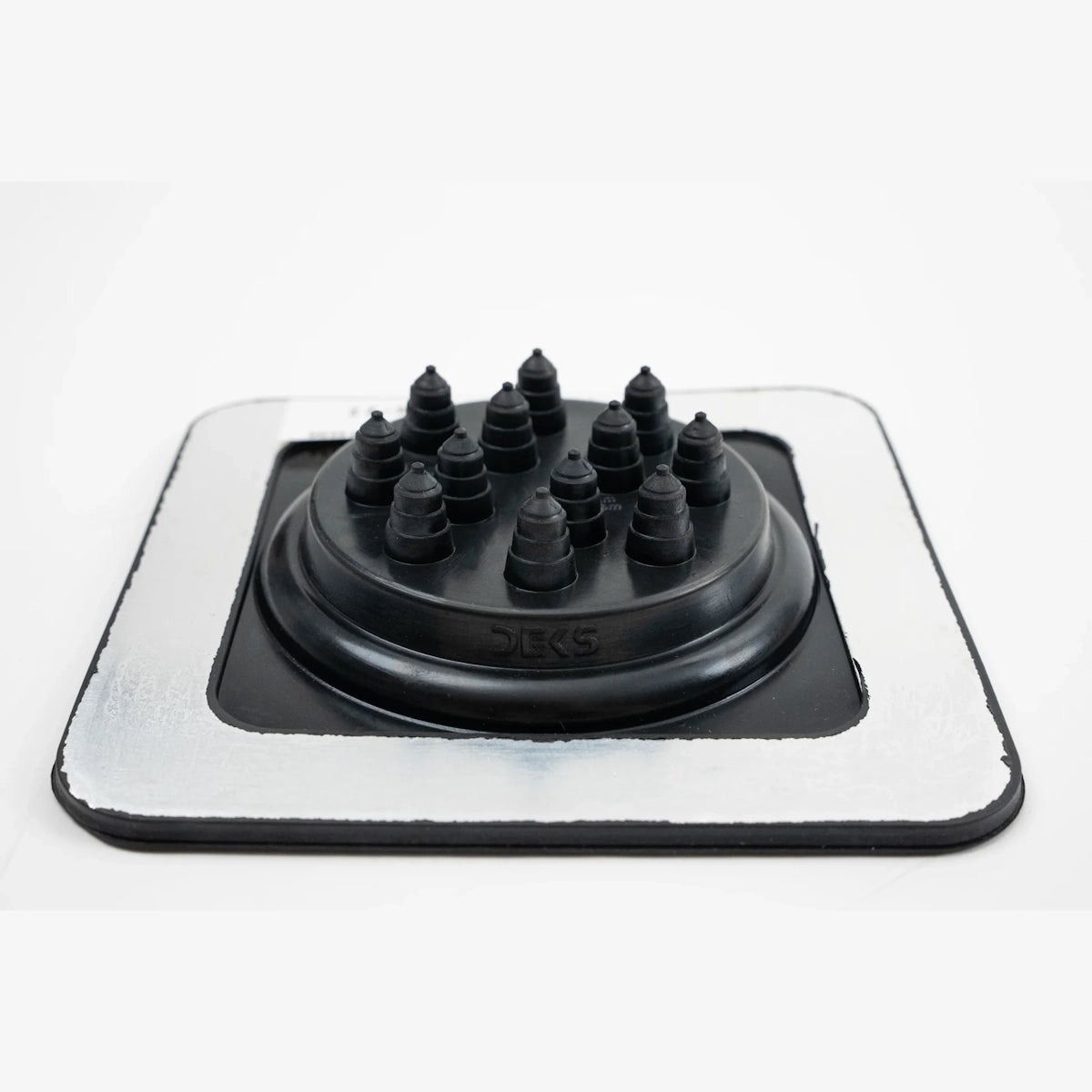

The Dektite Aluminium Multicable Solar Flashing is a purpose-made cable entry solution for routing multiple solar PV cables through trapezoidal or corrugated metal roof profiles. Built with a tough, UV-resistant EPDM rubber cone edged by a flexible aluminium base band, it moulds securely to the roof profile to deliver a lasting weatherproof seal.
A single flashing accommodates up to 12 solar cables, removing the need for multiple individual roof penetrations. This consolidation reduces installation time, minimises the number of weak points in the roof covering, and keeps cable runs tidy and professional-looking. It is a purpose-made durable solution, compliant with MCS requirements for professional PV installations.
Aluminium
Base Band Material
20 Years
Manufacturer Warranty
Good to Know
This flashing is designed specifically for metal roofs (trapezoidal or corrugated profiles). For tile or slate roofs, use the equivalent Dektite Lead Multicable Solar Flashing instead, which uses a Nu-Lead® base rather than an aluminium band.
Designed for Metal Roofs
Purpose-shaped to fit trapezoidal or corrugated metal roof profiles, forming a close, secure fit around the roof ribs.
Multi-Cable Capacity
Accommodates up to 12 solar cables (4–8mm diameter) through a single roof penetration, reducing the number of separate cable entries required.
Durable EPDM Construction
A tough, UV-resistant EPDM rubber cone provides long-term flexibility and weather resistance across UK roof conditions.
Flexible Aluminium Band

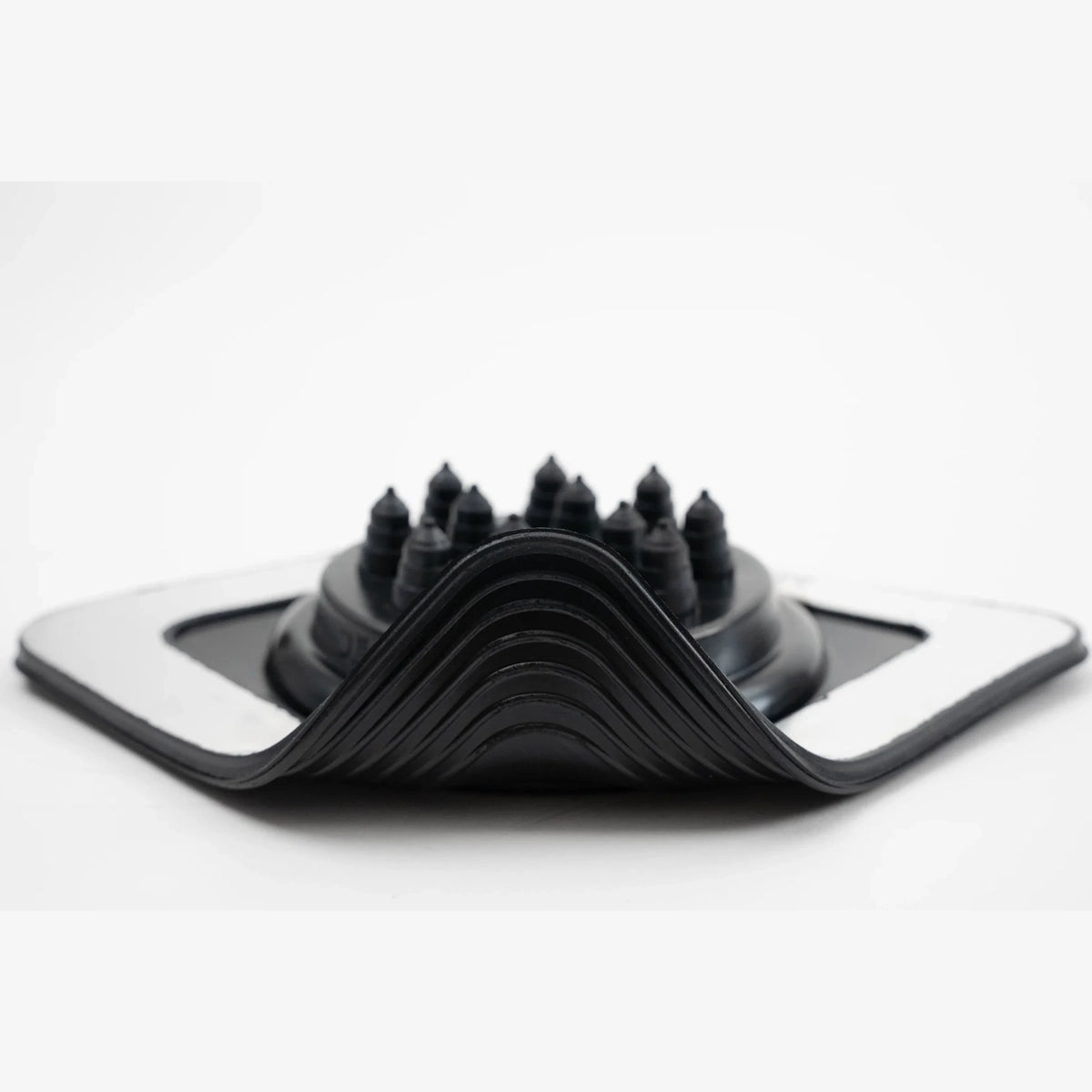

The aluminium base band can be moulded and pressed firmly into the roof profile, enhancing mechanical strength and long-term weatherproofing.
Wide Roof Pitch Compatibility
Rated for roof pitches from 0° to 45°, suiting the vast majority of UK metal roof installations.
MCS-Compliant, Low-Maintenance Design
Installer-friendly and requiring no ongoing maintenance once fitted — a purpose-made solution, as required by MCS, for professional PV installations.
Physical Specification
Base Type
Flexible aluminium band
Cone Material
Black EPDM rubber
Capacity & Compatibility
Cable Capacity
Up to 12 cables
Roof Compatibility
Trapezoidal and corrugated metal roofs
Roof Pitch Range
0° to 45°
Product Code & Warranty
Manufacturer Warranty
20 years
Standard
Purpose-made durable solution, as required by MCS
Code
Roof Type
Capacity
Base Type
DFE101BM
Metal roof
Up to 12 cables, 4–8mm
Aluminium band
DFE101BS
Metal roof
1 pipe (5–55mm) or cables 4–8mm
Aluminium band
DFE100BS
Metal roof
1 pipe (0–35mm) or cables 4–8mm
Aluminium band
Please Note
These Dektite Premium flashings share the same square aluminium-edged EPDM design for metal roof applications but differ in penetration count and base size. DFE101BM is the dedicated multicable version for high cable-count installations. Confirm the correct code for your project before ordering.
What roof types is this flashing suitable for?
This Dektite flashing is purpose-made for metal roofs with trapezoidal or corrugated profiles. For tile or slate roofs, use the equivalent Dektite Lead Multicable Solar Flashing instead.
How many cables can this flashing accommodate?
It accommodates up to 12 solar cables, each between 4mm and 8mm in diameter, through a single roof penetration.
What roof pitches is this flashing rated for?
It is rated for roof pitches from 0° to 45°, covering the majority of UK metal roof installations. Always confirm your specific roof pitch falls within this range before installation.
Does this flashing require ongoing maintenance?
No. Once correctly installed, the Dektite Aluminium Multicable Solar Flashing is designed to be maintenance-free for the duration of its service life.
What warranty is provided with this product?
This flashing is backed by a 20-year manufacturer warranty, reflecting its durable EPDM and aluminium construction.
