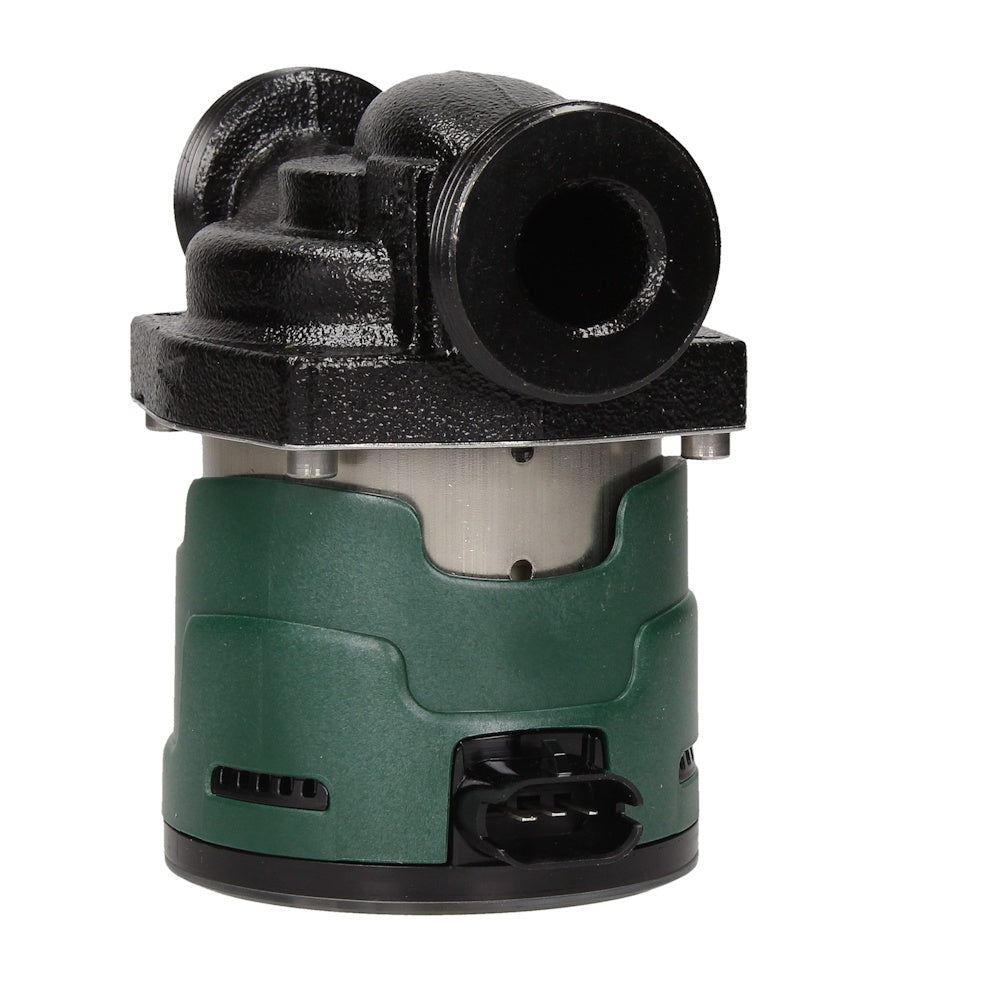

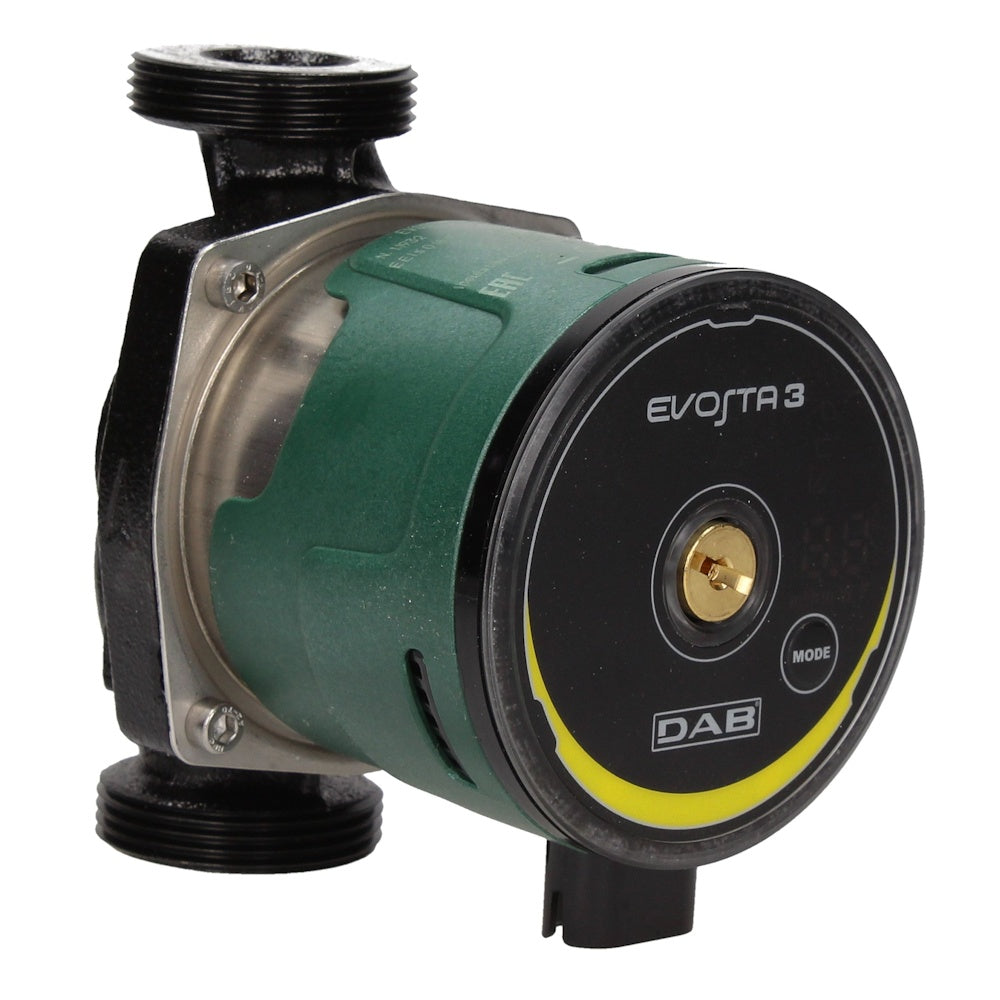

DAB Evosta3 80/130 Circulator Pump 230V | 60193272

Description

The DAB Evosta3 80/130 (part number 60193272) is a high-efficiency electronic wet-rotor circulator for domestic and residential heating and cooling systems. A permanent magnet synchronous motor with built-in frequency converter adapts pump speed to real system demand, delivering up to 8.0 m of head and 4.2 m³/h while drawing no more than 55 W.

The compact 130 mm port-to-port body with G 1½ threaded ports is designed to replace old three-speed circulators. Set-up takes a single Mode button, a display shows live head, flow and power, and IPX5 protection guards the electronics against water. Backed by a 5-year manufacturer warranty.

8.0 m

Maximum head

4.2 m³/h

Maximum flow

55 W

Maximum input

EEI ≤ 0.19

Ecodesign benchmark

IPX5

Water protection

5 years

Manufacturer warranty

Why installers choose the Evosta3

The 80/130 is the higher-head version of the compact Evosta3 130 mm format. Choose it when a 60/130 runs short on head: larger houses, longer circuits or higher-resistance heating loops. It adds automatic degassing, a live display and nine selectable curves, so you can match the duty precisely instead of settling for a fixed three-speed step.

Check the fit before you order

This pump is 130 mm port-to-port with G 1½ (1½ inch BSP) male threads. The "1 inch" in DAB's model name is the nominal size. Measure your existing pump before ordering: a 180 mm pump needs the 80/180 instead. Fit the two gaskets when mounting and use new gaskets on any later service.

Installation and safety

Installation and wiring must be carried out by a competent person and comply with BS 7671. The pump must be earthed. Isolate the supply before working on it and wait for the panel lights to go out, as the internal capacitor stays charged after switch-off. The manufacturer recommends a correctly rated Class A residual current device. The pump body and fluid can cause scalding: drain or isolate both sides before removal. Never run the pump dry.

Key features

Nine operating modes

Three proportional pressure, three constant pressure and three constant curve settings, selected with one button and shown by LED indicators.

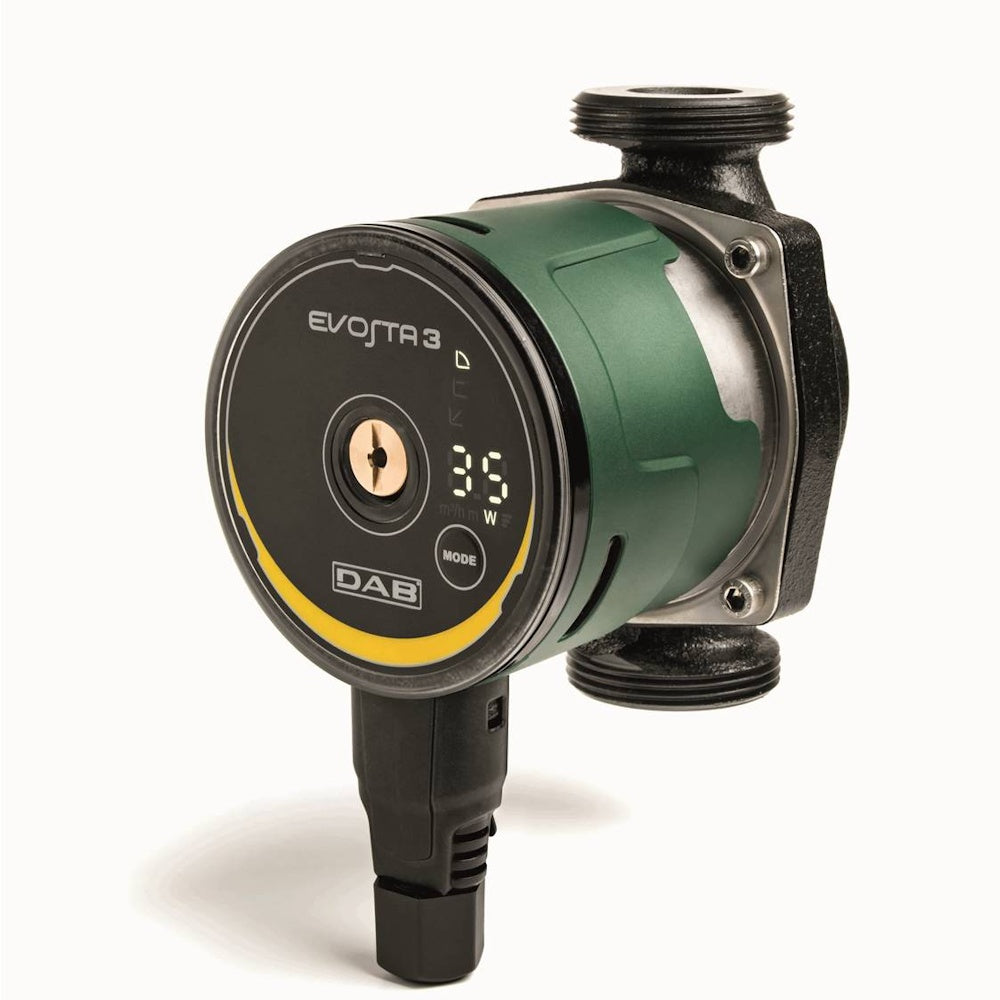

Live display

Shows instantaneous power in watts, head in metres, flow in m³/h and the selected curve, so commissioning needs no separate gauges.

Automatic degassing

Hold Mode for 3 seconds for a one-minute maximum-speed purge. A brass vent plug also gives direct access to the motor shaft.

IPX5 and self-protection

IPX5 rating plus built-in protection against overload, phase loss, excess temperature and over/under-voltage; dry-run alarm included.

Quiet, low energy

Sound level of 43 dB(A) or below and input capped at 55 W, with proportional pressure trimming speed as demand falls.

Ready to insulate

Insulation shells supplied with the Evosta3 cut heat loss from the pump body. The electronics box and control panel must stay uncovered.

Performance at a glance

Head available at each flow rate on the maximum curve of the 80/130:

0 m³/h

8.0 m

0.6 m³/h

8.0 m

0.9 m³/h

7.2 m

1.2 m³/h

6.5 m

2.7 m³/h

3.7 m

3.3 m³/h

2.6 m

3.9 m³/h

1.6 m

4.2 m³/h

1.0 m

Maximum-curve duty points at 1 mm²/s viscosity and 1000 kg/m³ density; tolerance to ISO 9906. Actual duty depends on the operating mode selected.

Technical specification

General

Manufacturer

DAB Pumps

Model

Evosta3 80/130

Manufacturer part number

60193272

Pump type

Electronic wet-rotor circulator, single pump

Applications

Domestic and residential heating and cooling water circuits

Hydraulic performance

Maximum head

8.0 m

Maximum flow rate

4.2 m³/h

Port-to-port length

130 mm

Port connections

DN25 threaded, G 1½ (1½ inch BSP male); model name uses nominal 1 inch

Operating modes

9: proportional pressure PP1-PP3, constant pressure CP1-CP3, constant curve I-III

Electrical

Supply

Single-phase 1 x 230 V ~ (+/-10%), 50/60 Hz

Power input P1 max

55 W

Current

0.053 - 0.47 A

Energy Efficiency Index

≤ 0.19

Protection class

IPX5, insulation class F (TF 110)

Motor protection

Built in; no external motor protector needed

Operating conditions

Pumped liquid

Clean, non-viscous, chemically neutral water, free of solids and mineral oils; up to 30% glycol

Liquid temperature

-10°C to +110°C

Maximum ambient temperature

40°C

Working pressure

10 bar maximum (1000 kPa); 1 bar minimum

Installation

Horizontal motor shaft; electronics box kept vertical

Sound level

≤ 43 dB(A)

Construction

Pump body

Cast iron with cataphoresis paint coating

Motor

Permanent magnet synchronous wet rotor; steel motor casing

Impeller

Technopolymer

Shaft and bearings

Ceramic (alumina) shaft on ceramic bushings, lubricated by the pumped liquid

Liners and flange

Stainless steel rotor liner, stator liner and closing flange; graphite thrust ring

Seals and vent plug

EPDM seal ring; brass bleed plug

Dimensions and weight

Pump body height

91 mm

Overall width (electronics side)

144 mm

Weight

2.05 kg

Packed size

192 x 113.5 x 155 mm

Compliance and warranty

Ecodesign

ErP 2009/125/EC (2015) compliant

Manufacturer warranty

5 years

Evosta3 range comparison

All three models share the same motor technology, IPX5 protection, display and control layout. Choose by port-to-port length and the head your system needs.

Model

Part no.

Port-to-port

Max head

Max flow

Max input

EEI

Evosta3 60/130

60193271

130 mm

6.0 m

3.6 m³/h

35 W

≤ 0.18

Evosta3 80/130

60193272

130 mm

8.0 m

4.2 m³/h

55 W

≤ 0.19

Evosta3 80/180

60185505

180 mm

8.0 m

4.2 m³/h

55 W

≤ 0.19

Frequently asked questions

Will it replace my existing three-speed circulator?

It is designed to. Measure your current pump's port-to-port length first: this model is 130 mm with G 1½ male threaded ports. If your pump is the same length and thread, it fits without altering pipework. Also confirm the head you need: this model delivers up to 8.0 m. DAB describes the Evosta3 range as a direct replacement for old three-speed circulators.

Which operating mode should I choose?

The pump ships in minimum proportional pressure (PP1). Per the installation manual, proportional pressure suits heating systems with high load losses; constant pressure suits systems with low load losses, single-pipe systems with thermostatic valves, and natural-circulation plants; constant curve (I, II, III) suits systems with constant flow. Press the single Mode button to step through all nine settings and use the display to check head, flow and power.

How do I vent the pump?

Always vent before starting; the pump must never run dry. On the Evosta3, hold the Mode button for 3 seconds to start automatic degassing: one minute at maximum speed, then it returns to your set mode. For manual venting, set maximum constant speed and unscrew the vent plug until the air is out. The same plug gives access to the shaft if the rotor needs freeing.

Can I use it with glycol or system inhibitors?

Yes, within limits. The liquid must be clean, free from solids and mineral oils, and chemically neutral, with up to 30% glycol. DAB advises against mixing hydrocarbon or aromatic-based additives into the circulating water. Flush the system with water at 80°C before fitting the pump.

Can it circulate domestic hot water?

No. This cast iron model is for heating and cooling circuits. Domestic (potable) water is only permitted on DAB's bronze-bodied versions.

What do the error codes mean?

The Evosta3 display flashes an alarm code: E1 dry run, E2 loss of motor control (for example a blocked rotor or disconnected phase), E3 short circuit, E4 software overrun, E5 safety module error. Isolate the power and check for air, a seized rotor or wiring faults; if a code persists, contact us with the model and code.
