Home » Calmag Standard 15mm Installation Kit | Suits CalSoft Mini & CalSoft Midi Water Softeners
SKU: WS-INSTALL-KIT
(0)

Calmag Standard 15mm Installation Kit | Suits CalSoft Mini & CalSoft Midi Water Softeners

Calmag
£89.00 Inc. VAT £74.17 Exc. VAT
  • FREE Express Delivery (1-3 days) in UK Mainland on most orders
  • Excluding: Solar Panels (£170 delivery / free above £2,500), Batteries (£49 delivery), Small Items (£4.95 delivery / free above £500)
  • Contact Us to check for Next Working Day Delivery or Same-day Delivery options
  • Contact Us for Click & Collect options
  • Custom quote available on request
*See checkout or shipping policy for full details

Payment options

  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Do you have a question
about this product?

One of our expert advisors will be happy to help you!

Contact Us
Question Image

15mm Gravity / Conventional Systems Suits CalSoft Mini Suits CalSoft Midi Max 50 l/min

The Calmag Standard 15mm Installation Kit provides all the hoses, valves, and fittings required to connect either a CalSoft Mini or CalSoft Midi water softener to a 15mm plumbing system. This kit is designed for conventional gravity-fed vented systems with 15mm pipework — typically older properties or those without a pressurised/unvented cylinder. The 15mm kit delivers a maximum flow rate of 50 l/min, which is adequate for gravity-fed and most standard combi boiler systems with 15mm pipework connections.

Where the CalSoft Mini is ordered with this kit (the CALSOFTMINI c/w 22mm kit listing), the 22mm kit is included. This listing is for the 15mm kit sold separately — for example, when purchasing the CalSoft Midi (unit only) or when replacing worn installation hoses on an existing installation.

💡 15mm Kit or 22mm/19mm Hi-Flow Hoses?

Use the 15mm kit for: conventional gravity-fed (vented) systems, properties where the main pipework is 15mm, and systems with low to moderate flow demand. Use the 19mm/22mm Hi-Flow Hoses for: combi boilers with 22mm connections, unvented (pressurised) cylinders, Megaflow systems, or any installation requiring flow rates above 50 l/min. If unsure, check your existing pipework diameter at the intended installation point.

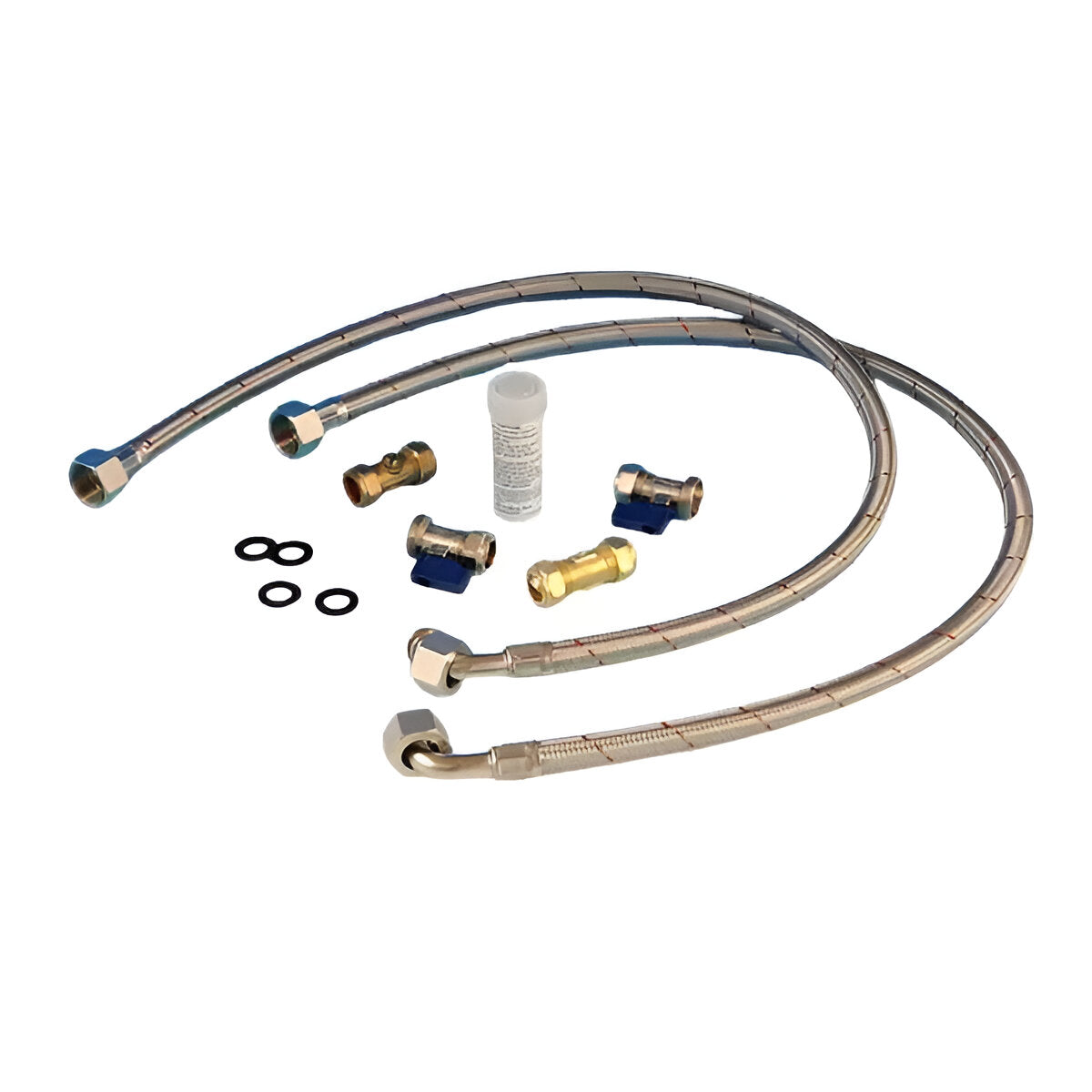

What's Included

Component Detail
15mm Inlet Hose Flexible stainless steel braided hose for connection of the mains supply to the softener inlet
15mm Outlet Hose Flexible stainless steel braided hose for connection of the softener outlet to the household supply
Isolation / Service Valves Allows the softener to be isolated for maintenance without disrupting the main water supply
Fittings All necessary compression or push-fit fittings for connection to 15mm pipework

⚠️ This kit is compatible with both the CalSoft Mini and CalSoft Midi softeners. The bypass valve with integrated meter is supplied with the softener unit — only the installation hose kit is supplied here. Ensure the bypass valve is ordered with or already installed before fitting this kit.

Technical Specifications

Specification Detail
Hose Diameter 15mm
Max Flow Rate 50 l/min
System Compatibility Gravity-fed vented systems; standard combi boiler with 15mm connections
Compatible Softeners Calmag CalSoft Mini, Calmag CalSoft Midi
Inlet / Outlet Connection ¾" BSP adaptors
Brand Calmag
⚠️ Note: 15mm kit — for gravity-fed and standard 15mm combi systems only. For 22mm high-flow, unvented, or Megaflow systems, order the 19mm Hi-Flow Hoses (PAIR) instead. Bypass valve not included in this kit — supplied with softener unit.
