Bird-Mesh Premium Adjustable Solar Panel Mesh Clip — Pack of 10

Description

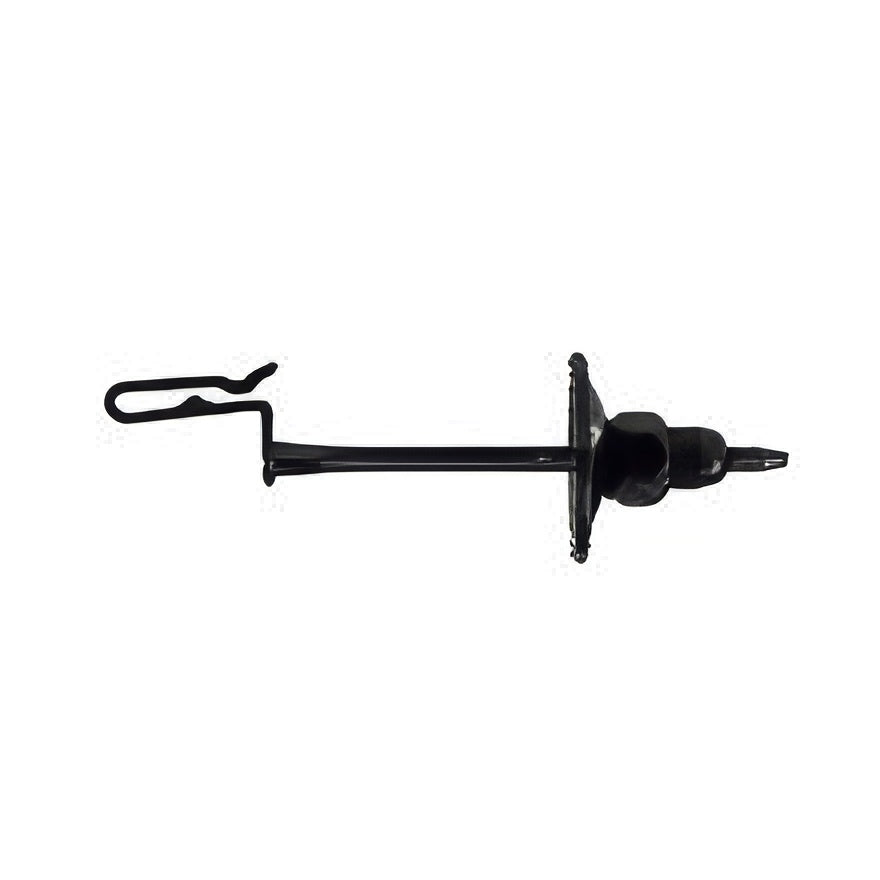

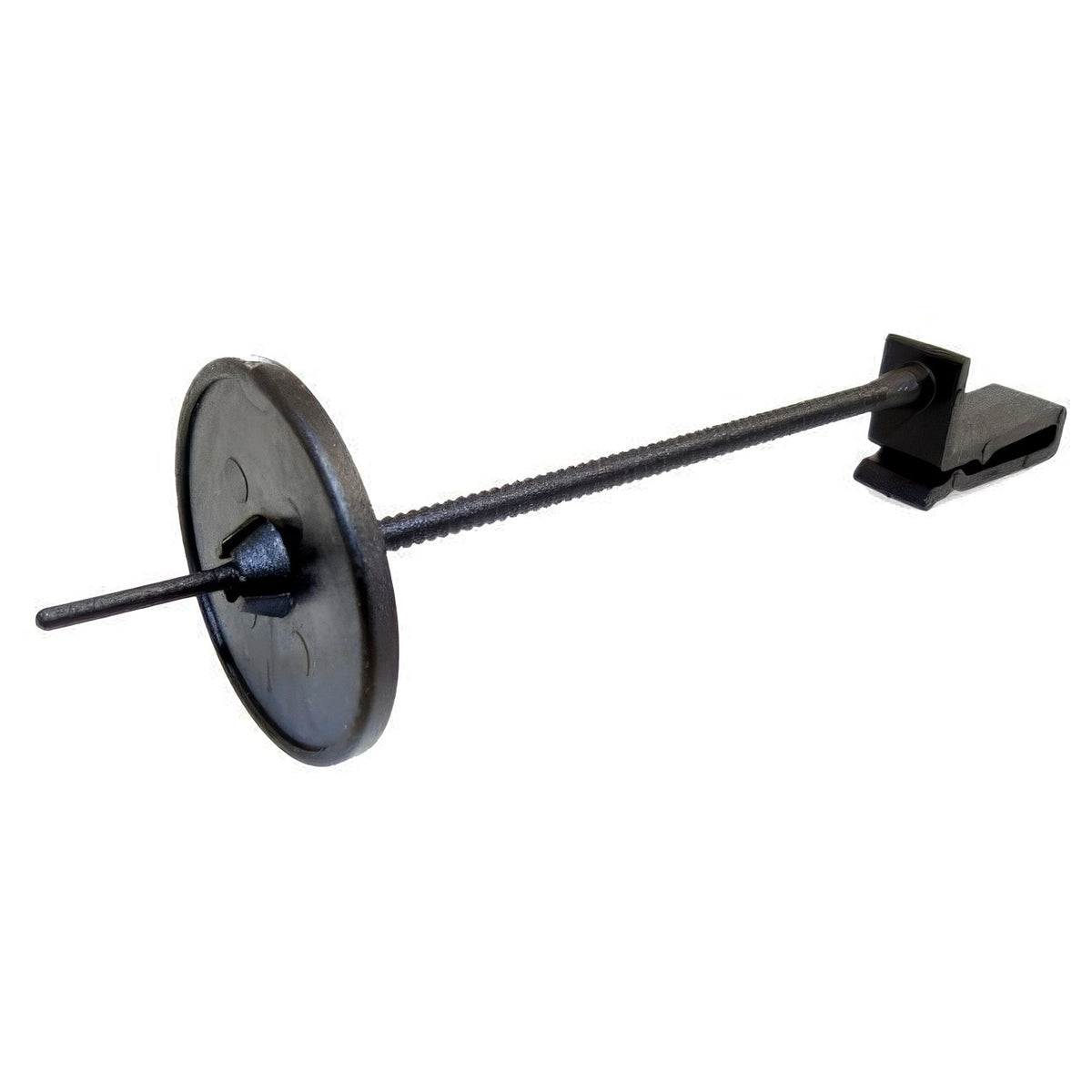

The Bird-Mesh Premium Adjustable Mesh Clip is the no-drill fixing solution for attaching solar panel bird exclusion mesh to panel frames without adhesive, screws, or damage to the panel. Each clip slides onto the outer lip of the solar panel frame, and a threaded shaft with adjustable locking nut holds the mesh under controlled, even tension. Supplied in packs of 10 clips, made from UV-stabilised material that won't scratch anodised panel frames and remains stable in prolonged outdoor exposure.

Pack of 10

Clips per pack

Adjustable

Locking nut tension

No drill

Warranty-safe

UV-stable

Outdoor rated

ℹ Installation guide — Space clips approximately every 450 mm around the panel perimeter. Recommended minimum: 3 clips on each long edge, 2 clips on each short edge per panel. For a standard 1.7 m × 1.0 m panel, a 10-clip pack covers approximately one full panel.

Product Details

Part Number	BIRD-MESH-CLIPS
Pack Quantity	10 clips
Material	UV-stabilised plastic — will not scratch anodised panel frames
Fixing Type	Clip-on to panel frame lip — no drilling, no adhesive
Tension Adjustment	Threaded shaft with adjustable locking nut — infinite adjustment, removable
Recommended Spacing	Every 450 mm around panel perimeter
Compatible Mesh	Standard 25 mm × 12.5 mm solar panel exclusion mesh (WM132-type)
Panel Requirement	Panels must have a return lip on the underside of the frame for the clip to engage

Frequently Asked Questions

How many clips do I need for my array?

Space clips every 450 mm around the perimeter of the panel row. For a standard 1.7 m × 1.0 m panel in portrait, use approximately 3 clips on each long edge and 2 on each short edge — around 10 clips per panel. A 10-clip pack is therefore sized to cover one full panel; order one pack per panel for a clean, evenly tensioned result.

Will the clips damage my solar panel frames?

No. The clips are made from UV-stabilised plastic that is softer than aluminium anodising — they will not scratch or mark standard anodised solar panel frames. No adhesive, no screws, and no penetration of the frame are involved, so the panel manufacturer warranty is preserved.

Can the clips be removed if I need to access the panels?

Yes — the locking nut can be loosened by hand, the mesh released, and the clips removed from the frame without any tools or damage. This makes them a fully reversible, serviceable fixing — useful for periodic panel inspection or if panels need replacement.
