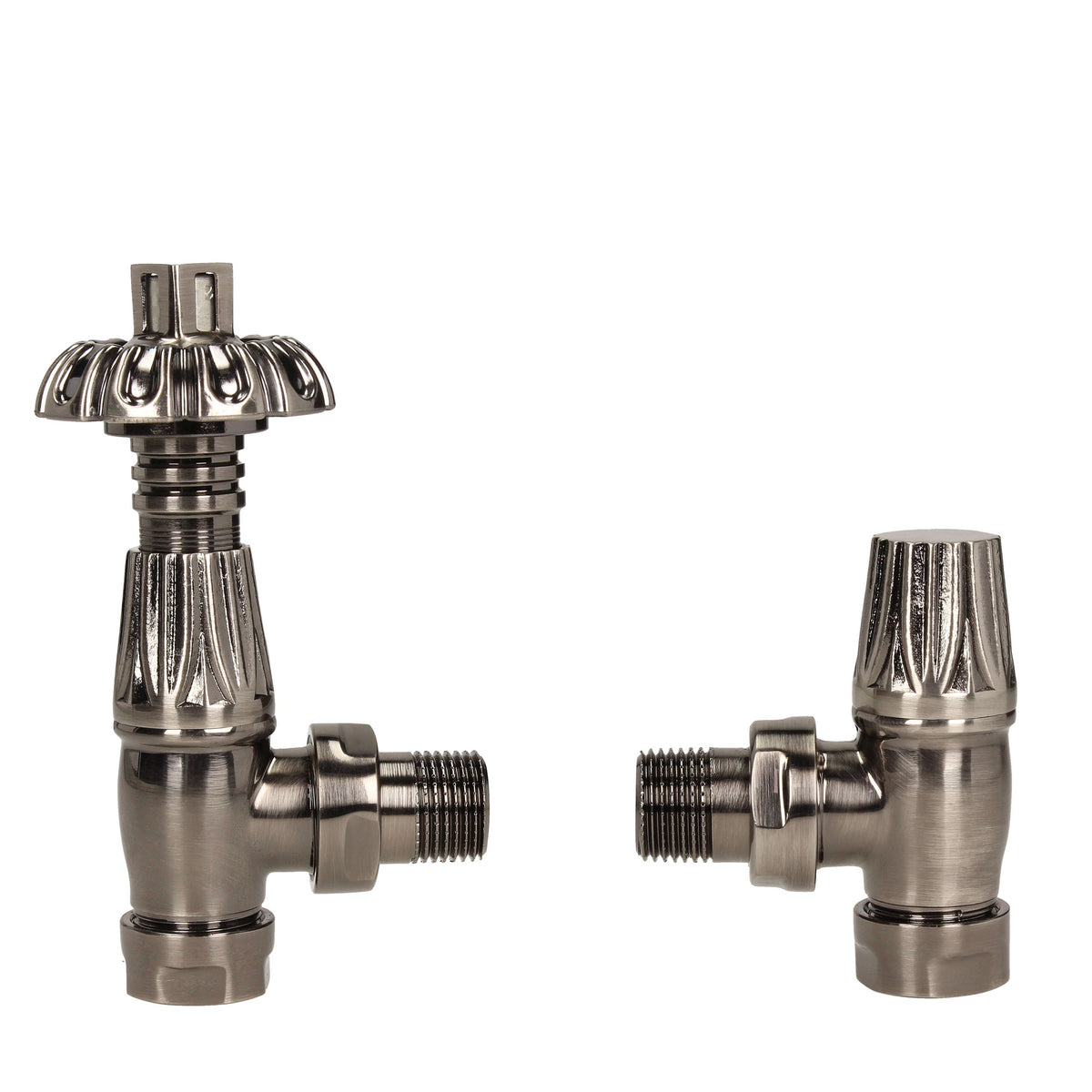

Bentley Gothic 15mm Black Nickel TRV & Lockshield Set

Description

Elevate your central heating scheme with the Bentley Gothic 15mm Black Nickel TRV & Lockshield Valve Set - a premium thermostatic radiator valve pack designed for period-style homes, traditional radiators, and discerning trade installations. Styled with elegant Gothic detailing and finished in sophisticated brushed black nickel, this set combines classic character with modern, precise temperature control.

The set includes one reversible thermostatic radiator valve (TRV) with a 15mm compression inlet and a matching lockshield valve, both engineered in brass for long-term durability and corrosion resistance. The intuitive wheel head thermostat lets you set the desired room temperature by turning the handle, giving straightforward control over heat output without complex programming.

TRV + Lockshield

Valve Type

Angled

Orientation

15mm

Inlet Size

Black Nickel

Finish

12-30°C

Temp Range

1 Year

Warranty

Gothic Design, Black Nickel Finish

Distinctive traditional Gothic profile finished in sophisticated brushed black nickel for a sleek, heritage-style look.

Reversible Thermostatic Valve

An easy-to-use wheel head lets you precisely set your preferred room temperature.

Wide Temperature Adjustment

Temperature range of 12°C to 30°C lets you tailor heat output to each individual room.

Brass Construction Throughout

Strength, corrosion resistance and long-term leak-free performance for both the TRV and lockshield.

Trade-Friendly Specification

Compression connections and a 15mm inlet size integrate easily with standard pipework, reducing installation time on site.

Rated for UK System Conditions

Rated up to 10 bar working pressure and 100°C maximum water temperature, suitable for retrofits and new build projects.

Valve Details

Product type

Thermostatic radiator valve pack (TRV and lockshield set)

Valve style

Angled, traditional Gothic

TRV head type

Reversible wheel head

Inlet connection (TRV)

15mm compression

Radiator coupler

1/2" BSPT male

Construction

Finish

Brushed black nickel

Valve material

Brass

Performance

Temperature range

12°C - 30°C

Max. working pressure

10 bar

Max. pressure differential

1 bar

Max. water temperature

100°C

Max. ambient temperature

50°C

Orientation

Angled (flow on bottom, return on side)

Compatibility

Reverse flow suitability

Suitable as reverse flow where system differential pressure is 0.25 bar or below; automatic bypass recommended

Warranty

Manufacturer warranty

1 year, subject to terms and conditions

What rooms or radiators suit the Gothic style best?

The Gothic profile and black nickel finish suit traditional and period-style radiators, especially column and cast iron radiators, in Victorian, Edwardian, and other heritage-style homes.

What temperature range does this TRV cover?

The wheel head adjusts from 12°C to 30°C, giving a wide range for tailoring comfort and reducing overheating and energy waste room by room.

Do I need an auto bypass valve with this TRV?

Yes, an automatic bypass valve is recommended for all Bentley TRVs to maintain stable differential pressure across the system and avoid noise or vibration.

Is the lockshield included, or sold separately?

The lockshield valve is included in this set alongside the TRV, so you have both valves needed to fit and balance one radiator.
