Belcom FireFighter 2x2x22AWG RS485 Cable LSZH | 4302P2254-01 | 600V

Description

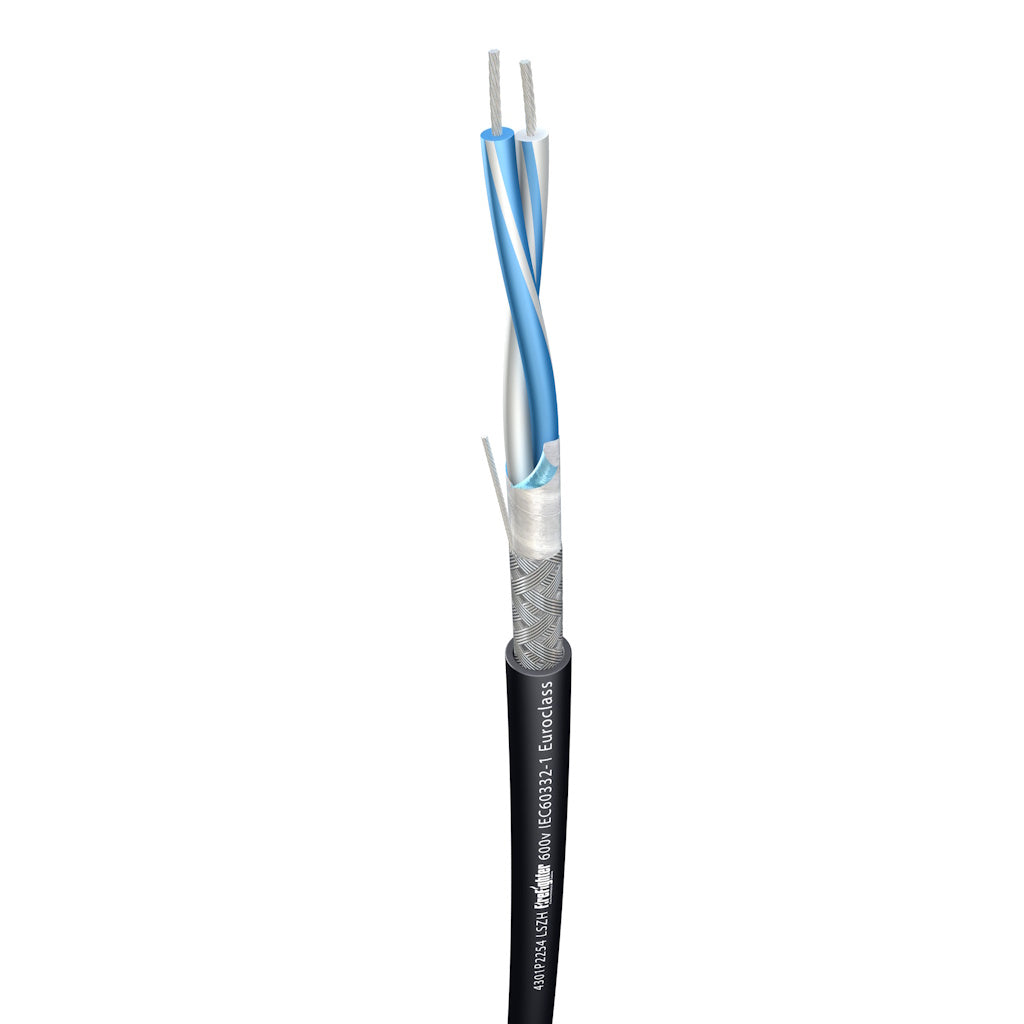

The Belcom FireFighter 430 Series 4302P2254-01 is a 2 pair, 22AWG low capacitance RS485 / TIA-485 control cable built for interference-free, high-speed data transmission in demanding installations. It combines an overall aluminium/polyester foil screen with a tinned copper braid (65% coverage) and a stranded tinned copper drain wire for a high level of noise protection.

The black LSZH FireFighter SHF-1 outer jacket delivers low smoke, zero halogen performance with Euroclass Dca,s1,d2,a1 classification, making it a sound choice where fire behaviour matters. It suits Modbus, BACnet MS/TP, HART and CanOpen networks, with a 600 V rating, a -20°C to +90°C temperature range and UV resistance to ISO 4892-2/A.

2 x 2

Pairs x 22AWG

120 Ω

Nominal impedance

36.1 pF/m

Capacitance (cond./cond.)

78%

Velocity of propagation

600 V

Rated voltage

Dca,s1,d2,a1

Euroclass

Fire and installation compliance: Cable selection and fire performance must meet the project specification and BS 7671 requirements. Confirm the required cable class for the building before installing.

Please note: The Euroclass rating includes d2, which places no limit on flaming droplets. All values are nominal; the overall diameter is quoted at ±10% and values should be treated as a guide.

Pair colour code: Pair 1 is white/blue paired with blue/white. Pair 2 is white/orange paired with orange/white.

Key Features

Double screening

Aluminium/polyester foil plus 65% tinned copper braid with a drain wire for enhanced noise protection in harsh environments.

Low capacitance

36.1 pF/m conductor-to-conductor supports reliable high-speed RS485 data transmission.

LSZH jacket

FireFighter SHF-1 Low Smoke Zero Halogen compound, halogen free to IEC 60754 and low smoke to IEC 61034.

Flame and fire retardant

Flame retardant to IEC 60332-1 and fire retardant to IEC 60332-3-24.

Stranded tinned copper

22AWG stranded tinned copper conductors with polyethylene (PE) insulation for flexibility and corrosion resistance.

Protocol ready

Suited to Modbus, BACnet MS/TP, HART and CanOpen automation systems.

Technical Specification

General

Manufacturer

Belcom

Series

FireFighter 430 Series

Part number

4302P2254-01

Formation

2 x 2 x 22 AWG

Application

RS485 / TIA-485 control and data cable

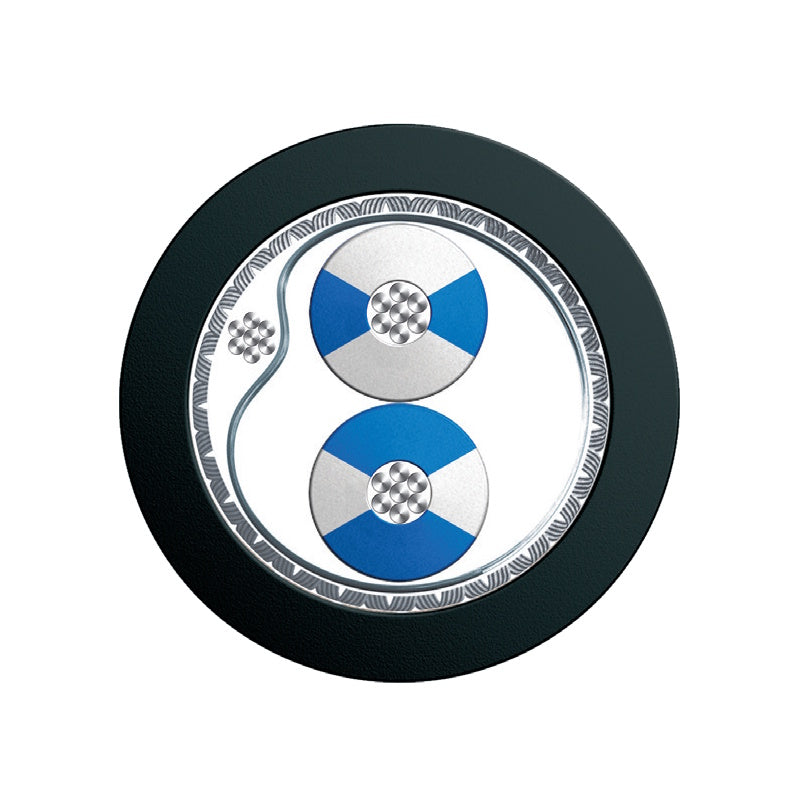

Construction

Conductor

Stranded tinned copper wire (22AWG)

Insulation

Polyethylene (PE)

Overall shield

Aluminium/polyester tape

Drain wire

Stranded tinned copper wire

Overall braid shield

Tinned copper wire braid, 65% coverage

Outer jacket

LSZH FireFighter SHF-1

Colour

Black

Nominal overall diameter

8.25 mm ± 10%

Weight

108 kg/km

Electrical

Rated voltage

600 V

Nominal capacitance (cond./cond.)

36.1 pF/m

Nominal capacitance (cond./cond./screen)

65.6 pF/m

Nominal conductor DC resistance

48.2 Ω/km

Nominal shield DC resistance

4.6 Ω/km

Nominal velocity of propagation

78%

Nominal impedance

120 Ω

Environmental and Fire Behaviour

Temperature range

-20°C up to +90°C

UV resistance

ISO 4892-2/A

Flame retardant

IEC 60332-1

Fire retardant

IEC 60332-3-24

Halogen free

IEC 60754

Smoke emission

IEC 61034

Euroclass

Dca,s1,d2,a1

Frequently Asked Questions

Which protocols is this cable suitable for?

The manufacturer lists RS485 applications including Modbus, BACnet MS/TP, HART and CanOpen automation systems.

What is the cable impedance and capacitance?

Nominal impedance is 120 Ω. Capacitance is 36.1 pF/m conductor-to-conductor and 65.6 pF/m conductor-to-conductor-and-screen.

Is it halogen free and low smoke?

Yes. The LSZH FireFighter SHF-1 jacket is halogen free to IEC 60754 with smoke emission tested to IEC 61034, and carries a Euroclass of Dca,s1,d2,a1.

What temperature range can it handle?

The rated temperature range is -20°C up to +90°C, and the jacket is UV resistant to ISO 4892-2/A.

How is the cable screened?

Each cable has an overall aluminium/polyester tape screen, a tinned copper braid with 65% coverage and a stranded tinned copper drain wire.

What are the pair colours?

Pair 1 is white/blue paired with blue/white, and pair 2 is white/orange paired with orange/white.
