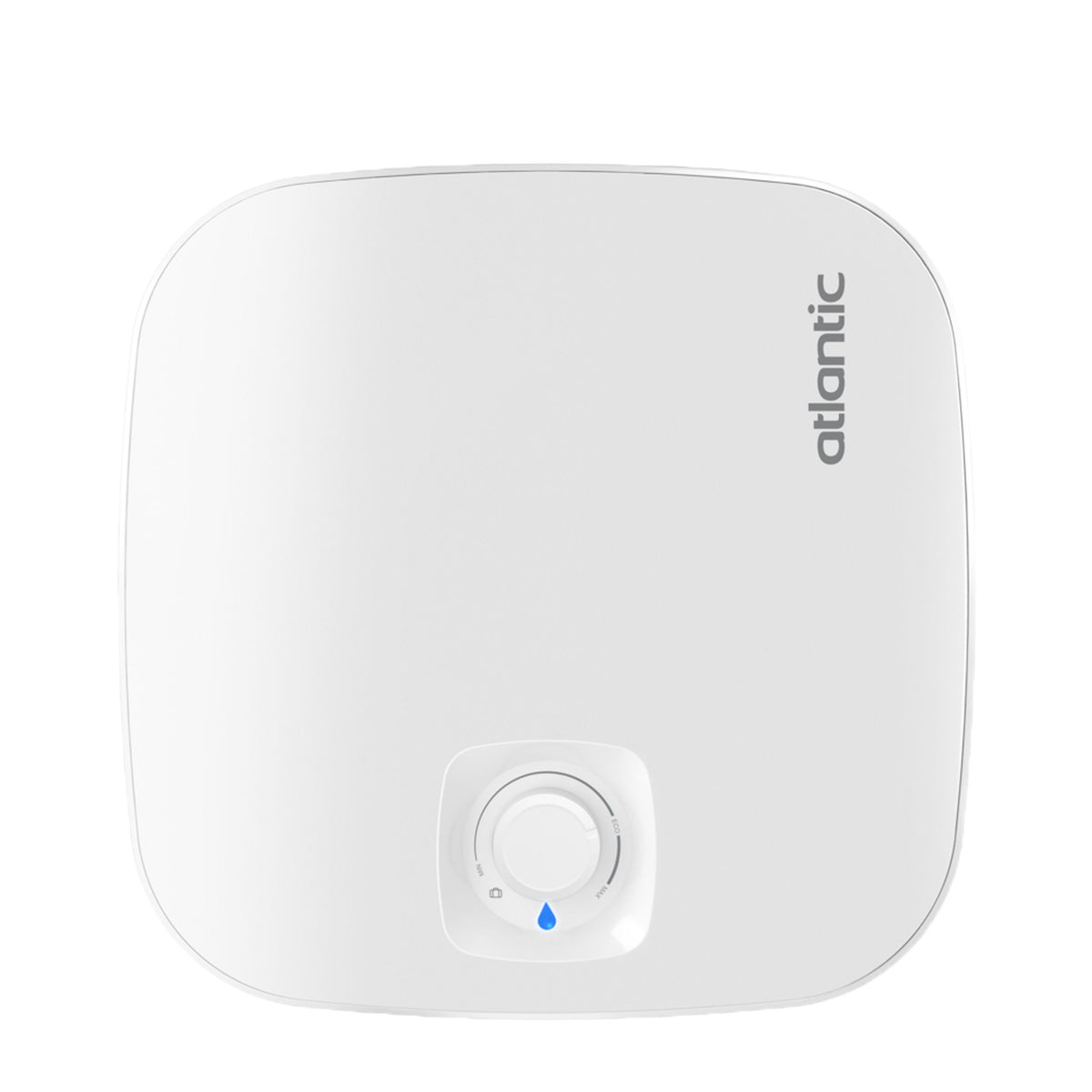

Atlantic Nanto Lite 2kW 10L Above Sink Electric Water Heater

Description

Atlantic Nanto Lite 2kW 10L Above Sink Electric Water Heater (MPN: AH821546) is a slim, wall‑mounted oversink hot water heater designed to provide localised hot water directly above a basin or sink. With its 10 litre glass‑lined tank, 2kW submerged copper immersion heater and compact dimensions, it’s an excellent choice for kitchens, cloakrooms, office tea points and small commercial washrooms where a full hot water system is not practical.

Key Features

• 2kW copper immersion element – submerged heater delivers rapid heat‑up and quick recovery for everyday hot water use.
• 10 litre diamond‑quality enamel glass tank – glass‑lined steel tank offers strong corrosion resistance and long‑term reliability.
• Magnesium anode protection – sacrificial anode improves internal protection and can extend tank life significantly.
• Unvented, mains‑pressure design – provides hot water at mains pressure without a separate cold water cistern.
• High‑density CFC‑free PU insulation – thick polyurethane foam around the tank reduces standing heat loss and improves efficiency.
• Analog temperature and mode dial – simple front‑mounted dial to adjust temperature and switch between eco and vacation modes.
• Eco mode (~55°C) – energy‑saving setpoint that balances user comfort, reduced limescale formation and lower running costs.
• Vacation mode (~7°C) – frost‑protect/holiday mode that minimises energy consumption while protecting the tank when not in regular use.
• ErP A energy rating – very low standing heat losses for its size, helping to reduce ongoing energy consumption.
• Lightweight, compact form factor – easy to handle and install above sink, with a neat white finish that blends into most interiors.

Performance & Applications

• Typical applications: sinks and basins in homes, apartments, offices, shops, schools, clinics and other light‑commercial settings needing point‑of‑use hot water.
• Heat‑up times: approximately 12 minutes for a 35°C temperature rise and around 18 minutes for a 50°C rise (from cold feed to set temperature).
• Energy consumption: typical standing loss around 0.48 kWh per 24 hours under standard test conditions.
• Best suited where: there is no central hot water, or where long distribution pipe runs would cause delay and water wastage.

Technical Highlights

• Brand: Atlantic – Nanto Lite series.
• MPN: AH821546.
• Tank volume: 10 litres.
• Rated power: 2kW copper immersion heater.
• Electrical supply: 230V single‑phase, 50Hz.
• Installation position: above sink, wall‑mounted.
• Dimensions (H x W x D): approx. 378 x 360 x 262 mm.
• Empty weight: around 6.9 kg.
• Heat‑up time to 50°C: ~18 minutes.
• Heat‑up time to 35°C: ~12 minutes.
• Standing loss / 24h: ~0.48 kWh.
• Energy label: ErP A.
• Tank construction: enamelled steel with diamond‑quality glass lining and magnesium anode.
• Insulation: high‑density CFC‑free polyurethane foam.
• Wiring location: bottom left connection.
• Colour: white.
• Warranty: 2‑year manufacturer warranty (subject to terms and correct installation).

Installation Notes

• Should be installed by a competent person in accordance with local plumbing and electrical regulations and the Atlantic installation instructions.
• As an unvented oversink heater (≤10L), it is G3‑exempt but must still be fitted with the specified safety components, such as pressure relief and check valves; an expansion vessel may be required where minimum inlet pipe lengths cannot be met.
• Mount securely above the sink on a suitable wall, allowing access for pipework, electrical connection and future maintenance, including anode inspection.
• Use eco and vacation modes appropriately to optimise energy use, manage scale formation and maximise product life in hard‑water areas.

Atlantic Nanto Lite 2kW 10L Above Sink Electric Water Heater (MPN: AH821546) is a slim, wall‑mounted oversink hot water heater designed to provide localised hot water directly above a basin or sink. With its 10 litre glass‑lined tank, 2kW submerged copper immersion heater and compact dimensions, it’s an excellent choice for kitchens, cloakrooms, office tea points and small commercial washrooms where a full hot water system is not practical.

Key Features

• 2kW copper immersion element – submerged heater delivers rapid heat‑up and quick recovery for everyday hot water use.
• 10 litre diamond‑quality enamel glass tank – glass‑lined steel tank offers strong corrosion resistance and long‑term reliability.
• Magnesium anode protection – sacrificial anode improves internal protection and can extend tank life significantly.
• Unvented, mains‑pressure design – provides hot water at mains pressure without a separate cold water cistern.
• High‑density CFC‑free PU insulation – thick polyurethane foam around the tank reduces standing heat loss and improves efficiency.
• Analog temperature and mode dial – simple front‑mounted dial to adjust temperature and switch between eco and vacation modes.
• Eco mode (~55°C) – energy‑saving setpoint that balances user comfort, reduced limescale formation and lower running costs.
• Vacation mode (~7°C) – frost‑protect/holiday mode that minimises energy consumption while protecting the tank when not in regular use.
• ErP A energy rating – very low standing heat losses for its size, helping to reduce ongoing energy consumption.
• Lightweight, compact form factor – easy to handle and install above sink, with a neat white finish that blends into most interiors.

Performance & Applications

• Typical applications: sinks and basins in homes, apartments, offices, shops, schools, clinics and other light‑commercial settings needing point‑of‑use hot water.
• Heat‑up times: approximately 12 minutes for a 35°C temperature rise and around 18 minutes for a 50°C rise (from cold feed to set temperature).
• Energy consumption: typical standing loss around 0.48 kWh per 24 hours under standard test conditions.
• Best suited where: there is no central hot water, or where long distribution pipe runs would cause delay and water wastage.

Technical Highlights

• Brand: Atlantic – Nanto Lite series.
• MPN: AH821546.
• Tank volume: 10 litres.
• Rated power: 2kW copper immersion heater.
• Electrical supply: 230V single‑phase, 50Hz.
• Installation position: above sink, wall‑mounted.
• Dimensions (H x W x D): approx. 378 x 360 x 262 mm.
• Empty weight: around 6.9 kg.
• Heat‑up time to 50°C: ~18 minutes.
• Heat‑up time to 35°C: ~12 minutes.
• Standing loss / 24h: ~0.48 kWh.
• Energy label: ErP A.
• Tank construction: enamelled steel with diamond‑quality glass lining and magnesium anode.
• Insulation: high‑density CFC‑free polyurethane foam.
• Wiring location: bottom left connection.
• Colour: white.
• Warranty: 2‑year manufacturer warranty (subject to terms and correct installation).

Installation Notes

• Should be installed by a competent person in accordance with local plumbing and electrical regulations and the Atlantic installation instructions.
• As an unvented oversink heater (≤10L), it is G3‑exempt but must still be fitted with the specified safety components, such as pressure relief and check valves; an expansion vessel may be required where minimum inlet pipe lengths cannot be met.
• Mount securely above the sink on a suitable wall, allowing access for pipework, electrical connection and future maintenance, including anode inspection.
• Use eco and vacation modes appropriately to optimise energy use, manage scale formation and maximise product life in hard‑water areas.

Details

• Type Storage Water Heaters
• Vendor Atlantic
• SKU AH821546
• Barcode 3410538215468
