Ariston Andris Lux 30L Oversink 3kW Heater | 3820017 | Includes Install Kits A B C

Description

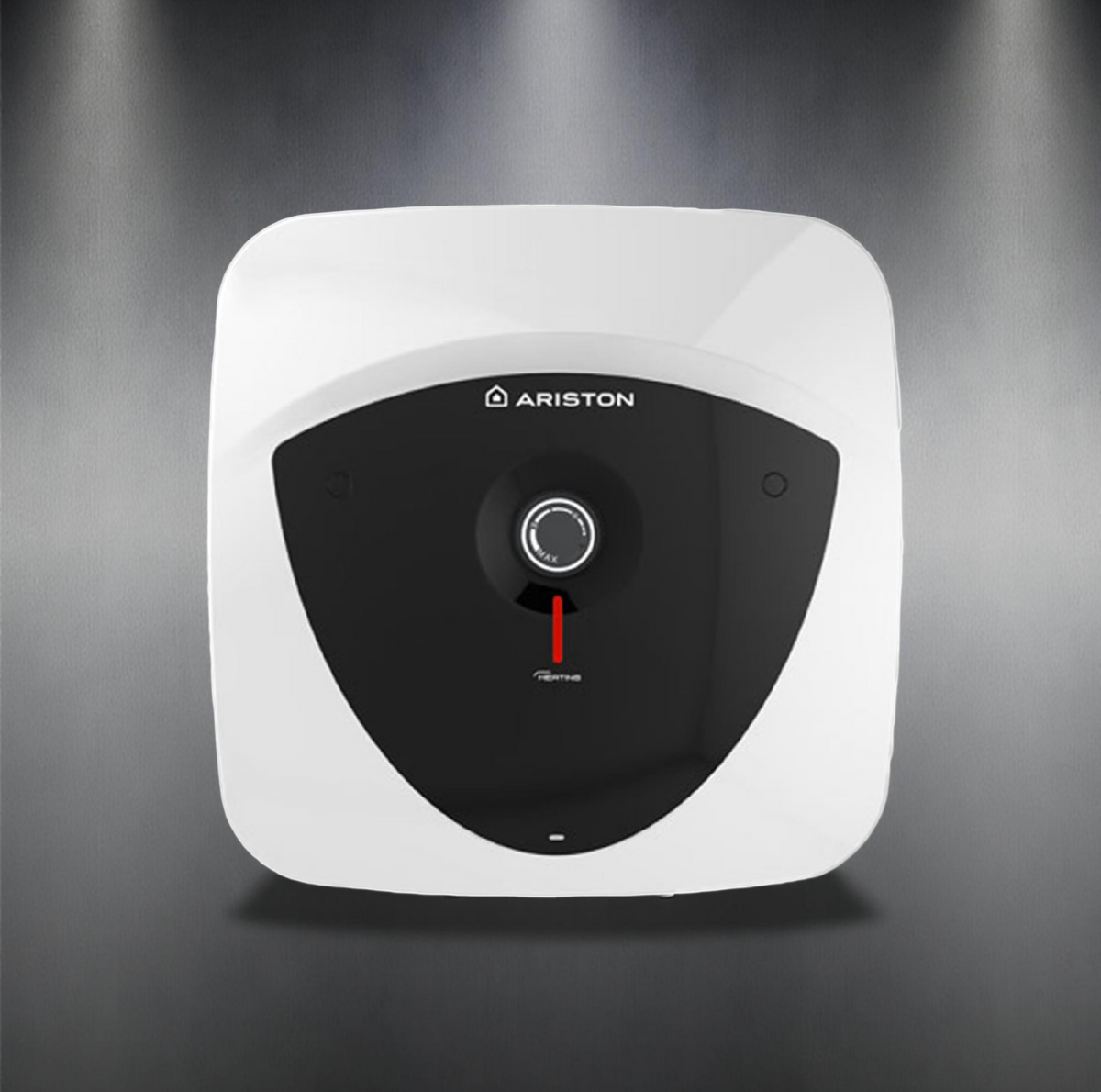

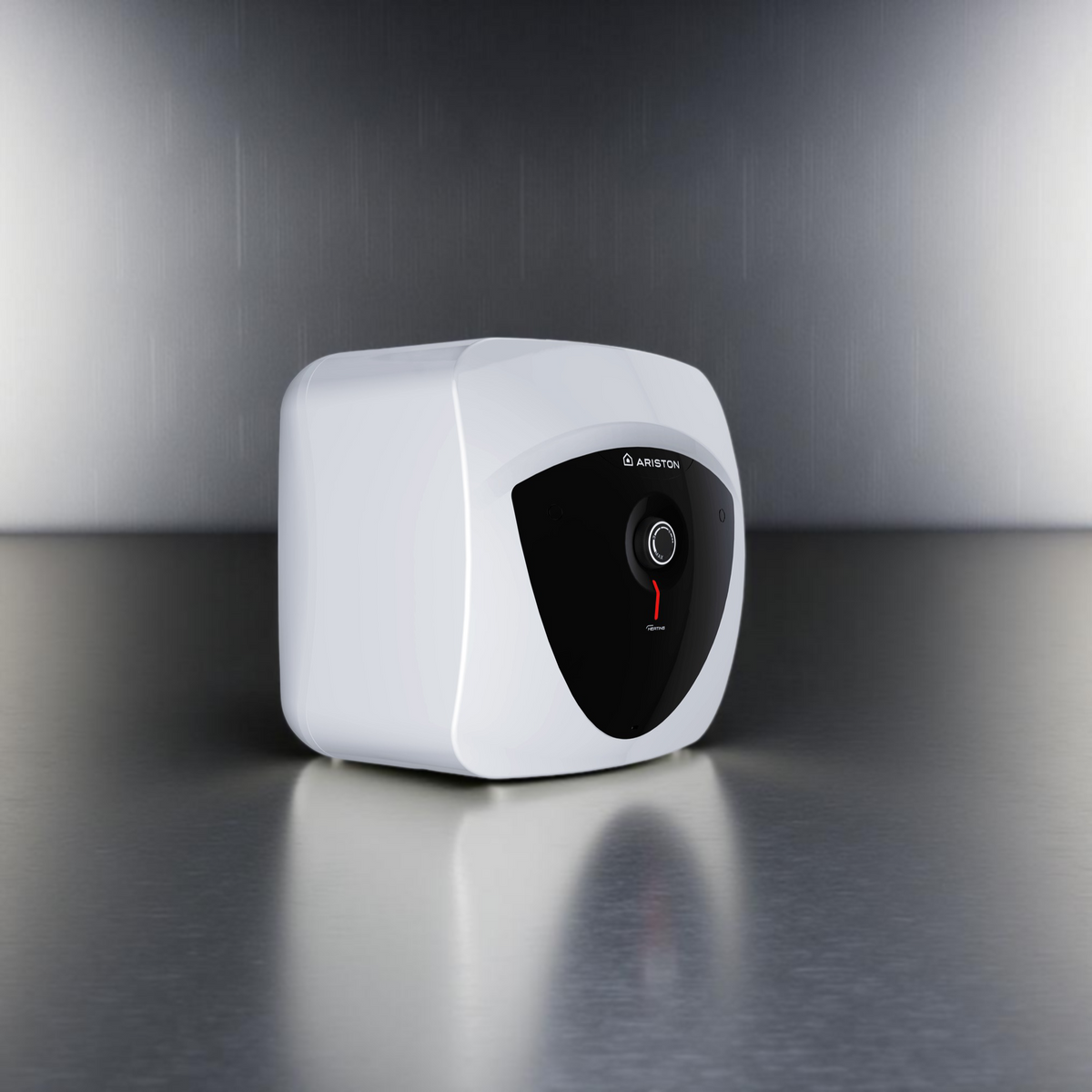

The Ariston Andris Lux 30L Oversink 3kW (3820017) is a compact unvented (mains pressure) electric water heater for places where a central hot water system is impractical: kitchens, washrooms, garages, workshops, loft conversions and holiday lets. The 30 litre titanium enamelled steel tank is heated by a 3kW copper (nickel-free) element and reaches temperature from cold in around 30 minutes.

Because it runs at mains pressure, hot water arrives with the same pressure as the cold supply. This model is supplied as a complete kit with Kit A (2 litre expansion vessel and non-return valve), Kit B (3.5 bar pressure reducing valve) and Kit C (discharge tundish), so the safety components for a compliant installation are in the box. Controls are simple: a mechanical temperature dial with an E setting for comfort and energy saving, and a heating lamp that shows when the element is working.

30L

Storage capacity

3kW

Copper heating element

30 min

Heat-up from cold

3.5 bar

Maximum inlet pressure

C

ErP energy class

A+B+C

Install kits included

Unvented safety requirements

This 30 litre unit must be fitted with the supplied safety set and discharge pipework. The temperature and pressure relief valve (7 bar / 90C) and pressure relief valve (6 bar) must discharge visibly through the tundish (Kit C) to a suitable drain. No valve may be fitted between the expansion and relief valves. Pipework from the relief valves must withstand 90C at 7 bar, and copper is recommended. Installation must comply with the Water Supply (Water Fittings) Regulations and Building Regulations, and the electrical connection must be made by a competent electrician to BS 7671.

Check your mains pressure

A cold supply of 1 to 3.5 bar is required. If your mains pressure exceeds 3.5 bar, Kit B must be fitted. If a non-return valve, water meter, pressure reducing valve or similar is on the cold main, Kit A (expansion vessel) is needed to take up expansion. Ariston states that expansion via the feed pipe is not suitable for the 30 litre model.

Key features

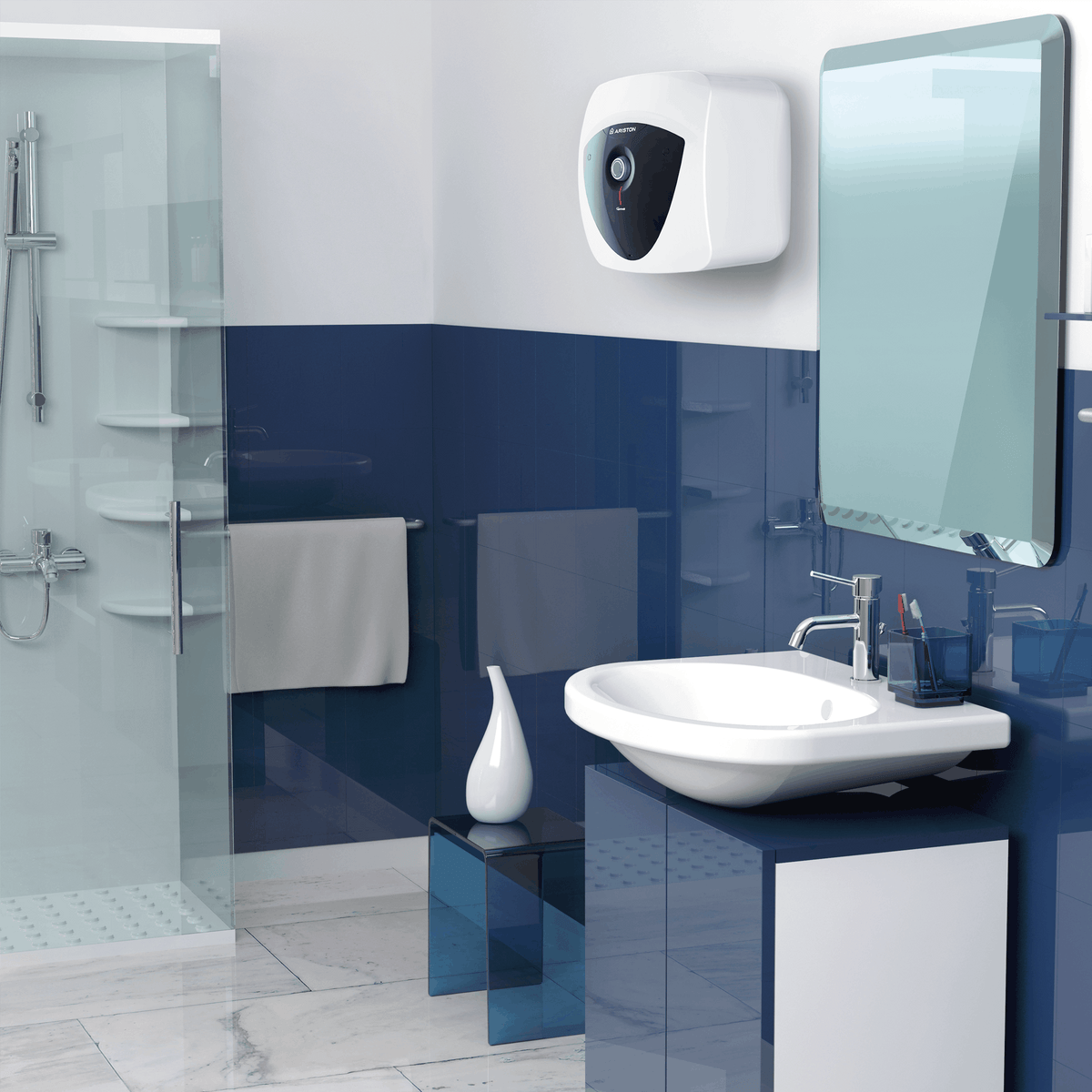

30 litre oversink capacity

Enough for high-demand sinks or several outlets from one wall-mounted unit, with a hooked wall bracket and 300mm front clearance for servicing.

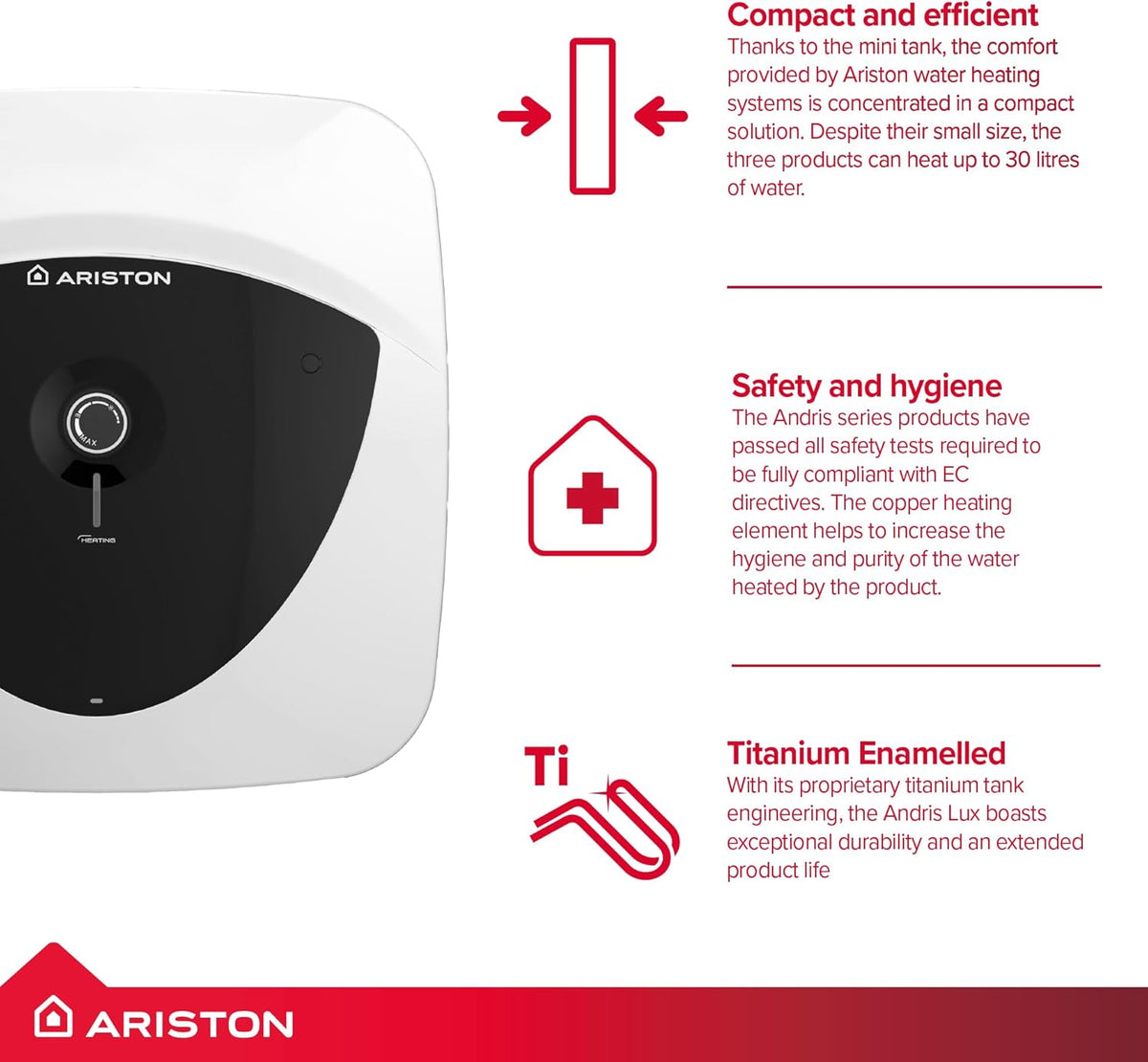

Titanium enamelled tank

A steel tank with titanium enamel and a robust 4-bolt flange for durability and a long service life.

Fast 3kW recovery

A copper, nickel-free 3kW element heats the full 30 litres from cold in about 30 minutes and delivers fast reheat times.

Simple, safe controls

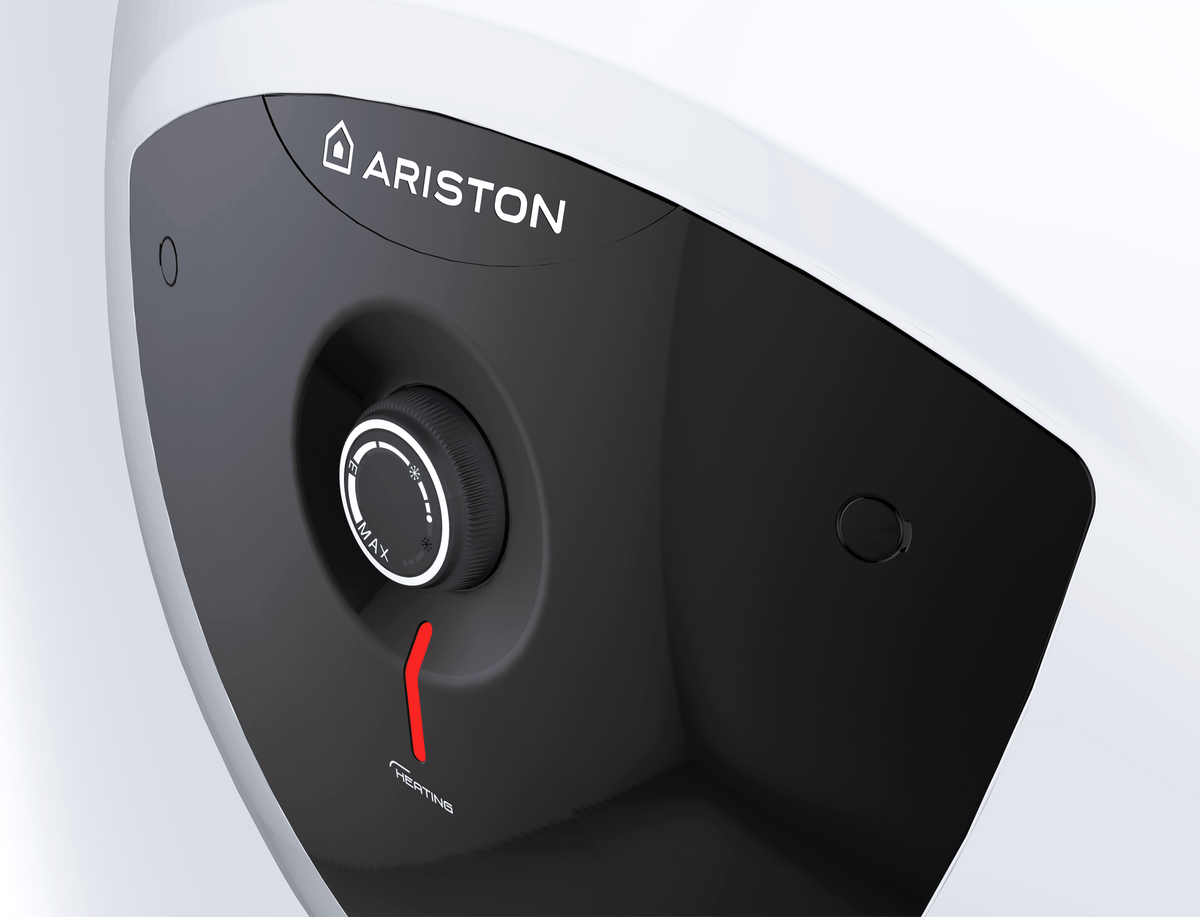

Mechanical dial with an E setting to optimise comfort and energy use, a heating lamp, a regulation and safety thermostat and overheat cut-out protection.

Mains pressure supply

Unvented operation: no cold water storage tank needed, and hot water at mains pressure with unvented single or multiple outlet layouts.

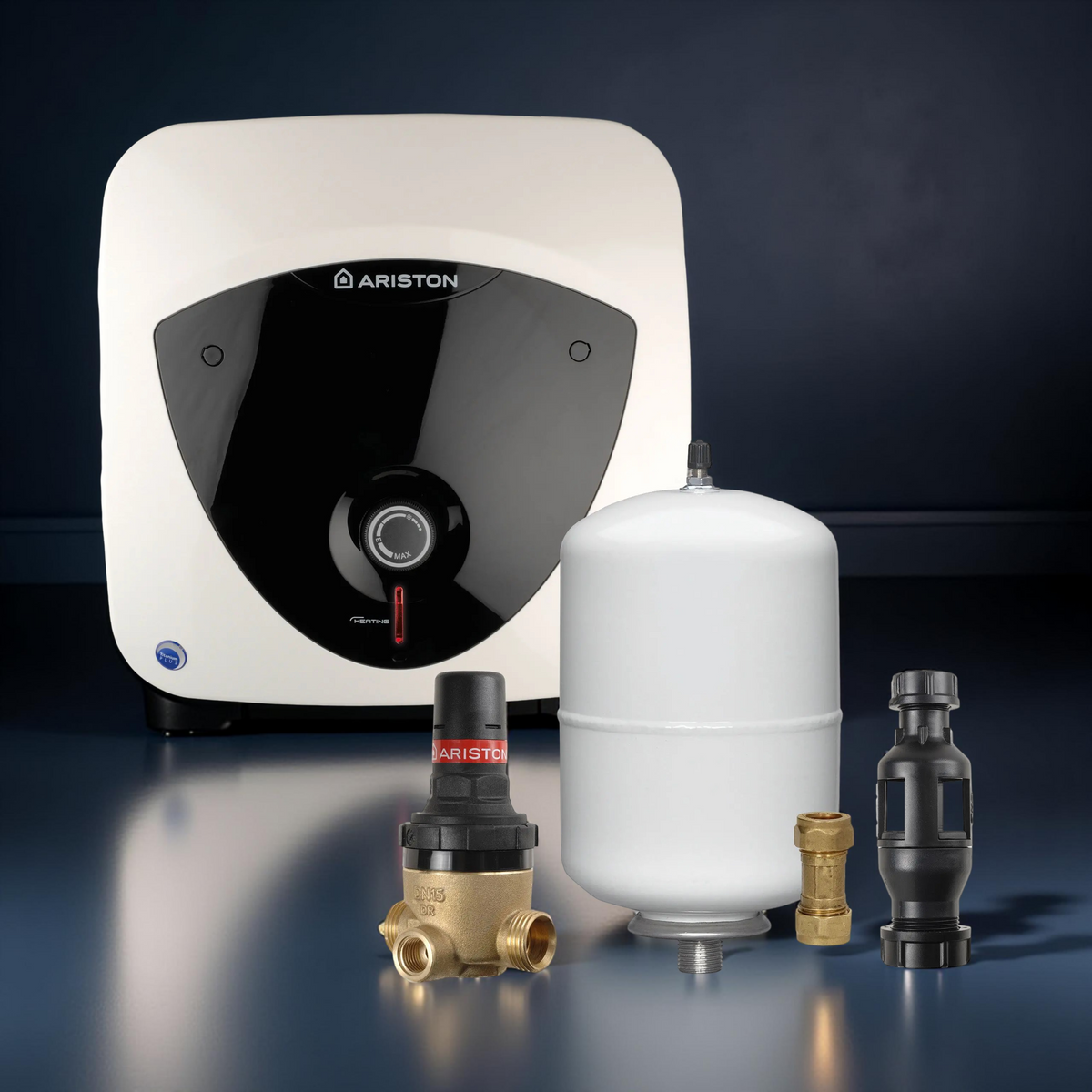

Install kits A, B and C included

Expansion vessel and non-return valve, 3.5 bar PRV and discharge tundish in the pack, with an installation sequence that Ariston describes as 10 easy steps.

Technical specifications

General

Brand and range

Ariston, Andris Lux

Model

Andris Lux 30 Oversink, 3kW (ANDRIS30OAB)

Part number

3820017 (including Kits A, B and C)

Type

Unvented electric storage water heater, oversink

Capacity

30 litres

Power

3kW, single phase, 240V AC supply

Energy class

C, tapping profile S

Heat-up time from cold

Approximately 30 minutes

Standing heat loss

0.75 kWh per 24 hours at 65C

Maximum water temperature

65C

Construction

Tank

Steel with titanium enamel

Flange

4-bolt

Heating element

Copper, nickel-free

Water connections

1/2 inch BSP

Dimensions (H x W x D)

476 x 447 x 410mm

Unit weight

11.2kg

Mounting

Wall-mounted, hooked wall bracket

Controls and safety

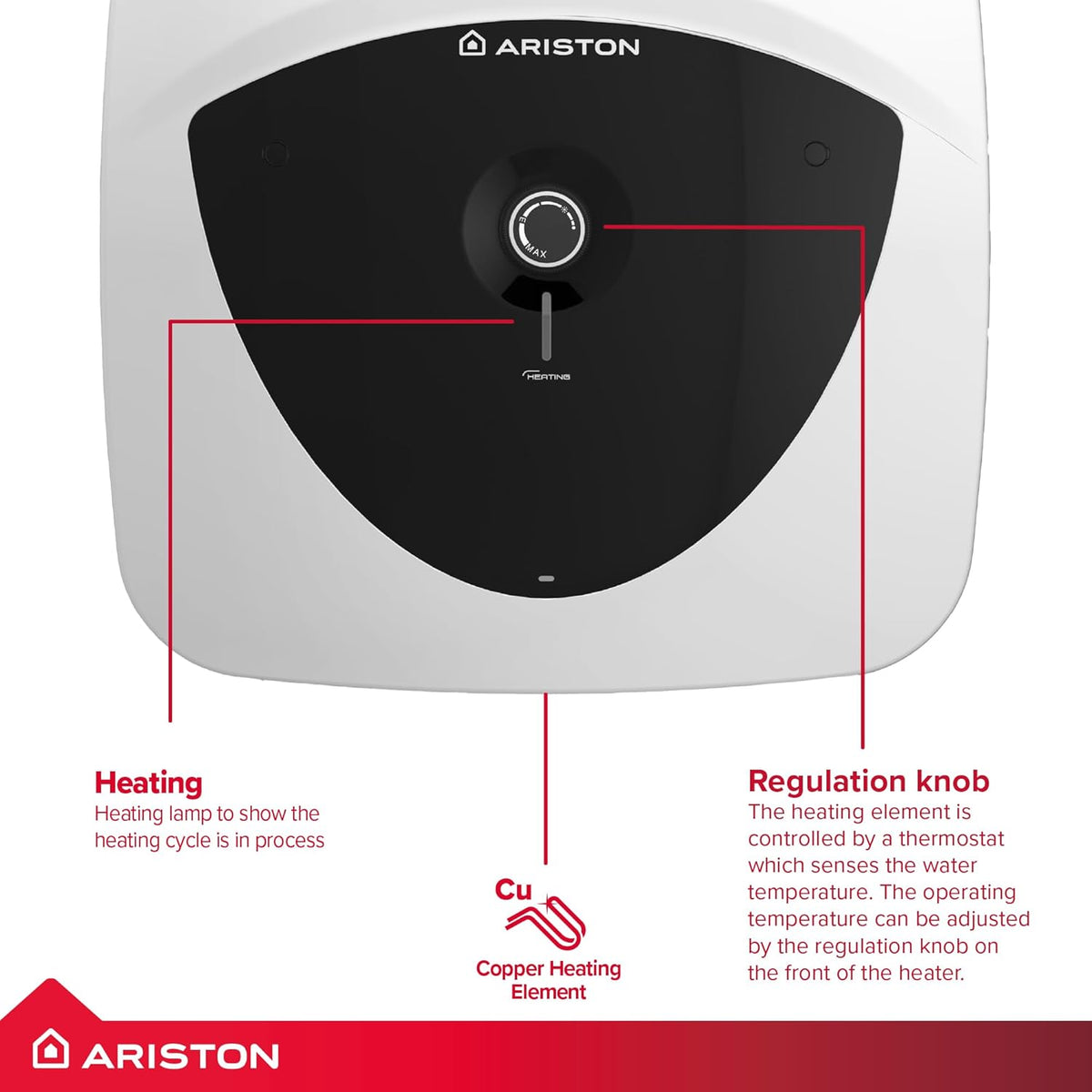

Temperature control

Mechanical dial with E (energy saving) setting

Indication

Heating lamp shows when the heating cycle is in progress

Protection

Regulation and safety thermostat; overheat cut-out

Temperature and pressure relief valve

7 bar / 90C, fitted on top of the 30 litre unit

Pressure relief valve

6 bar

Operating inlet pressure

1 to 3.5 bar

Supplied kits

Kit A

2 litre expansion vessel (charge set at 3.5 bar) and non-return valve

Kit B

15mm pressure reducing valve set at 3.5 bar

Kit C

Discharge tundish

What is in each install kit

Kits A, B and C

Kit

Contents

Purpose

Kit A

2 litre expansion vessel, non-return valve

Takes up expanded hot water and stops backflow into the cold main

Kit B

3.5 bar pressure reducing valve

Keeps inlet pressure within the 3.5 bar the heater is designed for

Kit C

Discharge tundish

Gives a visible indication if the relief valves discharge

Installation notes from Ariston

Keep the appliance packed until it is ready to fit and take care not to damage the relief valve on top when unpacking. Make sure the wall can carry the unit full of water, install in a frost-free location, connect the dielectric junctions to the heater before any other connection, and fit a low-level drain-off cock on the hot and cold plumbing.

Frequently asked questions

Is the Andris Lux 30L an unvented heater?

Yes. It is a small unvented electric water heater that operates at mains pressure, so it must be installed with the expansion and safety components supplied in Kits A, B and C.

What is included with part number 3820017?

The 30 litre oversink heater plus Kit A (expansion vessel and non-return valve), Kit B (3.5 bar pressure reducing valve) and Kit C (discharge tundish).

Do I need Kit B?

Kit B is needed when mains pressure is above 3.5 bar. The heater is designed for inlet pressures of 1 to 3.5 bar; check with your water supplier if you are unsure of the maximum supply pressure.

How long does it take to heat up?

Ariston quotes around 30 minutes from cold for the 30 litre 3kW model.

Can it serve more than one tap?

The 30 litre model suits high-demand sinks and multiple outlets, and Ariston provides installation layouts for unvented single and multiple outlet installations.

What pipework should I use?

Ariston recommends copper pipe for connection to the heater. Any other material must withstand 90C at 7 bar for long periods, and the dielectric junctions must be connected first.
