22mm / ¾" Connection
High-Flow — Up to 25 l/min
No Salt · No Chemicals · No Power
95–98% Effective
7-Year Service Life
Made in Germany
The Aquabion S20 is a high-flow electrolytic water conditioner designed for homes with a 22mm (¾") incoming mains supply — typically larger properties or those where two to four showers run simultaneously. Using the same patented galvanic zinc anode technology trusted by hotels, restaurants, and industrial facilities around the world, the S20 converts hard scaling calcium into a soft, non-adhering aragonite crystal form that flows harmlessly through your entire plumbing and heating system — protecting your boiler, pipework, and appliances for up to 7 years with zero salt, zero chemicals, zero electricity, and zero maintenance. Sized correctly for higher-flow households where the S15 would be undersized.
Hard water is responsible for billions of pounds of domestic energy waste and appliance damage across the UK every year. For larger homes where multiple bathrooms, a high-flow shower, or high-demand hot water systems are in daily use, the problem is amplified — and so is the cost. The Aquabion S20 is engineered specifically for these higher-demand situations. Its larger body and higher nominal flow rate ensure that every litre of mains water receives the correct zinc ion treatment at peak demand, delivering full-performance limescale protection across the entire property.
Why Choose the Aquabion S20?
🚿 Right-Sized for 2–4 Simultaneous ShowersThe S20 is calibrated for 22mm mains supplies and homes with higher simultaneous hot water demand. Correct sizing is essential — the S15 would be undersized for these flow rates, reducing its effectiveness.
⚗️ Patented Galvanic TechnologyZinc sacrificial anodes release zinc ions that convert calcium from hard calcite to soft, non-adhering aragonite. A permanent electrolytic process — not a magnetic or electronic field effect — proven to work and provably demonstrated by independent tests.
🔬 Independently Verified: 95–98% EffectiveMultiple independent laboratory tests, freely downloadable from Aquabion UK's website, confirm effectiveness. Test reports are publicly available — something virtually no competing product can offer.
💧 High Flow Capacity — Up to 25 l/min NominalThe S20's larger zinc anode mass handles peak flow rates up to 25 l/min at its nominal self-cleaning flow — sufficient for large family homes, high-flow shower systems, and demanding hot water setups.
🔧 Zero Maintenance for 7 YearsNo salt, no chemicals, no filter cartridges, no electrical components, no app alerts. Install it once and it runs without interruption until its 7-year service life is complete.
🍼 Drinking Water Safe — No Sodium AddedUnlike salt-based softeners, the Aquabion S20 adds no sodium to your water. It is WRAS approved for use on drinking water supplies and safe for babies, pregnant women, and those managing sodium intake.
💶 Pays for Itself in 2–3 YearsReduced boiler servicing, lower energy bills (limescale is a serious insulator on heat exchangers), extended appliance life, and fewer call-outs typically return the investment within 2–3 years — with savings continuing for the remainder of the 7-year life.
🌱 Environmentally ResponsibleNo salt discharge into drainage systems or watercourses. No chemical waste. No electricity consumption. No water wasted in regeneration cycles. Fully recyclable at end of life through the Aquabion end-of-life return programme.
♻️ Self-Cleaning Design — No ServicingPatented internal stainless steel agitators create turbulence that keeps the zinc anode surfaces clean, maximises zinc ion contact with the water, and ensures consistent performance throughout the full 7-year service life without any user intervention.
🌡️ Natural Minerals RetainedThe calcium and magnesium that make hard water beneficial to health are not removed — only the crystal form of calcium is changed. You get the mineral content of hard water without the scaling consequences.
🏭 Commercial-Grade in a Domestic Form FactorThe S20 uses the same specification, materials, and manufacturing standards as the commercial Aquabion units installed in hotels, factories, and hospitals worldwide. It is not a scaled-down domestic product — it is a full-specification commercial unit in a domestic size.
🛡️ DVGW Certified — Winner 2023Holds DVGW W 270 certification (2023 Winner), TÜV Nord, ACS (France), OFI (Austria), and WRAS (UK drinking water) approvals — the most comprehensively certified limescale conditioner available in the UK market.
How It Works — The Galvanic Principle
Hard water carries dissolved calcium carbonate (CaCO₃) in ionic form. When this water is heated — in a boiler, water heater, or pipe — or when water pressure drops, the calcium ions precipitate and crystallise as calcite: the rock-hard, surface-bonding form of limescale. This is what coats your boiler heat exchanger, fills your pipes, and glazes your shower screen.
The Aquabion S20 interrupts this process at the molecular level. As water flows through the unit, zinc sacrificial anodes release precisely calibrated zinc ions (Zn²⁺) into the stream. These react with the dissolved calcium ions, triggering a phase change in the crystallisation pathway: instead of forming adherent calcite, the calcium crystallises as aragonite — chemically identical (still CaCO₃) but with a different crystal lattice structure that cannot bond to surfaces. The aragonite simply flows through the system and flushes away harmlessly.
🔄 Treating Existing Limescale Too
The Aquabion S20 doesn't just prevent new limescale — it gradually acts on deposits that are already there. As conditioned water flows past existing calcite scale, the aragonite crystals abrade and undermine the old deposit surface. Over weeks and months following installation, existing limescale softens and begins to detach in soft, easily flushed fragments. Kettles and shower screens that previously required acid descalers or hard scrubbing become progressively easier to clean — soft scale wipes away with a damp cloth. This curative action continues alongside the ongoing preventative function throughout the unit's life.

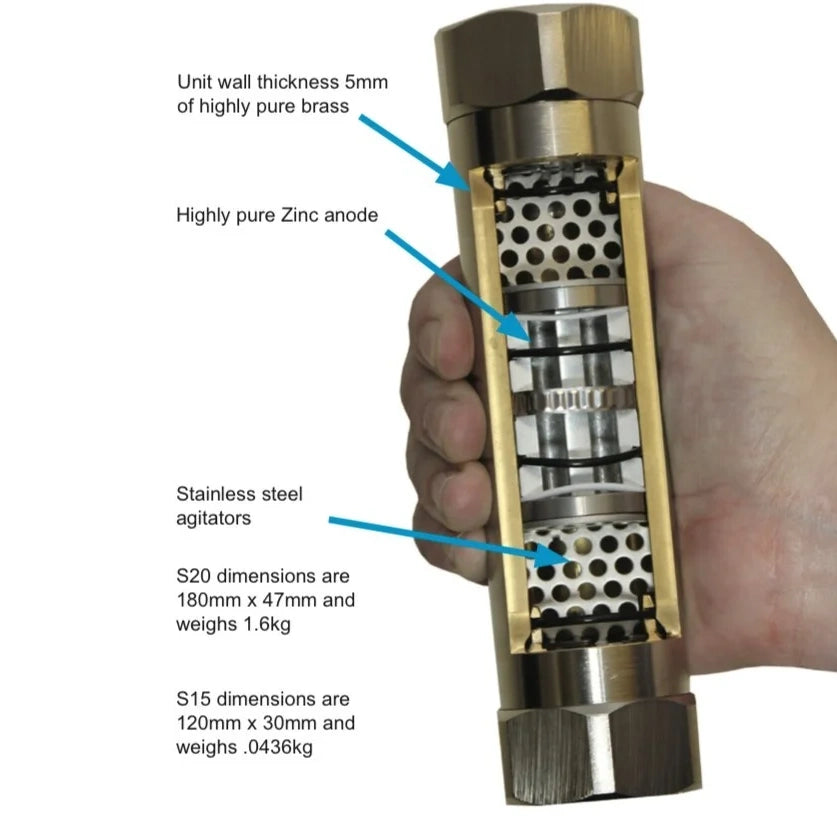

The stainless steel agitators within the unit serve two functions: they create upstream and downstream turbulence that maximises ion contact time with the water, and they physically keep the zinc anode surfaces free of deposits through the natural movement of water — which is why Aquabion requires no servicing, filter changes, or anode cleaning during its entire 7-year life.
S20 vs. S15 — Choosing the Right Model
Aquabion sizing is based on peak simultaneous demand, not simply pipe diameter. The critical rule is: never oversize. An oversized Aquabion means water passes through too quickly for optimal zinc ion contact, reducing effectiveness. The correct model is determined by your peak water demand and incoming mains pipe size:
| Model |
Best For |
Mains Pipe Size |
Nominal Flow |
Body Length |
| S15 |
1–2 simultaneous showers; 15mm mains |
15mm / ½" |
6 l/min |
120mm |
| S20 (this product) |
2–4 simultaneous showers; 22mm mains |
22mm / ¾" |
25 l/min |
180mm |
⚠️ Important Sizing Note: If your incoming mains is 15mm, the S15 is the correct model — do not install the S20 on 15mm pipework without prior consultation with Aquabion UK. The S20 is designed for 22mm mains pipework and the higher flow rates associated with larger properties. The S20's female threaded connection also differs from the S15's male connection — confirm your pipework arrangement before ordering.

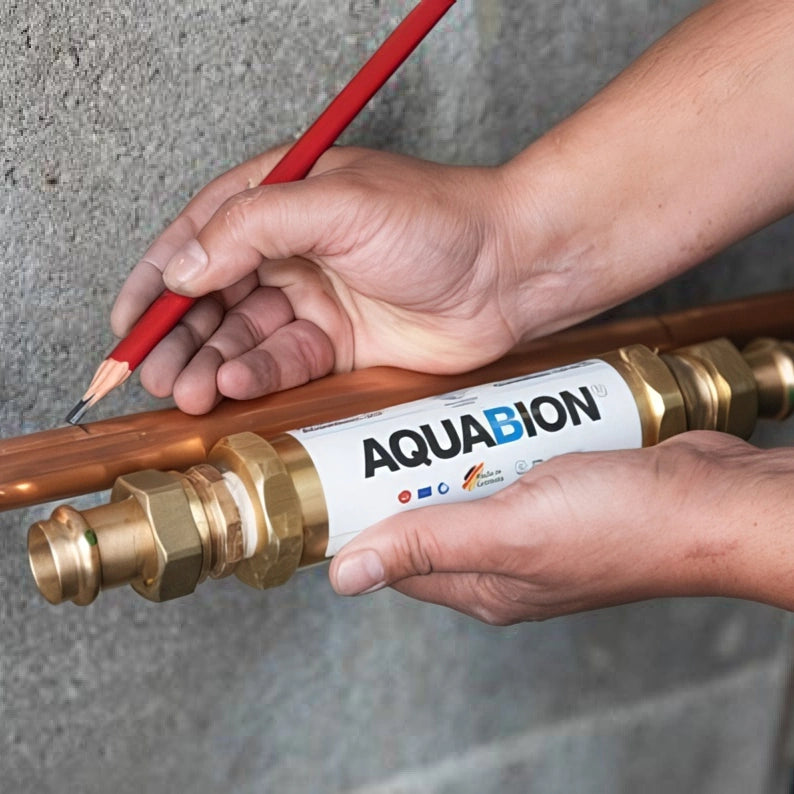

Where and How to Install
Install the S20 immediately after the incoming mains stop tap, before the water reaches any branch point, tank, or appliance. This ensures the entire household supply — cold water, hot water circuit, all taps, showers, washing appliances, and the heating system — receives treated water.
The S20 uses female threaded connections (½" DN15 female) — note that this differs from the S15's male connections. Install using appropriate male-to-female compression or threaded adaptors suitable for your pipework material. The unit can be installed in any orientation. The supplied earthing cable and earthing straps must be connected as shown in the installation instructions — this is a requirement for both correct galvanic operation and compliance with BS 7671 electrical equipotential bonding.
✅ Installation Requirements
Install on metal pipework, or plastic pipework with a minimum of one pipe-length of metal both upstream and downstream of the unit. Connect the supplied earthing cable and straps as instructed — required for correct operation and BS 7671 equipotential bonding compliance. Installed by a competent plumber, typically in 1–2 hours. The S20's female connections require appropriate male nipple adaptors to connect to your mains pipework.
Aquabion vs. Traditional Salt-Based Water Softeners
| Feature |
Aquabion S20 |
Salt-Based Softener |
| Ongoing Salt Cost |
None |
~£150–200/year |
| Maintenance Required |
None — ever |
Regular (salt top-up, servicing, regeneration) |
| Safe for Drinking Water |
Yes — no sodium added |
Adds sodium — not recommended for all |
| Minerals Retained |
Yes — calcium & magnesium remain |
No — replaced with sodium |
| Electricity Required |
No |
Yes |
| Environmental Impact |
Minimal — no salt brine discharge |
Salt discharge into drainage and rivers |
| Water Waste |
None |
Regeneration cycle wastes water |
| Installation Space |
Compact — 180mm inline |
Large cabinet unit |
| Limescale Fully Removed? |
No — crystal form changed to non-adhering aragonite |
Yes — calcium fully removed from water |
Key Features & Benefits
-
Patented galvanic zinc anode technology — converts calcium from calcite to non-adhering aragonite
-
95–98% effective — independently verified with publicly available test reports
-
22mm / ¾" female threaded connections — designed for 22mm mains pipework
-
Sized for households with 2–4 simultaneous showers or high-flow demand
-
Nominal flow: 25 l/min (self-cleaning); operating flow 15 l/min self-cleaning minimum
- Maximum operating pressure: 16 bar
-
Pressure drop at nominal flow: 0.04 bar — negligible impact on water pressure
-
Zero maintenance — no salt, chemicals, electricity, or filter changes
-
Self-cleaning stainless steel agitators — maintain consistent performance for 7 years
-
7-year service life — end-of-life return programme with replacement discount
-
Drinking water safe — WRAS approved; no sodium added; safe for all household uses
-
Retains beneficial minerals — calcium and magnesium remain in the water
-
Curative effect on existing scale — gradually softens and removes existing deposits
-
Max temperature: 85°C (stored and circulating hot water)
- Body material: CW510L brass; anode: Zn2 zinc; agitators: 1.4301 stainless steel; seals: PTFE
- Certifications: DVGW W 270 (2023 Winner), TÜV Nord, ACS, OFI, WRAS
- Made in Germany
-
5-year manufacturer's warranty + 1-year 100% satisfaction money-back guarantee
- MPN: AB-S20 | Trade code: HTBIONS20
Technical Specifications
| Specification |
Detail |
| Model |
Aquabion S20 (AB-S20) |
| Connection Size |
22mm / ¾" — female threaded (½" DN15 female) |
| Connection Type |
Female threaded — requires male nipple adaptors to connect to pipework |
| Body Length |
180 mm |
| Body Diameter |
45 mm |
| Weight |
1.64 kg |
| Maximum Operating Pressure |
16 bar |
| Nominal Flow Rate (self-cleaning) |
25 l/min |
| Self-Cleaning Minimum Flow |
15 l/min |
| Pressure Drop at Nominal Flow |
0.04 bar |
| Maximum Temperature (stored hot water) |
85°C |
| Maximum Temperature (circulating) |
85°C |
| Body Material |
CW510L (brass) |
| Anode Material |
Zn2 DIN EN 1179 (zinc) |
| Internal Agitator Material |
1.4301 (stainless steel) |
| Seals |
PTFE |
| Power Required |
None |
| Chemicals Required |
None |
| Maintenance Required |
None |
| Service Life |
7 years |
| Certifications |
DVGW W 270 (Winner 2023), TÜV Nord, ACS (France), OFI (Austria), WRAS (UK) |
| Country of Manufacture |
Germany |
| Manufacturer's Warranty |
5 years |
| Satisfaction Guarantee |
1-year 100% money-back guarantee |
| MPN |
AB-S20 |
| Trade Code |
HTBIONS20 |
Frequently Asked Questions
Why do I need the S20 rather than the S15?
The S20 is the correct choice for homes with a 22mm incoming mains supply and/or households where two or more showers regularly run at the same time. The S15 would be undersized for this demand, meaning water flows through too quickly for the zinc ions to work optimally. Conversely, if your mains is 15mm, the S20 would be oversized — use the S15 instead. Correct sizing is essential for full effectiveness.
Will I still see limescale deposits after installation?
Yes, but in a very different form. Treated limescale (aragonite) is soft and non-adhering — it wipes away from shower screens, kettle elements, and tap surfaces with a damp cloth, without scrubbing or acid cleaners. Over weeks and months you should notice progressively easier cleaning as the S20 also gradually softens existing deposits already in your system.
Does it work with my boiler and heating system?
Yes — the Aquabion S20 is compatible with all domestic and light commercial boiler types: combi, system, and heat-only, as well as unvented cylinders. It protects the entire water-side of your heating system, including the heat exchanger, pipework, and radiators, from limescale build-up.
Is it safe to drink the water after treatment?
Yes — the Aquabion S20 is WRAS approved for use on drinking water supplies. The trace zinc introduced is well within WHO safe drinking water guidelines (maximum 3 mg/l). No sodium is added. It is safe for babies, pregnant women, and anyone managing sodium intake — unlike salt-based water softeners.
How does it differ from a magnetic or electronic limescale conditioner?
Magnetic and electronic conditioners rely on external fields applied to the outside of the pipe — effects that are temporary, disputed by independent testing, and lost once the water moves away from the field. Aquabion's galvanic reaction occurs within the water itself, producing a permanent physical change to the calcium crystal structure that persists throughout the water's passage through your system. Independent test results (freely downloadable on the Aquabion UK website) confirm this effectiveness — something that cannot be said for field-based alternatives.
Do I still need to descale my kettle and appliances?
You will still see deposits form, but in the soft aragonite form rather than hard calcite. Most users find they can simply wipe away soft deposits with a cloth and no longer need chemical descalers. For occasional stubborn build-up (particularly in the transition period as existing hard scale is displaced), a mild acid such as diluted white vinegar will dissolve aragonite quickly.
What happens at the end of the 7 years?
As the zinc anodes gradually deplete over 7 years of normal use, the unit's effectiveness slowly reduces. Aquabion UK recommends replacement at 7 years. The old unit can be returned through the end-of-life programme for reconditioning, and a discount is typically offered on the replacement unit. The unit does not fail suddenly — it simply becomes progressively less effective as the anode mass is consumed.
Can the Aquabion S20 be used in commercial premises?
Yes — the domestic S20 is built to the same commercial-grade specification as the larger Aquabion commercial units. It is used in small hotels, guest houses, restaurants, and offices where flow rates fall within its operating range. For higher flow commercial applications, Aquabion produces a full range of commercial models (H20, H25, H40 and above) — contact your distributor for commercial sizing advice.
What's in the Box
- 1× Aquabion S20 water conditioner unit
- Earthing cable and earthing straps (must be installed as per instructions)
- Installation instructions
⚠️ Important Notes: Installation must be carried out by a competent plumber. The earthing cable and straps supplied must be connected as instructed — required for correct galvanic operation and BS 7671 equipotential bonding compliance. Compression or threaded fittings for connection to your pipework are not included. The S20 has female threaded connections — ensure appropriate male adaptors are available. Do not install the S20 on a 15mm mains supply — use the Aquabion S15 for 15mm pipework. The S20 should not be used where peak simultaneous demand is one standard shower — oversizing reduces performance. Not suitable for fish pond or aquarium water supply. For higher-flow commercial applications, contact your Aquabion distributor for commercial model sizing.
