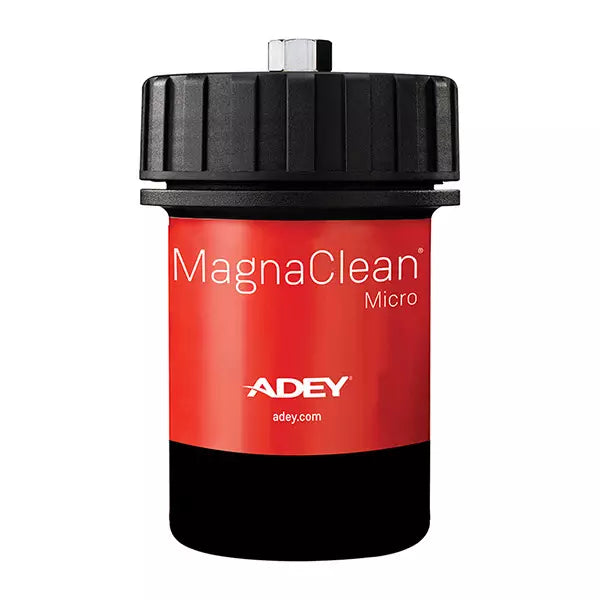

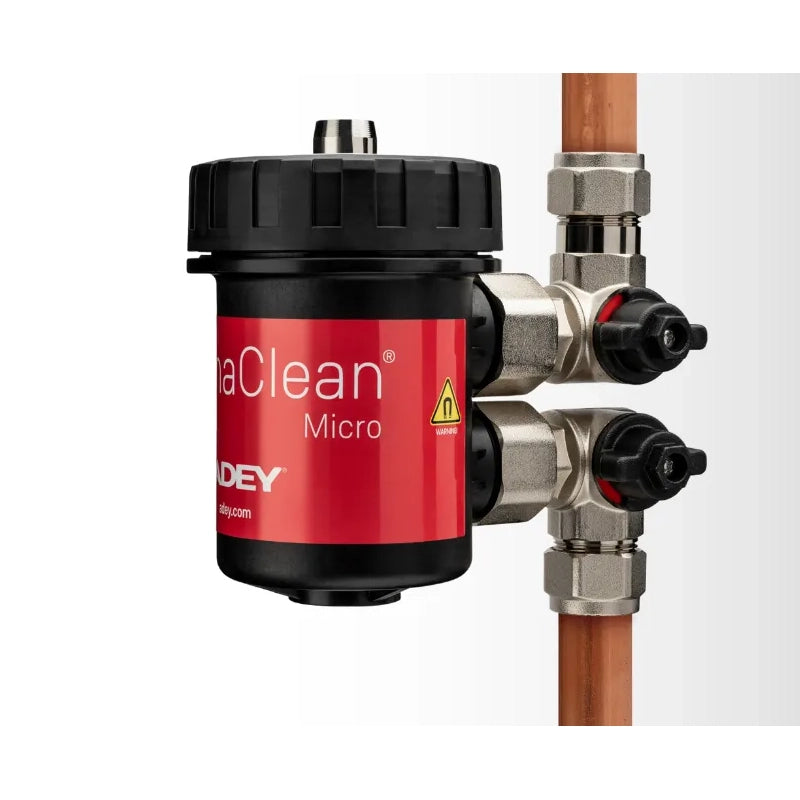

ADEY MagnaClean Micro Black 22mm System Filter
The ADEY MagnaClean Micro Black 22mm System Filter is a compact, high-performance magnetic filter designed for domestic central heating systems, especially where space is limited. It provides ongoing protection against black iron oxide sludge and non-magnetic debris, helping to extend your system’s operational life, reduce maintenance and energy bills, and lower carbon emissions.
Key Features
- Ultra-compact design – ideal for tight installations and small spaces
- Effective magnetic and non-magnetic debris capture

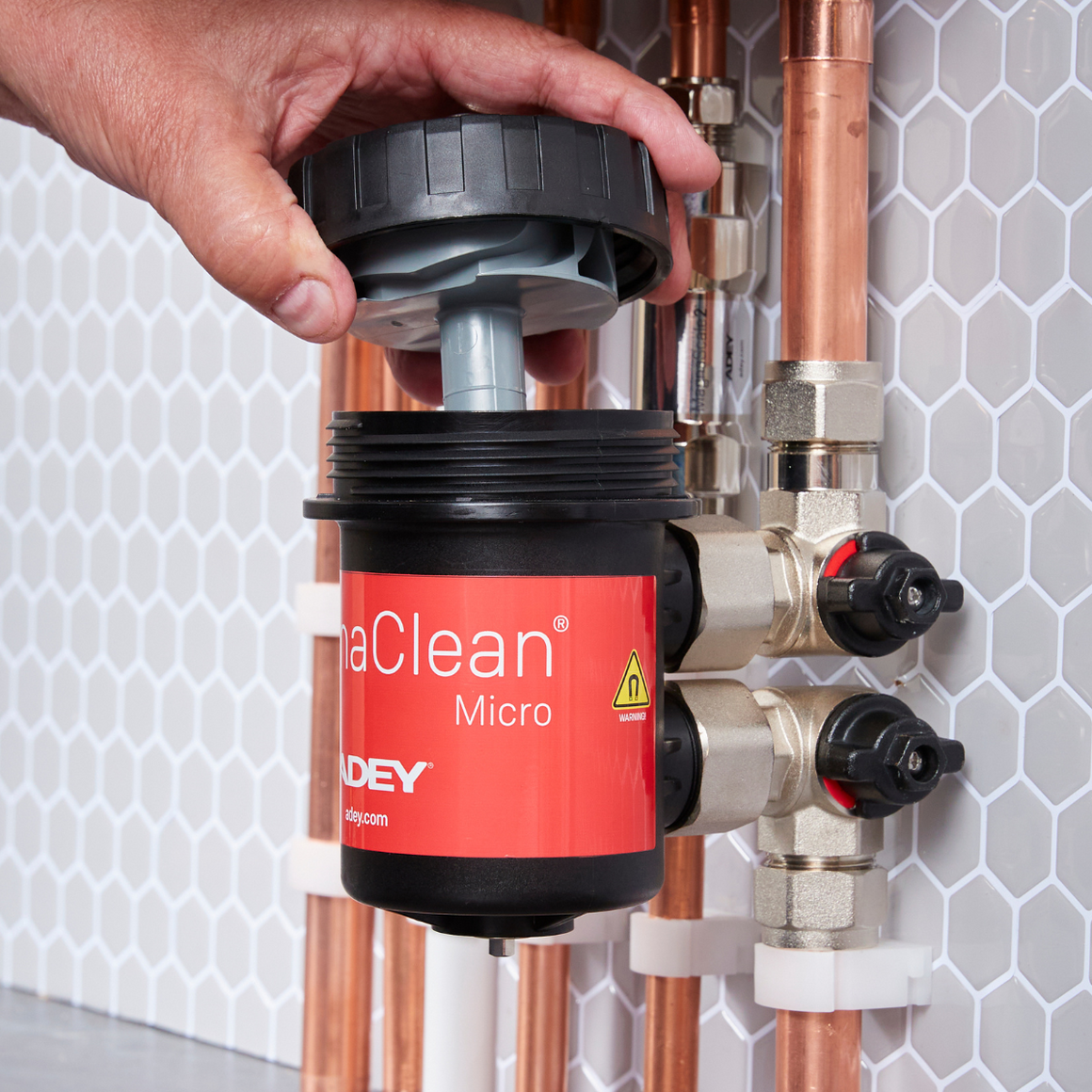

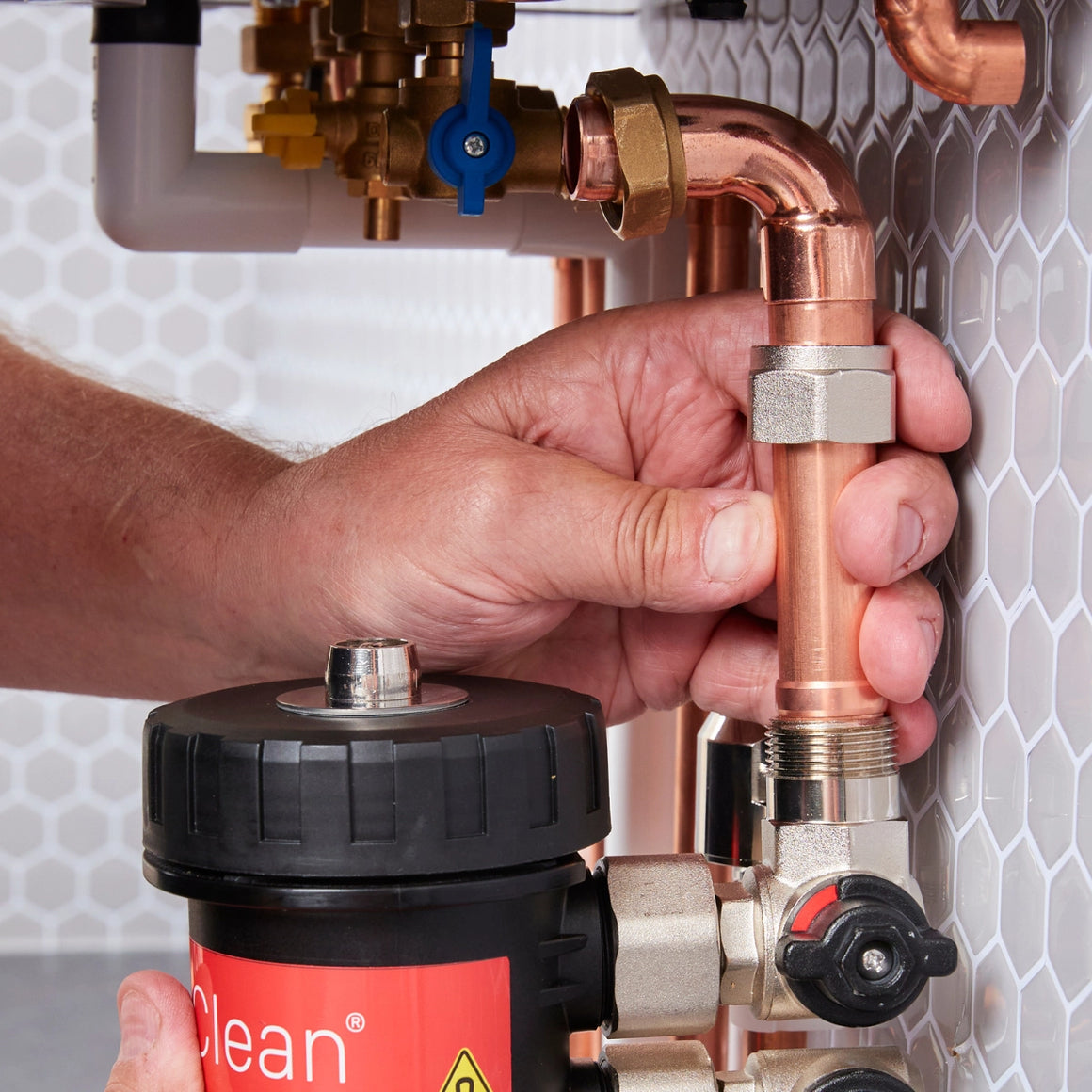

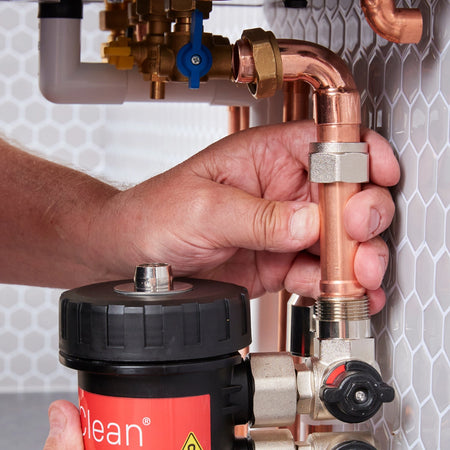

- Simple, quick fitting and effortless servicing
- Reduces household heating bills by up to 6% annually
- Quick and easy chemical dosing through the filter
- Helps extend the life of your heating system and boiler
- Suitable for all domestic wet heating systems
Technical Specifications
| Manufacturer Part Number | FL1-03-07129 |
|---|---|
| Connection Size | 22mm compression |
| Maximum Operating Pressure | 6 bar |
| Maximum Operating Temperature | 95°C |
| Body Material | Glass-reinforced nylon |
| Magnet Housing | Stainless steel |
| Magnet Length | 97.5 mm |
| Magnet Diameter | 19 mm |
| Valve Material | Nickel-plated brass with PTFE ball seals |
| Fluid Capacity | Approx. 250 ml |
| Height | Approx. 151 mm |
| Diameter | Approx. 98 mm |
| Finish/Colour | Black |
| Warranty | 1 year (subject to manufacturer’s terms and conditions) |
| EAN | 5060106370044 |
Benefits
- Protects boilers, radiators, and pipework from sludge and blockages
- Improves heating system efficiency and reliability
- Easy access for servicing and chemical dosing
- Helps meet boiler warranty requirements
Choose the ADEY MagnaClean Micro Black 22mm System Filter for reliable, space-saving protection of your central heating system.
- Type Boiler filters
- Vendor ADEY
- SKU MICROMAG
