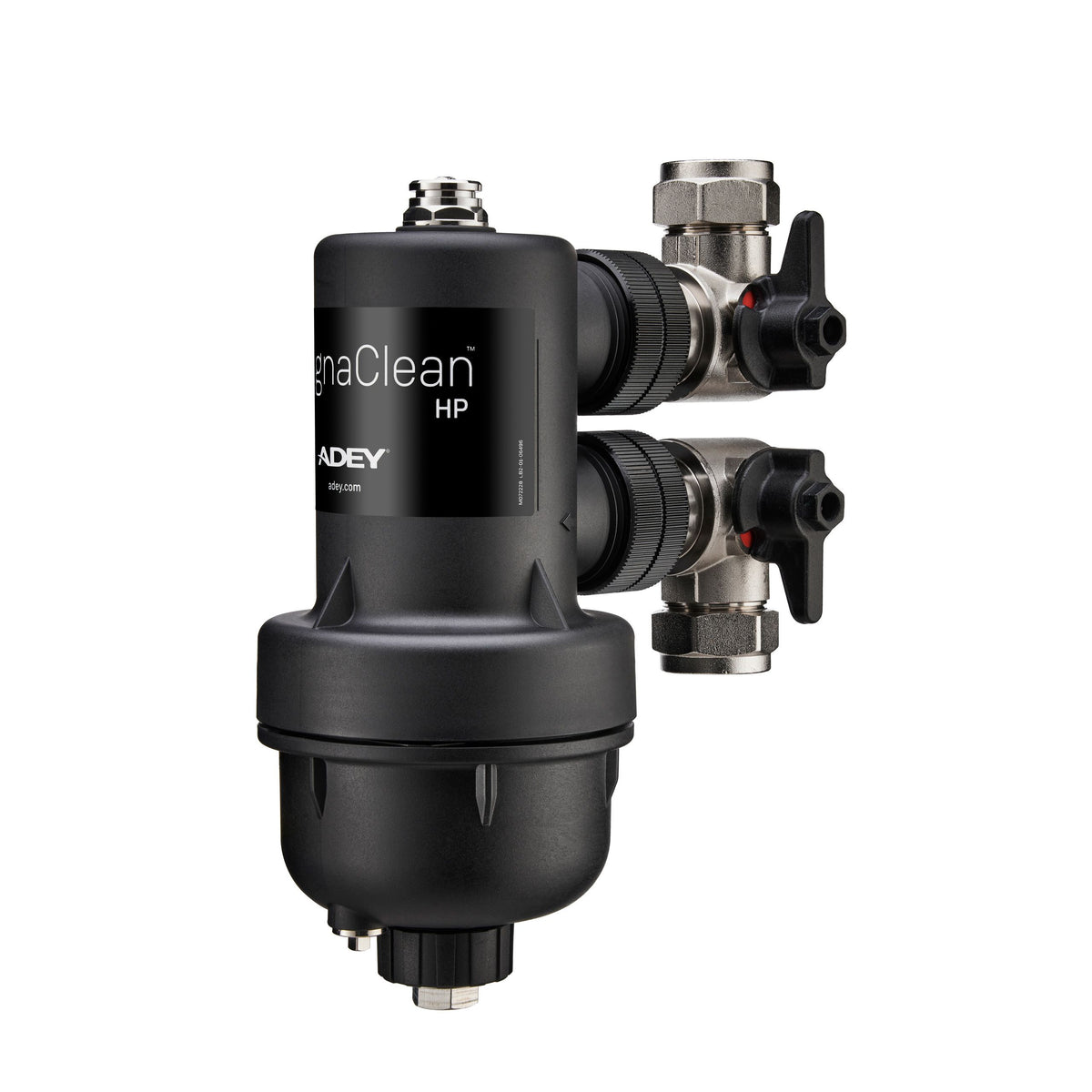

ADEY MagnaClean HP 28mm Filter for Heat Pumps & Low Temperature Systems

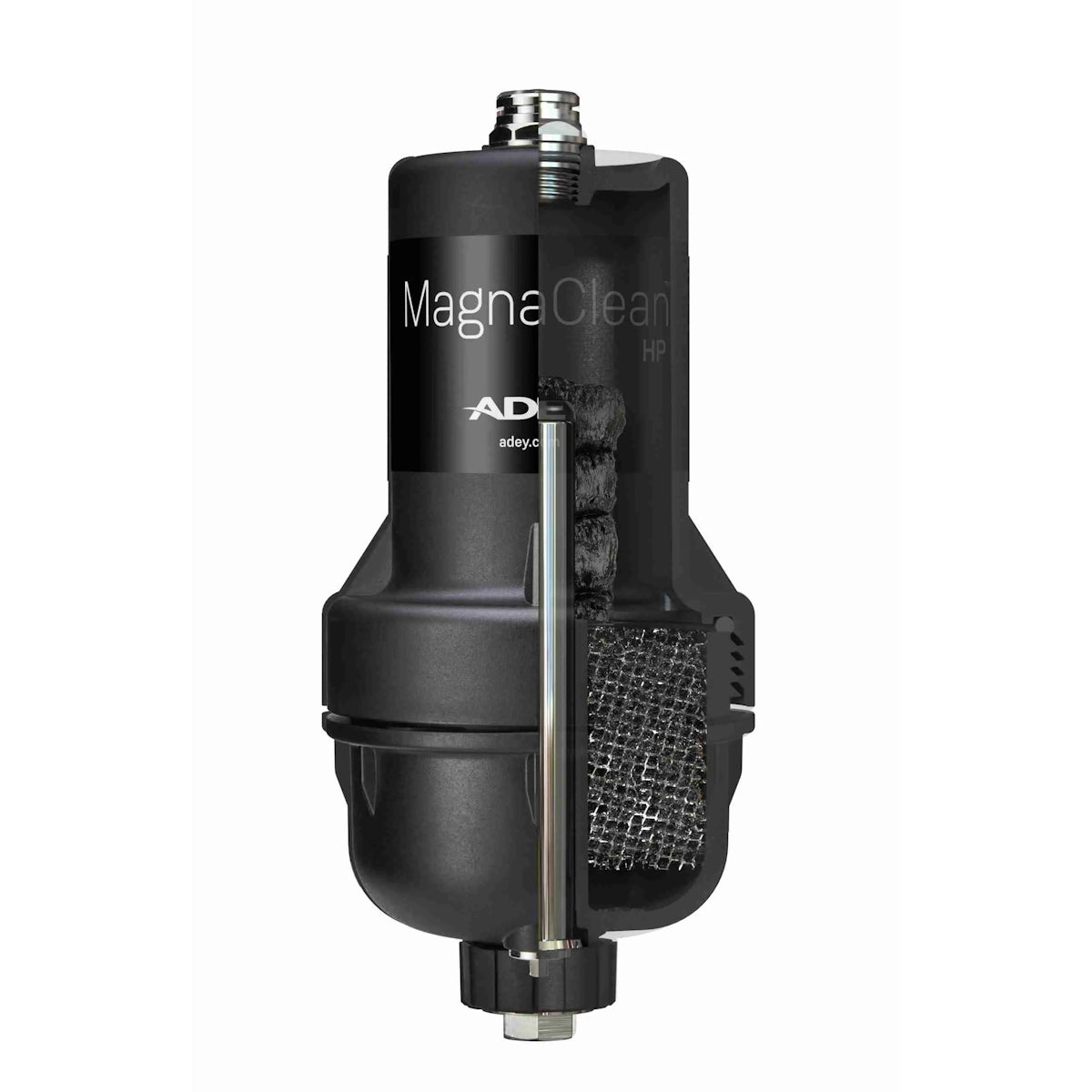

The ADEY MagnaClean HP 28mm Filter is a high-performance magnetic and non-magnetic filter designed specifically for heat pumps, renewable, and low-temperature heating systems. It provides advanced protection by capturing both magnetic sludge and non-magnetic debris, ensuring your system runs efficiently and reliably while extending its lifespan.
Key Features
- Specially engineered for heat pumps, underfloor heating, and low-temperature systems
- Dual-action: captures magnetic (iron oxide) and non-magnetic debris
- Incorporates ADEY CycloFlow™ Technology for enhanced water flow and first-pass capture
- Non-blocking design maintains system flow, even when full
- High flow rate capability with minimal pressure drop
- Stainless steel gauze for efficient biological film removal
- Easy-to-use one-way valve for simple chemical dosing
- Quick and straightforward installation and servicing
- Large canister ports and 28mm compression fittings
- 10-year warranty (subject to manufacturer’s terms and conditions)
Technical Specifications
| Application | Heat pumps, low-temperature, and renewable heating systems |
|---|---|
| Connection Size | 28mm compression |
| Maximum Operating Pressure | 6 bar |
| Maximum Flow Rate | Up to 80 litres/minute |
| Maximum Operating Temperature | 95°C |
| Body Material | Glass-reinforced nylon |
| Height | 250.5 mm |
| Width at Lid | 115 mm |
| Installation | Indoor, return pipe (recommended) |
| Warranty | 10 years (registration required) |
| EAN | 5060106370128 |
Benefits
- Protects heat pump and low-temperature systems from damaging sludge and debris
- Maintains system efficiency and reduces risk of costly breakdowns
- Minimises maintenance call-outs and extends the operational life of your heating equipment
- Supports compliance with best practice for renewable and modern heating systems
Choose the ADEY MagnaClean HP 28mm Filter for proven, long-term protection of your heat pump or low-temperature heating system.
- Type Boiler filters
- Vendor ADEY
- SKU MAGNAHP
