ADEY ElectroScale2 15mm Scale Reducer | SR1-03-05214 | WRAS

Description

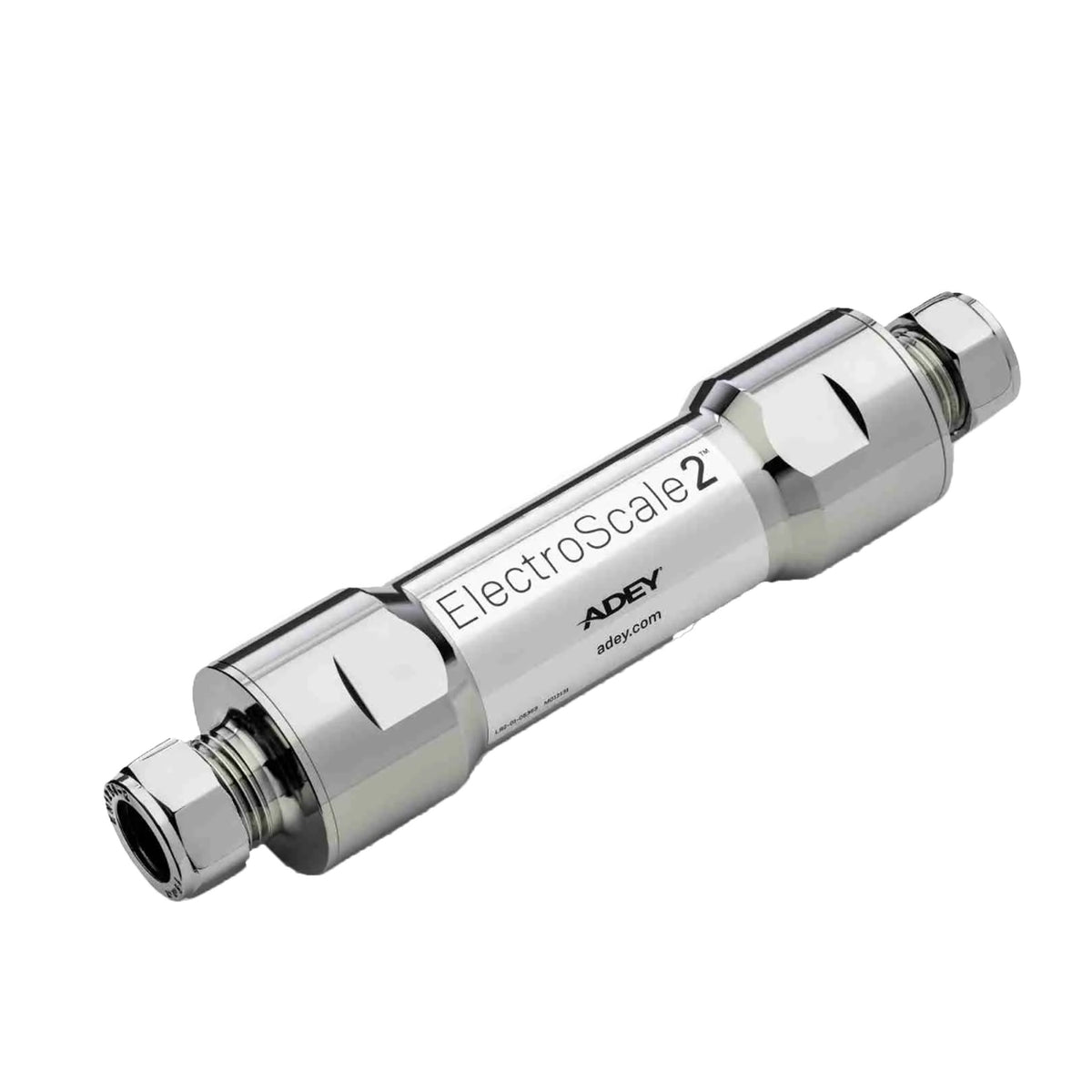

The ADEY ElectroScale2 15mm Compression Scale Reducer (SR1-03-05214) is a non-polluting electrolytic water conditioner that delivers whole-house protection against limescale in homes and small commercial properties. As water passes through its internal electrolytic cell, the crystal structure of the limescale is altered, making it less likely to stick to pipes and other surfaces and helping to protect your boiler and hot water system.

Designed for properties where water hardness is above 200 ppm, ElectroScale2 needs no mains power and no servicing – a genuine fit-and-forget solution backed by a 10-year warranty. The 15mm copper compression connection (BS EN 1254-2) with two easy-grip spanner flats fits standard 15mm copper pipework, and the unit can be installed on horizontal or vertical pipework.

Installation meets the requirements of Part L of the Building Regulations, which state that provision must be made to treat the feed water to water heaters and the hot water circuit of combination boilers to reduce the rate of limescale accumulation. The unit is WRAS approved and KIWA approved.

15mm

Copper compression

10 bar

Max working pressure

10 yr

Manufacturer warranty

>200 ppm

Hard water areas

WRAS

Approved

599 g

Unit weight

Best protection: where to fit it

For the best limescale protection, install ElectroScale2 on the incoming cold water supply, after the water meter and any primary filter (if fitted), so that everything downstream is protected.

Cold feed only

ElectroScale2 is rated for cold feed use only and has a minimum working temperature of 3°C. Do not fit it on hot water pipework, and do not solder near the unit – flux residue and heat may cause damage.

Regulations and earth continuity

Fit in accordance with WRAS installation requirements and use only WRAS-approved jointing compounds. Where required by current wiring regulations, fit a suitable earth bonding cable to bypass the unit to maintain earth continuity. Installation by a qualified heating engineer is recommended.

Key Features

Electrolytic scale reduction

An internal electrolytic cell alters the crystal structure of limescale as water flows through, so it is less likely to adhere to pipes and surfaces.

No power, no running costs

ElectroScale2 does not require an electrical supply, so there are no running costs and nothing to wire in.

Whole-house protection

Fitted on the cold supply, it provides immediate, long-term limescale protection for the whole house or small commercial property.

Robust and easy to fit

Corrosion-resistant compact design with an external copper body and two easy-grip spanner flats to make tightening simpler.

Horizontal or vertical

Suitable for both horizontal and vertical pipework, giving you flexibility on tight or awkward pipe runs.

Approved and warranted

WRAS approved, KIWA approved, Part L compliant installation and a 10-year warranty for true fit-and-forget peace of mind.

Technical Specifications

Product

Brand

ADEY

Range

ElectroScale2

Manufacturer part code

SR1-03-05214

Product type

Electrolytic scale reducer (water conditioner)

Connection and Materials

Connection

15mm copper compression to BS EN 1254-2

Body

External copper body

End caps

Low-lead brass

Internal element

Zinc anode

Power supply

None required

Operating Limits

Maximum working pressure

10 bar

Maximum operating temperature

Cold feed only

Minimum operating temperature

3°C

Pressure drop

80 mbar at 25 L/min

Suitable water hardness

Above 200 ppm

Orientation

Horizontal or vertical pipework

Dimensions and Weight

Length

180 mm

Diameter

39 mm

Weight

599 g

Approvals and Warranty

Approvals

WRAS approved; KIWA approved

Building Regulations

Installation meets Part L requirements

Warranty

10 years

Installation Notes

Manufacturer guidance at a glance

1. Turn off the water supply and drain the system.
2. Ensure the unit is supported and braced rigidly.
3. Hold the unit on its flats while tightening – hand tighten the nuts, then a further ½ to 1 turn with a suitable spanner, or tighten the 15mm nuts to 35 Nm. Do not over-tighten.
4. Reconnect the water supply and check for leaks.
Also: where possible, avoid reusing old pipes, and fit a pressure reducing valve on the incoming mains to maintain constant water pressure.

Frequently Asked Questions

Where should I install the ElectroScale2?

For the best protection, fit it on the incoming cold water supply after the water meter and any primary filter. It can be installed on horizontal or vertical pipework.

Can I fit it on hot water pipework?

No. ElectroScale2 is rated for cold feed only. Fit it on the cold supply that feeds your water heater, cylinder or combination boiler.

Does it need power or maintenance?

No. It requires no electrical supply and is a maintenance-free, fit-and-forget product with a 10-year warranty.

Do I need an earth bonding cable?

Where required by current wiring regulations, a suitable earth bonding cable should be fitted to bypass the unit to maintain earth continuity. Check the latest national or local wiring regulations and consult your electrician if unsure.

Is it suitable for soft water areas?

ElectroScale2 has been designed for properties where water hardness is above 200 ppm. If you are unsure of your local hardness, check with your water supplier before choosing.

Is a 22mm version available?

Yes. ElectroScale2 is also made in a 22mm compression version. This page covers the 15mm model, so choose the size that matches your incoming pipework.
