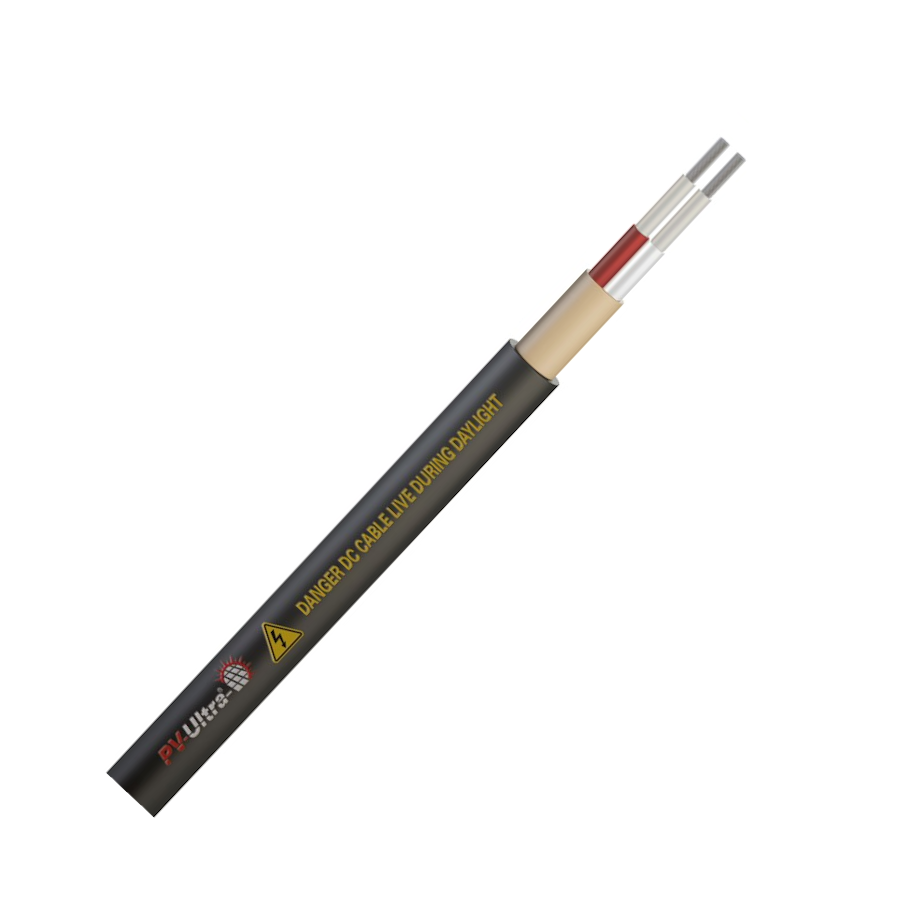

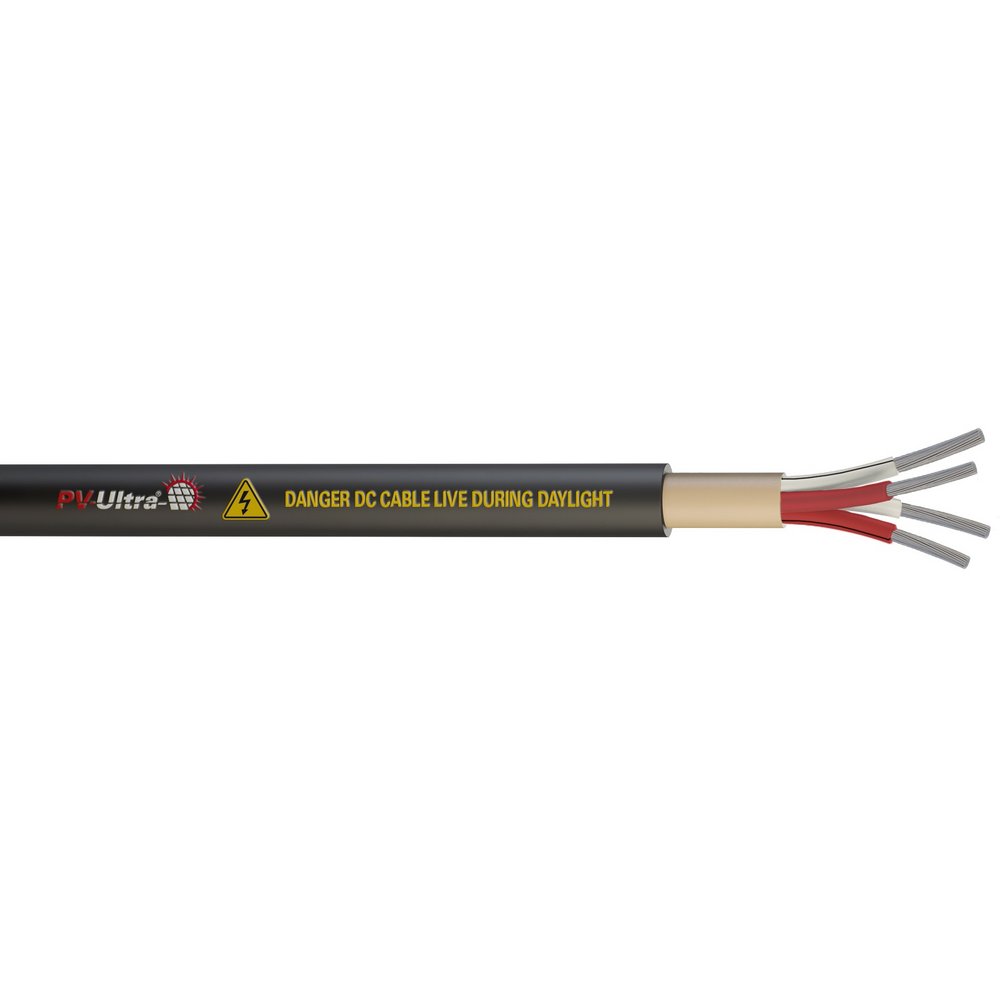

6mm2 Four Core DC Cable 25m, SolarTek, PV Ultra Tuff Sheath Solar Cable

6mm2 Four Core DC Cable 25m - Two Red and Two Black

Key Features:

• Conductor Cross-Section: 6 mm² per core — supports efficient current flow with minimal voltage drop.
• Four Core Design (Two Red and Two Black cores) — ideal for multiple DC circuits or balanced load connections in PV systems.
• Maximum Voltage: 1800 V DC — designed for high-voltage photovoltaic (PV) system requirements.
• Rated Current: Up to 57 A — suitable for demanding DC power applications.
• Operating Temperature Range: -40°C to +90°C (withstanding up to 120°C for limited hours) — ensures reliable operation in harsh environments.
• Double Insulated, Low Smoke Halogen Free (LSHF) XLPE Sheath — provides excellent fire safety, UV resistance, and chemical protection.
• Flexible Tinned Copper Conductors — facilitates easy installation and long-term durability.
• CarbonTek® Bedding and SolarTek® Outer Sheath — enhances mechanical protection and longevity.
• Colour Coding: Two cores red, two cores black for clear and safe polarity identification.
• Complies with EN 50618 (H1Z2Z2-K) Standard — ensures suitability for photovoltaic DC systems.
• Built-in high-tensile rip cord — simplifies cable stripping without damaging conductors.

Why Buy This Cable?

This 6mm² four core DC cable provides a high-quality solution for complex solar PV installations requiring multiple live conductors. Its robust construction and double insulation meet the latest safety and performance standards, including low smoke, zero halogen, and high-temperature tolerance. Designed for ease of installation and longevity, it reduces the need for additional conduit or junction boxes, saving installation time and cost. Ideal for professional solar PV installers and renewable energy projects that demand reliable and safe DC power cabling.

Technical Specifications:
